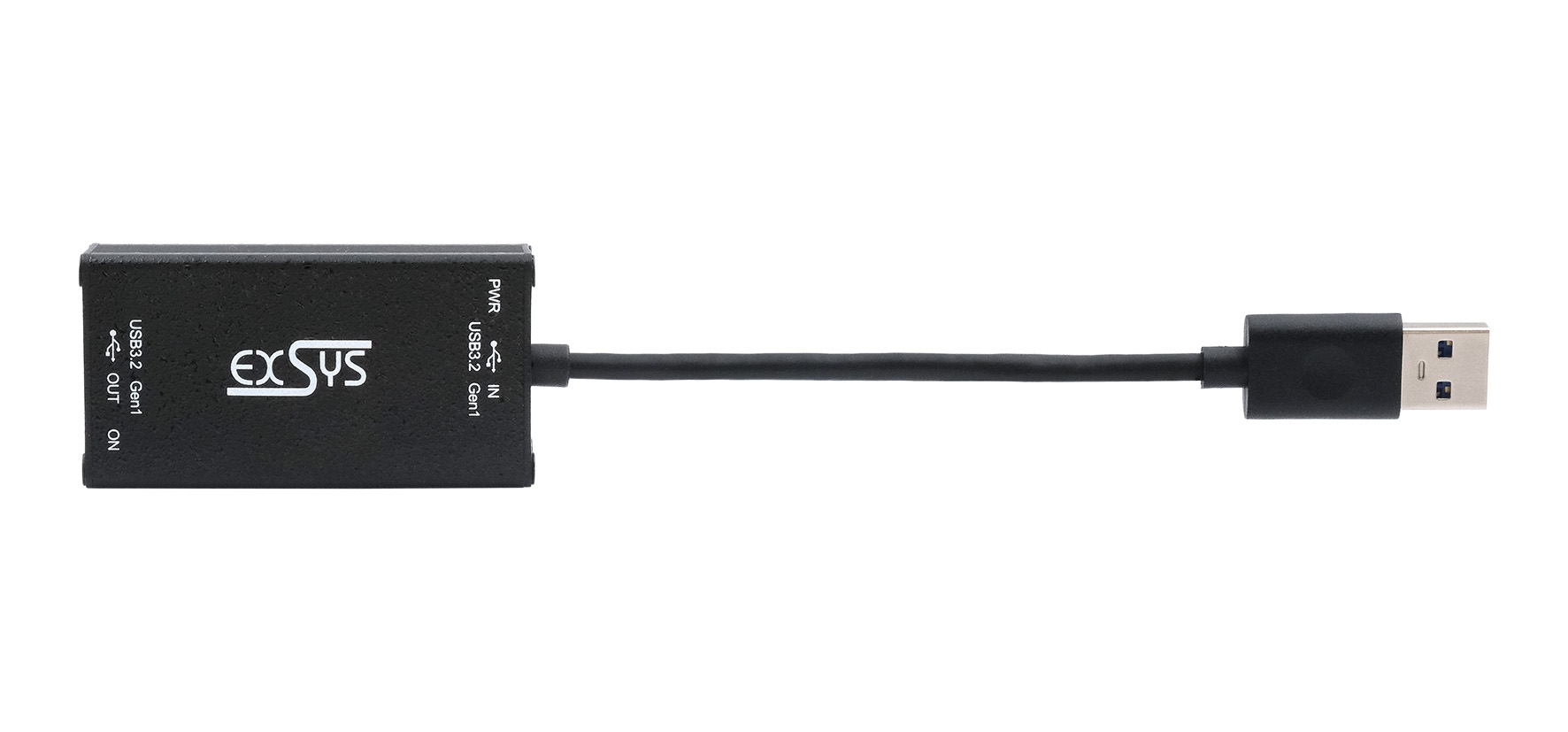

1-Port USB 3.2 Gen 1 Managing Adapter with 15KV ESD Surge Protection (DIN-Rail)

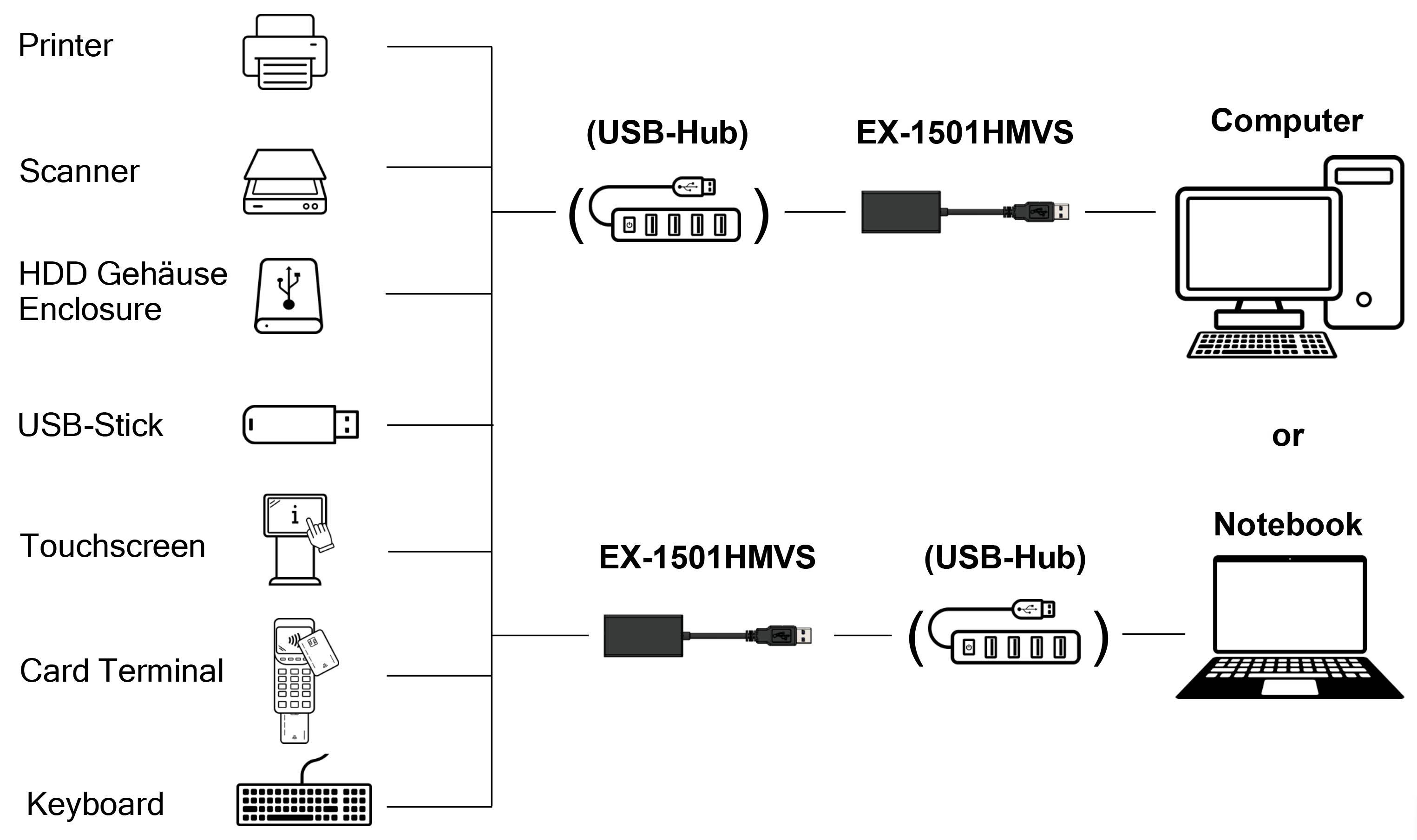

The EX-1501HMVS-A is a single port USB 3.2 Gen 1 managing adapter with extensive and unique features for industrial applications. It provides advanced port management for use in automation, industrial and office applications, either as a stand-alone application or as an extension to an existing USB hub. Thanks to its well-designed housing, the EX-1501HMVS-A can be mounted on the wall, under a table or on a DIN rail.
Management:
Free Management software is available for download for our Managed USB-Hubs and adapters, allowing you to switch the USB bus voltage on and off for each USB port or reset the device to its factory settings. The managed USB hubs/adapters have flash memory in which the desired start state can be stored. Various utilities are available for the Windows, Intel x86-64, ARM-based Linux and macOS operating systems. These utilities work seamlessly with application software written in languages such as C#, C++, VB, Python and PHP. The API utility (Windows) facilitates integration with existing application software by formatting JSON commands to ensure effortless compatibility and interoperability.
We will be happy to send you the API utility upon request. Just klick here.
- Single-port USB 3.2 Gen 1 managing adapter, up to 5Gbps
- Screw-lock USB-A downstream port
- Supports software utilities for Windows and Linux
- 15KV ESD overvoltage protection
- Powered by USB bus: no external power supply required
- Supports USB Battery Charging Specification v1.2 (SDP, CDP, DCP) and Apple 2.4A and Samsung AFC
- Automatic detection of the data transfer rate of connected peripherals

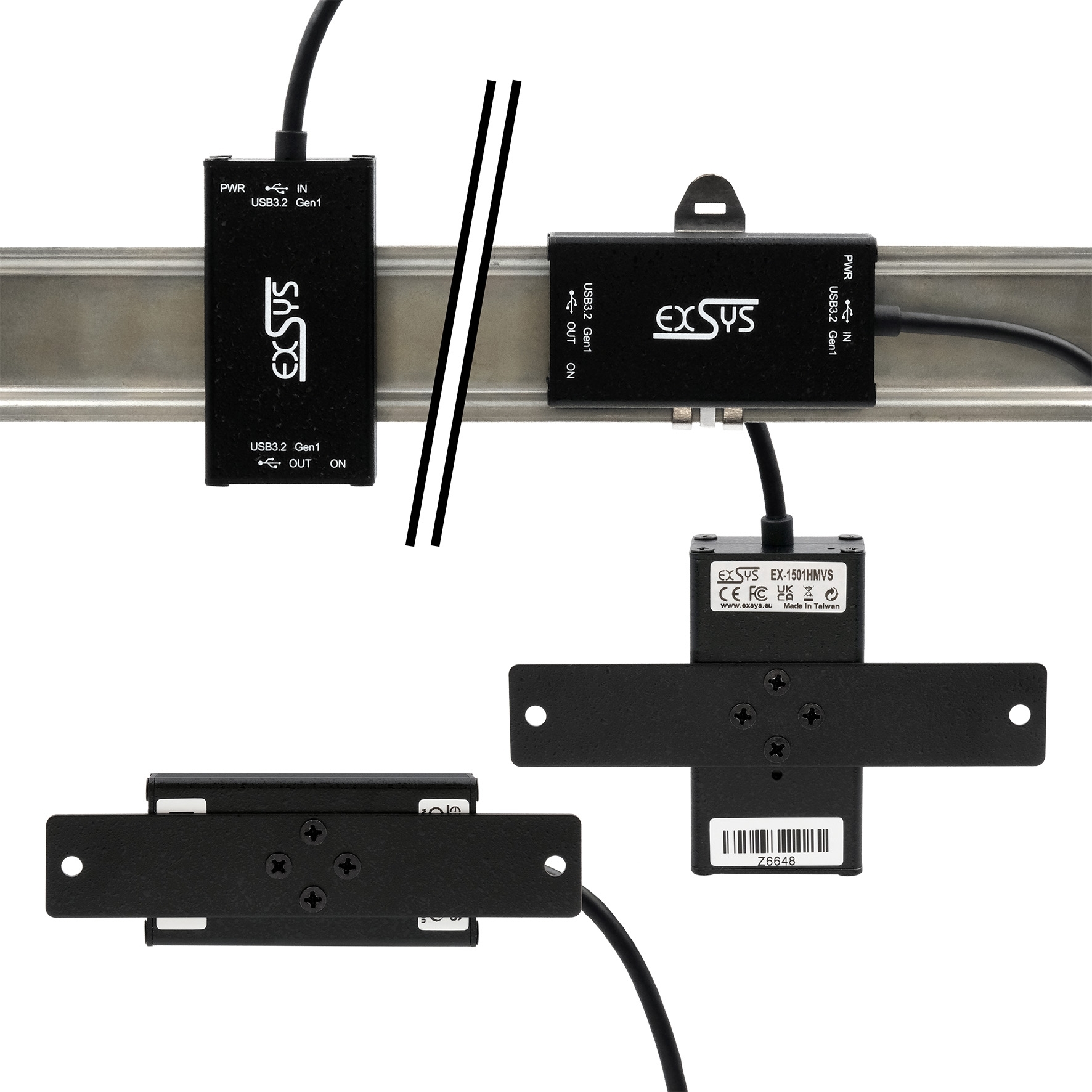

- Robust metal housing for desktop, wall or rack mounting
- LED voltage indicator for upstream and downstream port
- Chipset: Genesys GL3523S

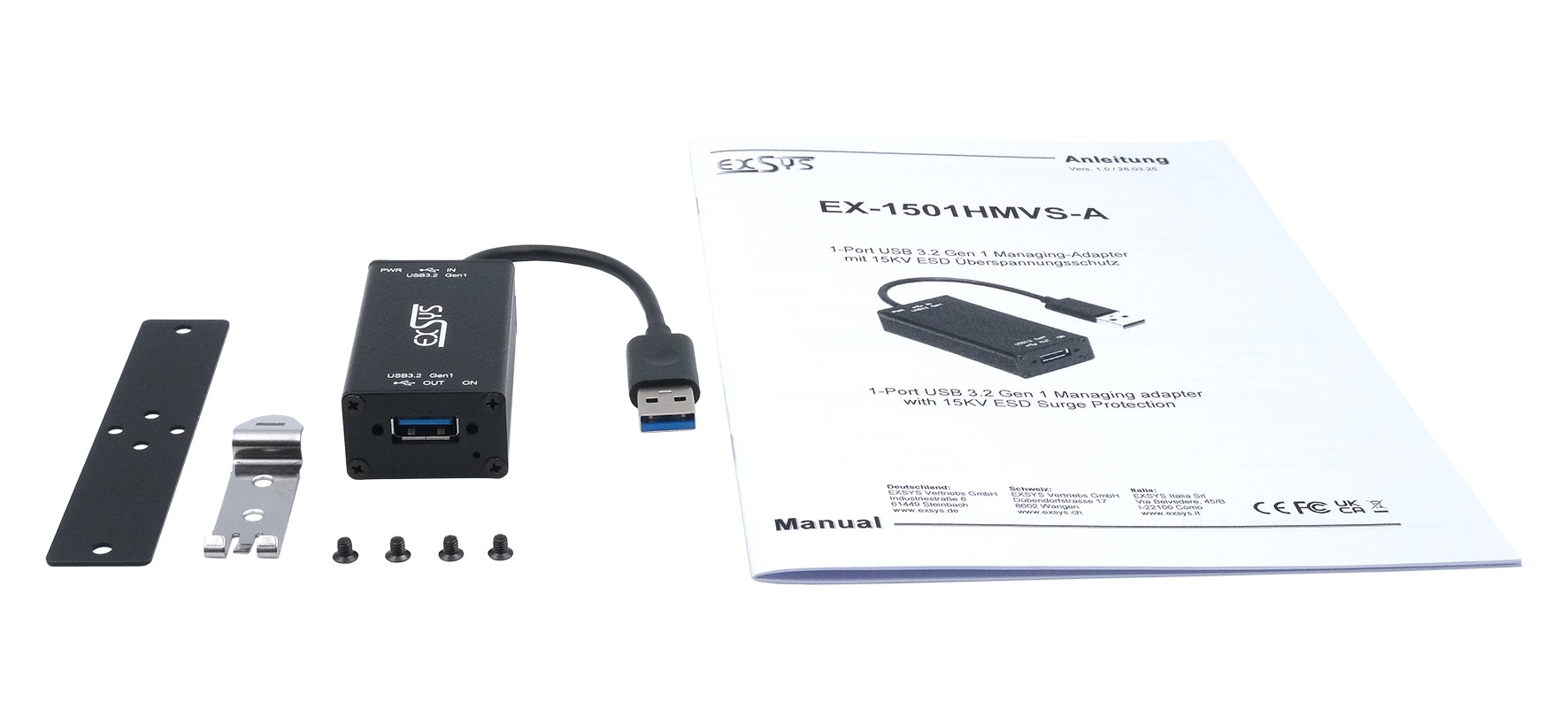

Delivery contents:
EX-1501HMVS-A, DIN-Rail Kit, wall bracket, manual
| Application: | Industrial |
|---|---|
| Cable length: | 0.1m |
| Colour: | black |
| Data transmission: | 5Gbps |
| Housing: | Metal |
| Inputs: | USB-A plug |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 1 |
| Outputs: | 1x USB-A socket |
| Power connection: | Bus power |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
