PCIe 8S Serial RS-232/422/485 Metal box incl. LP bracket (SystemBase)
Product number:
EX-47045E
GTIN/EAN:
4718359470455
PCIe 8S Serial RS-232/422/485 Metal box incl. LP bracket (SystemBase)

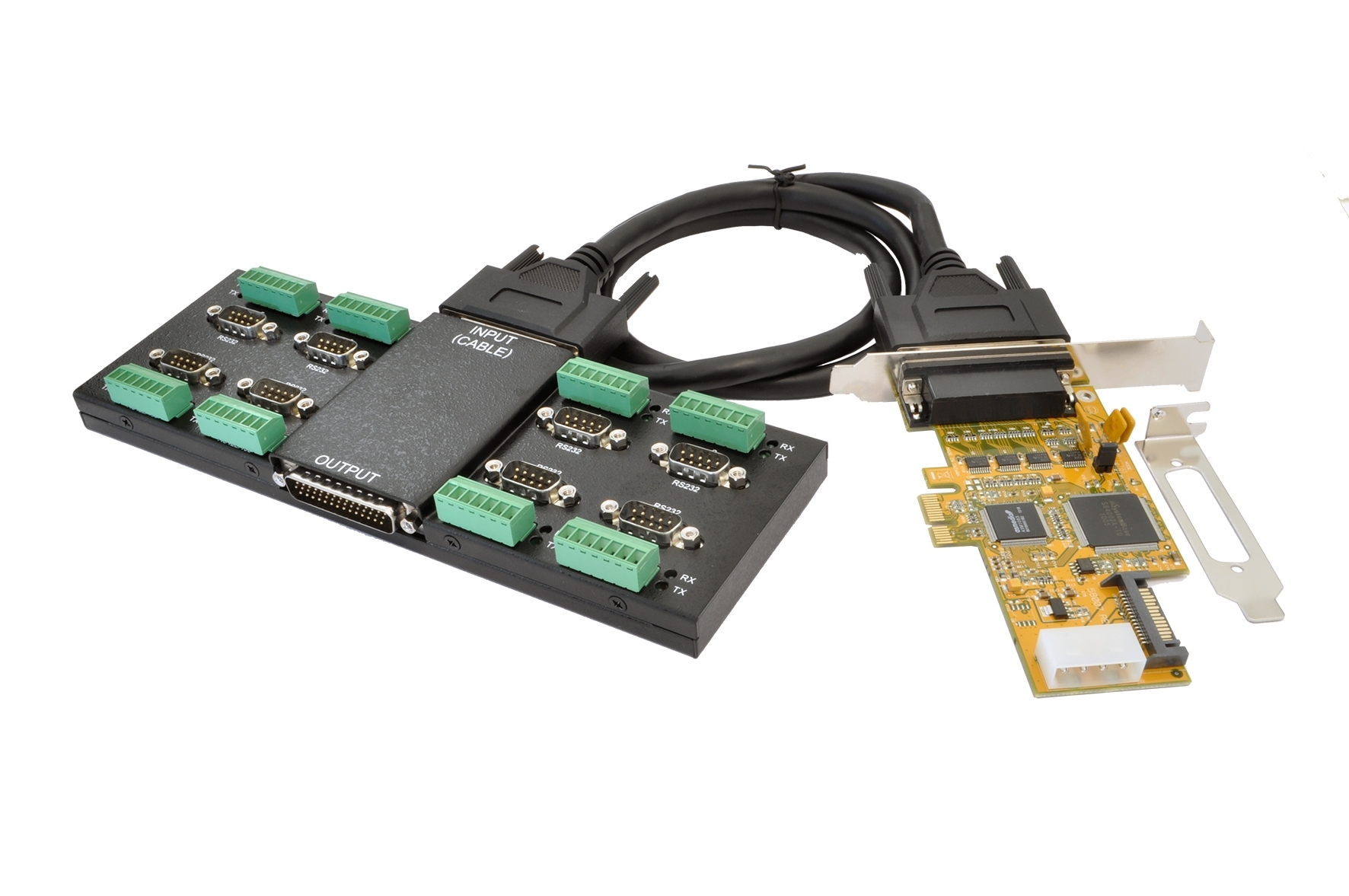

The EX-47045E PCIe I/O module provides eight serial RS-232 , 422 and 485 high performance UART 16C1050 outputs. Each port can be independently set the interface type. It is designed to expand eight additional serial combo ports for PC, workstation or server via PCIe bus. The module is fully PCIe Vers. 1.0 to 3.0 plug-and-play compatible and has no conflicts with IRQ and I/O addresses. It supports the ATTA Auto RS-485 transmitter features. The EX-47045E can be expanded up to 32 ports with the EX-47049 add-on module. In addition, a low profile bracket is included for narrow PC chassis.
- Interface: 8x RS-232 V.24, RS-422/485 - independent mode selection
- FIFO Buffer: 16C1050 with 256Byte
- RS232 signal support 15KV ESD Surge Protection
- Data Bits: 5, 6, 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
- Support ATTA Auto Transmitter
- Terminator RS-422/485 - 120 Ohm can be enable– and disable
- Expandable up to 32 ports (optional with EX-47049)
- Wall– and DIN-Rail mounting kit
- Supports TX and RX activity LED
- Signal:
- RS-232 - TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- RS-422 - 4 wire (TXD+/-, RXD+/-) (Fullduplex)
- RS-485 - 4 wire (TXD+/-, RXD+/-) (Fullduplex)
- RS-485 - 2 wire (Data+/-, Data+/-) (Halfduplex)
- Chipset: SystemBase
Packaging contents:
EX-47045E, PCIe adapter card, 44 pin cable, Low Profile bracket, wall mount and DIN-Rail Kit Driver CD, manual
| Bus system: | PCIe x1 |
|---|---|
| Connections: | 7-pin Terminal Block |
| Interface: | RS-232/422/485 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 8 |
