Smallest 4-Port USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection, A-Ports
The rugged industrial-grade EX-1180HMS is the smallest USB 3.2 Gen 1 metal hub for up to four end devices. The hub provides four USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to four external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. By supplying power through the two-wire terminal block connector, 1A can be provided to each USB port. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The EX-1180HMS can be powered by USB bus power or via a two-wire terminal block connector (+5V). The HUB meets the special requirements of industrial applications.
- USB 3.2 Gen 1 Metal HUB with 4 Ports
- 15KV ESD Surge Protection for all 4 Ports
- Protection of Devices against voltage fluctuation
- Power +5V DC over the Terminal Block
- Power supply optionally also from the USB-Bus +5V (Bus-Power)

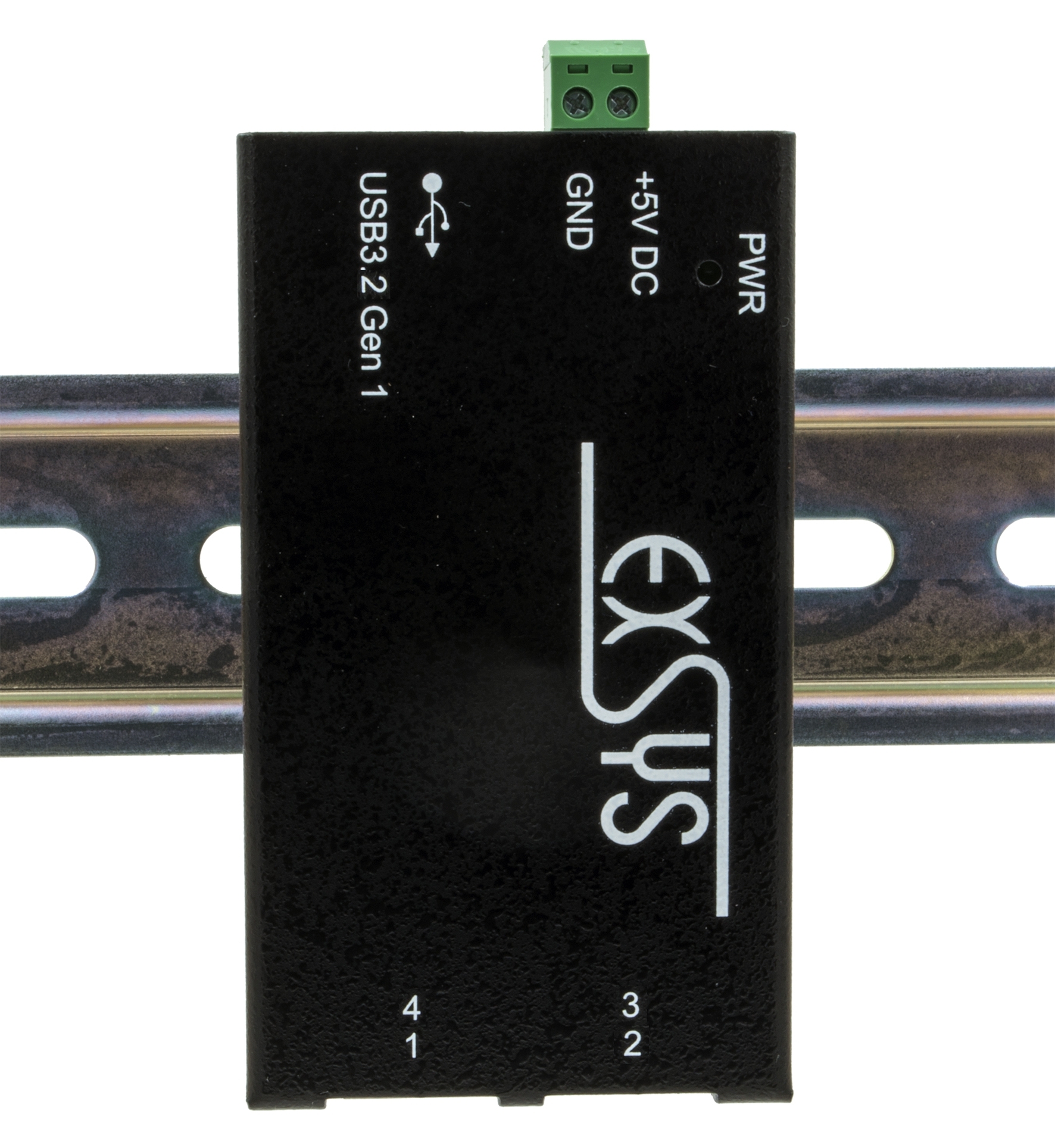

- Easy installation with the included DIN-Rail Kit
- Automatic recognition the data transfer rate for the attached external devices
- Up to 2.3A current at one port, 1A when all ports in use simultaneously (max. output 20W)
- Automatic detection of input polarity on the current terminal block
- Rugged Metal Case
- 1x LED Power-Indicator
- Internal jumper for individual control of power supply:
- ENA = bus power operation possible
- DIS = operation with power supply only (self power)

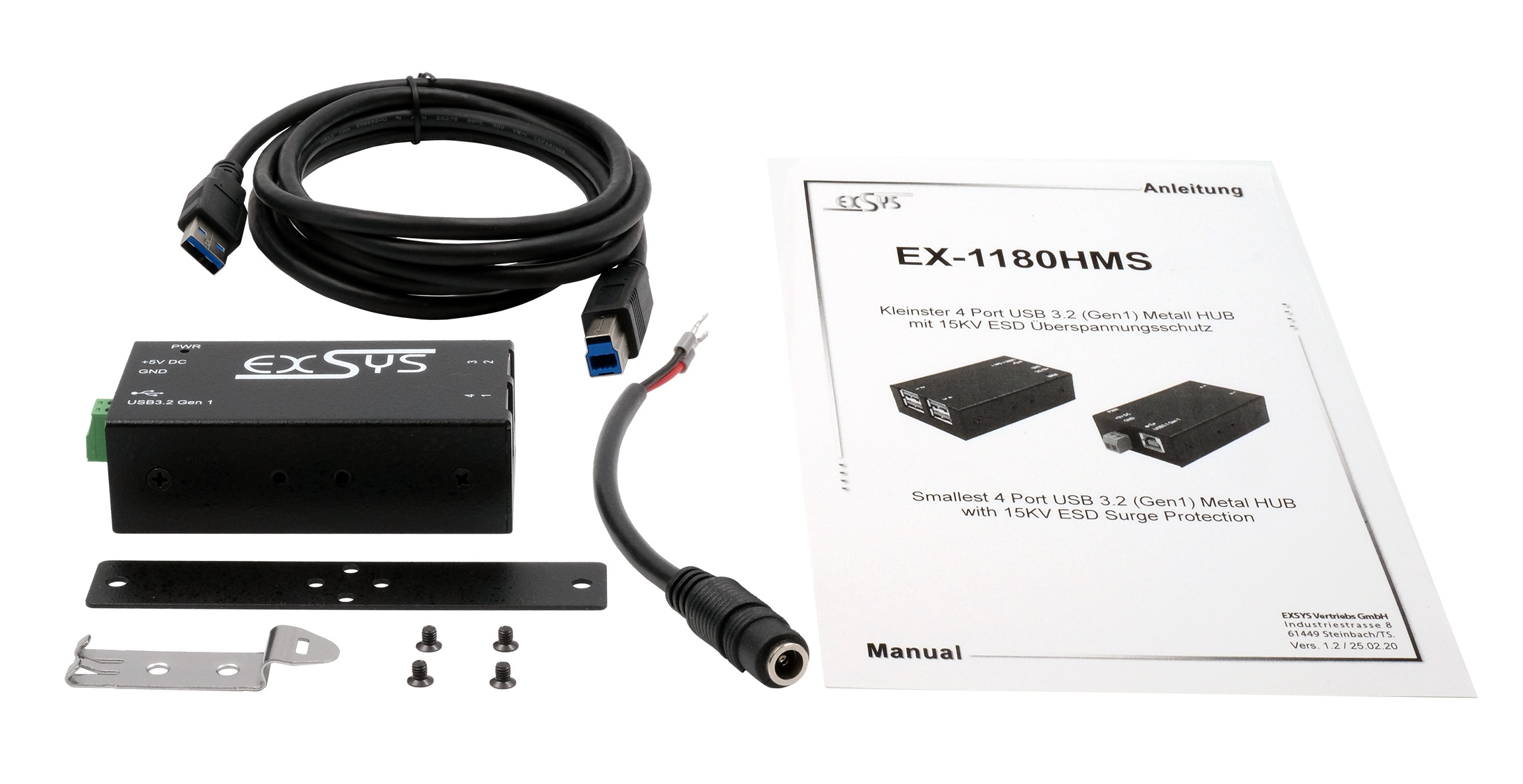

Packaging Contents:
EX-1180HMS, EX-K1110, USB 3.2 Gen 1 Cable, DIN-Rail Kit, Wall Mounting Bracket, Manual
| Application: | Industrial |
|---|---|
| Cable length: | 2.0m |
| Charging power total: | 20W |
| Colour: | black |
| Data transmission: | 5Gbps |
| Housing: | Metal |
| Inputs: | USB-B socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 4 |
| Outputs: | 4x USB-A socket |
| Power connection: | TB 5V |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
