1 Port USB 3.2 Gen 2x2 PCIe (x4) boardwith 1x USB-C connectors, 20Gpbs
Product number:
EX-12011
GTIN/EAN:
4718359120114
1 Port USB 3.2 Gen 2x2 PCIe (x4) boardwith 1x USB-C connectors, 20Gpbs
The EX-12011 USB 3.2 Gen 2x2 with PCIe Slot (x4) card provides an external SuperSpeed USB 3.2 Gen 2x2 port with USB-C connector. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps), USB 3.0 SuperSpeed (5Gbps), USB 3.2 Gen 2x1 SuperSpeed (10Gbps) and USB 3.2 Gen 2x2 SuperSpeed (20Gbps). It is the perfect technology for external storage enclosures, digital cameras, webcam, scanner and more. The EX-12011 supports 2.4A power on the external USB-C port. A low profile bracket is included with the EX-12011 for use with slim enclosures up to a maximum height of 8cm.

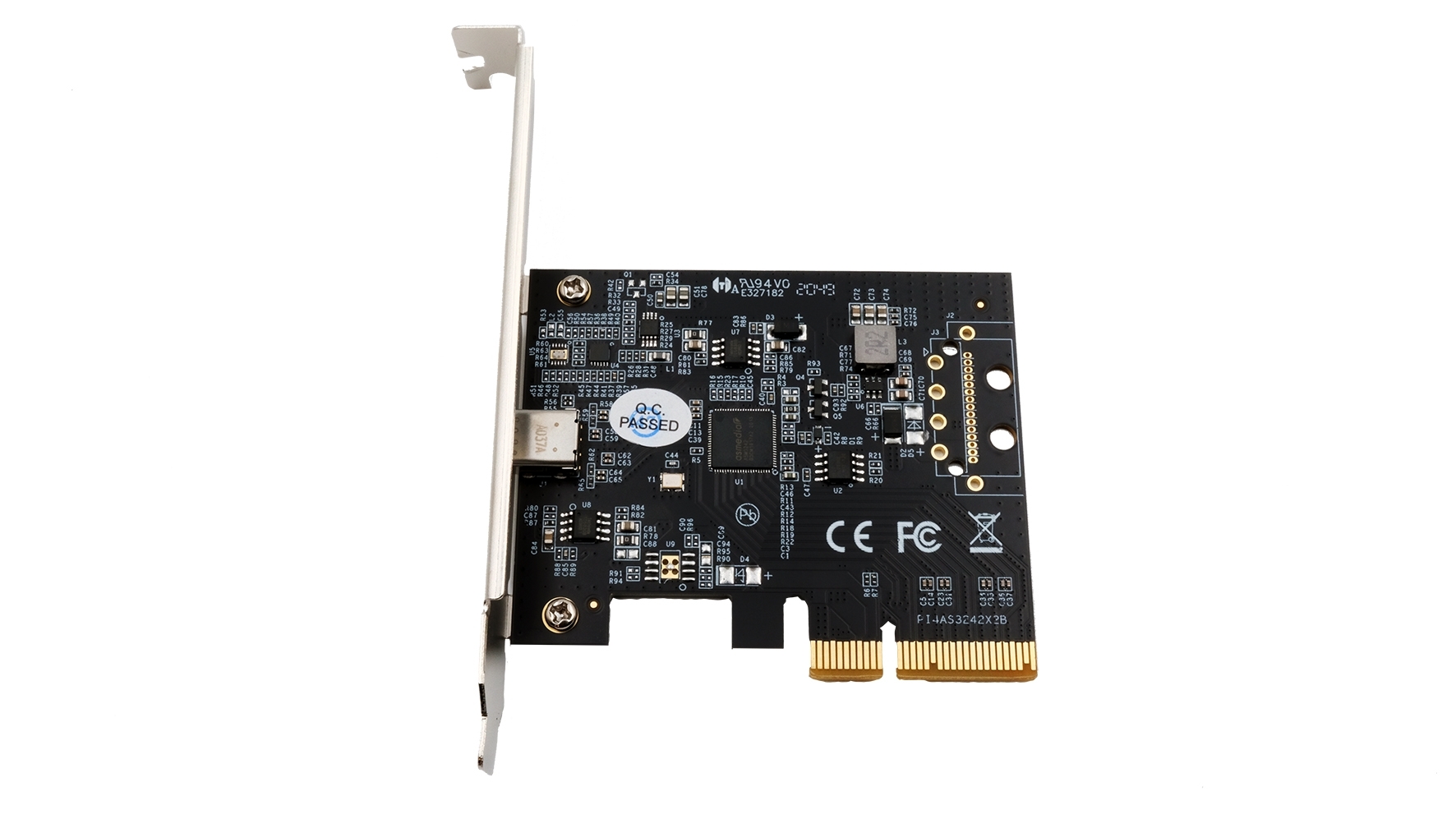

- USB 3.2 Gen 2x2 PCIe x4 card with one USB-C connector
- Compatible with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
- Compatible with PCI Express Gen3 specifications
- Compatible with USB Attached SCSI protocol Rev. 1.0
- Supports "Hot Swapping" and "Plug-and-Play
- Supports at USB-C output: 2.4 amps / 5 volts / 12.0 watts
- Supports up to 127 USB devices (USB2.0, USB3.0 and USB3.2 Gen2)
- Low profile bracket included
- Chipset: Asmedia ASM3242
Packaging contents:

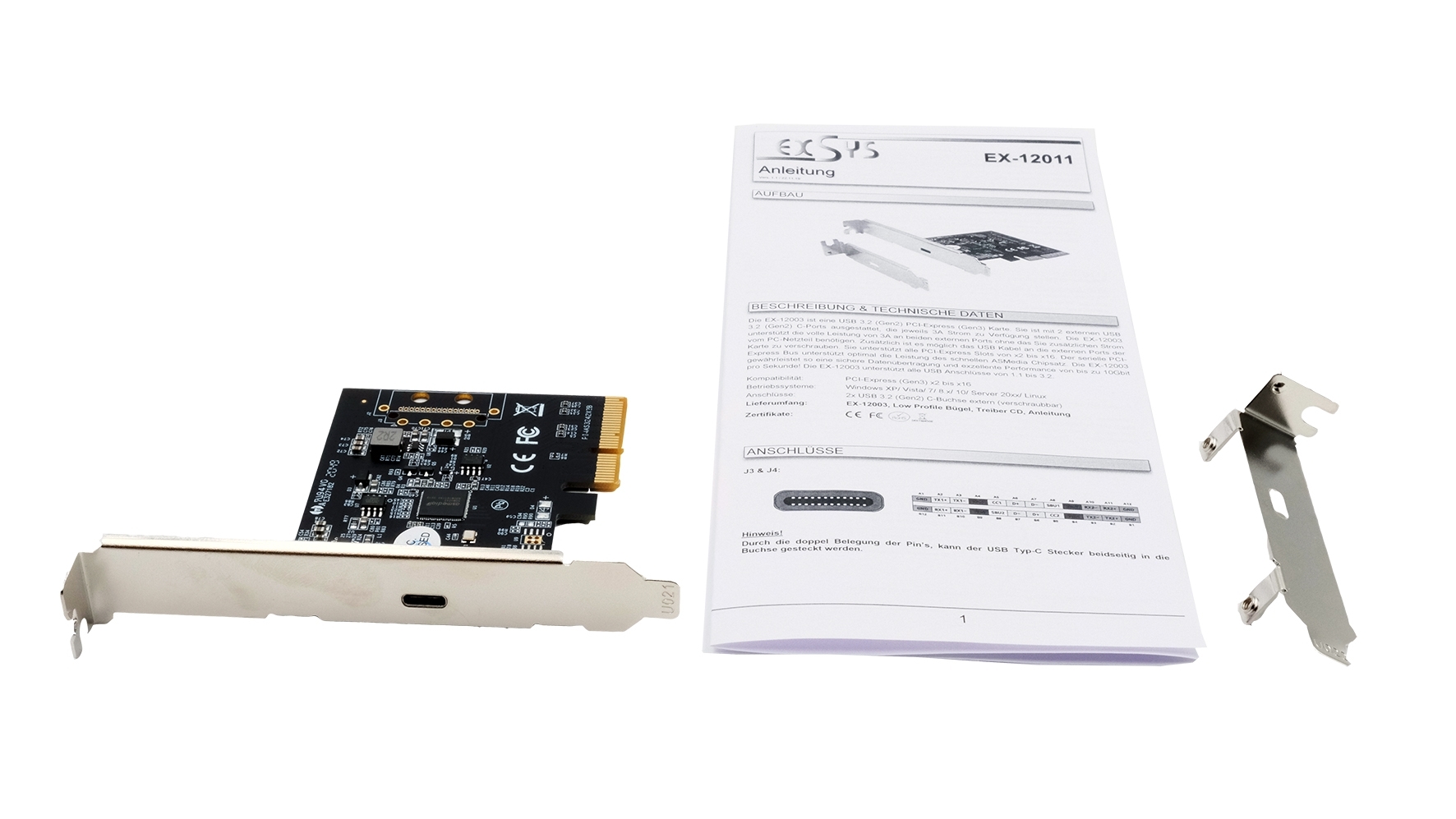

EX-12011, Low Profile bracket, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | USB-C socket |
| Data transmission: | 20 Gbps |
| Interface: | USB 3.2 Gen 2x2 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 1 |
