EX-1406
USB 3.2 Gen 1 Active Repeater cable 10 Meter (daisy-chain up to 50 meter)
The EX-1406 USB extension cable extends your USB 3.2 Gen 1 (formerly USB 3.0) connection by 10 metres. Up to five EX-1406 can be daisy-chained for a maximum length of 50 metres. For increased power requirements, an additional 5V/1.5A power supply can be connected to the DC Jack connection of the USB socket. As no drivers are required, installation is very simple. The EX-1406 supports data transfer rates of up to 5Gbps and is fully backward compatible with USB 2.0/1.1.
USB 3.2 Gen 1 (USB 3.0) active extension cable, 10m
USB 3.2 Gen 1 specification, backward compatible with USB 2.0/1.1
Hot plug and play, no drivers required
USB bus powered / DC self-powered
Optional external power supply (5V/1.5A) available for high power requirements
Daisy-chain connection possible, up to 50 metres
PVC cable sheath and connector housing
Max. bending radius 25.5mm
EX-K1585-0.5
Charging and data cable USB 3.2 Gen 1, USB-C plug on both sides, CU, black, 0.5m
The USB 3.2 Gen 1 charging and data cable connects your USB-C devices, such as your smartphone, with other USB-C devices, such as your MacBook, Ultrabook, notebook or charger, which have a USB-C output. Due to the reversible USB-C plugs, it is no longer necessary to pay attention to the plug orientation when connecting the cable.High-quality cable construction
The double shielded conductor consists of 99.99% oxygen-free copper (OFC/CU). This allows an optimal signal transmission and higher breaking strength of the cableFast charging with 3A charging current - Quick-Charge compatible
The cable supports a charge current of up to three amps and is therefore Quick-Charge compatible.Super-Speed data transfer
The USB 3.2 Gen 1 standard is backward compatible with USB 2.0 and older versions. It allows data transfer rates of up to 5 Gbit/s and is therefore ten times faster than USB 2.0.Technical Specification:
USB 3.2 Gen 1 Connection cable
Connections: USB-C connectors on both sides
Super-speed, up to 5 Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0 and older versions
Wire material and contacts of 99.9% oxygen-free copper (OFC/CU)
Wire cross-section: Power AWG24, Data AWG32
Shielding: braided and foil shielding
Charge current: up to 3 A
color: blacklength: 0,5m
EX-K1591V
USB 3.2 Gen 2x1 charge and data cable, C to C with screw lock, CU, black, 1.0m
The USB 3.2 Gen 2x1 charging and data cable connects your USB-C devices, such as your smartphone, with other USB-C devices, such as your MacBook, Ultrabook, notebook or charger, which have a USB-C output. Reversible USB-C plugs eliminate the need to pay attention to plug orientation when connecting the cable. The C connector is equipped with screw lock.High-quality cable constructionThe double-shielded conductor is made of 99.99% oxygen-free copper (OFC/CU). This allows for optimal signal transmission and higher breaking strength of the cableFast charging with 3A charging current - Quick-Charge compatibleThe cable supports a charging current of up to three amps and is therefore Quick-Charge compatibleSuper-Speed-Data transferThe USB 3.2 Gen 2x1 standard is backward compatible with USB 2.0 and older versions. It allows data transfer rates of up to 10 Gbps, making it ten times faster than USB 2.0.Technical Specification:
USB 3.2 Gen 2x1 Connector Cable
Connectors: USB-C connector on both sides.
One USB-C connector is equipped with thumbscrews
24mm knurled screw spacing
Super-speed, up to 10 Gbps data transfer rate
USB 3.2 Gen 2x1 standard, backward compatible with USB 2.0 and older versions
Conductor material and contacts made of 99.9% oxygen-free copper (OFC/CU)
Conductor size: Power AWG24, Data AWG32
Shielding: braided and foil shielding
Charging current: up to 3 A
Color: balckLength: 1.0m
EX-K1585-2.0
Charging and data cable USB 3.2 Gen 1, USB-C plug on both sides, CU, black, 2.0m
The USB 3.2 Gen 1 charging and data cable connects your USB-C devices, such as your smartphone, with other USB-C devices, such as your MacBook, Ultrabook, notebook or charger, which have a USB-C output. Due to the reversible USB-C plugs, it is no longer necessary to pay attention to the plug orientation when connecting the cable.High-quality cable construction
The double shielded conductor consists of 99.99% oxygen-free copper (OFC/CU). This allows an optimal signal transmission and higher breaking strength of the cableFast charging with 3A charging current - Quick-Charge compatible
The cable supports a charge current of up to three amps and is therefore Quick-Charge compatible.Super-Speed data transfer
The USB 3.2 Gen 1 standard is backward compatible with USB 2.0 and older versions. It allows data transfer rates of up to 5 Gbit/s and is therefore ten times faster than USB 2.0.Technical Specification:
USB 3.2 Gen 1 Connection cable
Connections: USB-C connectors on both sides
Super-speed, up to 5 Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0 and older versions
Wire material and contacts of 99.9% oxygen-free copper (OFC/CU)
Wire cross-section: Power AWG24, Data AWG32
Shielding: braided and foil shielding
Charge current: up to 3 A
color: blacklength: 2.0m
Tip
EX-K1596-3.0
USB 3.2 Gen 2x2 cable, USB-C male to male, 20 Gbit/s, 5A, 100W, grey, mesh, 3.0m
This high-quality USB-C cable is compliant with the USB 3.2 Gen 2x2 standard. It connects your devices reliably and quickly and supports charging of connected devices with up to 100W.
USB 3.2 Gen 2x2 connection cable
Connections: USB-C plugs on both ends
Backward compatible with previous USB standards
E-marker chip optimises data transfer rate and power between host and device
Data transfer rate: up to 20 Gbps
Supports up to 4K@60Hz monitors via USB-C
Supports USB-C Power Delivery (PD)
Charging current: 5A / 20V, 100W max.
Cable diameter: 5.4 mm
Shielding: braided and foil shielding
Cable with grey fabric mesh
EX-K1404
USB 2-to-3 charging cable, USB-C/A to USB-C/Micro-USB/Lightning, Nylon braid, 1.2m
The EX-K1404 2-to-3 cable charges almost all your devices such as iPhones, Android phones, Bluetooth speakers/headsets, power banks and other small devices. It can also be used as a data cable to connect to a PC or notebook.
2-to-3 USB charging and data cable
USB 2.0 standard for data transfer
USB-C plug with USB-A adapter for connection to PC, notebook or charger
Lightning plug for iPhones, iPads etc.
Micro-USB plug for older smartphones and other small devices
USB-C plug for all new smartphones and mobile devices
Shielding: braided and foil shielding
Cable with black fabric sheath
Charging capacity:
USB-C - USB-C
60W PD (Power Delivery)
USB-C - Lightning
15 W
USB-C - Micro USB
15 W
USB-A - USB-C
18 W
USB-A - Lightning
15 W
USB-A - Micro USB
15 W
EX-K1581V
USB 3.2 Gen 1 cable A male to B male with screw lock, 1.5 meter
Connection cable USB 3.2 Gen 1 A male to B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
24mm knurled screw spacing
Shielding: braided and foil shielding
Color: Black
Length: 1.5 meters
EX-K1593V
USB 3.2 Gen 2x1 charge and data cable, A to C with screw lock, CU, black, 1.0m
The USB 3.2 Gen 2x1 charging and data cable connects your USB-C devices, such as your smartphone, with other USB-C devices, such as your MacBook, Ultrabook, notebook or charger, which have a USB-A output. Reversible USB-C plugs eliminate the need to pay attention to plug orientation when connecting the cable. The C connector is equipped with screw lock.High-quality cable constructionThe double-shielded conductor is made of 99.99% oxygen-free copper (OFC/CU). This allows for optimal signal transmission and higher breaking strength of the cableFast charging with 3A charging current - Quick-Charge compatibleThe cable supports a charging current of up to three amps and is therefore Quick-Charge compatibleSuper-Speed-Data transferThe USB 3.2 Gen 2x1 standard is backward compatible with USB 2.0 and older versions. It allows data transfer rates of up to 10 Gbps, making it ten times faster than USB 2.0.Technical Specification:
USB 3.2 Gen 2x1 Connector Cable
Connectors: USB-A to USB-C connector
One USB-C connector is equipped with thumbscrews
Super-speed, up to 10 Gbps data transfer rate
USB 3.2 Gen 2x1 standard, backward compatible with USB 2.0 and older versions
Conductor material and contacts made of 99.9% oxygen-free copper (OFC/CU)
Conductor size: Power AWG24, Data AWG32
Shielding: braided and foil shielding
Charging current: up to 3 A
Color: balckLength: 1.0m
Tip
EX-1408
Active USB-C extension cable USB 3.2 Gen 2x1, 5 meter
The EX-1408 USB-C extension cable extends your USB 3.2 Gen 2x1 cable by 5 metres. Up to three EX-1408 can be daisy-chained for a maximum length of 15 metres. In this case, an additional 5V/1.5A power supply must be installed. A connector is provided on the USB-C socket. As no drivers are required, installation is very simple. The EX-1408 supports data transfer rates of up to 10 Gbps and is fully backward compatible with USB 2.0/1.1.
Active USB 3.2 Gen 2x1 repeater cable up to 5 meters
USB 3.2 Gen 2x1 specification, downwards compatible to USB 2.0
Hot Plug and Play, no driver required
Power from USB (Bus-Power) or DC Jack (Self-Power)
Daisy-Chain Connection available, up to max. 15 meter
Optional external power supply unit 5V/1.5A required for daisy chaining
Packaging contents: EX-1408, Manual
EX-1401
USB 2.0 Active Repeater cable, 5 meter
With the EX-1401 you can extend the USB line up to 5 meter. It’s possible to install up to 5 item EX-1401 in series, so that you arrive a maximal length of 25 meter. For the Installation you don’t need driver and it’s very easy to install.
USB 2.0 Active 5 Meter Extender cable
Hot Plug and Play
USB Specification Ver. 1.1 to 2.0
Power from USB-BUS (Bus-Power)
EX-K1552V
USB 2.0 cable A-male and B-male with screw lock (2.0m length)
Connection cable USB 2.0 A male and B male with thumbscrews. The USB 2.0 connection cable offers a consistently high data transfer rate of up to 480Mbit/s thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connecor to various EXSYS products that have threaded B-type jacks.
Technical specification:
USB 2.0 connection cable
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 480 Mbit/s data transfer rate
USB 2.0 standard, downward compatible to USB 1.1
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 2.0ms
EX-K1555V
USB 2.0 cable A-male and B-male with screw lock (5 meter length)
Connection cable USB 2.0 A male and B male with thumbscrews. The USB 2.0 connection cable offers a consistently high data transfer rate of up to 480Mbit/s thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connecor to various EXSYS products that have threaded B-type jacks.
Technical specification:
USB 2.0 connection cable
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 480 Mbit/s data transfer rate
USB 2.0 standard, downward compatible to USB 1.1
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 5.0 meters
EX-K1572V
USB 3.2 Gen 1 cable A male and B male with screw lock, 2.0m
Connection cable USB 3.2 Gen 1 A male and B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 2.0ms
EX-1405
USB 3.2 Gen 1 active extension cable 5 Meter (daisy-chain up to 25 meter)
The EX-1405 USB extension cable extends your USB 3.2 Gen 1 (formerly USB 3.0) connection by 5 metres. Up to five EX-1405 can be daisy-chained for a maximum length of 25 metres. For increased power requirements, an additional 5V/1.5A power supply can be connected to the DC Jack connection of the USB socket. As no drivers are required, installation is very simple. The EX-1405 supports data transfer rates of up to 5Gbps and is fully backward compatible with USB 2.0/1.1.
USB 3.2 Gen 1 active extension cable 5m
USB 3.2 Gen 1 specification, backward compatible with USB 2.0/1.1
Hot plug and play, no drivers required
USB bus powered / DC self-powered
Optional external power supply (5V/1.5A) available for high power requirements
Daisy-chain connection possible, up to 25 metres
PVC cable sheath and connector housing
Max. bending radius 25.5mm
EX-1402
12 meter USB 2.0 Active Extension cable
With the EX-1402 you can extend the USB line up to 60 meter. It’s possible to install up to 5 item EX-1402 in series. For the Installation you don’t need driver and it’s very easy to install.
USB 2.0 Active 12 Meter Extender cable
Hot Plug and Play
USB Specification Ver. 1.1 to 2.0
Power from USB-BUS (Bus-Power)
EX-K1571V
USB 3.2 Gen 1 cable A male and B male with screw lock, 1.5 meter
Connection cable USB 3.2 Gen 1 A male and B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 1.5 meters
EX-K1542V
USB 2.0 cable A-male to B-male with screw lock (2 meter length)
Connection cable USB 2.0 A male to B male with thumbscrews. The USB 2.0 connection cable offers a consistently high data transfer rate of up to 480Mbit/s thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer to various EXSYS products that have threaded B-type jacks.
Technical specification:
USB 2.0 connection cable
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 480 Mbit/s data transfer rate
USB 2.0 standard, downward compatible to USB 1.1
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
24mm knurled screw spacing
Shielding: braided and foil shielding
Color: Black
Length: 2.0ms
EX-K1545V
USB 2.0 cable A-male to B-male with screw lock (5 meter length)
Connection cable USB 2.0 A male to B male with thumbscrews. The USB 2.0 connection cable offers a consistently high data transfer rate of up to 480Mbit/s thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer to various EXSYS products that have threaded B-type jacks.
Technical specification:
USB 2.0 connection cable
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 480 Mbit/s data transfer rate
USB 2.0 standard, downward compatible to USB 1.1
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
24mm knurled screw spacing
Shielding: braided and foil shielding
Color: Black
Length: 5.0 meters
EX-K1681
USB 3.2 Gen 1 AOC Fiber Cable, 20m
The USB 3.2 Gen 1 fiber optic cable (AOC Active Optical Cable)is designed to be compatible with the electrical specifications of the Superspeed USB. It transmits data over longer distances without loss compared to copper cable. It is very light, flexible and perfect for installation. Extend USB 3.0 peripherals up to 20 meters with fiber optic cable
Converts the USB data signal into an optical signal
Compatible with USB Super Speed specifications
Supports 850nm VCSEL (Multi-Mode MM)
Less EMI (electromagnetic interference) and RFI (radio frequency interference)
Metal housing for improved EMI performance
Low power consumption / Plug and Play
3.0 mm diameter of the fiber optic cable
EX-K1682
USB 3.2 Gen 1 AOC Fiber Cable, 30m
The USB 3.2 Gen 1 fiber optic cable (AOC Active Optical Cable) is designed to be compatible with the electrical specifications of the Superspeed USB. It transmits data over longer distances without loss compared to copper cable. It is very light, flexible and perfect for installation. Extend USB 3.0 peripherals up to 30 meters with fiber optic cable
Converts the USB data signal into an optical signal
Compatible with USB Super Speed specifications
Supports 850nm VCSEL (Multi-Mode MM)
Less EMI (electromagnetic interference) and RFI (radio frequency interference)
Metal housing for improved EMI performance
Low power consumption / Plug and Play
3.0 mm diameter of the fiber optic cable
EX-K1592V
USB 3.2 Gen 2x1 charge and data cable, C to C both with screw lock, CU, black, 1.0m
The USB 3.2 Gen 2x1 charging and data cable connects your USB-C devices, such as your smartphone, with other USB-C devices, such as your MacBook, Ultrabook, notebook or charger, which have a USB-C output. Reversible USB-C plugs eliminate the need to pay attention to plug orientation when connecting the cable. Both C connector is equipped with screw lock.High-quality cable constructionThe double-shielded conductor is made of 99.99% oxygen-free copper (OFC/CU). This allows for optimal signal transmission and higher breaking strength of the cableFast charging with 3A charging current - Quick-Charge compatibleThe cable supports a charging current of up to three amps and is therefore Quick-Charge compatibleSuper-Speed-Data transferThe USB 3.2 Gen 2x1 standard is backward compatible with USB 2.0 and older versions. It allows data transfer rates of up to 10 Gbps, making it ten times faster than USB 2.0.Technical Specification:
USB 3.2 Gen 2x1 Connector Cable
Connectors: USB-C connector on both sides.
Both USB-C connector is equipped with screw lock
Super-speed, up to 10 Gbps data transfer rate
USB 3.2 Gen 2x1 standard, backward compatible with USB 2.0 and older versions
Conductor material and contacts made of 99.9% oxygen-free copper (OFC/CU)
Conductor size: Power AWG24, Data AWG32
Shielding: braided and foil shielding
Charging current: up to 3 A
Color: balckLength: 1.0m

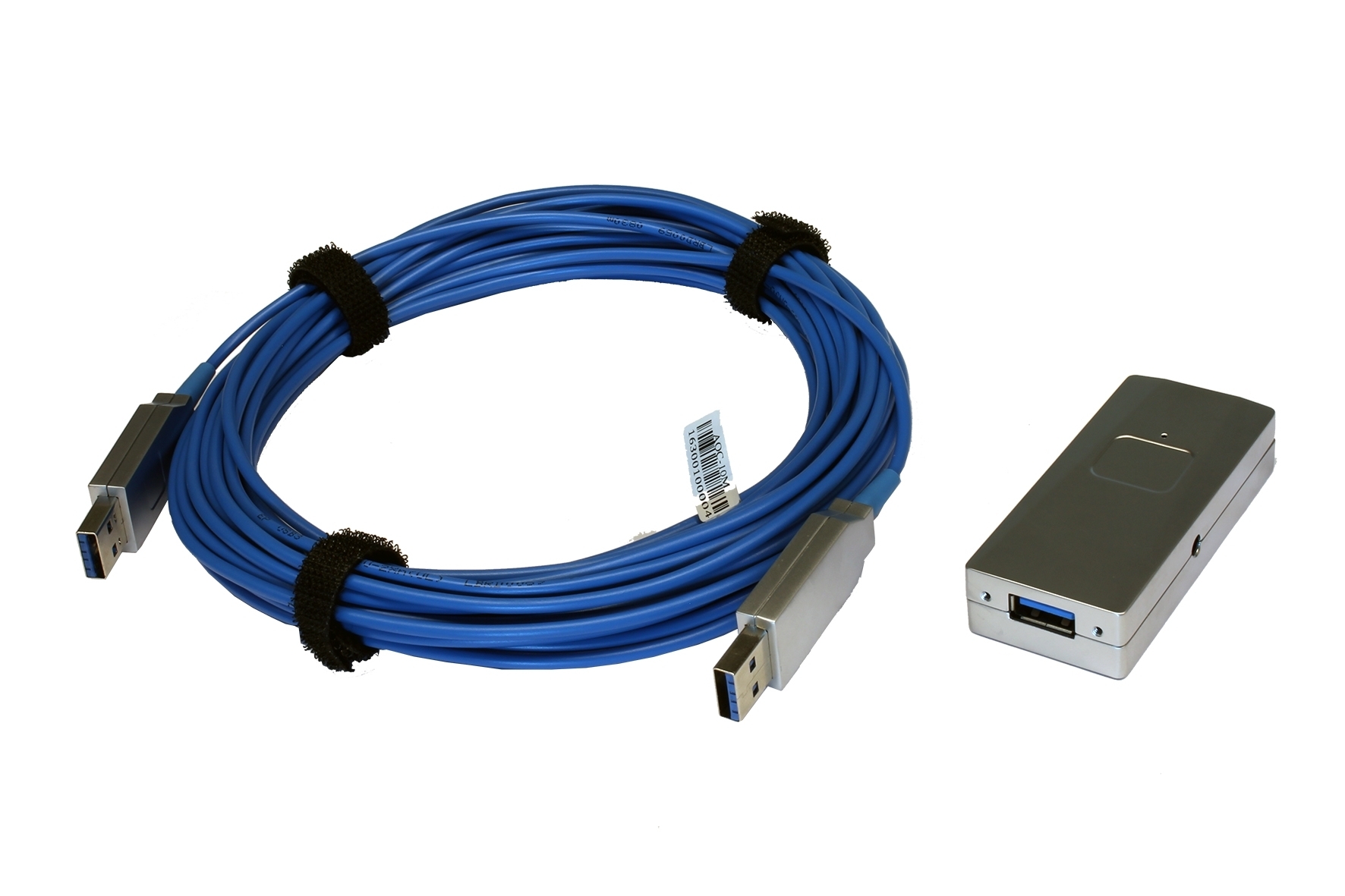

EX-K1680
USB 3.2 Gen 1 AOC Fiber Cable, 10m
The USB 3.2 Gen 1 fiber optic cable (AOC Active Optical Cable)is designed to be compatible with the electrical specifications of the Superspeed USB. It transmits data over longer distances without loss compared to copper cable. It is very light, flexible and perfect for installation. Extend USB 3.0 peripherals up to 10 meters with fiber optic cable
Converts the USB data signal into an optical signal
Compatible with USB Super Speed specifications
Supports 850nm VCSEL (Multi-Mode MM)
Less EMI (electromagnetic interference) and RFI (radio frequency interference)
Metal housing for improved EMI performance
Low power consumption / Plug and Play
3.0 mm diameter of the fiber optic cable
EX-1407
USB 3.2 Gen 1 Active Repeater cable 10 Meter (A-to-B-male connector)
With the EX-1407, you can extend the USB 3.2 Gen 1 (also called USB 3.0) cable up to 10 meters. No drivers are required for installation and it is therefore very easy to install. The EX-1407 supports a data transfer rate of up to 5Gbps and is fully backward compatible with USB 2.0 / 1.1 devices. The EX-1407 has an A connector upstream and a B connector downstream.
Active USB 3.2 Gen 1 (USB 3.0) repeater cable up to 10 meters
USB 3.2 Gen 1 specification, downwards compatible with USB 2.0/1.1 devices
Hot Plug and Play, no driver required
Power from USB (Bus-Power)
A-male to B-male connector

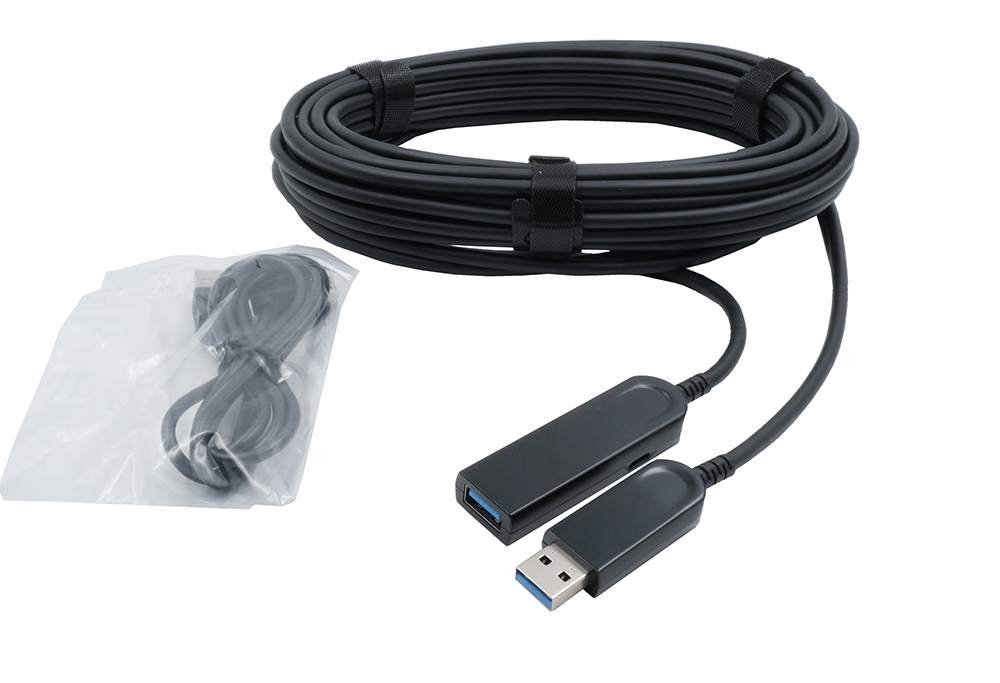

EX-K1692
USB 3.2 Gen 1 AOC Fiber Cable, 20m
Das EX-K169x USB 3.2 Gen1 Hybrid Glasfaserkabel (AOC Aktives Optisches Kabel) wurde entwickelt, damit es mit den elektrischen Spezifikationen vom SuperSpeed USB kompatibel ist. Das Kabel hat 4 Glasfaser (für Datenübertragung)– und 5 Kupfer Drähte für die Control Signale Es überträgt die Daten gegenüber dem Kupferkabel verlustfrei und über längere Distanzen von 10, 20 oder 30 Meter. Es ist sehr leicht, flexible und eignet sich perfekt zum Verlegen.
Verlängern der USB 3.2 Gen 1 Peripheriegeräte bis zu 30 Meter mit Hybrid Glasfaser Kabel
Wandelt das USB-Datensignal in ein Optisches Signal um
Kompatibel mit USB SuperSpeed Spezifikationen
USB 3.2 Gen 1 Spezifikation, abwärtskompatibel mit USB 2.0 und 1.1
Tiefer Stromverbrauch
Hot Plug and Play, benötigt keine Treiber
Stromversorgung vom USB-BUS (Bus-Power)
EX-K1691 = 10 Meter
EX-K1692 = 20 Meter
EX-K1693 = 30 Meter
