EX-12004-2
USB 3.2 Gen 2x1 PCIe (x4) card with 4 USB-A-ports (Asmedia)
The EX-12004-2 USB 3.2 Gen 2x1 PCIe (Gen2x4) card provides four external super-speed+ USB 3.2 Gen 2x1 ports with USB-A connector. It is designed to connect four additional USB 1.1, to 3.2 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.2 Gen 1 Super-Speed (5Gbps) and USB 3.2 Gen 2x1 Super-Speed+ (10Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-12004-2 supports 900mA current on the external USB 3.2 Gen 2x1 ports. Two Asmedia chipsets are used. One chip for every two ports.
USB 3.2 Gen 2x1 PCIe x4 card with four A-female connectors
Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
Fully compliant with PCI Express Gen2 Specification
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports “Hot Swapping” and “Plug-and-Play”
Supports each A-port 900mA power
Supports up to 127 USB devices (USB1.1 up to USB 3.2 Gen 2x1)
Chipset: 2x Asmedia ASM3142
Packaging contents:EX-12004-2, Driver CD, Manual
EX-1093-2
USB 3.2 Gen 1 PCI board with 4 ports incl. LP bracket (Renesas Chipset)
The EX-1093-2 USB 3.2 Gen 1 PCI card provides four external super-speed USB 3.2 Gen 1 ports. Designed to connect four additional USB 1.1, 2.0 or 3.0 end devices to your workstation, desktop or server, it supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.0 Super-Speed (5Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. A low profile bracket is included with the EX-1093-2 for installation in narrow cases up to a maximum height of 8cm.
Compliant with USB 3.0 and Intel xHCI specification
Supports all USB compliant data transfer type such as Control/Bulk/Interrupt/Isochronous
Support up to 123 device
Support 32-Bit PCI-Bus and PCI-X 64-Bit with 5V and 3.3V
Support “Hot Swapping” and “Plug-and-Play”
Packaging contents:EX-1093-2, Low Profile bracket, Driver CD, Manual
EX-11094
USB 3.2 Gen 1 PCIe card with 4 ports (Chipset Renesas)
The EX-11094 USB 3.2 Gen 1 PCIe card (formerly called USB 3.0) provides four external super-speed USB 3.2 Gen 1 ports. It is designed to connect four additional USB 1.1, 2.0 or 3.0 end devices to your workstation, desktop or server and supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.2 Gen 1 Super-Speed (5Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. To support the current of 900mA on the external USB 3.2 Gen 1 ports, you need the power connection from the PC power supply.
Compliant with USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB Compliant Data Transfer Type such as Control/Bulk/Interrupt/Isochronous
Support up to 123 device
Fully PCI Express Gen2 Specification Compliant
Support “Hot Swapping” and “Plug-and-Play”
Chipset: Renesas uPD720201
Packaging contents:EX-11194, Low Profile bracket, CD, Manual
EX-11092-2
USB 3.2 Gen 1 PCIe card with 2 ports (Chipset Renesas)
The EX-11092-2 USB 3.2 Gen 1 PCIe card (formerly called USB 3.0) provides two screwable super-speed USB 3.2 Gen 1 ports. Designed to connect two additional USB 1.1, 2.0 or 3.0 end devices to your workstation, desktop or server, it supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.2 Gen 1 Super-Speed (5Gbps). Supporting 900mA current on the external USB 3.2 Gen 1 ports, you don't need additional power from the PC power supply. A low profile bracket is included with the EX-11092-2 for slim cases up to a maximum height of 8cm.
Compliant with USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB compliant data transfer type such as Control/Bulk/Interrupt/ Isochronous
Supports up to 123 device
Fully PCI Express Gen2 Specification Compliant
Support “Hot Swapping” and “Plug-and-Play”
Chipset: Renesas uPD720202
Packaging contents:EX-11092-2, Low Profile bracket, Driver CD, Manual
EX-1092
PCI USB 3.2 Gen 1 (3.0) card with 2 ports, incl. LP bracket (Renesas Chipset)
The EX-1092 USB 3.2 Gen 1 PCI card provides two external super-speed USB 3.2 Gen 1 ports. It is designed to connect four additional USB 1.1, 2.0 or 3.0 end devices to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps) and USB 3.2 Gen 1 super-speed (5Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-1092 comes with a low profile bracket for installation in narrow cases up to a maximum height of 8 cm.
Compliant with USB 3.0 and Intel xHCI specification
Supports all USB Compliant Data Transfer Type such as Control/Bulk/Interrupt/Isochronous
Support up to 123 device
Support 32-Bit PCI-Bus and PCI-X 64-Bit with 5V and 3.3V
Support „Hot Swapping“ und „Plug-and-Play“
Packaging contents:EX-1092, Low Profile bracket, Driver CD, Manual

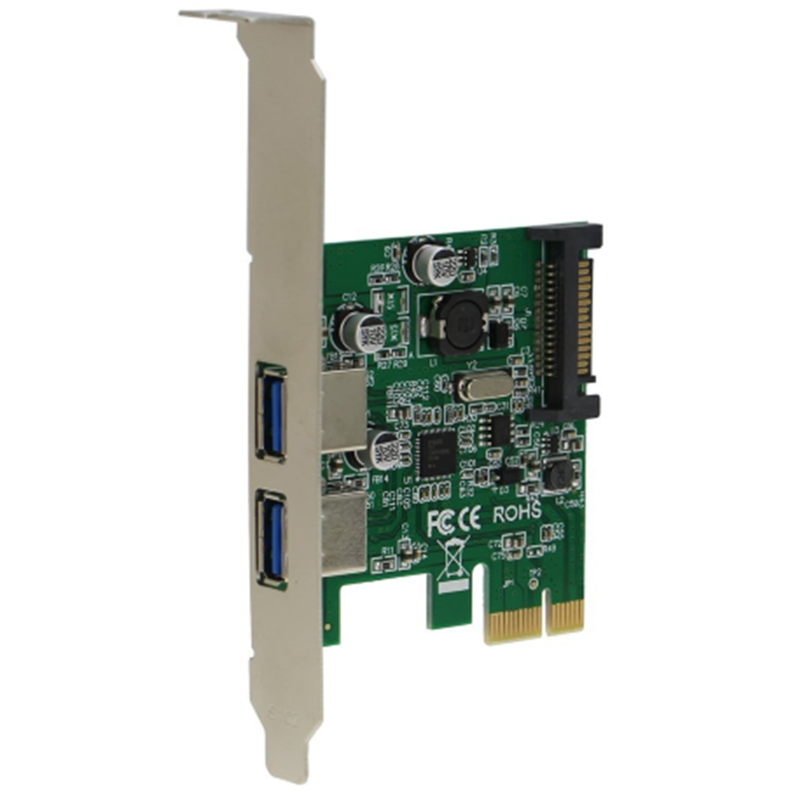

EX-S96102
PCIe USB 3.2 Gen1 card with 2 ports (Renesas)
The EX-S96102-2 USB 3.0 PCI-Express board offer you two external Super-Speed USB 3.0 port. The EX-S96102-2 it’s design for connect two more USB 1.1, 2.0 or 3.0 peripheral device to your Workstation, Desktop or Server. He support USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.0 Super-Speed (5Gbps). It is an ideal technology for external storage devices, digital cameras, webcams, scanners and much more. For support the power of 900mA to the external USB 3.0 ports, need the power from the computer case power supply. With the board we include a Low Profile bracket and thus can be used for a maximum 8cm high computer chassis.
Compliant with USB 3.0 and Intel xHCI specification
Supports all USB Compliant Data Transfer Type such as Control/Bulk/Interrupt/Isochronous
Support up to 123 device
Fully PCI-Express vers. 2.0 compliant
Support “Hot Swapping” and “Plug-and-Play”
Chipset: Renesas
EX-11081-2
PCIe USB 3.2 Gen 1 card with 1+1 ports (Renesas)
The EX-11081-2 USB 3.2 Gen 1 PCIe card (formerly known as USB 3.0) provides one external and one internal super-speed USB 3.2 Gen 1 port. It is designed to connect two additional USB 1.1, 2.0 or 3.2 end devices to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps) and USB 3.2 Gen 1 super-speed (5Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. To support the current of 900mA on external or internal USB 3.2 Gen 1 port, you need the power connector from PC power supply.
Compliant with USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB compliant data transfer types such as Control/Bulk/Interrupt/Isochronous
Supports up to 123 device
Fully PCI Express Gen2 Specification compliant
Support “Hot Swapping” and “Plug-and-Play”
With Low Profile bracket for small PC-case up to 8 cm
Chipset: Renesas uPD720202
Packaging contents:EX-11081-2, Low Profile bracket, Driver CD, Manual
EX-11082-2
PCIe USB 3.2 Gen 1 card with 2 ports (Renesas Chipset)
The EX-11082-2 USB 3.2 Gen 1 PCIe card (formerly called USB 3.0) provides two external super-speed USB 3.2 Gen 1 ports. It is designed to connect two additional USB 1.1, 2.0 or 3.0 end devices to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps) and USB 3.2 Gen 1 super-speed (5Gbps). To support the current of 900mA on the external USB 3.2 Gen 1 ports, you need the power connection from the PC power supply. A low profile bracket is included with the EX-11082-2 for slim cases up to a maximum height of 8cm.
Compliant with USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB compliant data transfer type such as Control/Bulk/Interrupt/ Isochronous
Supports up to 123 device
Fully PCI Express Gen2 Specification Compliant
Support “Hot Swapping” and “Plug-and-Play”
Chipset: Renesas uPD720202
Packaging contents:EX-11082-2, Low Profile bracket, Driver CD, Manual
EX-1083
USB 2.0 PCI board with 3 ports incl. LP bracket (NEC Chipset)
The EX-1083 is a high performance PCI-Bus adapter with 3 external and one internal ports, which is fully compatible with the OHCI specification V1.1. and USB 2.0 ECHI standard. It is an ideal technology for external storage devices, digital cameras, webcams, scanners and much more. The EX-1083 is an ideal upgrade to support all USB-compatible devices for the rapidly changing host computer to preserve user s investments in the USB bus. With the EX-1083 we include two low profile bracket for small computer case up to 8 cm.
USB version 1.1 to 2.0
Compatible to Microsoft Windows Standard Open HCD Driver
Support up to 127 device
Support 32-Bit PCI-Bus and PCI-X Bus with 5V and 3.3V (33MHz)
Support “Hot Swapping” and “Plug-and-Play”
Packaging contents:EX-1083, Low Profile bracket, Manual
EX-11494-2
4-ports USB 3.2 Gen 1 PCIe (x4) board incl. low profile brackets (4x Renesas chip)
The EX-11494-2 USB 3.2 Gen 1 4-port PCI Express card provides a reliable solution for desktop, server and workstation computers to connect USB 3.2 peripherals via the PCIe slot. The multiple independent USB 3.2 Gen 1 channel architecture supports simultaneous operation of up to 127 physical USB devices for each channel while maintaining speed compatibility with USB1.1 and USB2.0, supporting USB1.1 Low-Speed (1.5 Mbps), Full-Speed (12 Mbps), USB2.0 High-Speed (480 Mbps) and USB3.0 Super-Speed (5 Gbps), as well as all USB-compliant data transfer modes such as Control, Bulk, Interrupt and Isochronous Transfer. With full hardware and software support, the EX-11494-2 offers a true high-performance solution for users requiring USB 3.2 Gen 1 devices for home and professional use.
USB 3.2 Gen 1 PCIe card with four external connectors
Each output has its own Renesas chip for maximum data transfer
Fully compliant with the x4 PCI Express Gen2 specification
Fully compliant with the USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB compatible data transfer types like Control / Bulk / Interruption / Isochronous transfer
900mA USB bus power supply for each port
Hot Swapping & Plug-and-Play
Low Profile bracket are included
Chipset: Renesas D720201_202
Packaging contents: EX-11494-2, Low Profile bracket, Driver CD, Manual
EX-11099-2
USB 3.2 Gen 1 PCIe card with 2 ports for 3.5-inch Front-Bay
The EX-11099-2 USB 3.2 Gen 1 PCIe card (previously called USB 3.0) provides two external or two internal super-speed USB 3.2 Gen 1 ports. It is designed to connect two additional USB 1.1, 2.0 or 3.0 end devices to your workstation, desktop or server and supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.2 Gen 1 Super-Speed (5Gbps). To support the current of 900mA on the external or internal USB 3.2 Gen 1 ports, you need the power connector from the PC power supply. The internal 20 pin header USB 3.2 Gen 1 connector is mainboard compatible. The adapter kit with 2x USB 3.2 Gen 1 jacks is included.
Compliant with USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB compliant data transfer type such as Control/Bulk/Interrupt/Isochronous
Supports up to 123 device
Fully PCI Express Gen2 Specification compliant
Support “Hot Swapping” and “Plug-and-Play”
Chipset: Renesas uPD720202
Packaging contents:EX-11099-2, 3.5-inch front-bay, standard bracket for rear panel, Driver CD, Manual
EX-11072
USB 3.2 Gen 1 PCIe board with 2 external + 2 internal Ports
The EX-11072 USB 3.2 Gen 1 PCIe card (previously called USB 3.0) provides two external and two internal super-speed USB 3.2 Gen 1 ports. It is designed to connect four additional USB 1.1, 2.0 or 3.0 end devices to your workstation, desktop or server and supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.2 Gen 1 Super-Speed (5Gbps). To support the current of 900mA on external or internal USB 3.2 Gen 1 port, you need the power connector from PC power supply. The internal 20 pin header USB 3.2 Gen 1 connector is mainboard compatible. The adapter kit with 2x USB 3.2 Gen 1 connectors is included.
Compliant with USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB compliant data transfer type such as Control/Bulk/Interrupt/Isochronous
Supports up to 123 device
Fully PCI Express Gen2 Specification Compliant
Support “Hot Swapping” and “Plug-and-Play”
Chipset: Renesas uPD720202
Packaging contents:EX-11072, Adapter Kit 3.5-inch, Standard bracket, Low Profile bracket, Driver CD, Manual
EX-12003
USB 3.2 Gen 2x1 PCIe (Gen3) (x2) board with 2x USB-C, 3.0A power (Asmedia)
The EX-12003 USB 3.2 Gen 2x1 PCIe (Gen3) (x2) card provides two external super-speed+ USB 3.2 ports with C-socket. It is designed to connect two additional USB 1.1, 2.0, 3.0 and 3.2 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Super-Speed+ (10Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. Supporting 3.0A power on the external USB 3.2 Gen 2x1 ports, there is no need for additional power connection from PC power supply. A low profile bracket is included with the EX-12003 for slim cases up to a maximum height of 8cm.
USB 3.2 Gen 2x1 PCIe x2 card with two USB-C-female connector
Compliant with USB 3.2 Rev. 1 and Intel xHCI Rev. 1.0 specification
Fully PCI Express Gen3 Specification Compliant
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports “Hot Swapping” and “Plug-and-Play”
Supports 3.0A power on each USB-C-port
Supports up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2)
Chipset: ASMEDIA ASM3142
Packaging contents:EX-12003, Low Profile bracket, Driver CD, Manual
EX-11053
USB 2.0 PCIe board with 3 ports incl. LP bracket (NEC Chipset)
The EX-11053 USB 2.0 PCIe bus card provides three external ports which are fully compatible with OHCI specifications 1.1 and USB 2.0 ECHI standards. It has been developed to expand a total of three additional USB high speed ports for PCs, small workstations or servers via the PCIe bus. It also supports older USB 1.1 peripherals. It is the ideal expansion card for external hard drive enclosures, digital cameras, webcams, scanners and many other peripheral devices. The EX-11053 comes with a low profile bracket for narrow computer housings up to 8 cm in height.
USB 2.0 PCIe card with three external connectors
Compatible to Microsoft Windows Standard Open HCD Driver
Support up to 127 devices
Fully compliant with PCI Express Base Specifications, Revision 1.0a/1.1
USB 1.1 backward compatible
Hot Swapping
Plug-and-Play
Low Profile bracket included
Packaging contents:EX-11053, Low Profile bracket, Manual
EX-12001-2
USB 3.2 Gen 2x1 PCIe (x4) board with 2x A-ports (Asmedia)
The EX-12001-2 USB 3.2 PCIe card provides two external super-speed+ USB 3.2 ports with A-type connector. It is designed to connect two additional USB 1.1, 2.0, 3.0 and 3.2 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Super-Speed+ (10Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-12001-2 supports 900mA current on the external USB 3.2 ports. A low profile bracket is included with the EX-12001-2 for slim cases up to a maximum height of 8cm.
USB 3.2 Gen 2x1 PCIe x4 card with two A-female connector
Compliant with USB 3.2 Rev. 1 and Intel xHCI Rev. 1.0 specification
Fully PCI Express Gen3 Specification Compliant
Compatible with USB Attached SCSI Protocol Rev. 1.0
Support “Hot Swapping” and “Plug-and-Play”
Support each A-port 900mA power
Support up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2)
Chipset: ASMEDIA ASM3142
Packaging contents:EX-12001-2, Low Profile bracket, Driver CD, Manual
EX-11057
USB 2.0 PCIe card with 3 internal ports incl. LP bracket (NEC)
The EX-11057 PCIe USB 2.0 card provides three internal 5 pin mainboard compatible USB 2.0 ports. It is designed to expand three more internal USB high-speed ports for PCs, small workstations or servers via the PCI Express bus. It is fully compatible with the OHCI specifications V1.1 and USB 2.0 ECHI standards. It also supports older USB 1.1 peripherals. The EX-11057 comes with a low profile bracket for narrow computer cases up to 8 cm height.
USB 2.0 PCIe card with three internal connectors
Compatible to Microsoft Windows Standard Open HCD Driver
Support up to 127 devices
Fully compliant with PCI Express Base Specifications, Revision 1.0a/1.1
USB 1.1 backward compatible
Hot Swapping
Plug-and-Play
Low Profile bracket are included
Packaging contents:EX-11057, Low Profile bracket, Manual
EX-11495
USB 3.2 Gen 1 PCIe (x4) board with four C-ports incl. low profile brackets (4x Renesas chip)
The EX-11495 USB 3.2 Gen 1 PCI Express card with four USB-C ports provides a reliable solution for desktop, server and workstation computers to connect USB 3.2 Gen 1 peripherals via the PCI Express slot. The multiple independent USB 3.2 Gen 1 channel architecture supports simultaneous operation of up to 127 physical USB devices for each channel while maintaining speed compatibility with USB 1.1 and USB 2. 0. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mbps), USB2.0 High-Speed (480Mbps) and USB3.0 Super-Speed (5 Gbps), as well as all USB-compliant data transfer rates such as Control, Bulk, Interrupt and Isochronous Transfer. With full hardware and software support, the EX-11495 offers a true high-performance solution for users requiring USB 3.2 Gen 1 devices for home and professional use.
USB 3.2 Gen 1 PCIe card with four external C-connectors
Each output has its own Renesas chip for maximum data transfer
Fully compliant with the x4 PCI Express Gen2 specification
Fully compliant with the USB 3.2 Gen 1 and Intel xHCI specification
Supports all USB compatible data transfer types like Control / Bulk / Interruption / Isochronous transfer
900mA USB bus power supply for each port
Hot Swapping & Plug-and-Play
Low Profile bracket are included
Chipset: Renesas D720201_202
Packaging contents:EX-11495, Low Profile bracket, Driver CD, Manual
EX-12000
2 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 2x USB-C connectors (Asmedia)
The EX-12000 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides two external Super-Speed+ USB 3.2 Gen 2x1 ports with 1x USB-C socket. It is designed to connect two additional USB 1.1, 2.0 ,3.0 and 3.2 Gen2 devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Gen 2x1 Super-Speed+ (10Gbps). It is the perfect technology for External Storage Enclosures, Digital Cameras, Webcam, Scanner and more. The EX-12000 supports 3.0A current on the External USB 3.2 Gen 2x1 ports. A low profile bracket is included with the EX-12000 for use with slim enclosures up to a maximum height of 8cm.
USB 3.2 Gen 2x1 PCIe x4 card with two USB-C female connector
Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
Fully PCI Express Gen3 Specification Compliant
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports “Hot Swapping” and “Plug-and-Play”
Supports at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
Supports up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2 Gen 2x1)
Low Profile bracket supplied
Chipset: Asmedia ASM3142
Packaging contents:EX-12000, Low Profile bracket, Driver CD, Manual
EX-12002-2
2 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 1x USB-A and USB-C (Asmedia)
The EX-12002-2 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides two external Super-Speed+ USB 3.2 Gen 2x1 ports with 1x A- and 1x USB-C socket. It is designed to connect two additional USB 1.1, 2.0 ,3.0 and 3.2 Gen 2 devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Gen 2x1 Super-Speed+ (10Gbps). It is the perfect technology for External Storage Enclosures, Digital Cameras, Webcam, Scanner and more. The EX-12002-2 supports 3.0A current on the External USB 3.2 Gen 2x1 USB-C port. A low profile bracket is included with the EX-12002-2 for use with slim enclosures up to a maximum height of 8 cm.
USB 3.2 Gen 2x1 PCIe x4 card with one A-female and C-female connector
Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
Fully PCI Express Gen3 Specification Compliant
Compatible with USB Attached SCSI Protocol Rev. 1.0
Support “Hot Swapping” and “Plug-and-Play”
Supports at A female port: 0.9 Ampère / 5 Volt / 4.5 Watt
Supports at C female port: 3.0 Ampère / 5 Volt / 15.0 Watt
Supports up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2 Gen 2x1)
Low Profile bracket supplied
Chipset: Asmedia ASM3142
Packaging contents:EX-12002-2, Low Profile bracket, Driver CD, Manual
EX-12005
4 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 2x USB-A and 2x USB-C (Asmedia)
The EX-12005 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides four external super-speed+ USB 3.2 Gen 2x1 ports with 2x USB-A and 2x USB-C connector. It is designed to connect four additional USB 1.1, 2.0, 3.0 and 3.2 Gen 2 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Gen 2x1 Super-Speed+ (10Gbps) and is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-12005 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connector.
USB 3.2 Gen 2x1 PCIe x4 card with two USB-A and USB-C female connectors
Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
Fully PCI Express Gen3 Specification Compliant
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports “Hot Swapping” and “Plug-and-Play”
Supports at USB-A female port: 0.9 Ampere / 5 Volt / 4.5 Watt
Supports at USB-C female port: 3.0 Ampere / 5 Volt / 15.0 Watt
Support up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2 Gen 2x1)
Chipset: 2x Asmedia ASM3142
Packaging contents:
EX-12005, Driver CD, Manual
EX-12006
5 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 3x USB-A and 2x USB-C (Asmedia)
The EX-12006 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides five external super-speed+ USB 3.2 Gen 2x1 ports with 3x USB-A and 2x USB-C connector. It is designed to connect two additional USB 1.1, 2.0, 3.0 and 3.2 Gen 2 end devices to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps), USB 3.0 super-speed (5Gbps) and USB 3.2 Gen 2x1 super-speed+ (10Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-12006 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connector.
USB 3.2 Gen 2x1 PCIe x4 card with three USB-A and two USB-C female connectors
Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
Fully PCI Express Gen3 Specification compliant
Compatible with USB Attached SCSI Protocol Rev. 1.0
Support “Hot Swapping” and “Plug-and-Play”
Support at USB-A female port: 0.9 Amper / 5 Volt / 4.5 Watt
Support at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
Support up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2 Gen 2x1)
Chipset: Asmedia ASM3142
Packaging contents:EX-12006, Driver CD, Manual
EX-12007
5 Port USB 3.2 Gen 2x1 PCIe (x4) card with 2x USB-A and 3x USB-C (Asmedia)
The EX-12007 USB 3.2 Gen 2x1 card with PCIe slot (Gen3, x4) provides five external USB 3.2 Gen 2x1 ports with 2x USB-A and 3x USB-C connectors. It is designed to connect five additional USB end devices to workstation, desktop or server. It supports USB 3.2 Gen 2x1 SuperSpeed 10Gbps and is backward compatible with previous USB versions. The EX-12007 is the perfect extension for connecting modern peripherals such as external storage, cameras, webcams, scanners and more. It supports Battery Charge 1.2 on the USB-A ports and up to 3A charging current on the USB-C ports.
USB 3.2 Gen 2x1 PCIe x4 card with two USB-A ports and three USB-C ports.
Compatible with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
Compatible with PCI Express Gen3 specifications
Compatible with USB Attached SCSI protocol Rev. 1.0
Supports "Hot Swapping" and "Plug-and-Play
Supports BC 1.2 on USB-A jacks: max. 2.4 A / 5 V / 12 W
Charging power at the USB-C sockets: max. 3 A / 5 V / 15 W
Maximum charging power total 67.5 W
Supports up to 127 USB devices (USB2.0, USB3.0 and USB3.2 Gen2)
Chipset: Asmedia ASM3142
Packaging contents:EX-12007, Driver-CD, Manual
Product Video EX-12007
EX-12011
1 Port USB 3.2 Gen 2x2 PCIe (x4) boardwith 1x USB-C connectors, 20Gpbs
The EX-12011 USB 3.2 Gen 2x2 with PCIe Slot (x4) card provides an external SuperSpeed USB 3.2 Gen 2x2 port with USB-C connector. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps), USB 3.0 SuperSpeed (5Gbps), USB 3.2 Gen 2x1 SuperSpeed (10Gbps) and USB 3.2 Gen 2x2 SuperSpeed (20Gbps). It is the perfect technology for external storage enclosures, digital cameras, webcam, scanner and more. The EX-12011 supports 2.4A power on the external USB-C port. A low profile bracket is included with the EX-12011 for use with slim enclosures up to a maximum height of 8cm.
USB 3.2 Gen 2x2 PCIe x4 card with one USB-C connector
Compatible with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
Compatible with PCI Express Gen3 specifications
Compatible with USB Attached SCSI protocol Rev. 1.0
Supports "Hot Swapping" and "Plug-and-Play
Supports at USB-C output: 2.4 amps / 5 volts / 12.0 watts
Supports up to 127 USB devices (USB2.0, USB3.0 and USB3.2 Gen2)
Low profile bracket included
Chipset: Asmedia ASM3242
Packaging contents:EX-12011, Low Profile bracket, Manual
EX-11088-2
USB 3.2 Gen 1 PCIe card with 7 ports (Chipset VIA)
The EX-11088-2 USB 3.2 Gen 1 PCIe card provides seven external super-speed USB 3.2 Gen 1 ports. It is designed to connect multiple USB 1.1, 2.0 or 3.2 Gen 1 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.2 Gen 1 Super-Speed (5Gbps). The card requires power from the PC power supply for proper operation and to provide 900mA to the USB ports.
USB 3.2 Gen 1 PCIe card with seven external connectors
Compatible to Microsoft Windows Standard Open HCD Driver
Supports up to 123 devices
Fully Compliant with PCI Express Gen2 Specifications
USB 1.1 and 2.0 backward compatible
Hot Swapping
Plug-and-Play
Packaging contents:EX-11088-2, Driver CD, Manual
