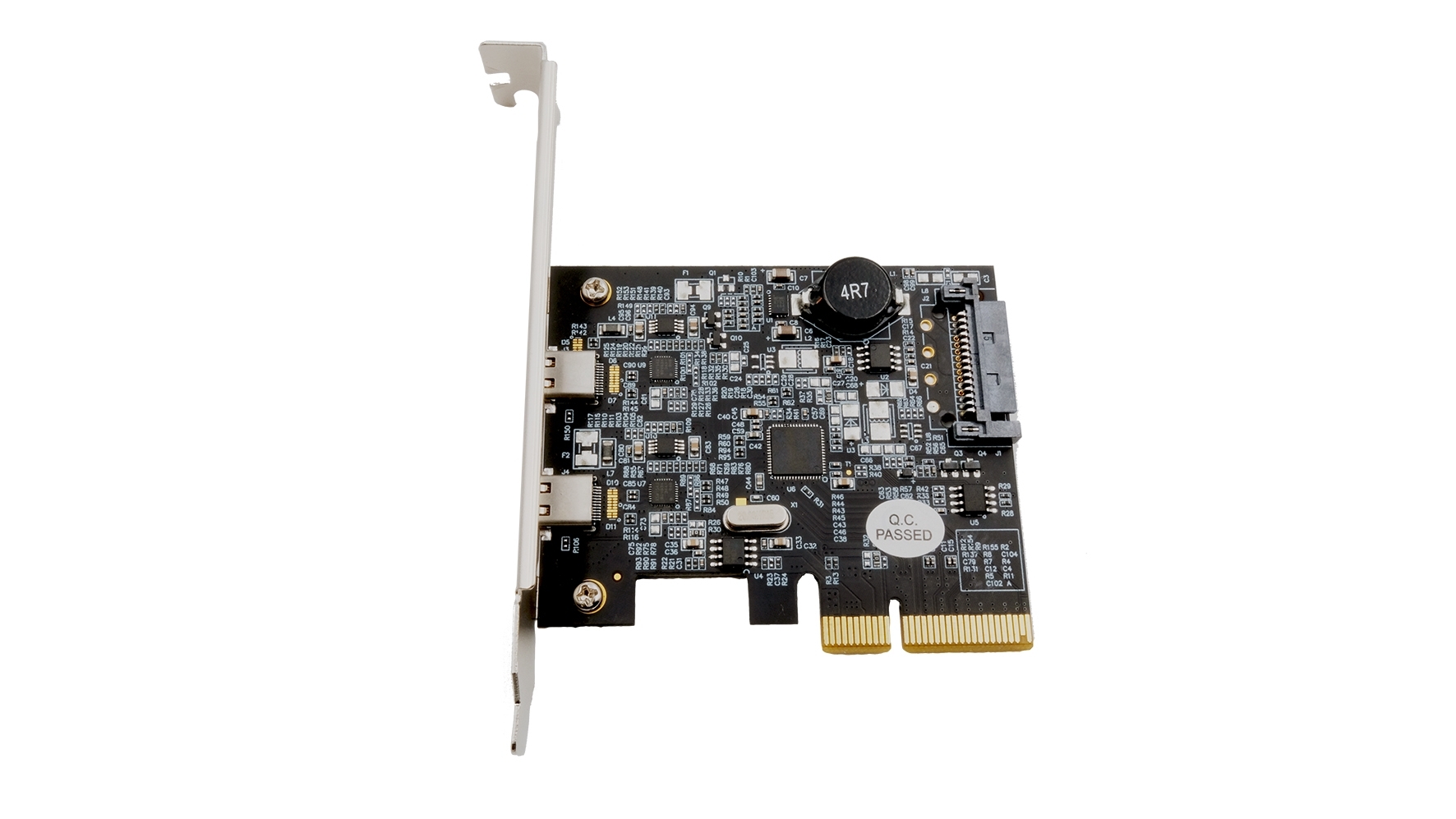

2 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 2x USB-C connectors (Asmedia)
The EX-12000 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides two external Super-Speed+ USB 3.2 Gen 2x1 ports with 1x USB-C socket. It is designed to connect two additional USB 1.1, 2.0 ,3.0 and 3.2 Gen2 devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Gen 2x1 Super-Speed+ (10Gbps). It is the perfect technology for External Storage Enclosures, Digital Cameras, Webcam, Scanner and more. The EX-12000 supports 3.0A current on the External USB 3.2 Gen 2x1 ports. A low profile bracket is included with the EX-12000 for use with slim enclosures up to a maximum height of 8cm.
- USB 3.2 Gen 2x1 PCIe x4 card with two USB-C female connector
- Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
- Fully PCI Express Gen3 Specification Compliant
- Compatible with USB Attached SCSI Protocol Rev. 1.0
- Supports “Hot Swapping” and “Plug-and-Play”
- Supports at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
- Supports up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2 Gen 2x1)
- Low Profile bracket supplied
- Chipset: Asmedia ASM3142

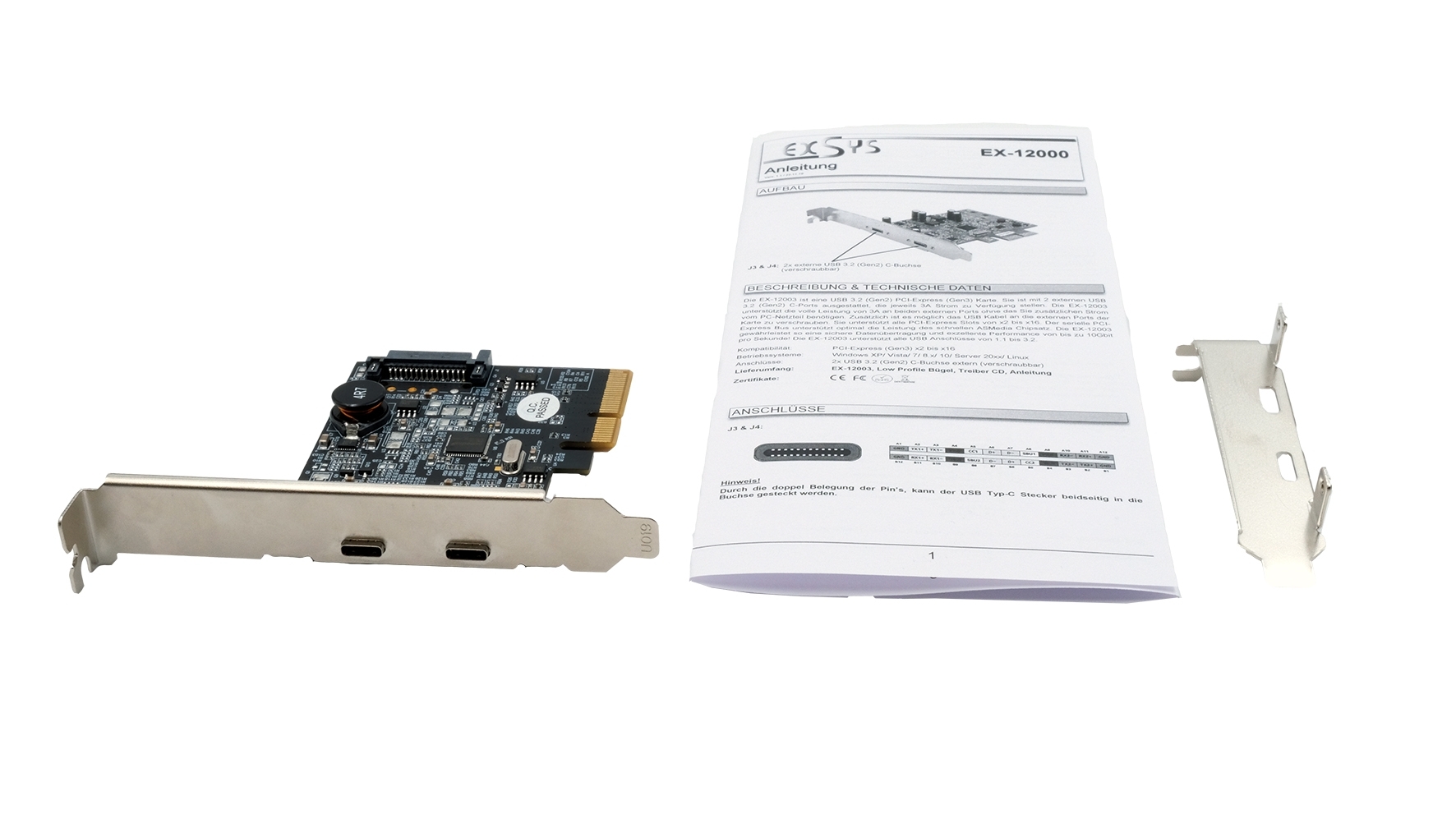

Packaging contents:
EX-12000, Low Profile bracket, Driver CD, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | USB-C socket |
| Data transmission: | 10Gbps |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 2 |
| Power connection: | SATA power |
