New
EX-1323
USB 4 / Thunderbolt 3/4 to Ethernet 10 Gbps Converter
The USB-C to 10G Ethernet Adapter EX-1323 enables the integration of a desktop or notebook PC into a 10Gbps network or the direct connection of a network device. It supports USB4 Gen 3x2 and Thunderbolt 3 and higher standards. The high network speed of up to 10Gbps makes the EX-1323 ideal for bandwidth-intensive network applications with high data volumes. Powered via the USB port, no additional power supply is required.
Supports USB4 Gen 3x2 at up to 40 Gbps
Compatible with Thunderbolt 3/4
Not backwards compatible with previous USB standards
Supports 10G Ethernet over Cat6a with auto-negotiation
Supports 5G/2.5G/1G/100M/10M Ethernet over Cat5e up to 100 metres
Supports IEEE 802.3az (Energy Efficient Ethernet)
Supports Jumbo Frames up to 16KBytes
Powered by the USB bus (bus power)
Supports Wake-on-LAN
Robust, stylish aluminium housing
Chipset: Marvell AQC113CS
Packaging contents:EX-1323, USB cable 0.3m, manual

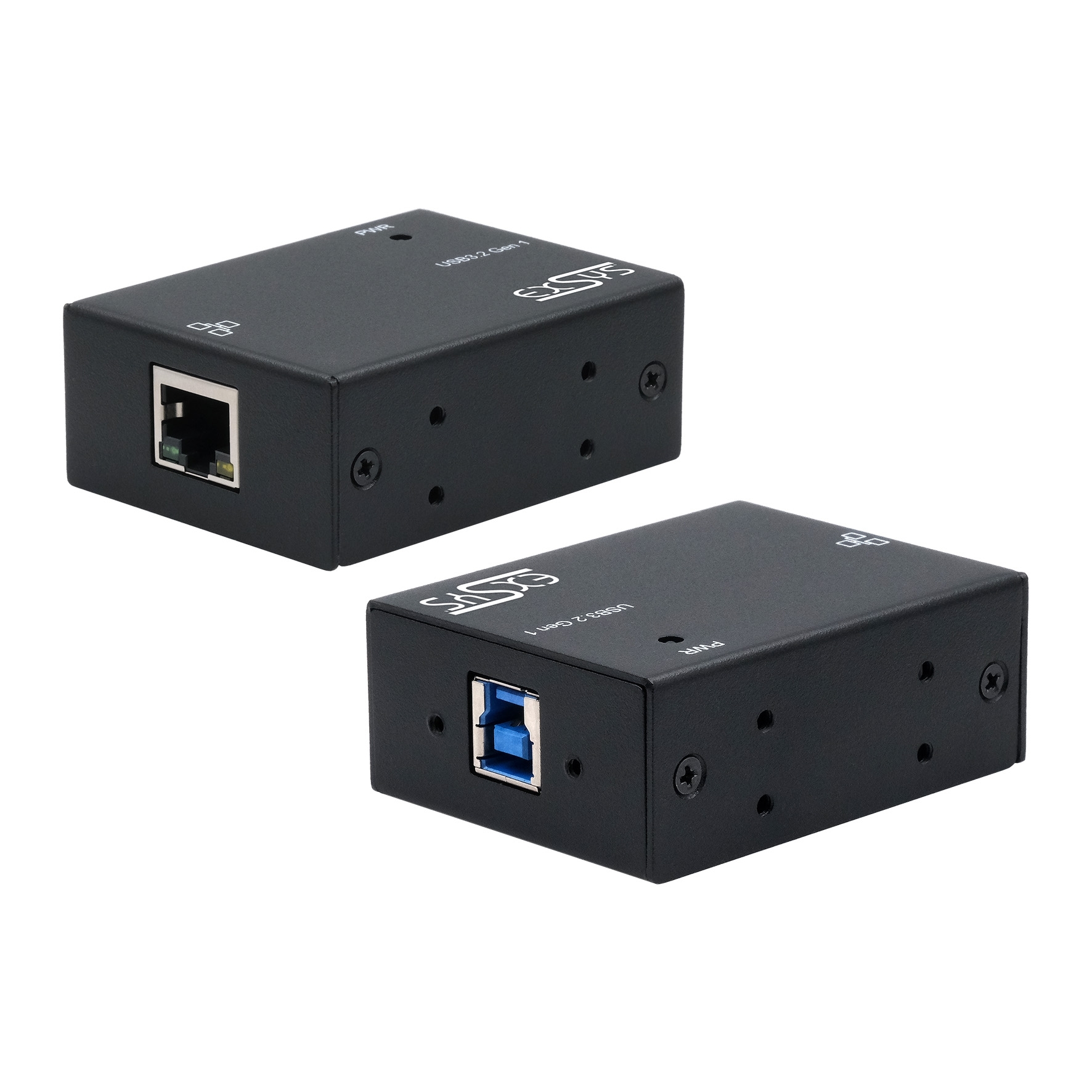

EX-1321
USB 3.2 Gen 1 to Ethernet 1Gigabit incl. DIN-Rail Kit (Metal case)
With the EX-1321 you can connect notebook, desktop computer or server in a 19-inch rack to a 10/100/1000Mbps network via the USB 3.2 Gen 1 or 2.0 output. The EX-1321 can be installed simultaneously to an existing network card. The installation is very easy without the need to open the systems. A DIN rail kit is included with the EX-1321 for installation in a 19-inch rack.
Compliant with Universal Serial Bus 3.2 Gen 1
Downwards compatible with USB 2.0 and USB 1.1 standard
Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.3az (Energy Efficient Ethernet)
Supports cross-over detection and auto-correction
Power from the USB port (Bus-Power)
Supports Wake-on-LAN
Supports USB 3.0 screw lock cable mechanism
Metal case with wall and DIN-Rail mounting kit for industrial application
LEDs indicate the status of Power status and Ethernet connection
Chipset: ASIX AX88179
Packaging contents:EX-1321, Driver CD, Manual

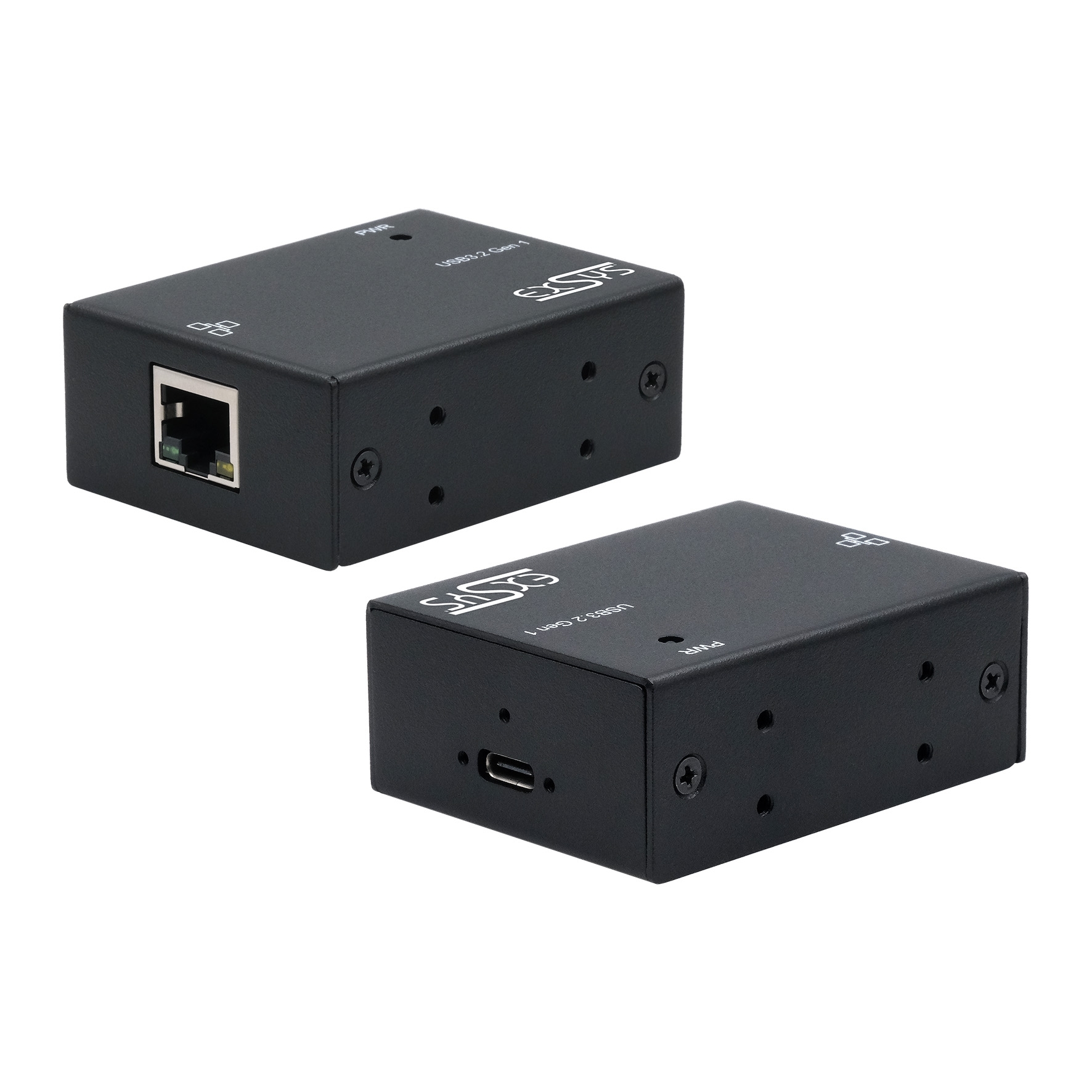

EX-1318
USB 3.2 Gen 1 with USB-C connector to Ethernet 1Gigabit LAN
The EX-1318 allows you to connect notebook and desktop computers to a 10/100/1000Mbps network via the USB 3.2 Gen 1 with USB-C port. The EX-1318 can be installed simultaneously to an existing network card. The installation is very easy without opening the systems.
Compliant with Universal Serial Bus 3.2 Gen 1
Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.3az (Energy Efficient Ethernet)
Supports cross over detection and auto-correction
Power from the USB port (Bus-Power)
Supports Wake-on-LAN
LEDs indicate the status of Power status and Ethernet connection
Chipset: Realtek RTL8153
Packaging contents:EX-1318, Manual
EX-1329
USB 3.2 Gen 1 with USB-C connector to 4x Ethernet 1Gigabit
With EX-1329, you can connect Windows, Linux or MAC computer/notebook to four 10/100/1000Mbps networks or Internet simultaneously via USB 3.2 Gen 1 output. The EX-1329 can be installed simultaneously to an existing network card and provides four additional 1Gigabit outputs. The installation is very easy without the need to open the systems. The EX-1329 has an elegant case and an adapter USB-C male to USB-A female (EX-47990). The outputs can be switched on and off individually.
Supports 100/1000/10000 Base-T Ethernet standards
Supports Auto-MDI/MDI-X Auto (for Crossover cable)
Supports Jumbo Frame up to 16Kbytes
EEE (Energy Efficient Ethernet)
Wake-on-LAN and Remote Wake-up
Supports Full Duplex Flow Control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging,
IEEE 802.1P Layer 2 Priority Encoding
Virtual NIC support
Activity LED to check the data transfer
Standard CAT.6A cabling with RJ45 connector
Lieferumfang:EX-1329, USB 3.2 Gen 1 Kabel, DIN-Rail Kit Handbuch
EX-1321-4K
USB 3.2 Gen 1 to Ethernet 1Gigabit with 4KV Optical Isolation
With EX-1321-4K, you can connect notebook, desktop computer or server in 19-inch rack to 10/100/1000Mbps network via USB 3.2 Gen 1 or 2.0 output. The EX-1321-4K supports 4KV optical isolation for network connection. The EX-1321-4K can be installed simultaneously to an existing network card. The installation is very easy without the need to open the systems. With the EX-1321-4K, a DIN rail kit is included for installation in a 19-inch rack.
Supports 4KV Optical Isolation
Compliant with Universal Serial Bus 3.2 Gen 1
Compatible with USB 2.0 and USB 1.1 standard
Supports full duplex operation with IEEE 802.3x flow control and half duplex operation with back-pressure flow control
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.3az (Energy Efficient Ethernet)
Supports cross-over detection and auto-correction
Power from the USB port (Bus-Power)
Supports Wake-on-LAN
Supports USB 3.0 screw lock cable mechanism
Metal case with wall and DIN-Rail mounting kit for industrial application
LEDs indicate the status of Power status and Ethernet connection
Chipset: Realtek RTL8153B
Packaging contents:EX-1321-4K, USB 3.2 Gen 1 cable, DIN-Rail Kit Wall mounting, Manual
EX-1330M
USB 3.2 Gen 1 with USB-C connector to 4x Ethernet 1Gbps (Metal housing)
With EX-1330M, you can connect Windows, Linux or MAC computer/notebook to four 10/100/1000Mbps networks simultaneously via USB 3.2 Gen 1 output. The EX-1330M can be installed simultaneously to an existing network card and provides four additional 1Gigabit outputs. The installation is very easy without the need to open the systems. The outputs can be switched on and off individually. The EX-1330M has a compact metal housing with DIN rail kit for mounting in a 19-inch rack.
Supports 100/1000/10000 Base-T Ethernet standards
Supports Auto-MDI/MDI-X Auto (for crossover cable)
Supports Jumbo Frame up to 16Kbytes
EEE (Energy Efficient Ethernet)
Wake-on-LAN and Remote Wake-up
Supports Full Duplex Flow Control (IEEE 802.3x)
Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging,
IEEE 802.1P Layer 2 Priority Encoding
Virtual NIC support
Activity LED to check the data transfer
Standard CAT. 6A cabling with RJ45 connector
Chipset: Realtek RTL8153B
Packaging contents:EX-1330M, USB 3.2 Gen 1 cable, DIN-Rail Kit, Manual
EX-1320-3
USB 3.2 Gen 1 to Ethernet 1Gigabit (Realtek Chipset)
The EX-1320-3 allows notebook and desktop PCs to connect to a 10/100 or 1000Mbps network via the USB 3.2 Gen 1 (formerly USB 3.0) or 2.0 output. It can be installed alongside an existing network card. Installation is very simple and can be done without opening the computer.
USB 3.2 Gen 1 compliant
Backward compatible with USB 2.0
Supports full-duplex operation with IEEE 802.3x flow control and half-duplex operation with backpressure flow control
Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
Supports IEEE 802.3az (Energy Efficient Ethernet)
Supports cross-over detection and auto-correction
Powered via USB port (bus power)
Supports Wake-on-LAN
LEDs indicate power and Ethernet connection status
Chipset: Realtek RTL8153B
Packaging contents:EX-1320-3, Manual
New
EX-1321-WT
USB 3.2 Gen 1 to Ethernet 1Gigabit incl. DIN-Rail Kit (Metal case), extended Temperature range from -40°C to +85°C
With the EX-1321-WT, you can connect notebooks, desktop computers or servers in a 19-inch rack to a 10/100/1000Mbps network via the USB 3.2 Gen 1 or 2.0 output. The EX-1321-WT can be installed at the same time as an existing network card. The installation is very simple without having to open the systems. The design of the EX-1321-WT is very compact and robust, making it ideal for use in harsh environments. Thanks to the extended temperature range of -40° to + 85° Crad, the EX-1321-WT is also ideal for use outdoors or in environments subject to high temperatures. A DIN-Rail Kit is supplied with the EX-1321-WT for installation in a 19-inch rack.
Compliant with Universal Serial Bus 3.2 Gen 1
Backwards compatible with USB 2.0 and USB 1.1 standard
Supports full duplex operation with IEEE 802.3x Flow Control and half duplex operation with Back-Pressure Flow Control
Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Support IEEE 802.3az (Energy Efficient Ethernet)
Supports cross over detection and auto-correction
Power supply from the USB Bus (Bus Power)
Support „Wake-on-LAN“
Screwable USB 3.2 Cable for secure installation
Supports the extended temperature range from -40°C to +85°C
Metal Case with Wall Mounting and DIN-Rail Kit for industrial applications
LEDs indicate the status of Power and Ethernet connection
Chipsatz: ASIX AX88179
Lieferumfang:EX-1321-WT, Manual
