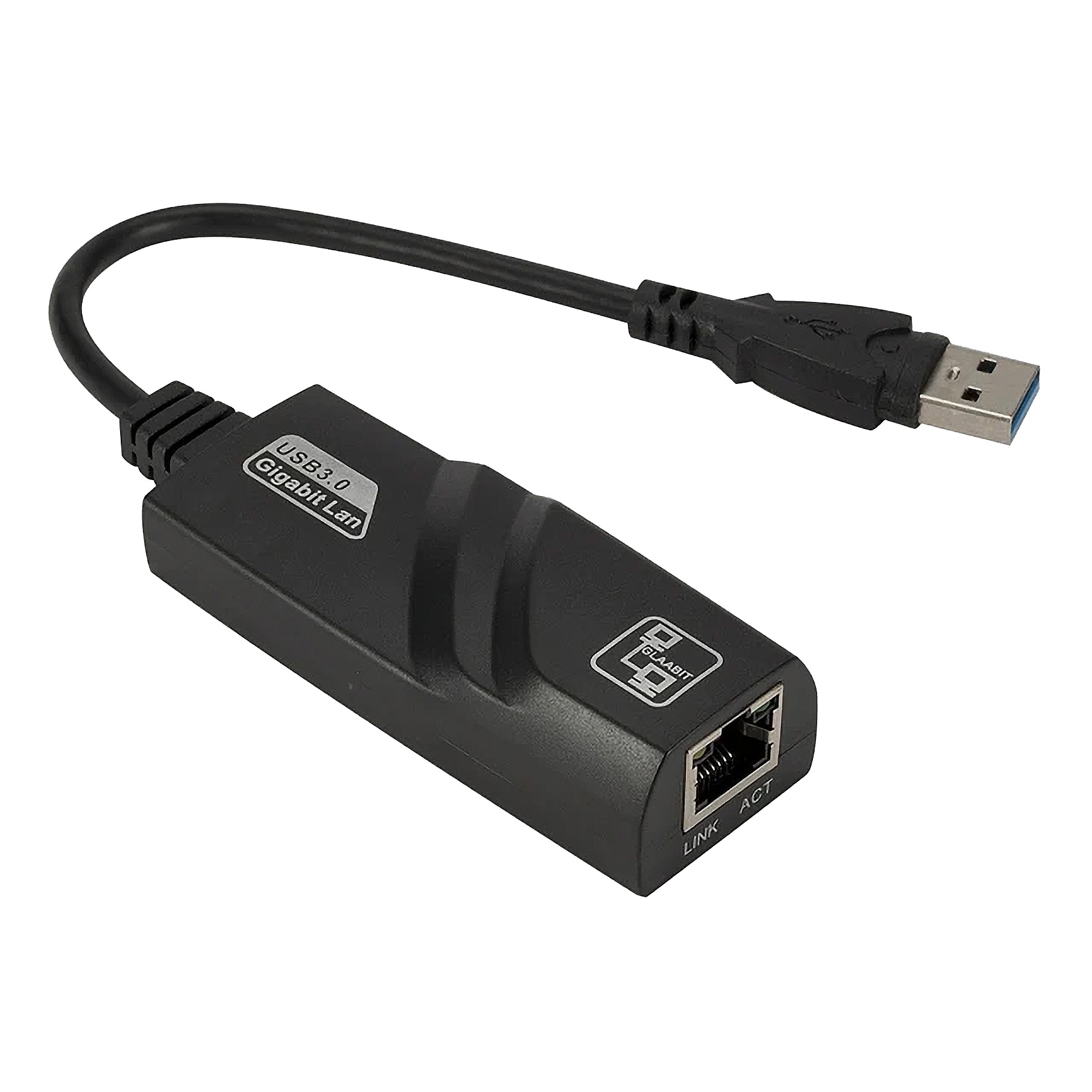

USB 3.2 Gen 1 to Ethernet 1Gigabit (Realtek Chipset)
Product number:
EX-1320-3
GTIN/EAN:
4718359132063
USB 3.2 Gen 1 to Ethernet 1Gigabit (Realtek Chipset)
The EX-1320-3 allows notebook and desktop PCs to connect to a 10/100 or 1000Mbps network via the USB 3.2 Gen 1 (formerly USB 3.0) or 2.0 output. It can be installed alongside an existing network card. Installation is very simple and can be done without opening the computer.
- USB 3.2 Gen 1 compliant
- Backward compatible with USB 2.0
- Supports full-duplex operation with IEEE 802.3x flow control and half-duplex operation with backpressure flow control
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab standards
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports cross-over detection and auto-correction
- Powered via USB port (bus power)
- Supports Wake-on-LAN
- LEDs indicate power and Ethernet connection status
- Chipset: Realtek RTL8153B
Packaging contents:
EX-1320-3, Manual
| Application: | Adapter |
|---|---|
| Cable length: | 0.3m |
| Colour: | black |
| Housing: | Plastic |
| Inputs: | USB-A plug |
| Interface: | USB 3.2 Gen 1 |
| Number of ports: | 1 |
| Outputs: | Ethernet 1Gbps |
| Power connection: | Bus power |
| Temperature range: | 0°C to +55°C |
