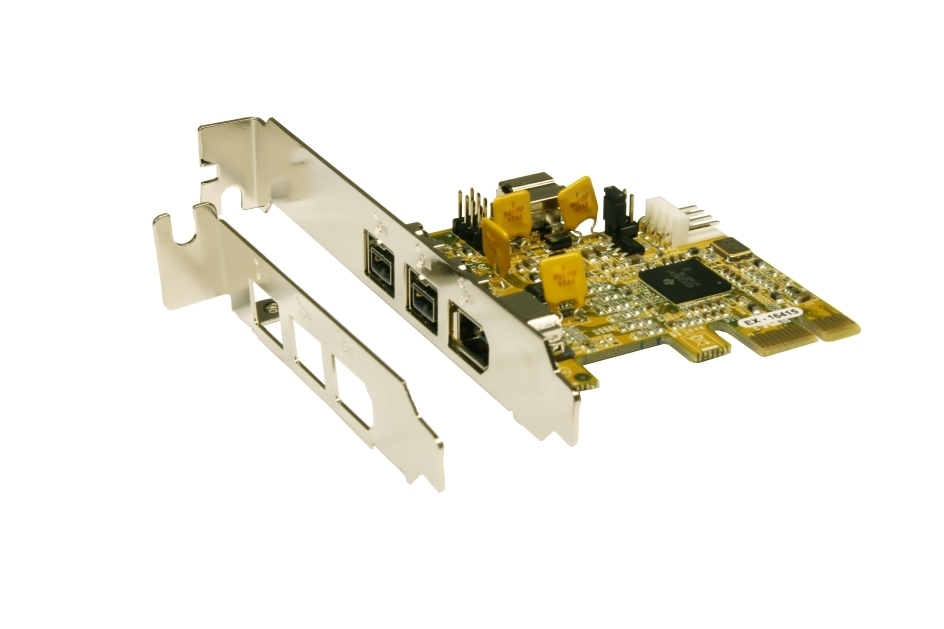

EX-16415
PCIe FireWire 1394B card with 3+1 Ports (TI Chipset) incl. LowProfile Bracket
The PCI-Express FireWire 1394B (FireWire800) card provides two external and one internal FireWire 1394B port and one external 6-pin FireWire 1394A port. It was developed to expand PCs, workstations or servers with three additional FireWire 1394B and one FireWire 1394A high-speed port via the PCI Express bus. The EX-16415 provides a fast I/O solution to give the user the opportunity to connect fast peripheral devices. The EX-16415 comes with a low-profile bracket for narrow computer housings up to 8 cm in height.
Supports up to 63 devices
PCI Express interface compatible with 1.0a specification
"Hot swapping" devices can be plugged in and unplugged without turning off the computer
Can also be installed in addition to the mainboard FireWire ports
Supports PC and Apple Power MAC systems
Chipset: Texas Instrument XIO2213
Packaging content:EX-16415, Low Profile Bracket, Manual

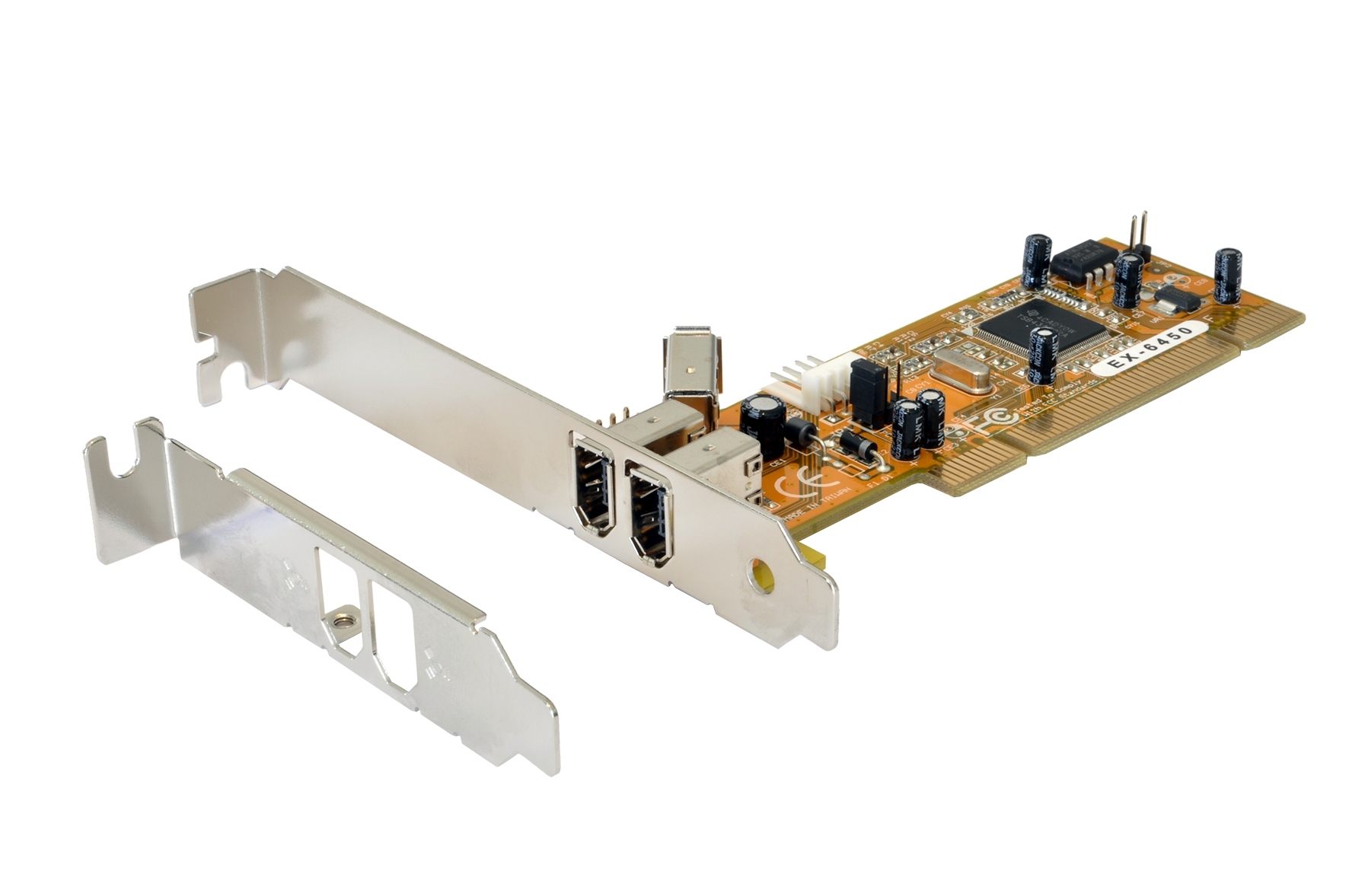

EX-6450
PCI FireWire 1394 card with 3 Ports incl. LP bracket (TI Chipset)
The PCI FireWire 1394A (FireWire400) card provides two external and one internal FireWire 1394A port. It is designed to add three additional FireWire 1394A high-speed ports for PCs, workstations or servers via the PCI bus to connect FireWire 1394A devices. The EX-6450 provides a high-speed I/O solution to enable users to connect fast peripherals. It also includes an internal motherboard compatible connector for FireWire front bay HUBs. Included with the EX-6450 is a low profile bracket for narrow computer cases up to 8 cm in height.
Supports up to 63 devices
PCI-Express interface compatible with 1.0a specification
"Hot swapping" devices can be plugged in and unplugged without turning off the computer
Can also be installed in addition to the FireWire ports from the motherboard
Supports PC and Apple Power MAC systems
Internal port is shared with the first external (P2) port
Supports 32-bit PCI bus and 64-bit PCI-X bus with 5V and 3.3V
Chipset: Texas Instruments TSB43AB22A
Packaging contents:EX-6450, Low Profile bracket, Manual

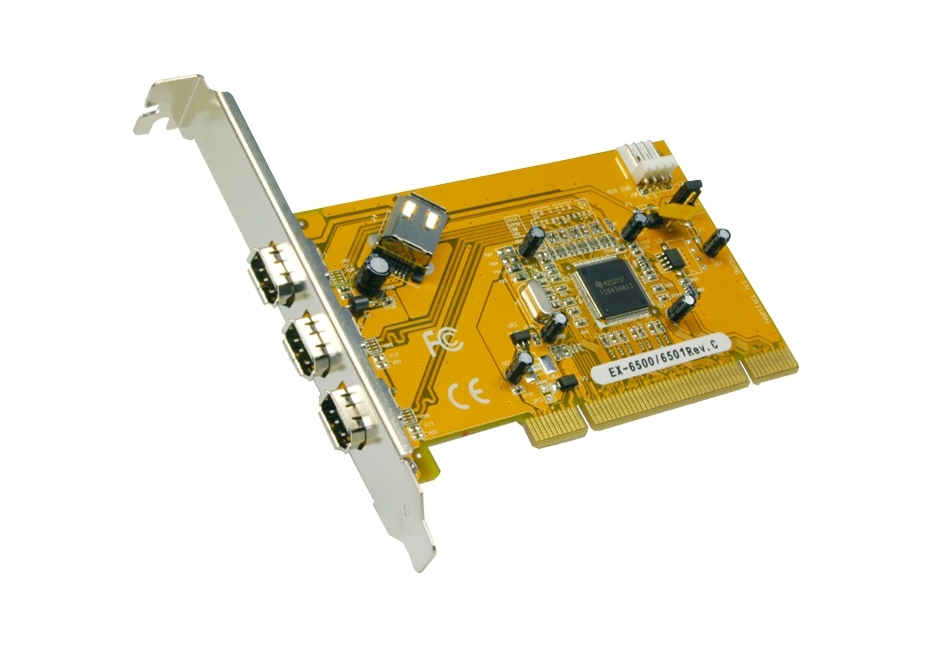

EX-6500E
PCI FireWire 1394 Karte mit 3+1 Ports (TI Chipset)
The EX-6500E FireWire 1394A (FireWire400) PCI card provides three external and one internal FireWire 1394A port. It is designed to expand four additional FireWire 1394A high-speed ports for PCs, workstations or servers via the PCI bus to connect FireWire 400 1394A devices.
Supports up to 63 devices
Compatible with IEEE 1394-1995, 1394a (rev. 1.1) and OHCI interface specification 1.0
"Hot swapping" devices can be plugged in and unplugged without turning off the computer
Can also be installed in addition to the FireWire ports from the motherboard
Internal port is shared with the first external (P3) port
Supports PC and MAC systems
Supports 32-bit PCI bus and 64-bit PCI-X bus with 5V and 3.3V
Packaging contents:EX-6500E, manual

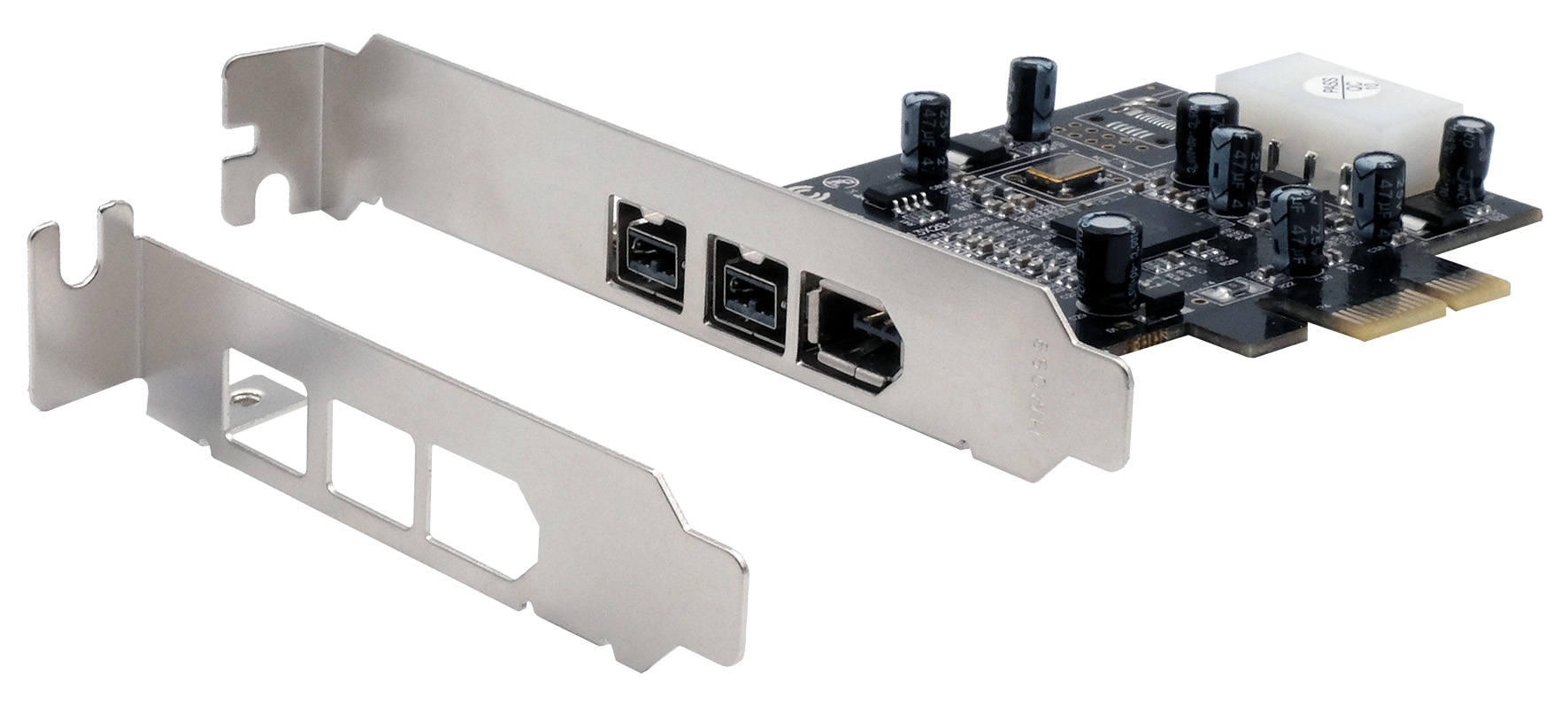

EX-16601
PCIe FireWire 1394b/a card with 3 Ports (TI Chipset) incl. Low Profile Bracket
The EX-16601 PCI-Express FireWire 1394b card expands PCs, small workstations or servers by two FireWire 1394b (FireWire 800) ports and one 6 pin FireWire 1394a (FireWire 400) port. It thus enables the connection of FireWire devices such as video cameras or professional audio equipment. The EX-16601 comes with a low profile bracket for narrow computer cases up to 8 cm in height.
FireWire 1394b PCIe card with three external outputs
Support up to 63 device
PCIe Interface are fully compliant with 1.0a specification
"Hot swapping" to connect/disconnect devices without turnig off the computer
Can be installed in addition to the existing FireWire ports from the mainboard
Complies with IEEE1394b standard and is backward compatible with IEEE1394a-2000 as well as the 1394-1995 standard
Supports PC and MAC systems
Chipset: Texas Instrument XIO2213
Packaging contents:EX-16601, IEEE 1394b cable, Low Profile bracket, Manual
EX-16600
PCIe FireWire 1394a card with 3+1 Ports (Via Chipset) incl. Low Profile Bracket
The EX-16600 PCI-Express FireWire 1394a (FireWire 400) card expands PCs, workstations or servers by three external FireWire 1394a ports (2x 6-pin, 1x 4-pin) and one internal 6-pin FireWire 1394a port. It thus enables the connection of FireWire devices such as video cameras or professional audio equipment. The EX-16600 comes with a low profile bracket for narrow computer cases up to 8 cm in height.
FireWire 1394a PCIe card with three external outputs and one internal output
Supports up to 63 devices
PCI Express interface compatible with 1.1 specification
"Hot swapping" devices can be plugged in and unplugged without turning off the computer
Can also be installed in addition to the FireWire ports from the motherboard
Active State Power Management (ASPM) for L0s and L1
Supports PC and Linux systems
Chipset: Via VT6315
Packaging content:EX-16600, IEEE 1394a cable, low profile bracket, manual

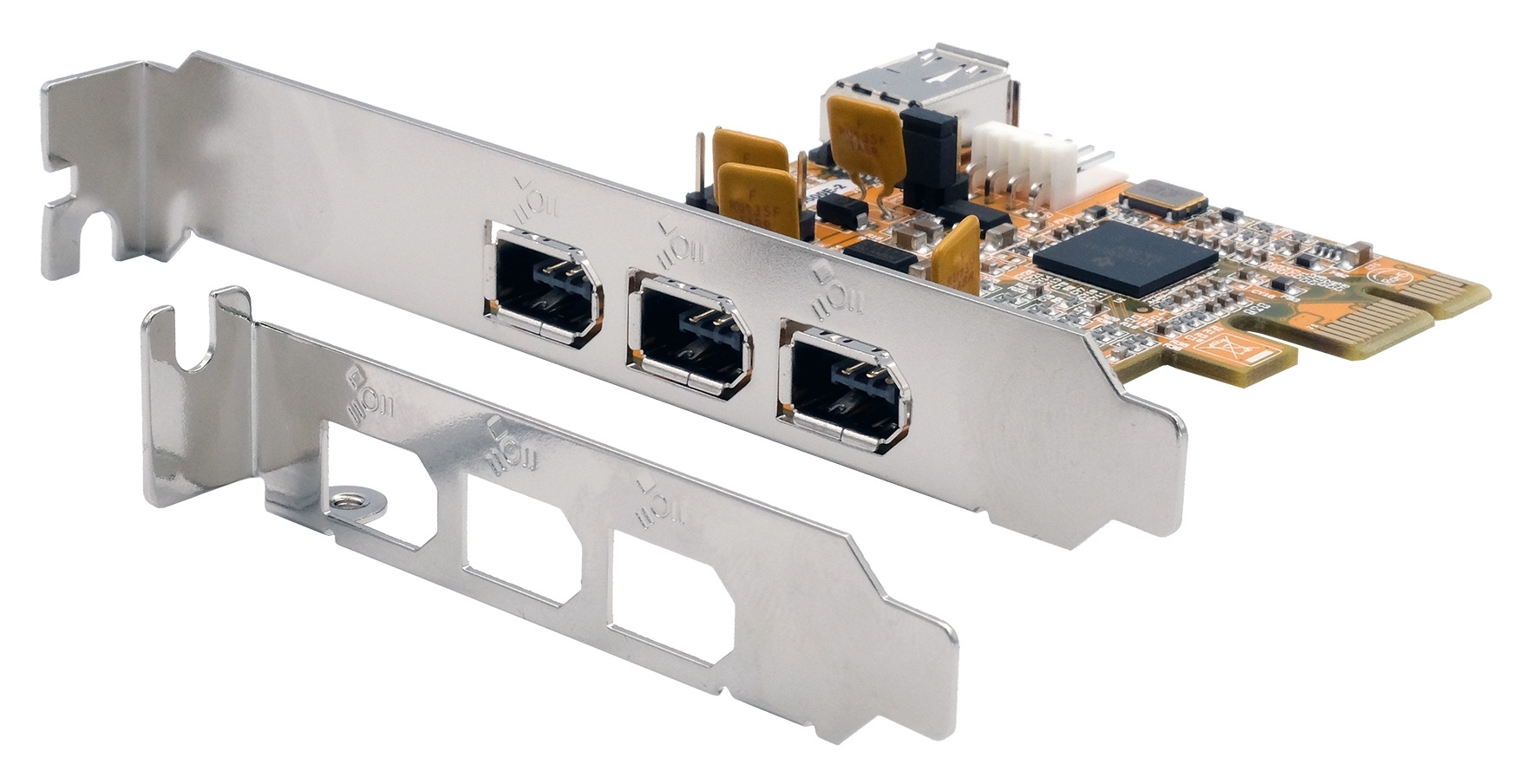

EX-16500E-2
FireWire 1394A PCIe card with 3+1 ports (TI Chipset)
The EX-16500E-2 PCI-Express FireWire 1394A (FireWire400) card expands desktop PCs, workstations or servers by one internal and three external FireWire 1394A ports. It thus enables the connection of FireWire devices such as video cameras or professional audio equipment. A FireWire front bay hub, for example, can be connected to the internal motherboard-compatible port. A low profile bracket is included for installation in narrow cases.
FireWire 1394A PCIe card with three external outputs and one internal output
Supports up to 63 devices
PCI Express interface compatible with 1.1 specification
Advanced PCI Express error reporting capability, including ECRC support
Supports 12 VDC via 6-pin IEEE 1394 connectors
"Hot swapping" devices can be plugged in and unplugged without turning off the computer plugged in and unplugged
Can also be installed in addition to FireWire ports from motherboard installed
Supports PC and MAC systems
Chipset: Texas Instrument
Packaging contents:EX-16500E-2, low profile bracket, manual
