PCIe FireWire 1394a card with 3+1 Ports (Via Chipset) incl. Low Profile Bracket
Product number:
EX-16600
GTIN/EAN:
4718359166006
PCIe FireWire 1394a card with 3+1 Ports (Via Chipset) incl. Low Profile Bracket

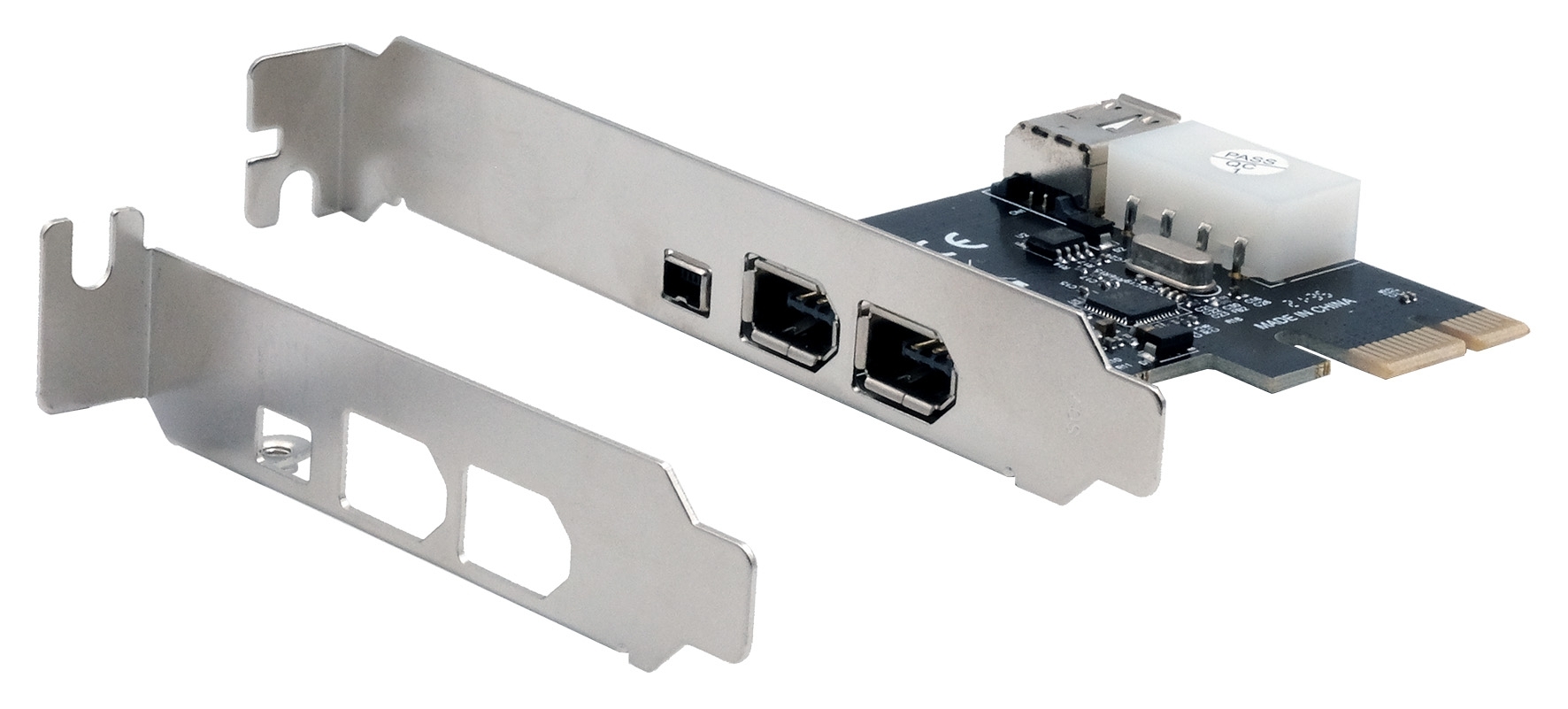

The EX-16600 PCI-Express FireWire 1394a (FireWire 400) card expands PCs, workstations or servers by three external FireWire 1394a ports (2x 6-pin, 1x 4-pin) and one internal 6-pin FireWire 1394a port. It thus enables the connection of FireWire devices such as video cameras or professional audio equipment. The EX-16600 comes with a low profile bracket for narrow computer cases up to 8 cm in height.

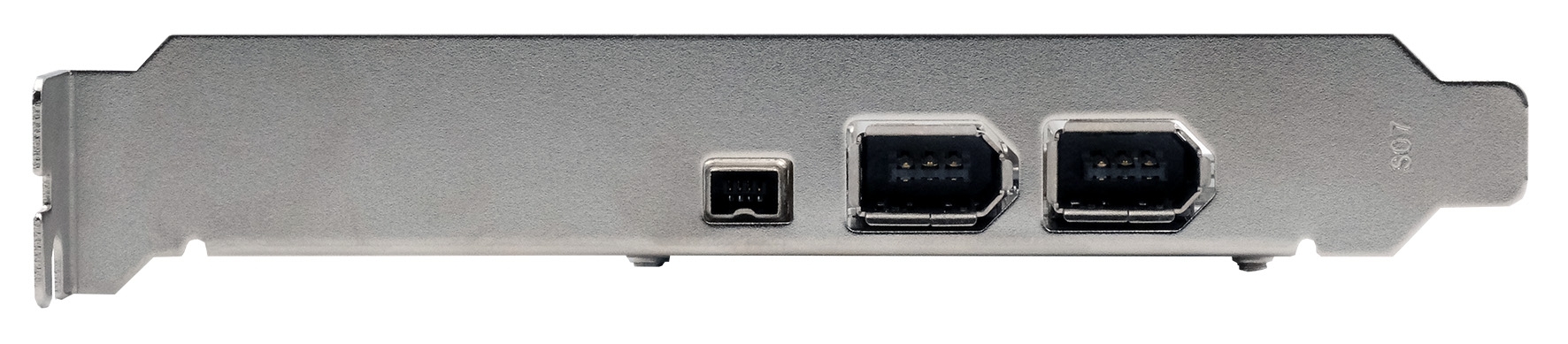

- FireWire 1394a PCIe card with three external outputs and one internal output
- Supports up to 63 devices
- PCI Express interface compatible with 1.1 specification
- "Hot swapping" devices can be plugged in and unplugged without turning off the computer
- Can also be installed in addition to the FireWire ports from the motherboard
- Active State Power Management (ASPM) for L0s and L1
- Supports PC and Linux systems

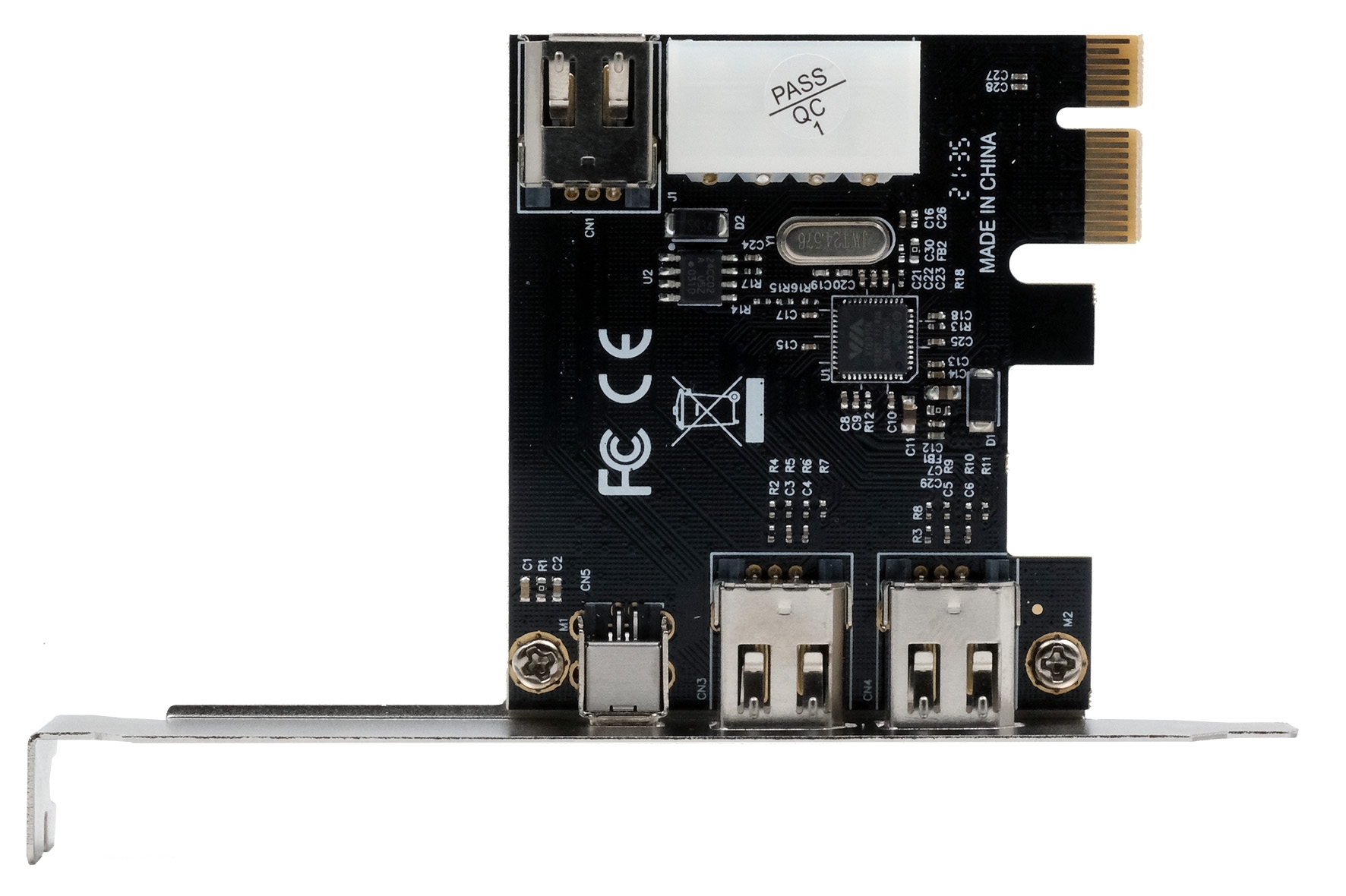

- Chipset: Via VT6315
Packaging content:

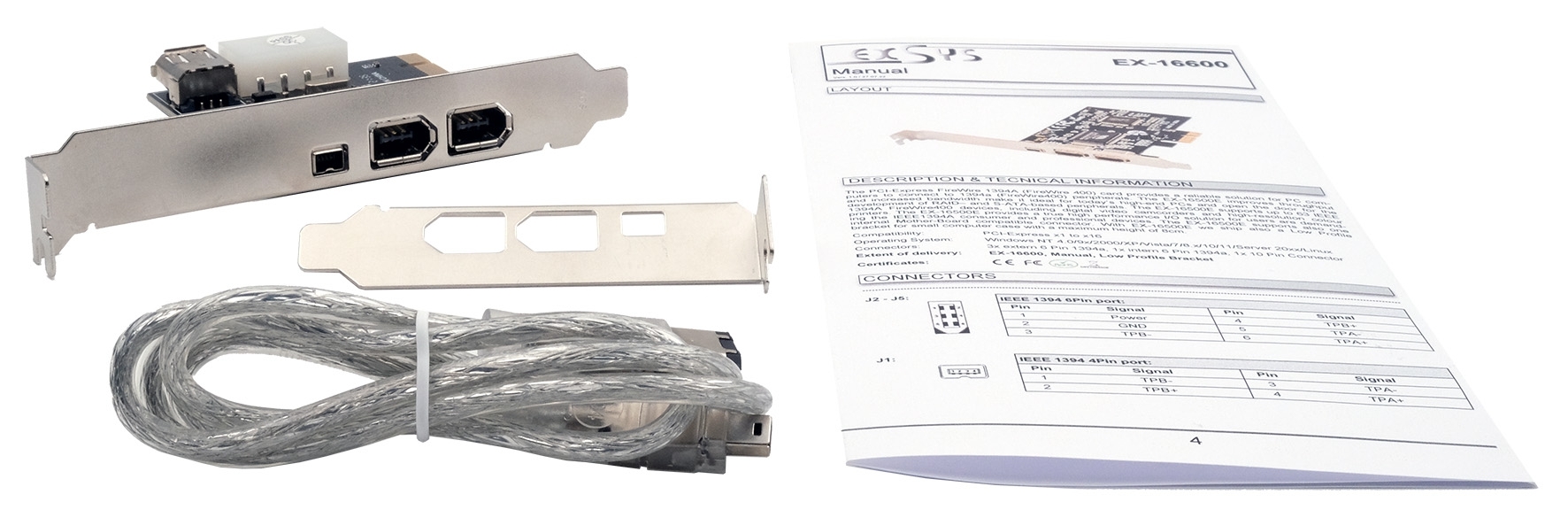

EX-16600, IEEE 1394a cable, low profile bracket, manual
| Bus system: | PCIe x1 |
|---|---|
| Connections: | 6 + 4-pin socket |
| Interface: | FireWire 1394a |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 4 |
