EX-44012
2P PCIe Parallel SPP board incl. Low Profile bracket (MosChip)
The EX-44012 PCI-Express Parallel adapter provides two SPP/EPP/ECP high performanceports. It is designed for PC, thin client or server to provide instant LPT port expansion via the PCI–Express Bus. The card is fully Universal PCI Plug-and-Play compatible and there are no IRQ and I/O address configuration problems. With the included Low Profile Bracket the EX-44012 can also be used for small computer chassis of maximum 8 cm height.
PCI-Express x1 Parallel card with two ports
Interface: SPP (Standard Parallel Port)
I/O addresses and Interrupt setting from the operating system, IRQ sharing
Fully compliant with PCI-Express Base Specification Rev. 1.0a
Windows WHQL certification
Low Profile its included
Chip-Set: MosChip MCS9815CV

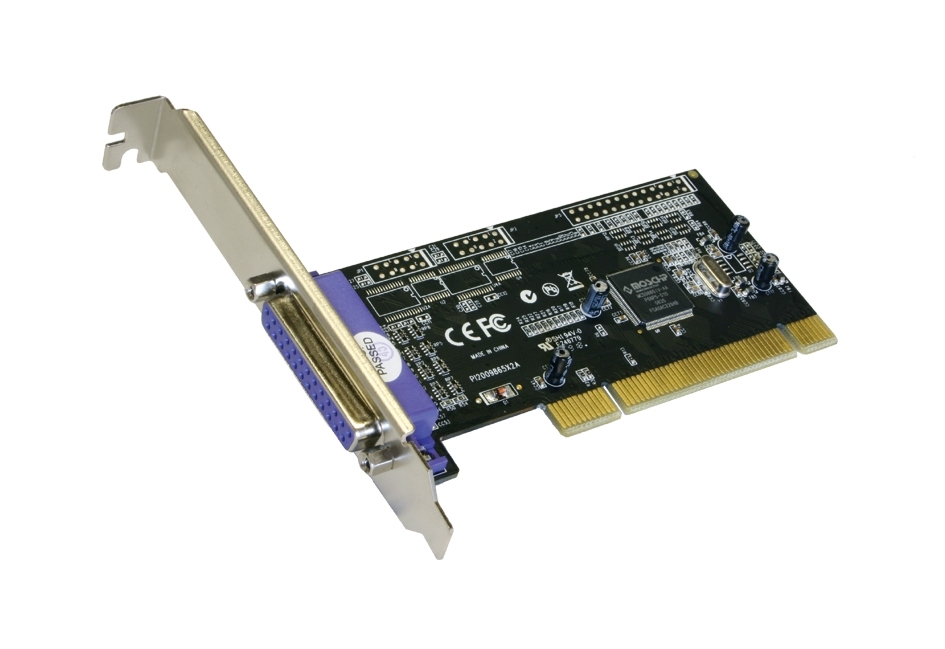

EX-41010
PCI 1P Parallel SPP/EPP/ECP Board (MosChip Chipset)
The EX-41010 PCI Parallel Card provides one parallel SPP/EPP/ECP high performance output. It is designed to add another parallel output for PC, workstation or server via the PCI Express bus. A low profile bracket is supplied with the EX-41010 for narrow cases up to max. 8cm height.
Universal PCI 32-Bit Parallel card with one port
Interface: SPP (Standard Parallel Port)
I/O addresses and Interrupt setting from the operating system, IRQ sharing
No Jumper Setting
Support mainboard with 5V and 3.3V
Chipset: MosChip MCS9805CV
Packaging contents:EX-41010, Low Profile bracket, Driver CD, Manual

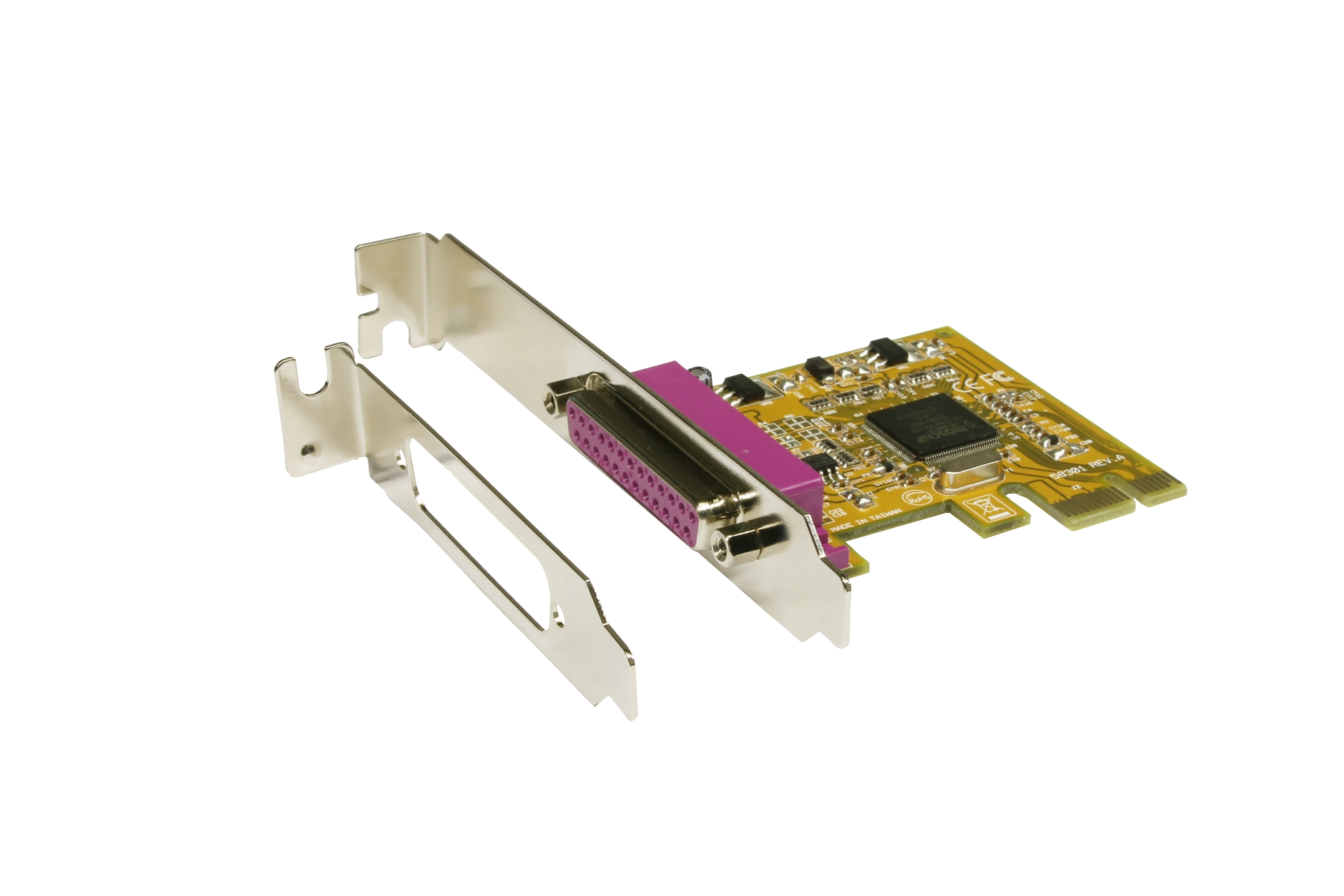

EX-44001
PCIe 1P Parallel card SPP/EPP/ECP (ASIX)
The EX-44001 PCI-Express Parallel Card provides one parallel SPP/EPP/ECP high performance output. It is designed to add another parallel output for PC, workstation or server via PCI-Express bus. With EX-44001 there are no IRQ and I/O addressing issues and it is PCI-Express Plug-and-Play compatible. A low profile bracket is included with the EX-44001, so the EX-44001 can also be used in narrow cases up to a maximum height of 8 cm.
PCI-Express x1 Parallel card with one port
Interface: SPP (Standard Parallel Port), EPP (Enhanced Parallel Port),ECP (Enhanced Capacity Port)
I/O addresses and Interrupt setting from the operating system, IRQ sharing
Fully compliant with PCI-Express Base Specification Rev. 1.0
Chipset: ASIX MCS9901CV
Packaging contents:EX-44001, Low Profile bracket, Driver CD, Manual

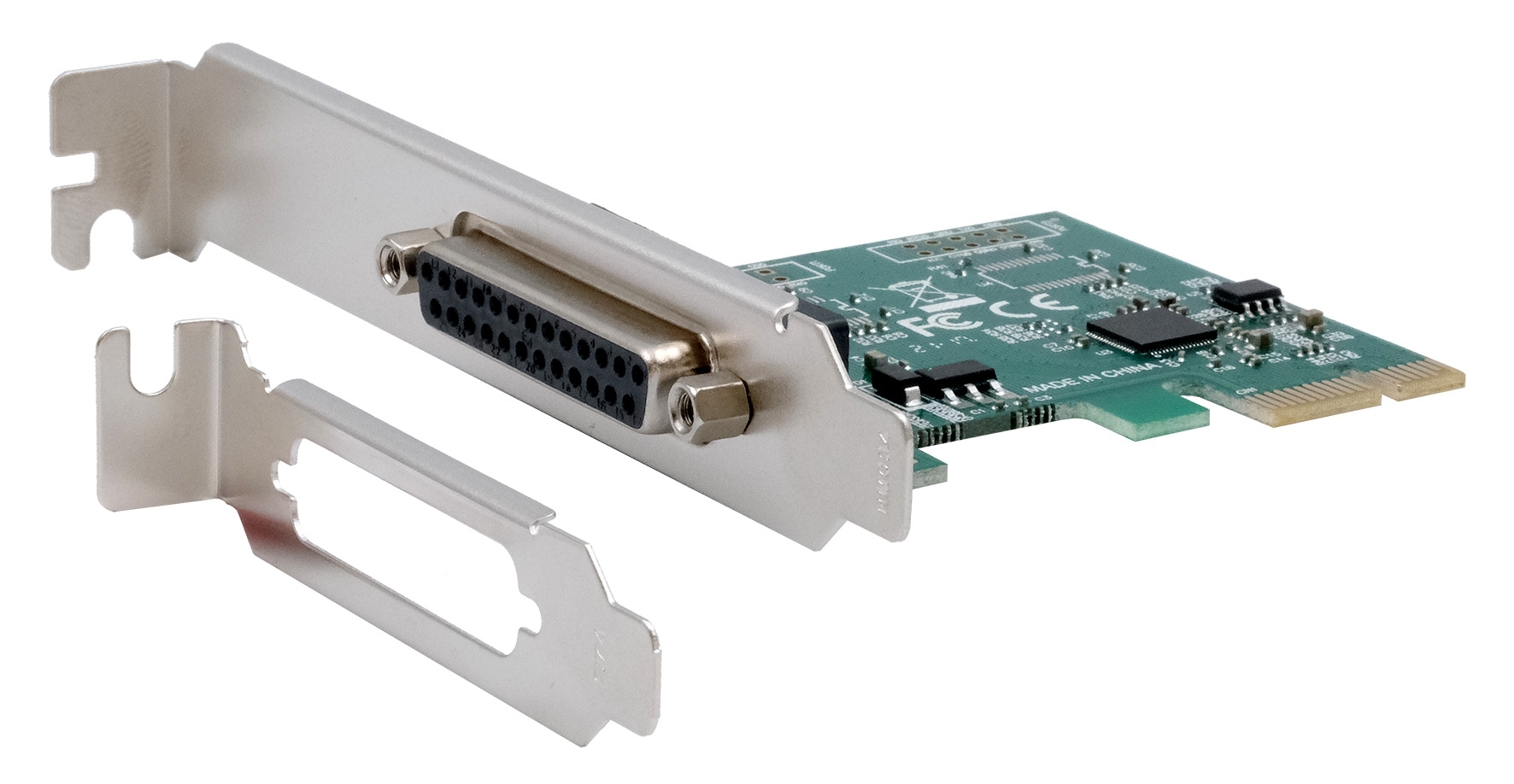

EX-46001
PCIe 1P Parallel card SPP/EPP/ECP (Chipset ASIX)
The EX-46001 PCI-Express parallel card provides a parallel SPP/EPP/ECP high performance output. It adds another parallel output to your PC, workstation or server via the PCI-Express bus. With the EX-46001 there are no conflicts with IRQ and I/O addresses and it is PCIe Plug-and-Play compatible. A low profile bracket is included for installation in narrow PC cases.
PCI-Express x1 parallel card with one port
Interface: SPP (Standard Parallel Port), EP
P (Enhanced Parallel Port),
ECP (Enhanced Capacity Port)
I/O addresses and interrupt is assigned by the operating system, IRQ sharing
PCIe interface compatible to Rev. 1.0a to 3.0 specification
Compatible with IEEE 1284-SPP/Byte/ECP Mode
128 byte FIFO Buffer
Low Profile bracket is included
Packaging contents:EX-46001, Low Profile bracket, Driver CD, Manual
