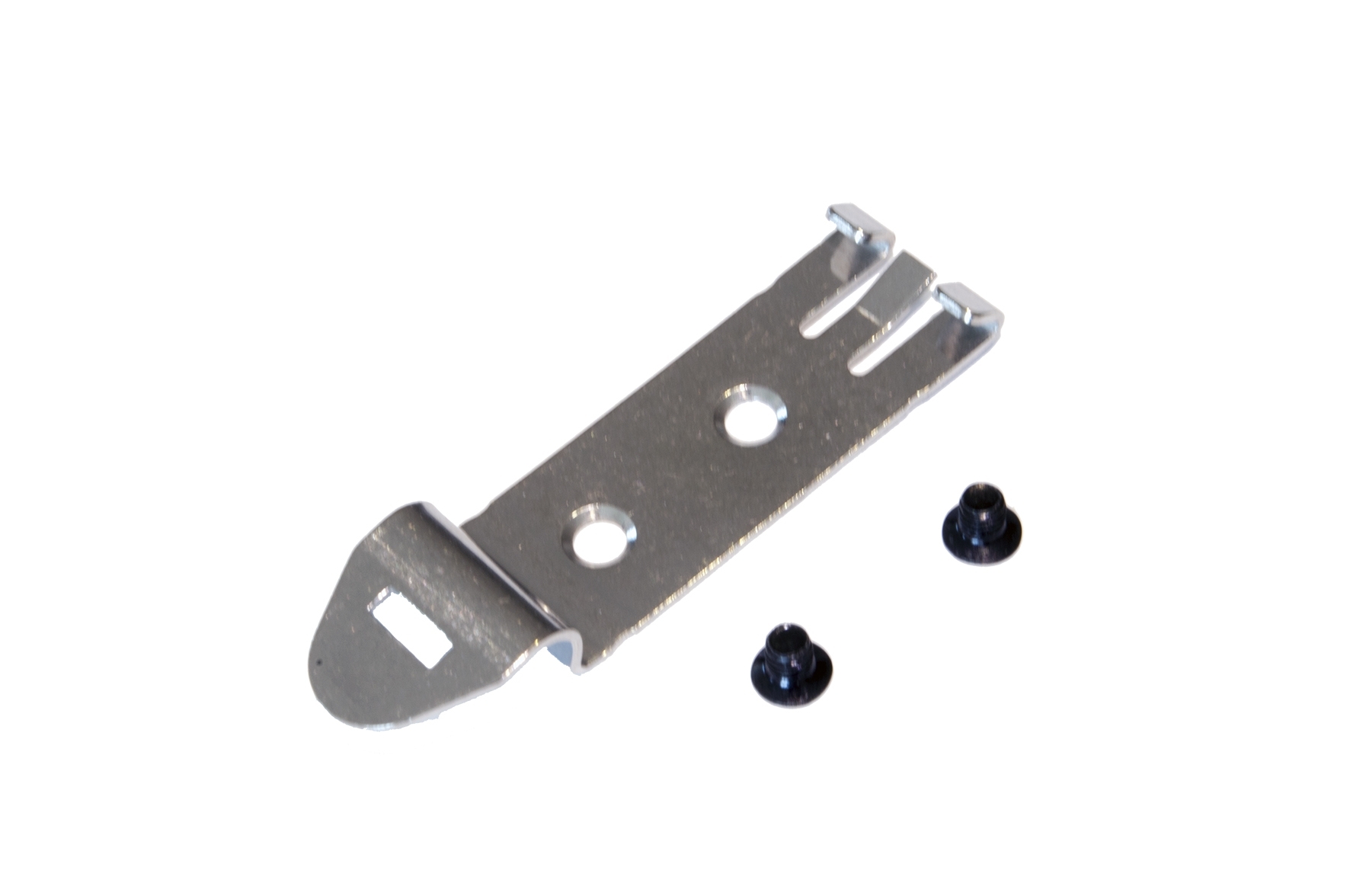

EX-6096
DIN-Rail Kit of Metal
The EX-6096 is a metal DIN-Rail Kit for various industrial products to be mounted on a DIN-Rail. The kit consists of a bracket without thread and two screws M3-4mm.
Applicable to EX-1185HMVS-WT, 1186HMVS, 1311VIS, 1315IS, 1344HMV, 1348HMV, 6006PoE

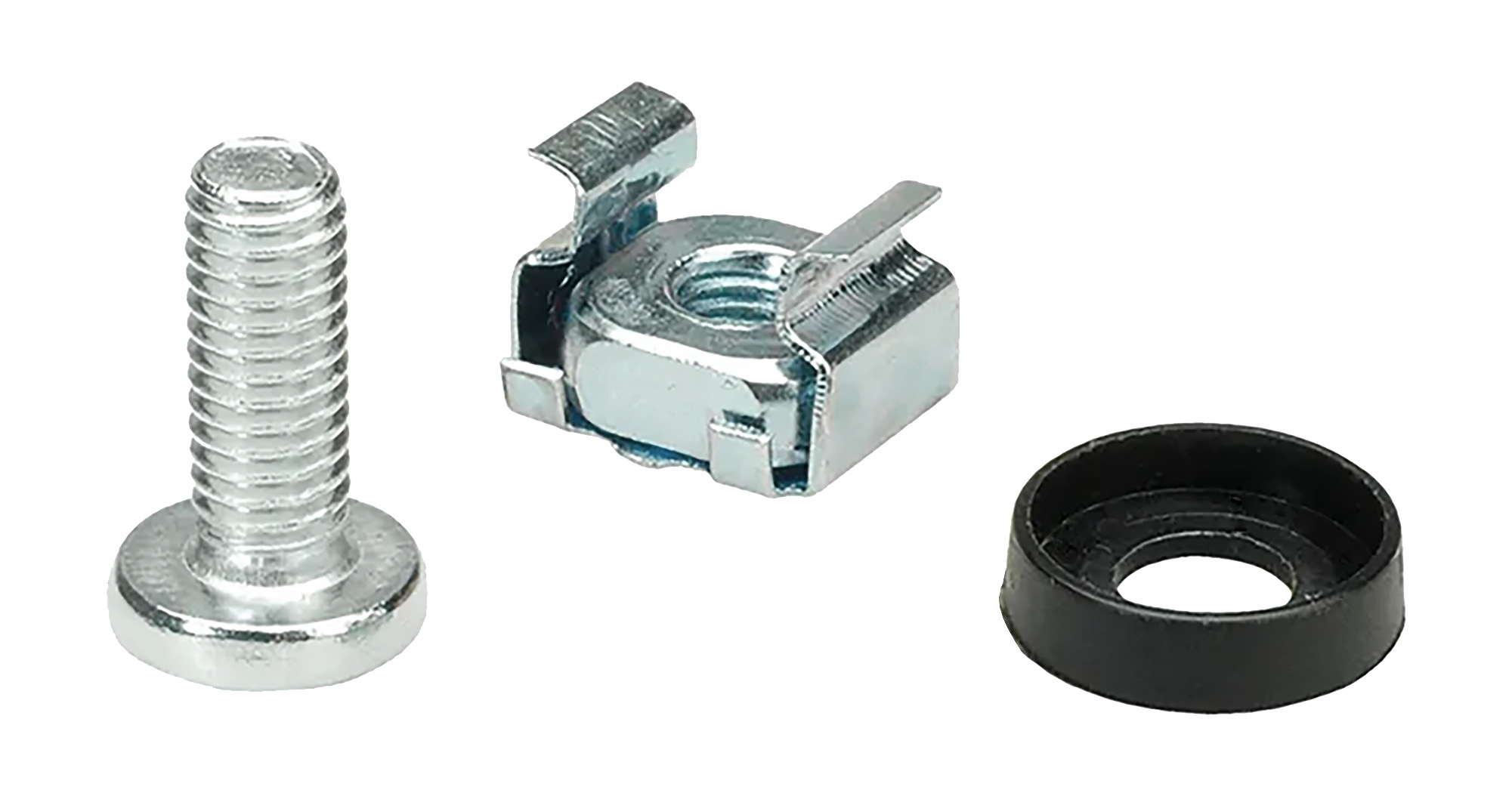

EX-6091
Mounting kit for 19" components, M6, set of 4
The 19" mounting kit EX-6091 is used to attach front panels, distribution fields or other components on the frame, slide mounts or depth members with square cut-outs.
For standard-compliant GND/earthing, use an earthing cage nut and a nomel washer at at least one fixing point
Delivery contents:4x pan-head screw M6 x 16, galvanised, 4x plastic washer, black, 4x cage nut M6, galvanised.
EX-6099
DIN-Rail Kit of Metal with thread
The EX-DIN-Rail it’s a Kit of Metal with thread for different industrial products for fix to DIN-Rail. The Kit include two metal bracket.
Applicable to EX-1166HMV, EX-1178, EX-1178S, EX-1178-W, EX-1188HMS, EX-1188HMS-3, EX-1189HMVS-3, EX-1189HMVS-3W, EX-1517HMVS, EX-1332HMV, EX-1333V, EX-1333VIS, EX-1334HMV-2, EX-1335HMV, EX-6031, EX-6031PoE, EX-6032, EX-6034, EX-6051

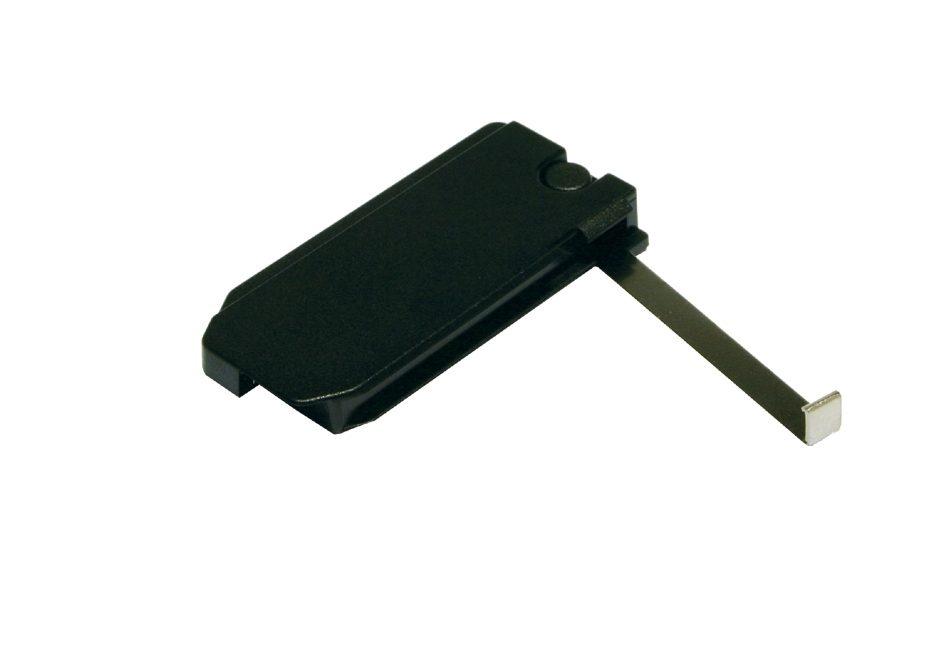

EX-10000
ExpressCard Kit 34/54mm for more stability
The EX-10000 ExpressCard Kit expand the ExpressCard in the breadthways from 34mm to 54mm. Thereby the ExpressCard have then a lateral stability in your ExpressCard Slot from the Notebook. In this case the connected card don t lose anymore the contact to the connector inside from the Notebook. The installation are easy and can use for all ExpressCard with a breadth of 34mm.
Expand the ExpressCard slot from 34mm to 54mm breadth
Plastic case with a metal clip
Packaging contents:EX-10000, Manual

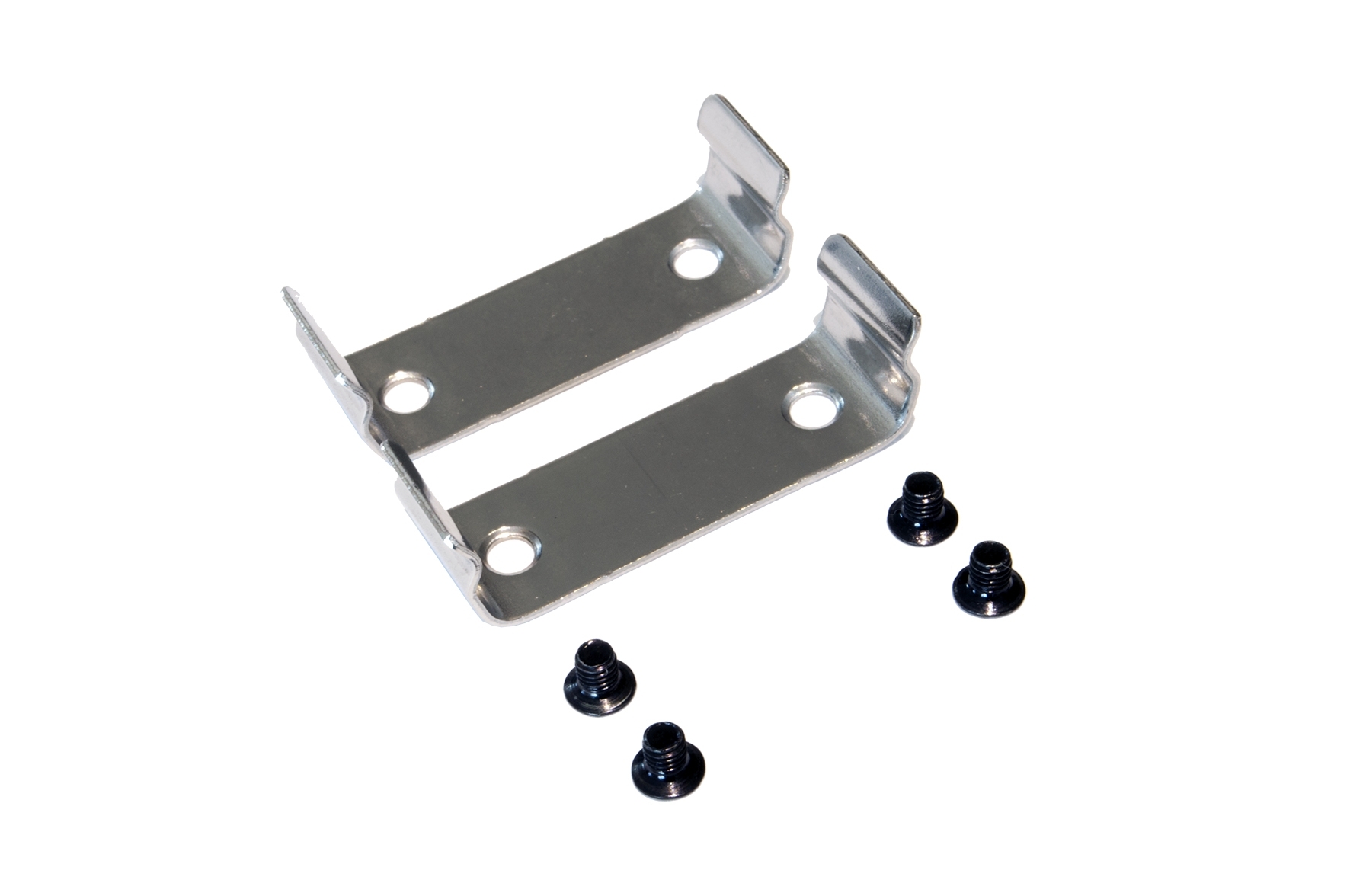

EX-6097
DIN-Rail Kit of Metal
The EX-6097 is a DIN rail kit for rackmount mounting of EXSYS products, without threads. The kit consists of two brackets and four screws.
Applicable to EX-1163HM, 1177HMV, 1177HMVS, 1177HMVS-WT, 1185HMVS, 1187HMVS, 1316HMVS, 1332HMV-RH, 6030, 6300MM, 6300SM

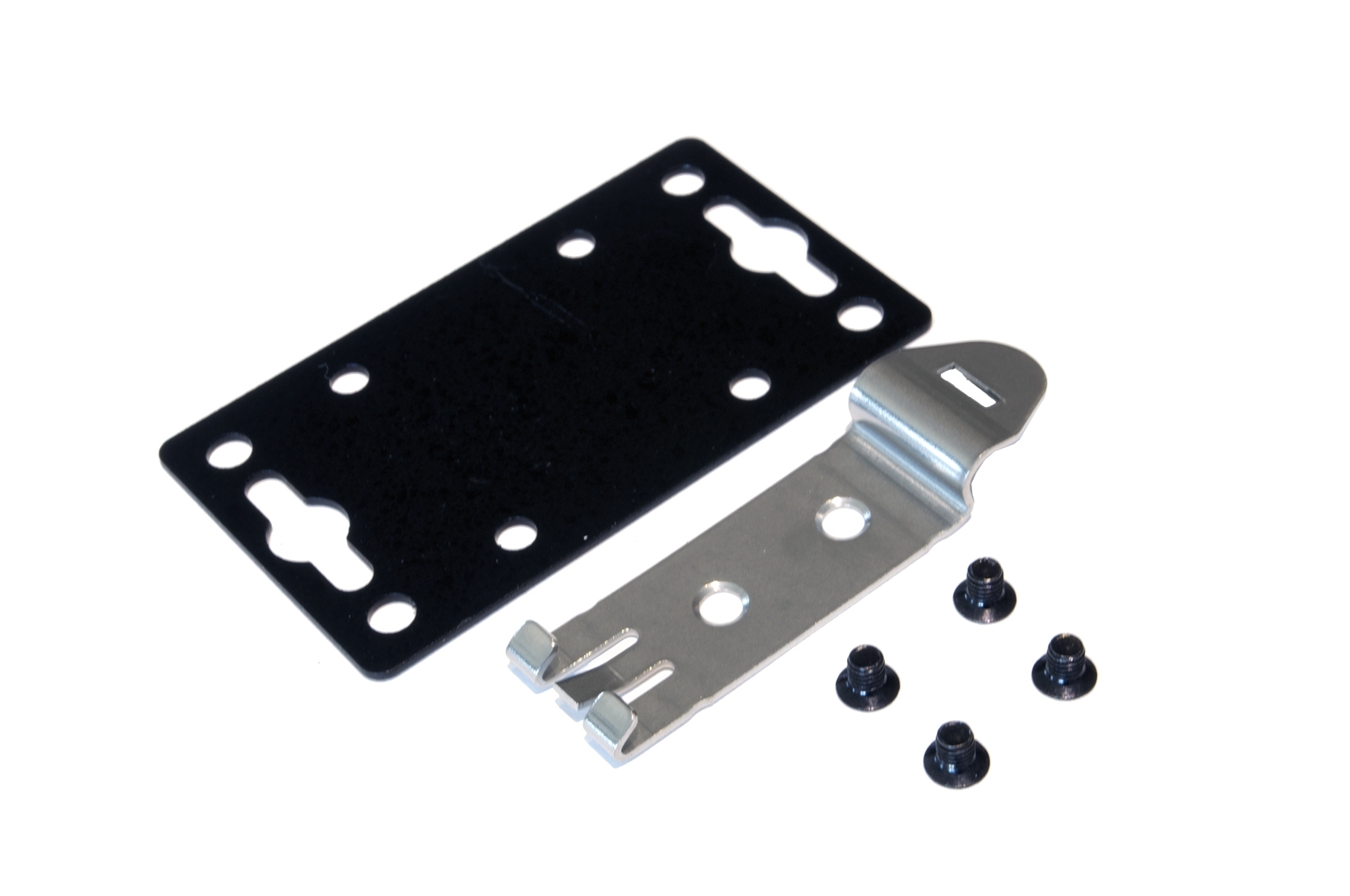

EX-6098
DIN-Rail Kit with metal plate
The EX-6098 is a DIN rail kit with metal plate for rack mount mounting for EX-1321. The kit consists of a metal plate, a bracket and four screws.
Applicable to EX-1321, EX-6011

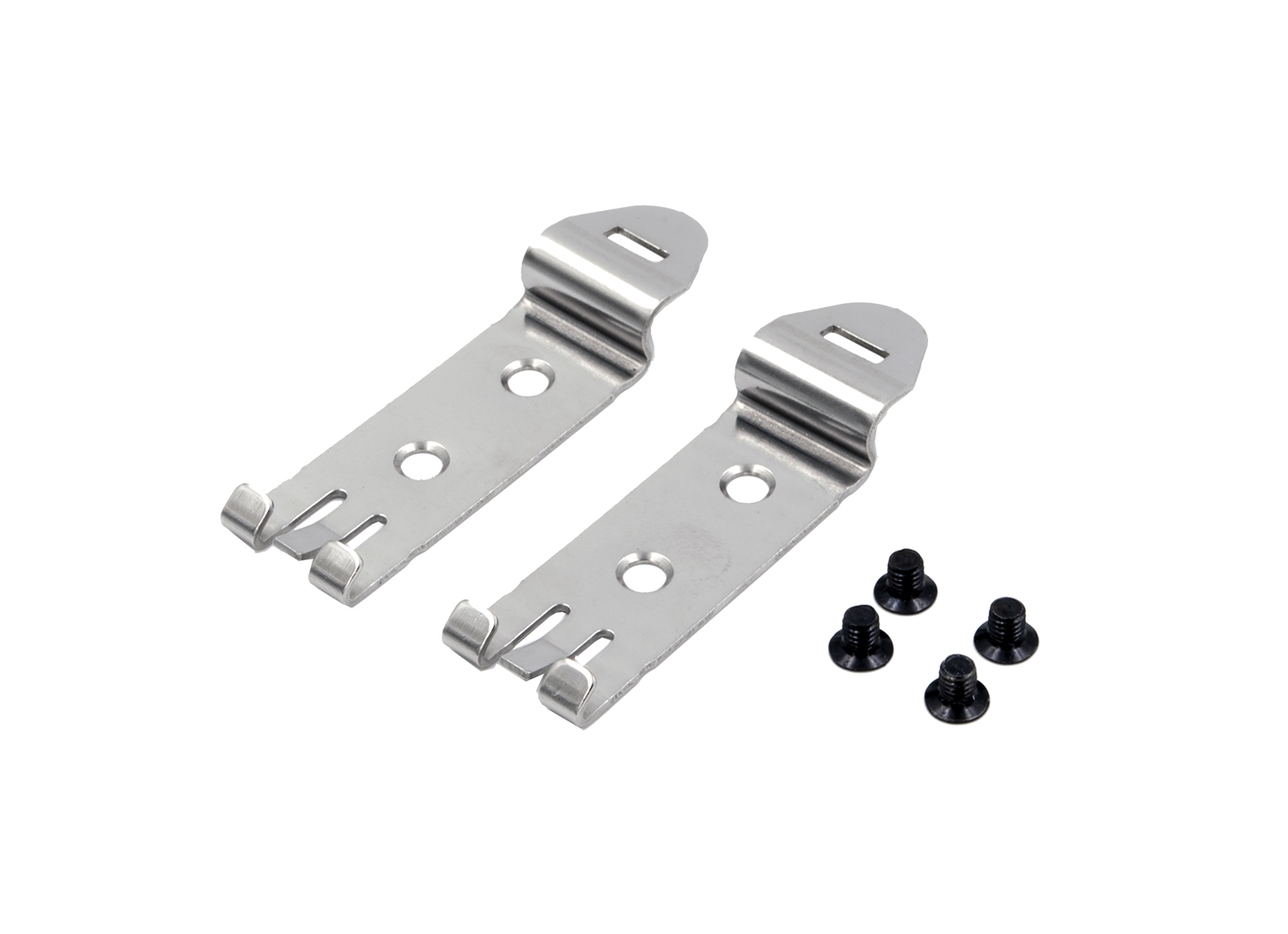

EX-6095
DIN-Rail Kit of Metal
The EX-6095 is a metal DIN-Rail Kit for various industrial products to be mounted on a DIN-Rail. The kit consists of two brackets without thread and four screws M3, 4mm.
Applicable for EX-1110HMVS, 1110HMVS-WT, 1250V, 1182VIS, 1311VIS, 1315IS, 1348HMV etc.

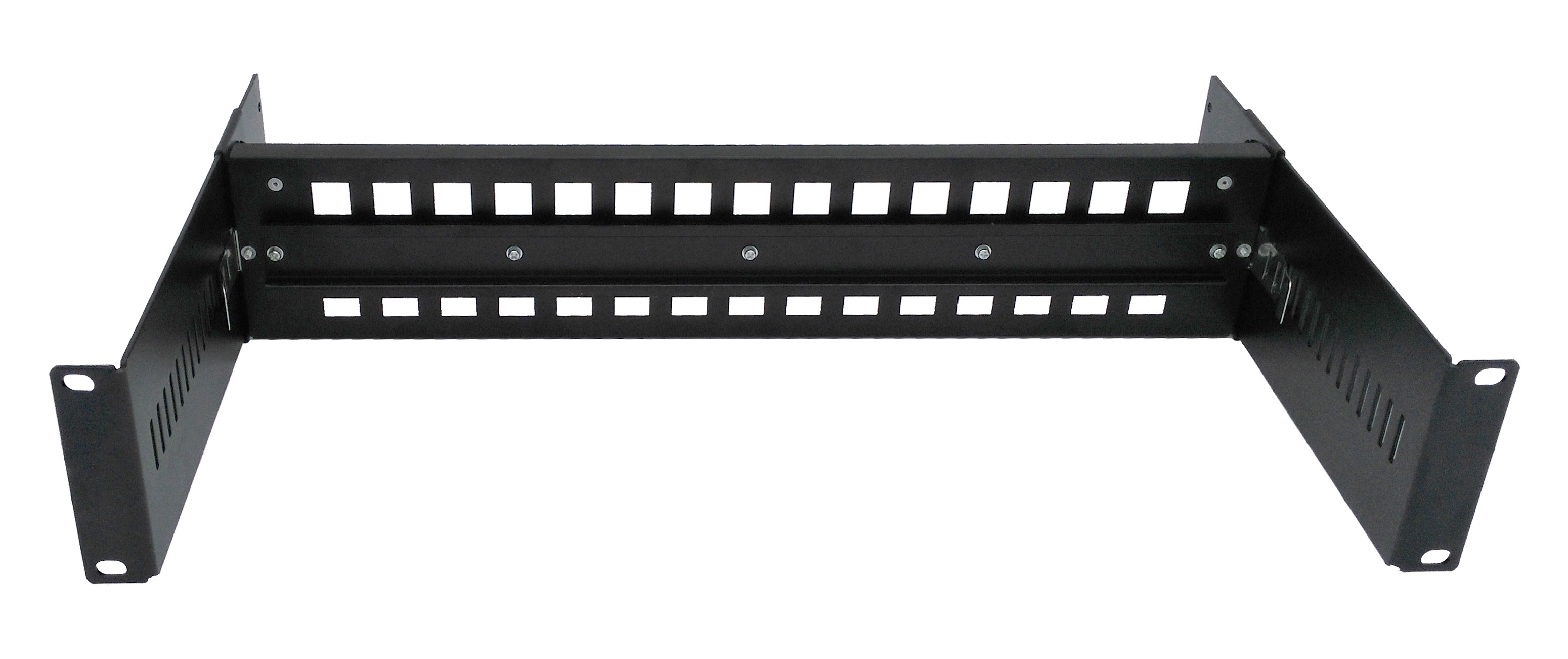

EX-6090
DIN-Rail Rackmount-Kit, 2U
The EX-6090 DIN-Rail rackmount kit is installed in a standard 19" rack cabinet to enable to allow DIN-Rail mounting of devices in the rack. It provides an easy way to neatly organize DIN-Rail power supplies, media converters, USB hubs, PoE injectors, switches and other DIN-Rail mounted devices in the server rack.
35 mm DIN-Rail included
Depth adjustable from 25 mm to 205 mm
Maximum load capacity: 8 kg

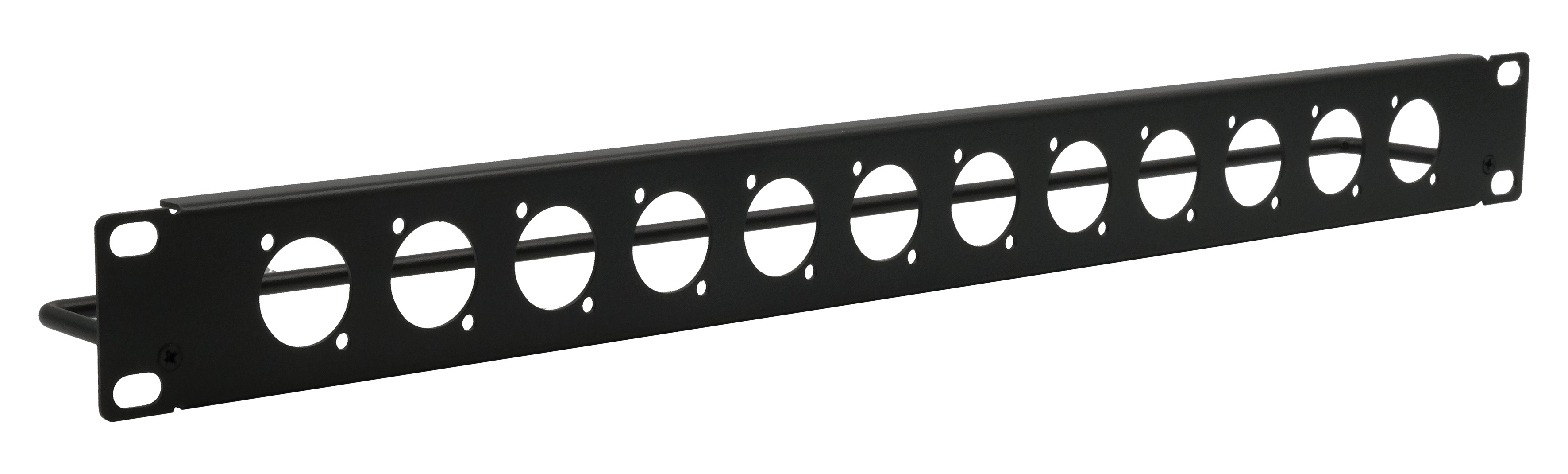

EX-49299
19" Rack panel, 1U, 12x D-type (XLR), with lacing bar
The 19" rack panel EX-49299 is designed for installation in a 19″ equipment cabinet. Thanks to the standardised dimensions, it is suitable for easy mounting of twelve modules according to D standard.
12 D-type XLR holes (24 x 19 mm)
For mounting in 19" cabinets, 1 U
Lacing bar for cable strain relief with cable ties
Material: 1.5 mm steel
Colour: black
Dimensions (WxHxD): approx. 483.0 x 44.5 x 11.5 / 57.0 mm
Delivery contents:EX-49299, lacing bar

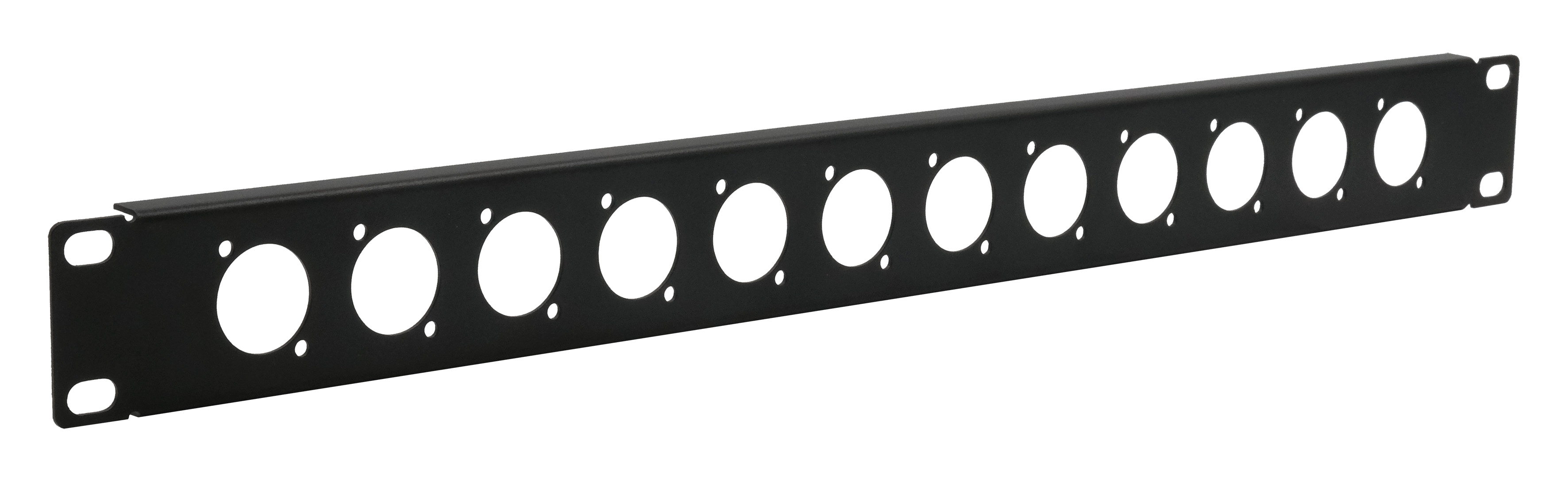

EX-49298
19" Rack panel, 1U, 12x D-type (XLR)
The 19" rack panel EX-49298 is designed for installation in a 19″ equipment cabinet. Thanks to the standardised dimensions, it is suitable for easy mounting of twelve modules according to D standard.
12 D-type XLR holes (24 x 19 mm)
For mounting in 19" cabinets, 1 U
Material: 1.5 mm steel
Colour: black
Dimensions (WxHxD): approx. 483.0 x 44.5 x 11.5 mm

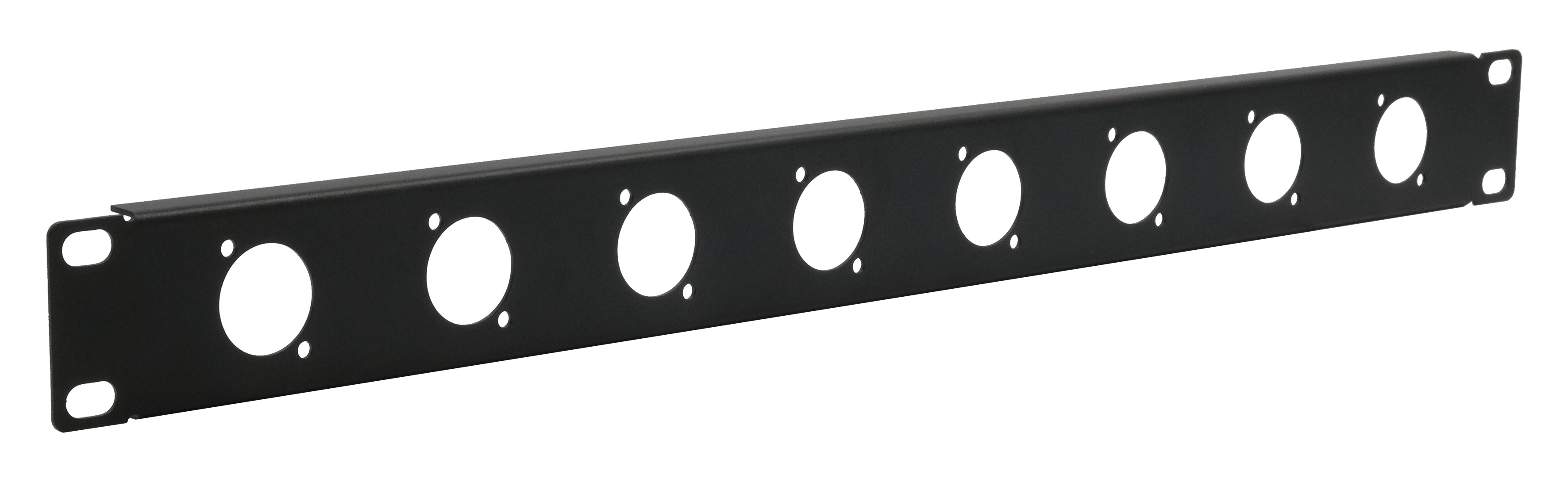

EX-49297
19" Rack panel, 1U, 8x D-type (XLR)
The 19" rack panel EX-49297 is designed for installation in a 19″ equipment cabinet. Thanks to the standardised dimensions, it is suitable for easy mounting of eight modules according to D standard.
8 D-type XLR holes (24 x 19 mm)
For mounting in 19" cabinets, 1 U
Material: 1.5 mm steel
Colour: black
Dimensions (WxHxD): approx. 483.0 x 44.5 x 11.5 mm

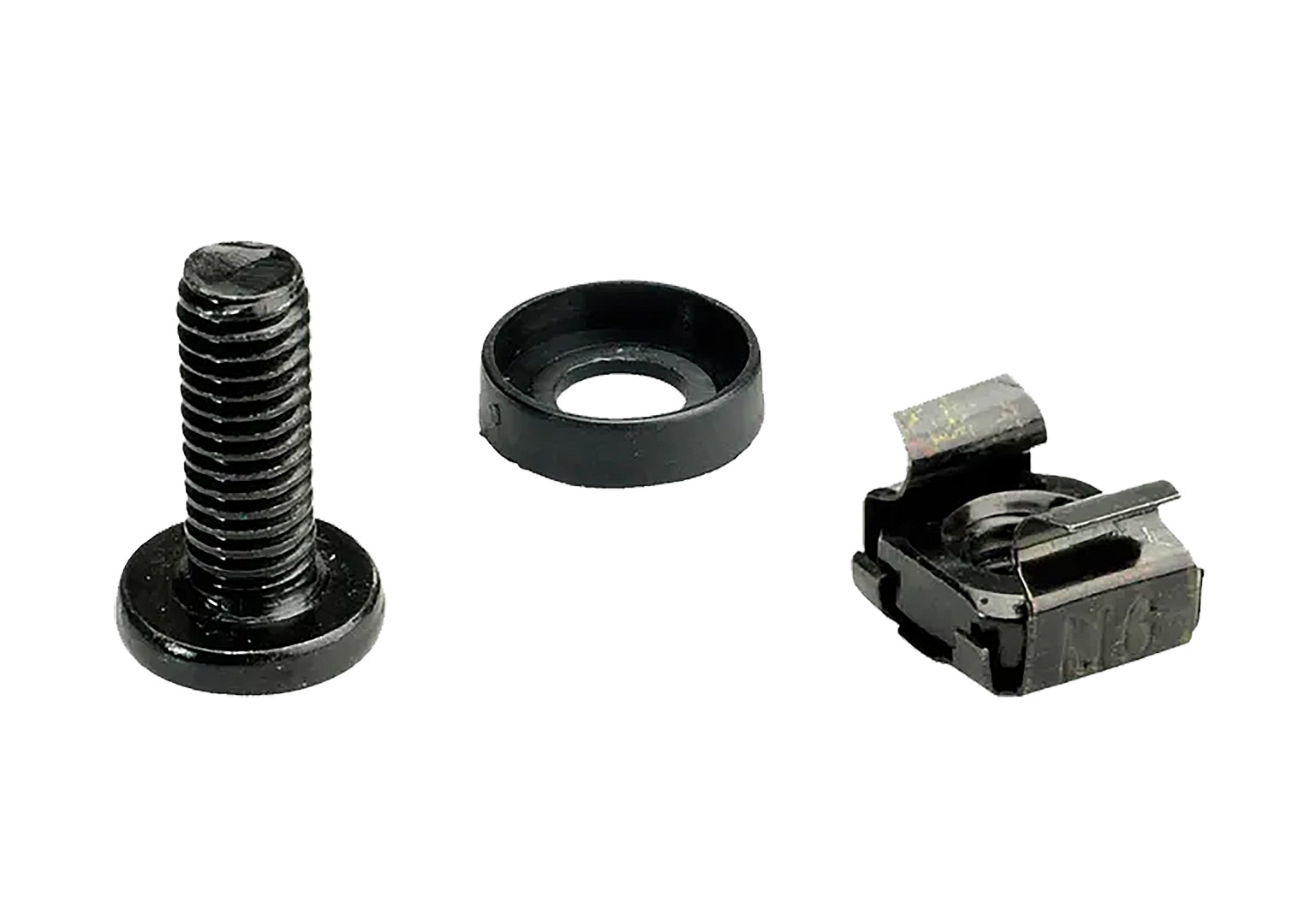

EX-6089
Mounting kit for 19" components, M6, set of 4
The 19" mounting kit EX-6091 is used to attach front panels, distribution fields or other components on the frame, slide mounts or depth members with square cut-outs.
Colour: black
Delivery contents:4x pan-head screw M6 x 16, galvanised, 4x plastic washer, black, 4x cage nut M6, galvanised.
