EX-49162
D-Type cable adapter HDMI female to male, 20cm
The D-type adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example.
External connection: HDMI female
Internal connection: HDMI male
For installation in D-type cut-outs of 31 x 25 mm
Housing diameter: approx. 24 mm
Two threads for screw mounting
Total length: 20cm
Delivery contents:EX-49162, 2 screws
EX-47991
Adapter USB 3.2 Gen 1/2 Type-A male to USB 3.2 Gen 1/2 Type-C female (black)
This Type-C female to USB 3.2 Gen 1/2 Type-A male is designed for connecting any existing USB-C device to your PC or MAC with USB 3.2 Gen 1/2 Type-A port. Existing USB data and charging cables for iPhone, iPad, smartphones, tblet PCs and other electronic peripherals can be connected to devices with a USB 3.2 Gen 1/2 type A-female connector. Small and so easy to Use!
USB 3.2 Gen 1/2 Type-A male connector
USB 3.2 Gen 1/2 Type-C female connector
Slim & light
Plastic case
Plug and Play
Colour: black
EX-49180
Panel mount adapter metal HDMI female to male, 30cm
The panel mount adapter can be installed in a panel or enclosure with a cut-out of 25.3 mm (up to max. 27 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner.
Use e.g. as service interface for technicians or communication interface in conference tables or at workstations
External connection: HDMI socket
Internal connection: HDMI plug
HDMI 2.0 capable
For installation in cut-outs of 25.3-27 mm
Integrated thread with sealing ring and lock nut
Total length: 30 cm
EX-49022
Adapter 15-pin VGA male to 16-pin Terminal Block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
15-pin VGA male connector
16-pin Terminal Block
Easy installation of open cable ends
Screw Pich 3.81mm
EX-49191
Panel mount adapter metal USB-A female to female, USB 2.0
The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner.
Use e.g. as service interface for technicians or communication interface in conference tables or at workstations
External connection: USB-A socket
Internal connection: USB-A socket
USB 2.0, 480 Mbit/s
For installation in cut-outs of 22.3-24 mm
Integrated thread with sealing ring and lock nut
EX-49195
Panel mount adapter metal USB-C female to female, USB 3.2 Gen 1
The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner.
Use e.g. as service interface for technicians or communication interface in conference tables or at workstations
External connection: USB-C socket
Internal connection: USB-C socket
USB 3.2 Gen 1, 5 Gbit/s
Supports fast charging up to 100 W (5 A / 20 V)
For installation in cut-outs of 22.3-24 mm
Integrated thread with sealing ring and lock nut
Note:For USB-C female to female adapters, the connections are not reversible due to the technical specifications of USB-C!
EX-47990
Adapter USB 3.2 Gen 1/2 Type-C male to USB 3.2 Gen 1/2 Type-A female (black)
This Type-C to USB 3.2 Gen 1/2 AF adapter is designed for connecting any existing standard USB-A device to your new USB Type-C device. Use your existing USB data and charging cables to connect USB 3.2 Gen 1/2 Type C devices to your iPhone, iPad, smartphones, tablets, and other elec-tronics devices. New generation USB 3.2 Gen 1/2 standard, reversible USB Type C convertor for usage conveniently, so you can plug it in the right way every single time. Small and so easy to Use!
USB 3.2 Gen 1/2 Type-C Male connector for example the new MacBoox or Chromebook Pixel
USB 3.2 Gen 1/2 Type-A Female connector for Flash Drives, keyboards or mouse
Reversible Type-C connector and backward compatible with existing USB 3.0 and 2.0 devices
Data Sync and Charge
Support OTG function for USB Type-C phone
Slim & light
Aluminium design, stylish and for longer used
Plug and Play
Color: black
EX-49110
Adapter 9-pin male to 9-pin push and release Terminal Block
The EX-49110 terminal block adapter allows the tool-free connection of stranded wires with stripped ends. It is therefore ideally suited for test purposes and various industrial applications.
9-pin D-SUB male connector
9-pin push-and-release terminal allows easy tool-free wiring
No soldering or screwdriver required
Easy installation of open cable ends
Terminal Pitch: 2.54 mm
Cable diameter: 24 - 18 AWG / 1.00 mm²
EX-49111
Adapter 9-pin female to 9-pin push and release Terminal Block
The EX-49111 terminal block adapter allows the tool-free connection of stranded wires with stripped ends. It is therefore ideally suited for test purposes and various industrial applications.
9-pin D-SUB female connector
9-pin push-and-release terminal allows easy tool-free wiring
No soldering or screwdriver required
Easy installation of open cable ends
Terminal Pitch: 2.54 mm
Cable diameter: 24 - 18 AWG / 1.00 mm²
EX-49152
D-Type adapter HDMI female to female
The D-type adapter can be installed in a panel or enclosure with D-type cut-outs (XLR sockets). It is ideal for integrating digital equipment into professional audio systems, for example.
External connection: HDMI female
Internal connection: HDMI female
For installation in D-type cut-outs of 31 x 25 mm
Housing diameter: approx. 24 mm
Two threads for screw mounting
Delivery contents:EX-49152, 2 screws
EX-49522
Adapter M12 D-code 4-pin male to RJ45 jack 90°
The Industrial Ethernet Adapter enables devices with an M12 connector to be integrated into an existing network structure, e.g. in machine control or automation systems. It is suitable for installation in a control panel or cabinet, but can also be screwed directly to a wall or panel.
Adapter M12 plug, 4-pin, D-coded to RJ45 socket, 90° angled
For integrating components with M12 connector into an Ethernet network
CAT.5e up to 100 Mbps
Pin assignment according to Profinet standard
M16 external thread with sealing ring and lock nut for panel mounting
Housing with hole for screwing the adapter directly onto a panel, board, etc.
Housing material: PVC
Gold plated contacts
Protection class: IP67 (M12 connector)

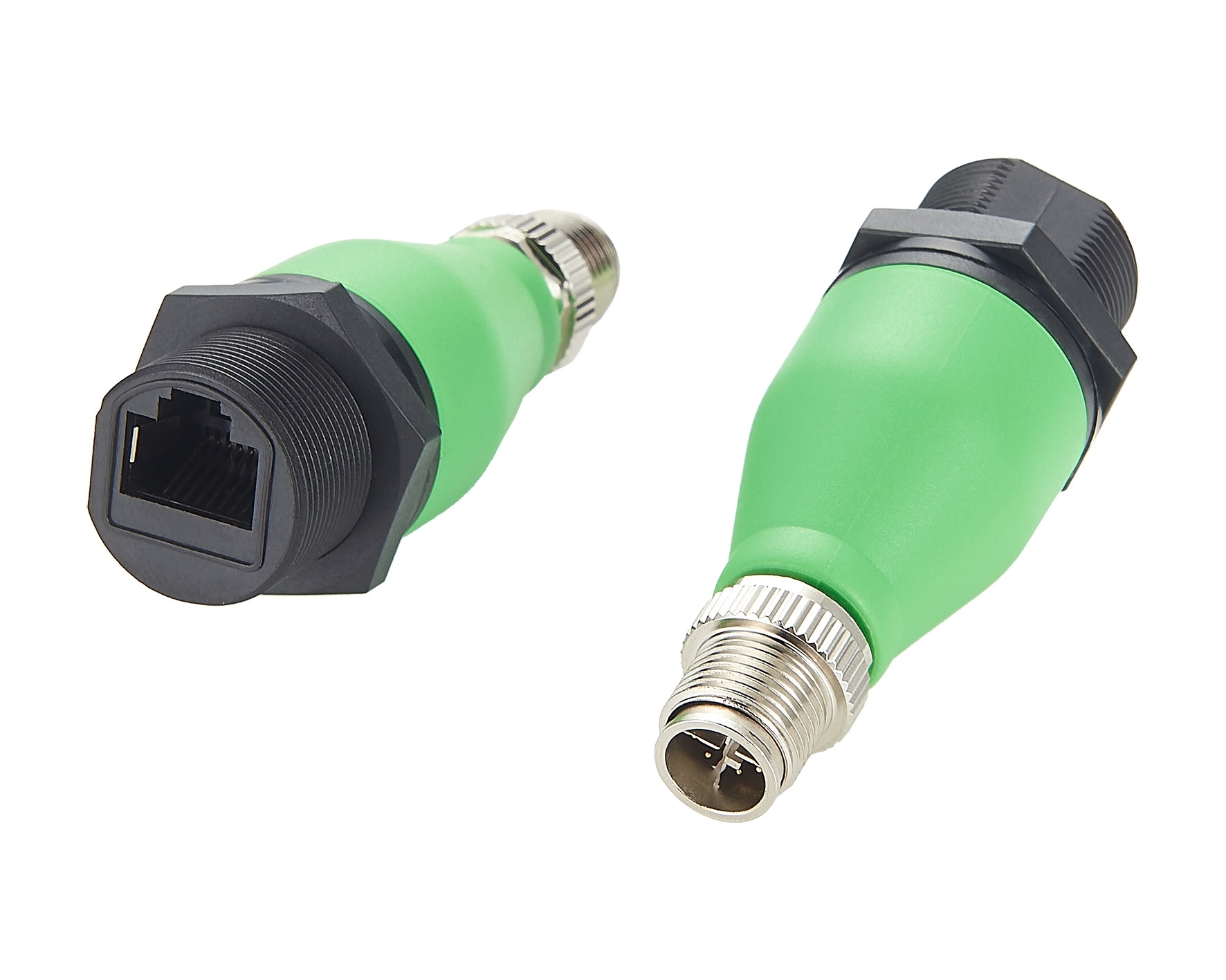

EX-49540
Adapter M12 X-code 8-pin male to RJ45 jack
The Industrial Ethernet Adapter enables devices with an M12 connector to be integrated into an existing network structure, e.g. in machine control or automation systems. It is suitable for installation in a control panel or cabinet, but can also be screwed directly to a wall or panel.
Adapter M12 plug, 8-pin, X-coded to RJ45 socket
For integrating components with M12 connector into an Ethernet network
CAT.6A up to 10 Gbps
Pin assignment according to Profinet standard
M16 external thread with sealing ring and lock nut for panel mounting
Housing with hole for screwing the adapter directly onto a panel, board, etc.
Housing material: PVC
Gold plated contacts
Protection class: IP67 (M12 connector)
EX-47999
Adapter 9 pin RS-422/485 to 5 pin Terminal Block
5-pin terminal block adapter for devices with 9-pin serial connector
Suitable for all RS-422/485 products with 9-pin connector
EX-47995
Adapter 9 pin RS-422/485 to 5 pin Terminal Block
5-pin terminal block adapter for devices with 9-pin serial connector
Suitable for all RS-422/485 products with 9-pin connector
Compact, elegant white housing
EX-49000
Adapter D-SUB 9-pin male to 10-pin Terminal block plugable
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
9-pin D-SUB male
10-pin terminal block
Easy installation of cable ends up to a maximum of 1mm²
EX-49005
Adapter D-SUB 9-pin female to 10-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
9-pin D-SUB female connector
10-pin Terminal Block
Easy installation of open cable ends
Screw Pich 3.81mm
EX-49010
Adapter 15-pin male to 16-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
15-pin D-SUB male connector
16-pin Terminal Block
Easy installation of open cable ends
Screw Pich 5.0mm
EX-49015
Adapter 15-pin female to 16-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
15-pin D-SUB female connector
16-pin Terminal Block
Easy installation of open cable ends
Screw Pich 5.0mm
EX-49020
Adapter 15-pin VGA female to 16-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
15-pin D-SUB female VGA connector
16-pin Terminal Block
Easy installation of open cable ends
Screw Pich 5.0mm
EX-49025
Adapter 25-pin male to 27-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
25-pin D-SUB male connector
27-pin Terminal Block
Easy installation of open cable ends
Screw Pich 3.81mm
EX-49030
Adapter 25-pin female to 27-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
25-pin D-SUB female connector
27-pin Terminal Block
Easy installation of open cable ends
Screw Pich 5.0mm
EX-49035
Adapter 37-pin male to 39-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
37-pin D-SUB male connector
39-pin Terminal Block
Easy installation of open cable ends
Screw Pich 3.81mm
EX-49040
Adapter 37-pin female to 39-pin Terminal block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
37-pin D-SUB female connector
39-pin Terminal Block
Easy installation of open cable ends
Screw Pich 5.0mm
EX-49050
Adapter 24-pin DVI female to 27-pin Terminal Block
The terminal block adapter is ideal for test purposes and various industrial applications, for example for connecting individual cable harnesses with open cable ends.
25-pin female DVI connector
27-pin Terminal Block
Easy installation of open cable ends
Screw Pich 5.0mm
