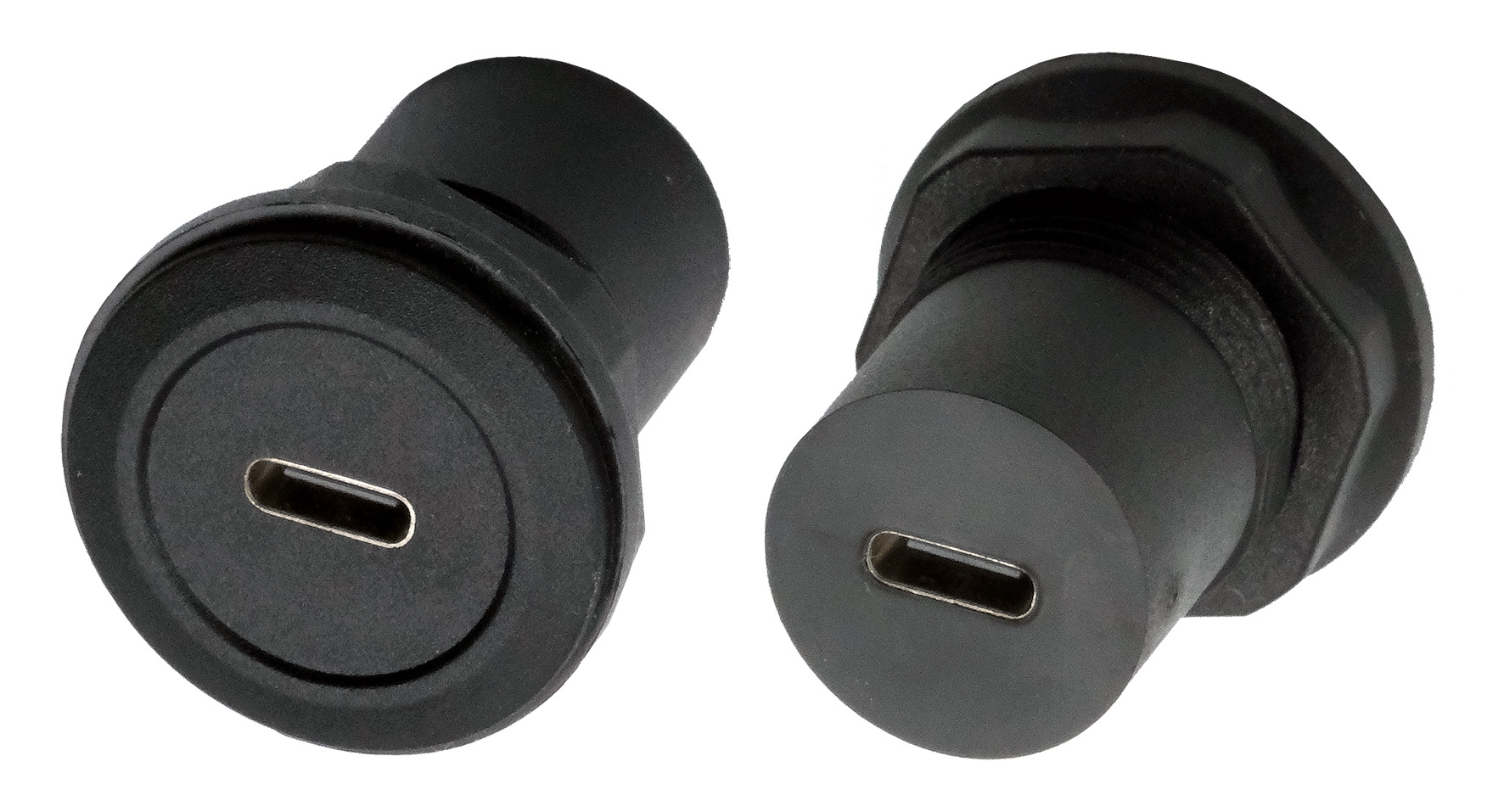

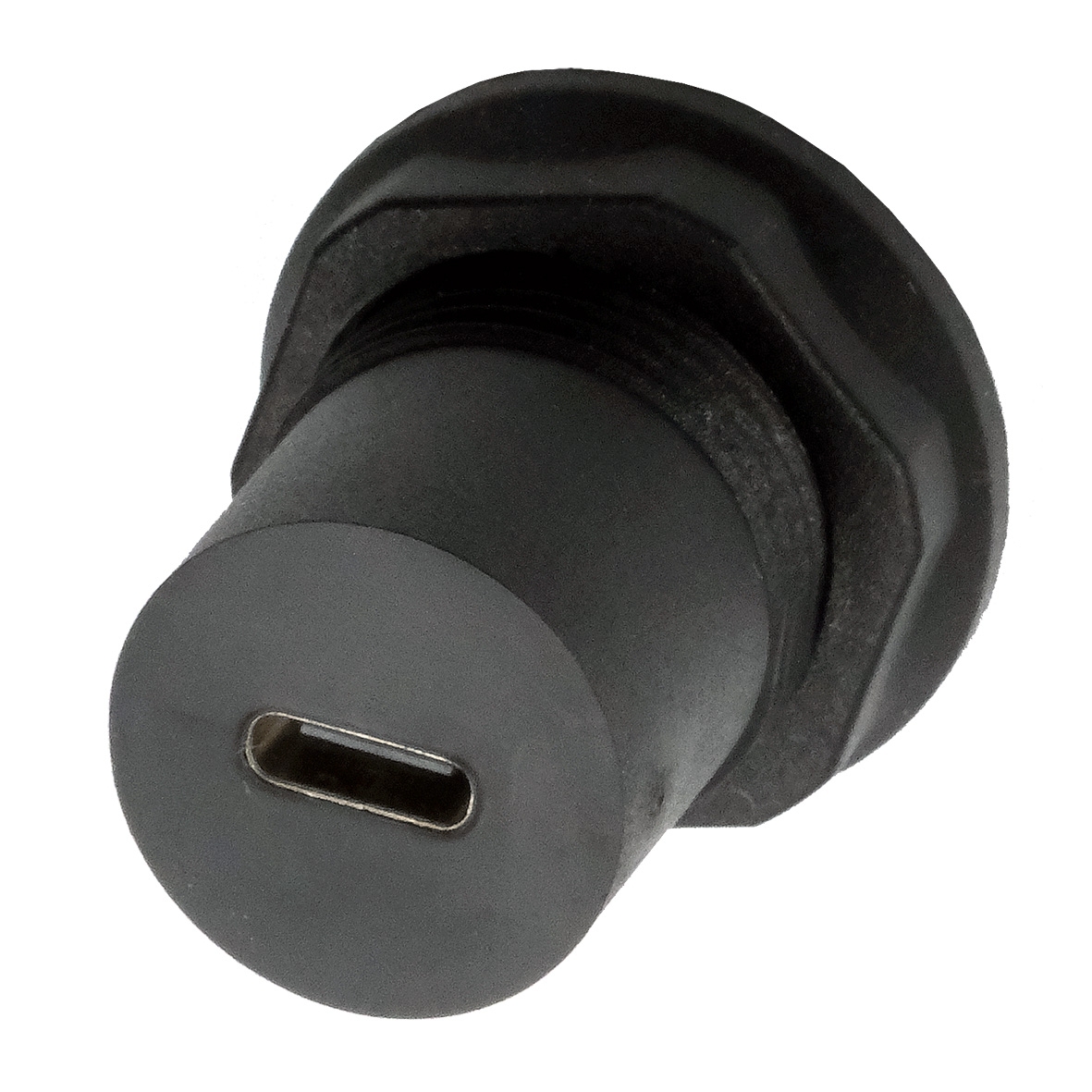

Panel mount adapter USB-C female to female, USB 3.2 Gen 1
Product number:
EX-49214
GTIN/EAN:
4718359492143
Panel mount adapter USB-C female to female, USB 3.2 Gen 1
The panel mount adapter can be installed in a panel or enclosure with a standard cut-out of 22.3 mm (up to max. 24 mm). Thanks to the integrated thread, it is fixed directly to the panel and is ideally suited, for example, to attach the connections of digital equipment to a front panel in an easily accessible and clearly arranged manner.
- Use e.g. as service interface for technicians or communication interface in conference tables or at workstations
- External connection: USB-C female
- Internal connection: USB-C female
- USB 3.2 Gen 1, 5 Gbit/s
- Supports fast charging up to 100 W (5 A / 20 V)
- For installation in cut-outs of 22.3-24 mm
- Integrated thread with lock nut
Note:
For USB-C female to female adapters, the connections are not reversible due to the technical specifications of USB-C!
| Application: | Adapter |
|---|---|
| Housing: | Plastic |
| Inputs: | USB-C socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | panel |
| Outputs: | USB-C socket |
