EX-6201
5-Port Industrie Ethernet Switch
The EX-6201 is an industrial 5-port Ethernet unmanaged switch in a metal housing. It offers increased operational reliability thanks to the redundant power supply of 2x 12V - 48VDC via a terminal block.
5-port 10/100Tx Fast Ethernet
Auto-MDI-MDIX, no "crossover cable" needed
Plug and Play, no configuration and installation required
Terminal block for redundant DC input, 2x 12V to 48VDC
Built-in relay output warning for power failure
Robust metal housing, IP30
DIN-Rail Kit and metal plate for wall mounting
Operating temperature range from -10°C to +65°C
Packaging contents:EX-6201, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EDS-208
8-Port Industrial Switch, compact, unmanaged
The EDS-208 supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-208 is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability and the IP30 housing with LED indicators make the plug-and-play EDS-208 switches reliable and easy to use.
10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-rail mounting ability
Package contents:EDS-208, quick installation guide
EDS-205
5-Port Industrial Switch, compact, unmanaged
The EDS-205 supports IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDIX auto-sensing RJ45 ports. The EDS-205 is rated to operate at temperatures ranging from -10 to 60°C, and is rugged enough for any harsh industrial environment. The switches can be easily installed on a DIN rail as well as in distribution boxes. The DIN-rail mounting capability and the IP30 housing with LED indicators make the plug-and-play EDS-205 switches reliable and easy to use.
10/100BaseT(X) (RJ45 connector)
IEEE802.3/802.3u/802.3x support
Broadcast storm protection
DIN-rail mounting ability
Package contents:EDS-205, quick installation guide
EDS-205A
5-Port Industrial Switch, compact, unmanaged
The EDS-205A 5-port industrial Ethernet switch support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-205A has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. It has been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards. The EDS-205A Ethernet switch is subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-205A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
10/100BaseT(X) (RJ45 connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminum housing
Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/GL/LR/ABS/NK)
Package contents:EDS-205A, quick installation guide
EX-6203
6-Port Industrial Ethernet Unmanaged Switch
The EX-6203 is an industrial 6-port Ethernet unmanaged switch in a metal housing. It provides two fiber optic ports and four Fast Ethernet ports. Thanks to the redundant power supply of 2x 12 V - 48 VDC via a terminal block, it offers increased operational reliability.
4-Port 10/100Tx Fast Ethernet
2-Port 100Fx - SC connector (Multi-Mode)
Terminal block for redundant DC input, 2x 12V to 48VDC
Built-in relay output warning for power failure
Auto-MDI-MDIX, no "crossover cable" needed
Plug and Play, no configuration and installation required
Robust metal housing, IP30
Operating temperature range from -10°C to +65°C
DIN-Rail Kit and metal plate for wall mounting
Packaging contents:EX-6203, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EDS-208A-MM-ST
6-Port +2SFP Industrial Switch, compakt, unmanaged
The 8-port EDS-208A series supports IEEE802.3 and IEEE802.3u/x with 10/100M full/half duplex, MDI/MDI-X autosense.The EDS-208A series has 12/24/48VDC (9.6 to 60VDC) redundant power inputs that can be connected to different DC power sources simultaneously. These switches are designed for use in harsh industrial environments such as marine (DNV/GL/LR/ABS/NK), rail, road or mobile applications (EN50121-4/NEMATS2/e-Mark) or hazardous areas (ClassIDiv.2, ATEXZone2) and are FCC, UL and CE compliant.
10/100BaseT(X) (RJ45 connection), 100BaseFX (Multi-Mode, ST connection)
Redundant dual 12/24/48VDC power inputs
IP30 aluminium housing Robust hardware design, suitable for hazardous areas (Class 1 Div.2/ ATEX Zone 2), transport (NEMATS2/EN50121-4/e-Mark) and maritime environments (DNV/GL/LR/ABS/NK)
EDS-G308
8-Port Industrial Switch, compact, unmanaged
The EDS-G308 switch is equipped with 8 Gigabit Ethernet ports making them ideal for applications that demand high bandwidth. It provides an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy on-site configuration for any industrial automation application. The EDS-G308 undergoes a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Redundant dual 12/24/48 VDC power inputs
Supports 9.6 KB jumbo frames
Relay output warning for power failure and port break alarm
Broadcast storm protection
Package contents:EDS-G308, RJ45 plastic caps, quick installation guide
EDS-208A
8-Port Industrial Switch, compact, unmanaged
The EDS-208A 8-port industrial Ethernet switch support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-208A has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. It has been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards. The EDS-208A Ethernet switch is subjected to a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. In addition, the EDS-208A switches have DIP switches for enabling or disabling broadcast storm protection, providing another level of flexibility for industrial applications.
10/100BaseT(X) (RJ45 connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminum housing
Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/GL/LR/ABS/NK)
Package contents:EDS-208A, quick installation guide
EDS-G205-1GTXSFP
5-Port Ethernet Switch - 4*10/100/1000Tx + 1*SFP
The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy onsite configuration for any industrial automation application. The EDS-G205-1GTXSFP undergoes a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Fiber-optic options for extending distance and improving electrical noise immunity
Redundant dual 12/24/48 VDC power inputs
Supports 10 KB jumbo frames
Relay output warning for power failure and port break alarm
Broadcast storm protection
Package contents:EDS-G205-1GTXSFP, SFP plasitc cap, quick installation guide
EDS-G308-2SFP
8-Port + 2SFP Industrial Switch, compakt, unmanaged
The EDS-G308-2SFP switch has 8 Gigabit Ethernet ports and 2 fibre ports, making it ideal for high-bandwidth applications. The EDS-G308 switch is a cost-effective solution for industrial Gigabit Ethernet connectivity. The 4-pole DIP switches can be used to control broadcast protection, jumbo frames and power saving mode according to IEEE802.3a. In addition, 100/1000 SFP speed switching for easy field configuration makes it ideal for any industrial automation application.
Fibre optic options to extend reach and improve electrical noise immunity
Redundant dual 12/24/48 VDC inputs
Supports 19.6 KB jumbo frames
Relay output warning for power failure and port break alarm
Broadcast storm protection
Packaging contents:EDS-G308-2SFP, RJ45 plastic caps, Quick Start Guide
EDS-P206A-4POE
6-Port Ethernet PoE Switch - 6*10/100Tx (4x PoE)
The EDS-P206A-4PoE switch is a smart, 6-port, unmanaged Ethernet switch supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switch is classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switch enables centralization of the power supply and provide up to 30 watts of power per port. The switch can be used to power IEEE 802.3af/at-compliant powered devices (PD), eliminating the need for additional wiring, and support IEEE 802.3/802.3u/802.3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
IEEE 802.3af/at compliant PoE and Ethernet combo ports
Up to 30 W output per PoE port
12/24/48 VDC redundant power inputs
Intelligent power consumption detection and classification
Redundant dual VDC power inputs
Package contents:EDS-P206A-4PoE, RJ45 plastic caps, quick installation guide
EDS-G205-1GTXSFP-T
5-Port Ethernet Switch - 4*10/100/1000Tx + 1*SFP, -40 to 75°C
The EDS-G205-1GTXSFP switches are equipped with 5 Gigabit Ethernet ports and 1 fiber-optic port, making them ideal for applications that require high bandwidth. The EDS-G205-1GTXSFP switches provide an economical solution for your industrial Gigabit Ethernet connections, and the built-in relay warning function alerts network managers when power failures or port breaks occur. The 4-pin DIP switches can be used for controlling broadcast protection, jumbo frames, and IEEE 802.3az energy saving. In addition, 100/1000 SFP speed switching is ideal for easy onsite configuration for any industrial automation application. The EDS-G205-1GTXSFP undergoes a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The switches can be installed easily on a DIN rail or in distribution boxes.
Fiber-optic options for extending distance and improving electrical noise immunity
Redundant dual 12/24/48 VDC power inputs
Supports 10 KB jumbo frames
Relay output warning for power failure and port break alarm
Broadcast storm protection
Extended Temperature Range -40 to 75°C
Package contents:EDS-G205-1GTXSFP-T, SFP plasitc cap, quick installation guide
EDS-405A-SS-SC
3-Port +2SFP Industrial Switch, compakt, unmanaged
Designed specifically for industrial applications, the EDS-405A series supports a wide range of useful management functions such as TurboRing, TurboChain, Ring Coupling, IGMPsnooping, IEEE802.1Q VLAN, Port-based VLAN, QoS, RMON, Bandwidth Management, Port Mirroring and Email or Relay Notification. The pre-configured TurboRing can be easily configured via the web-based management interface or the DIP switches on the top of the EDS-405A switches.
Turbo Ring and Turbo Chain (recoverytime <20ms@250 switches), and RSTP/STP for network redundancy
IGMP Snooping, QoS, IEEE802.1Q VLAN and port-based VLAN supported
Easy network management by webbrowser, CLI, Telnet/serial console, Windowsutility and ABC-01
Supports MX studio for easy, visualized industrial network management
EDS-408A-SS-SC
6-Port +2SFP Industrial Switch, compakt, unmanaged
Die Serie EDS-408A wurde speziell für industrielle Anwendungen entwickelt und unterstützt eine Vielzahl nützlicher Managementfunktionen wie TurboRing, TurboChain, Ringkopplung, IGMPsnooping, IEEE802.1Q VLAN, portbasiertes VLAN, QoS, RMON, Bandbreitenmanagement, Port-Mirroring und Benachrichtigung über E-Mail oder Relay. Der vorbereitete TurboRing kann einfach über die Web-basierte Managementschnittstelle oder die DIP-Schalter auf der Oberseite der EDS-408A-Switches konfiguriert werden.
Turbo Ring und Turbo Chain (Wiederherstellungszeit <20ms@250 Switches), und RSTP/STP für Netzwerkredundanz
IGMP Snooping, QoS, IEEE802.1Q VLAN und portbasiertes VLAN unterstützt
Einfache Netzwerkverwaltung über Webbrowser, CLI, Telnet/serielle Konsole, Windowsutility und ABC-01
Unterstützt MX Studio für einfaches, visualisiertes industrielles Netzwerkmanagement
EX-6100POE
5 Port Gigabit Switch with 4 PoE Ports for Temperature from –40°C to +85°C
EX-6100PoE is a Gigabit Ethernet switch in metal housing with PoE function for up to 4 end devices such as IP phones, IP cameras, WLAN access points, etc. It supports 10/100/1000 Base-T Ethernet standard and is fully compliant with IEEE 802.3af/at POE standards. The EX-6100PoE operates as Power Source Equipment (PSE) = 34.20 W for the Powered Device (PD) = 25.50 W. The required power is supplied via the +48 - 57 V terminal block. The EX-6100PoE provides the user with greater installation flexibility by eliminating the need for the terminal device to be located in close proximity to a power outlet. It can also be used in the extended temperature range of -40C° to +85C°.
5x 10/100/1000Mbps Ethernet RJ45 ports
Power up to 4 PoE-capable remote network devices, transfers data and power on one single cable
Fully IEEE 802.3af/at compliant PoE (PSE) type 1 = 15.40W and IEEE802.3at PoE+ (PSE) type 2 = 34.20W
Maximum Power Delivered (PD): Type 1: 12.95W / Type 2: 25.50W
Supports a extended temperature range from -40°C up to +85°C
Supports Jumbo Frames up to 9K Bytes
Auto-MDI/MDIX eliminates the need for crossover cables
Plug and play, no configuration and installation required
Terminal block for DC input 48V to 57VDC
ED status indicator of PoE power supply for each port
Small, rugged metal housing for critical applications
Wall or DIN-Rail mounting
Packaging contents:EX-6100PoE, DIN-Rail Kit, Manual
EDS-208A-MM-SC
6-Port +2SFP Industrial Switch, compakt, unmanaged
The 8-port EDS-208A series supports IEEE802.3 and IEEE802.3u/x with 10/100M full/half duplex, MDI/MDI-X autosense.The EDS-208A series has 12/24/48VDC (9.6 to 60VDC) redundant power inputs that can be connected to different DC power sources simultaneously. These switches are designed for use in harsh industrial environments such as marine (DNV/GL/LR/ABS/NK), rail, road or mobile applications (EN50121-4/NEMATS2/e-Mark) or hazardous areas (ClassIDiv.2, ATEXZone2) and are FCC, UL and CE compliant.
10/100BaseT(X) (RJ45 connection), 100BaseFX (Multi-Mode, SC connection)
Redundant dual 12/24/48VDC power inputs
IP30 aluminium housing Robust hardware design, suitable for hazardous areas (Class 1 Div.2/ ATEX Zone 2), transport (NEMATS2/EN50121-4/e-Mark) and maritime environments (DNV/GL/LR/ABS/NK)
EDS-305-M-SC
5-Port Industrial Fast Ethernet Switch
Ports: 1x 100BaseFX MM (SC), 4x 10/100BaseTX
Operating temperature: 0 - 60.0 °C
Input voltage: 12.0 - 48.0 VDC
ATEX approval
EX-6200
5-Port Industrie Ethernet Switch, Kompakt
The EX-6200 is an ultra-compact industrial 5-port Ethernet unmanaged switch in a metal housing. It offers increased operational reliability thanks to the redundant power supply of 2x 12V - 48VDC via a terminal block.
5-port 10/100Tx Fast Ethernet
Auto-MDI-MDIX, no "crossover cable" needed
Plug and Play, no configuration and installation required
Terminal block for redundant DC input, 2x 12V to 48VDC
Robust, ultra-compact metal housing, IP30
DIN-Rail Kit and metal plate for wall mounting
Operating temperature range from -10°C to +65°C
Optionally available: EX-6200-T for operating temperature from -40°C to +75°C
Packaging contents:EX-6200, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EX-6205
8-Port Industrial Ethernet Unmanaged Switch
The EX-6205 is a compact industrial 8-port Ethernet unmanaged switch in a metal housing. It offers increased operational reliability thanks to the redundant power supply of 2x 12 V - 48 VDC via a terminal block.
5-port 10/100Tx Fast Ethernet
Auto-MDI-MDIX, no "crossover cable" needed
Plug and Play, no configuration and installation required
Terminal block for redundant DC input, 2x 12V to 48VDC
Built-in relay output warning for power failure
Robust, compact metal housing, IP30
DIN-Rail Kit and metal plate for wall mounting
Operating temperature range from -10°C to +65°C
Optionally available: EX-6200-T for operating temperature from -40°C to +75°C
Packaging contents:
EX-6205, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EX-6220
5-Port Industrial Ethernet Gigabit Unmanaged Switch (compact)
The EX-6220 is an ultra-compact industrial 5-port Gigabit Ethernet unmanaged switch in a metal housing. It offers increased operational reliability thanks to the redundant power supply of 2x 12V - 48VDC via a terminal block.
5-port 10/100/1000Tx Gigabit Ethernet
Auto-MDI-MDIX, no "crossover cable" needed
Plug and Play, no configuration and installation required
Terminal block for redundant DC input, 2x 12V to 48VDC
Robust, ultra-compact metal housing, IP30
DIN-Rail Kit and metal plate for wall mounting
Operating temperature range from -10°C to +65°C
Packaging contents:EX-6220, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EX-6221
5-Port Industrial Gigabit Ethernet Unmanaged Switch
The EX-6221 is an industrial 5-port Gigabit Ethernet unmanaged switch in a metal housing. It offers increased operational reliability thanks to the redundant power supply of 2x 12V - 48VDC via a terminal block.
5-port 10/100/1000Tx Gigabit Ethernet
Auto-MDI-MDIX, no "crossover cable" needed
Plug and Play, no configuration and installation required
Terminal block for redundant DC input, 2x 12V to 48VDC
Built-in relay output warning for power failure
Robust metal housing, IP30
DIN-Rail Kit and metal plate for wall mounting
Operating temperature range from -10°C to +65°C
Packaging contents:EX-6220, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EX-6225
8-Port Industrial Gigabit Ethernet Unmanaged Switch
The EX-6225 is a compact industrial 8-port Gigabit Ethernet unmanaged switch in a metal housing. It offers increased operational reliability thanks to the redundant power supply of 2x 12V - 48VDC via a terminal block.
8-port 10/100/1000Tx Gigabit Ethernet
Terminal block for redundant DC input, 2x 12V to 48VDC
Built-in relay output warning for power failure
Auto-MDI-MDIX, no "crossover cable" needed
Plug and Play, no configuration and installation required
Robust, compact metal housing, IP30
Operating temperature range from -10°C to +65°C
DIN-Rail Kit and metal plate for wall mounting
Packaging contents:EX-6225, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EX-6205POE

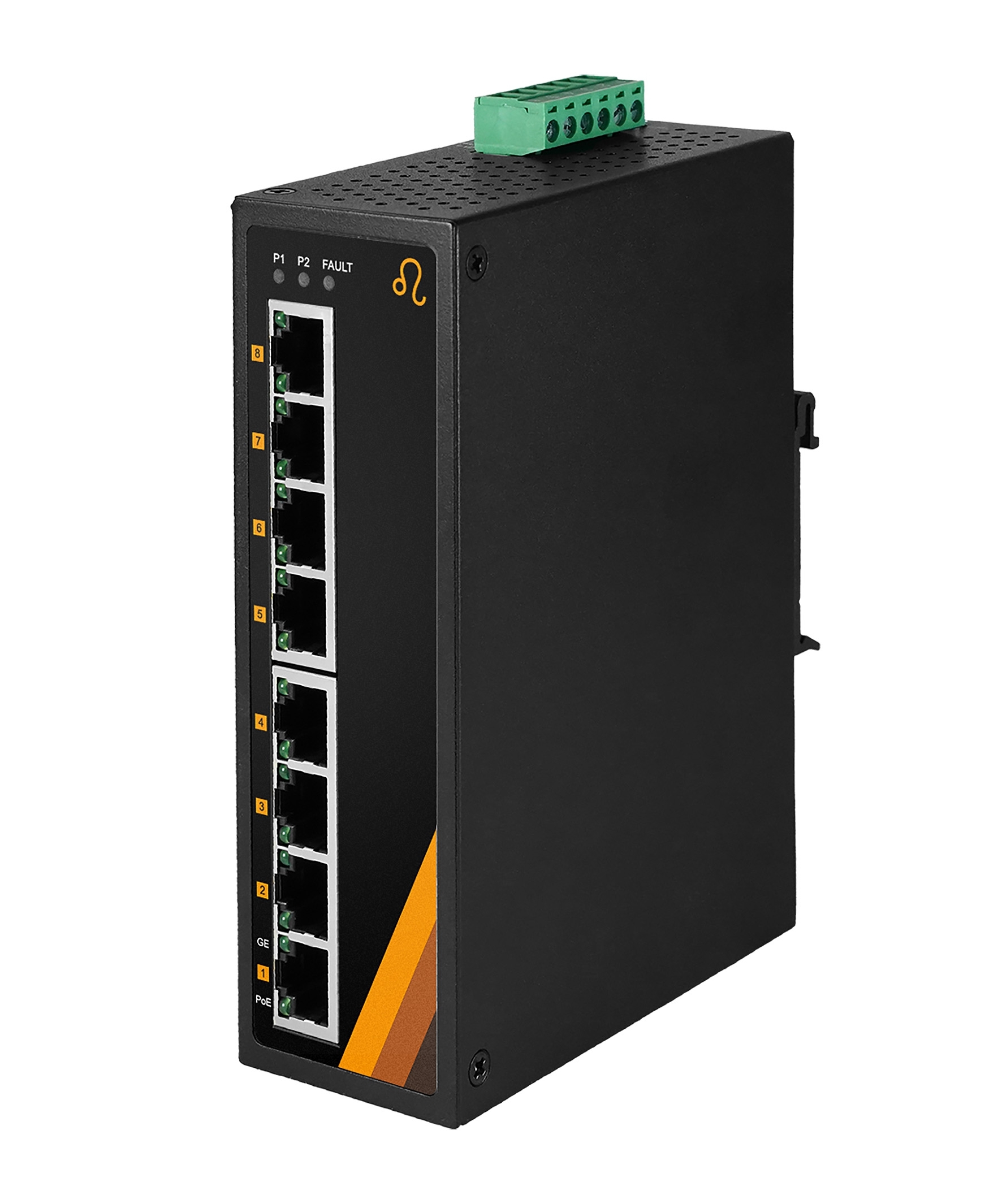

8-Port Industrial Gigabit Ethernet Unmanaged PoE Switch
8-Port Industrial Gigabit Ethernet Unmanaged Switch8*10/100Tx, 12-36VDC Power Input
8-Port 10/100Tx Ethernet
Redundant Power Input Design 12 - 36VDC
Built-in Relay Output Warning for Power Failure
IP30 Rugged Metal Case Design
Incl. DIN-Rail Kit and Metal plate
Auto-MDI-MDIX don’t need crossover cable
No configuration and installation need
Plug and Play
Operating Temperature Range: -10°C to +65°C
Optional available EX-6205PoE-T for operating temperature from -40°C to +75°C
Packaging contents:EX-6205POE, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
EX-6200-T
5-Port 10/100Tx industrial Ethernet switch, for Temperature from -40° to +75°C
Der EX-6200-T ist ein kompakter Industrieller 5-Port Ethernet Unmanaged Switch im Metallgehäuse. Er kann im erweitertem Temperaturbereich von -40C° bis +75C° eingesetzt werden und bietet eine erhöhte Betriebssicherheit dank der redundanten Stromversorgung von 2x 12 V - 48 VDC über einen Terminal Block.
5-Port 10/100Tx Fast Ethernet
Unterstützt den erweiterten Temperaturbereich von -40°C bis +75°C
Auto-MDI-MDIX, benötigt kein „Crossover Kabel“
Plug and Play, keine Konfiguration und Installation erforderlich
Terminal Block für redundanten DC-Eingang, 2x 12 V bis 48 VDC
Robustes Metallgehäuse, IP30
Inkl. DIN-Rail Kit und Metallplatte für Wandbefestigung
Packaging contents:EX-6200-T, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
