Mini 5-Port Industrial Gigabit PoE Switch, unmanaged
Product number:
EX-62020POE
GTIN/EAN:
4718359620232
Mini 5-Port Industrial Gigabit PoE Switch, unmanaged

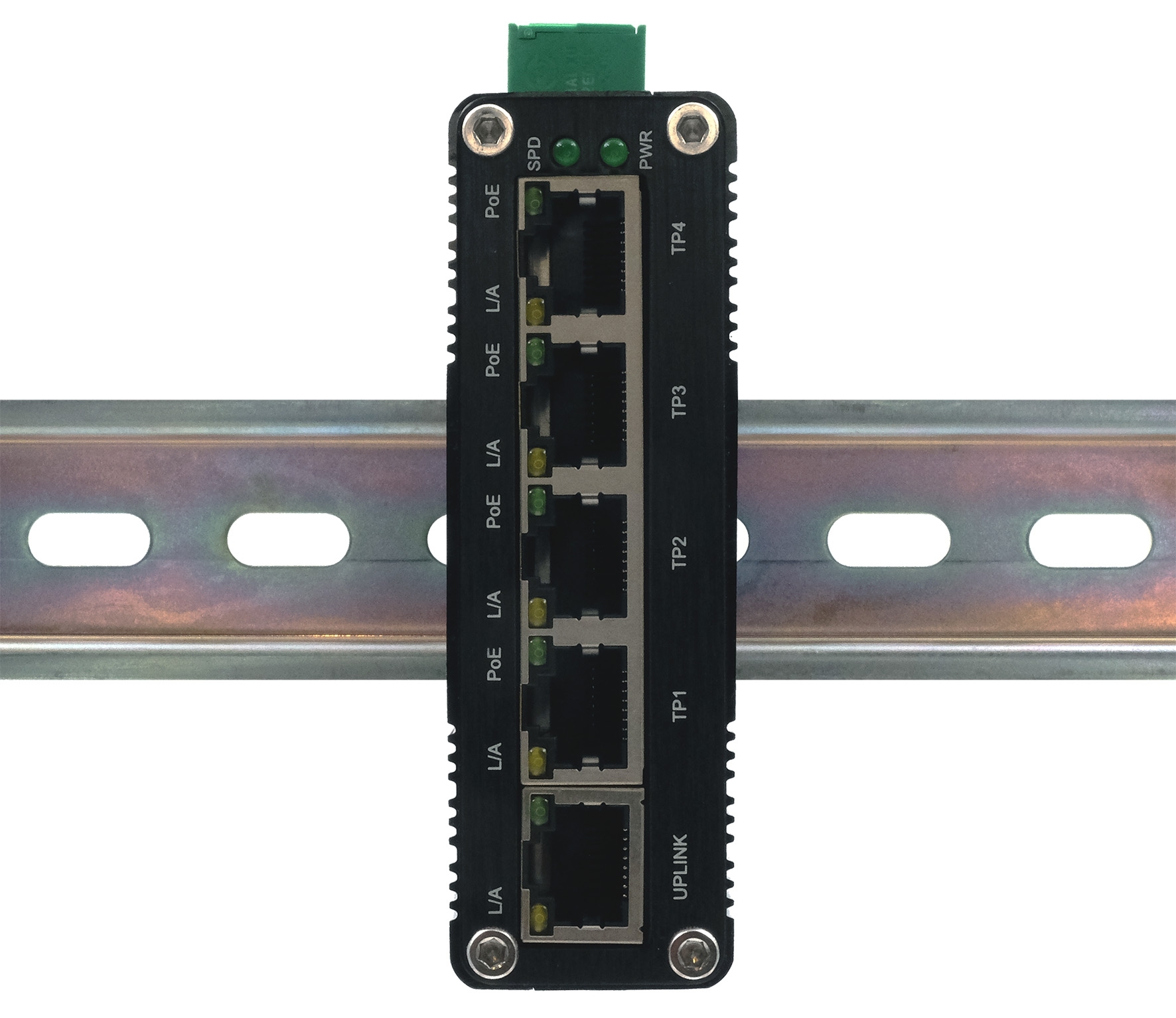

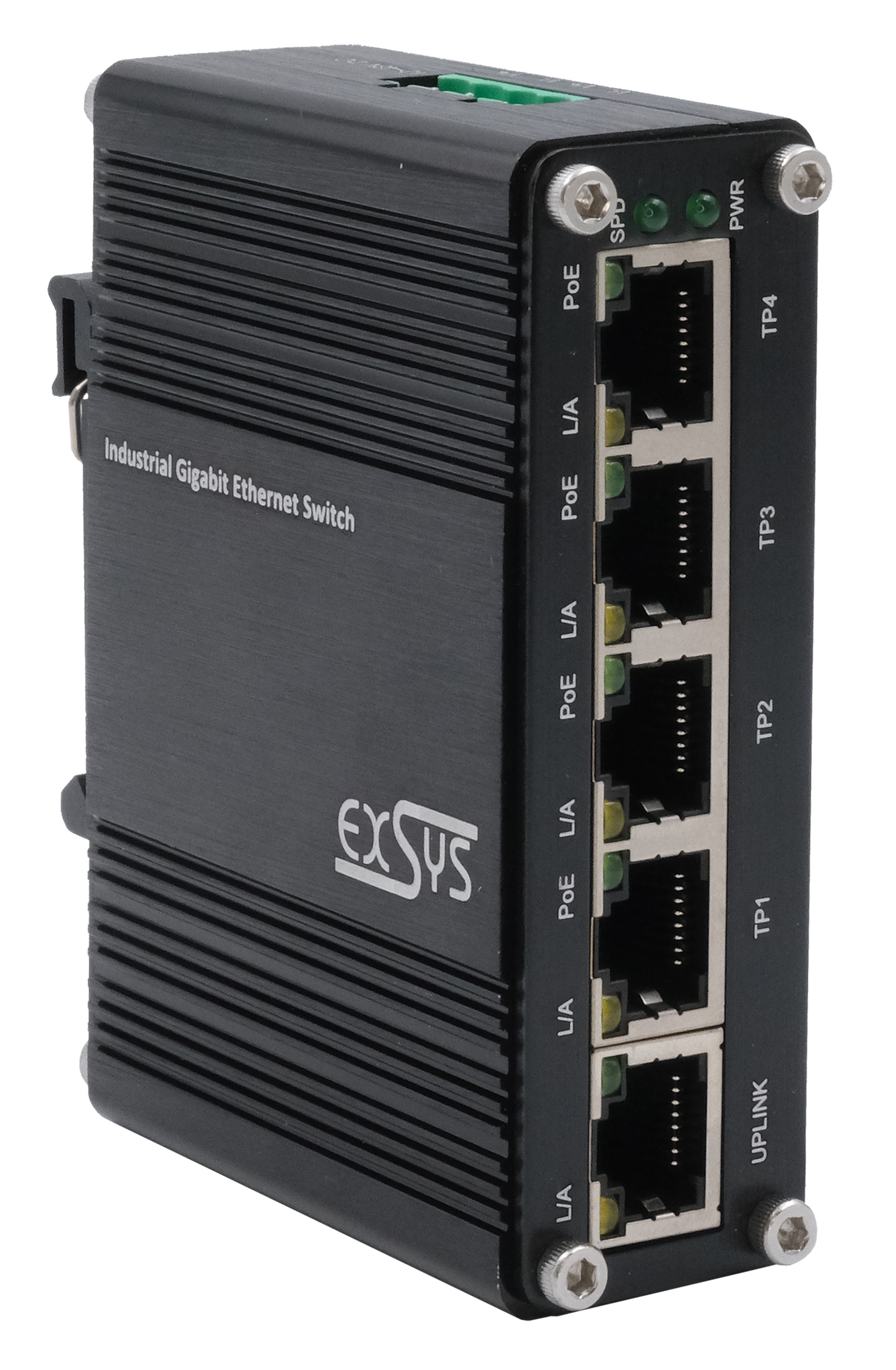

The extremely compact industrial 5-port Gigabit Switch EX-62020PoE offers full Gigabit performance on all ports despite its small external dimensions. The downlink ports provide up to 30W each for connecting PoE power devices (PD) such as IP cameras or IP phones. Thanks to the rugged metal housing and the extended operating temperature range from -40°C to 80°C, it is suitable for a wide range of applications even in harsh environments. Power is supplied from the terminal block (12-48VDC) and can be redundant to reduce operational downtime.
- 5-Port 10/100/1000T Gigabit Ethernet
- Power up to 4 PoE-capable remote network devices, transfers data and power on one single cable
- Fully IEEE 802.3af compliant PoE (PSE) type 1 = 15.40W and IEEE802.3at PoE+ (PSE) type 2 = 34.20W
- Maximum power delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
- Terminal block for redundant DC input, 2x 12V to 48VDC
- Converts the input voltage to the PoE range of 42 to 57VDC
- Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Supports jumbo frames up to 9KBytes
- Plug and play, no configuration and installation required
- Rugged, very compact metal housing, IP40
- Extended operating temperature range from -40°C to +80°C

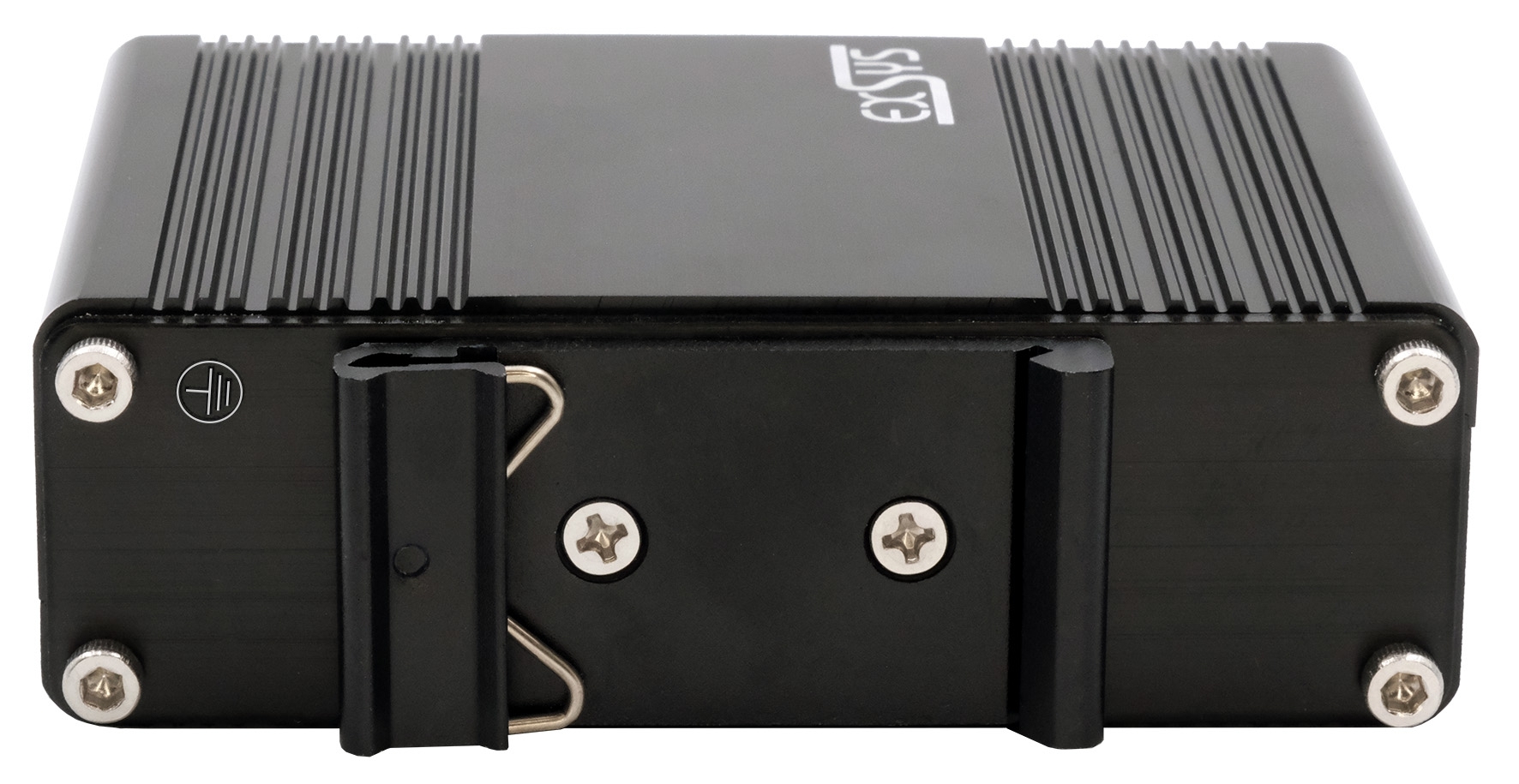

- Includes DIN-Rail Kit and wall mounting bracket
Note:
Refer to the STP cable earthing technical information.

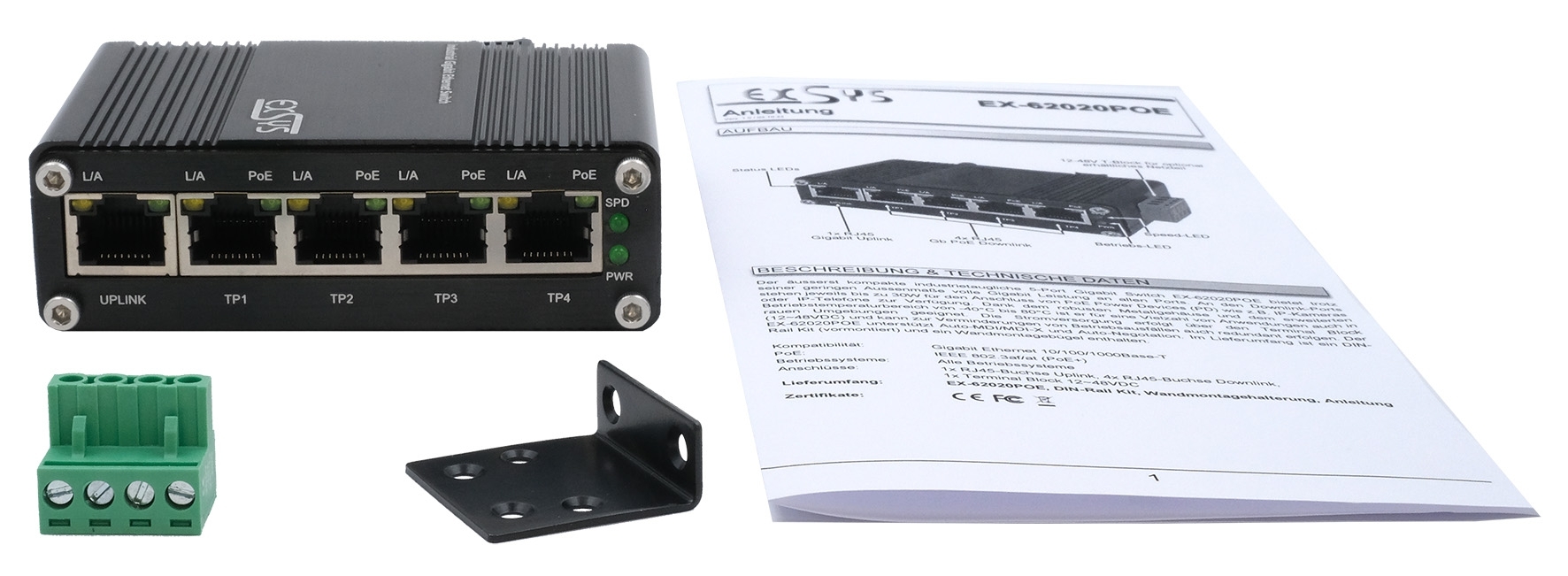

Packaging contents:
EX-62020PoE, DIN-Rail Kit (pre-assembled), Wallmount Kit, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Design: | Compact |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 5 |
| PoE Budget: | 120W |
| Power connection: | TB 12-48V |
| Power over Ethernet: | Yes |
| Temperature range: | -40°C to +80°C |
