EX-47920
RS-232 to RS-232 Converter with Surge Protection & Optical Isolation
The EX-47920 RS-232 to RS-232 adapter can be used with any PC, workstation, notebook or server with an RS-232 interface and provides surge protection and optical isolation for your RS-232 peripheral device. The EX-47920 is equipped with a DB9 female connector that can be directly connected to the PC. The DB9 connector, configured as a DCE port, isolates the three RS-232 signals (TXD, RXD and GND) to the DB9 connector which is configured as a DTE. The EX-47920 is compatible with new and older RS-232 devices and is easy to install without turning off the PC. It provides a quick way to upgrade the RS-232 interface with optical isolation and overvoltage protection.
Supports up to 2.5KV Optical Isolation
Supports up to 15KV ESD Surge Protection
Supports three signals - TXD, RXD and GND
DCE RS-232 port: DB9 female with the signal TXD, RXD and GND
DTE RS-232 port: DB9 male with the signal TXD, RXD and GND
+5V DC External Power is required, Power by AC Adapter or USB Port with USB-to-DC Jack cable
No driver required for all operating systems
Compact Size
Packaging contents:EX-47920, Power supply, USB power cable, Manual
EX-47925
RS-232 to RS-232 Converter with 15KV Surge Protection & 4KV Optical Isolation for all signal
The EX-47925 RS-232 to RS-232 adapter can be used for any PC, workstation, notebook or server with an RS-232 interface and provides surge protection and optical isolation for your RS-232 peripheral device. The EX-47925 is equipped with a DB9 female connector that can be directly connected to the PC. The DB9 connector, configured as a DCE port, isolates the RS-232 signals (TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI and GND) to the DB9 connector which is configured as a DTE. The EX-47925 is compatible with new and older RS-232 devices and is easy to install without turning off the PC. The EX-47925 provides a quick way to upgrade the RS-232 interface with 4KV optical isolation and 15KV ESD surge protection.
Supports up to 4KV Optical Isolation for all line (signal)
Supports up to 15KV ESD Surge Protection for all line (signal)
DCE RS-232 port:
DB9 female with the signal TXD,RXD,RTS,CTS,DTR,DSR,DCD,RI, GND
DTE RS-232 port
DB9 male with the signal TXD,RXD,RTS,CTS,DTR,DSR,DCD,RI, GND
+5V DC External Power is required, Power by AC Adapter or USB Port withUSB-to-DC Jack cable
No driver required for all operating systems
Supports Wall- and DIN-Rail mounting kits
Lieferumfang:EX-47925, Netzteil, Handbuch
EX-47800IS
RS-485 Isolater/Repeater
The EX-47800IS isolator and amplifier can be used to optically isolate RS-485 devices from each other. The EX-47800IS can also be used as an amplifier to add more devices to an existing RS-485 system, which is limited to 32 devices by the RS-485 standard.
The EX-47800IS uses plug-in terminal blocks on both sides. It provides transmit data (TXD+/TXD-), receive data (RXD+/RXD-), protective ground (Prot. G) and signal ground (SG). All data lines, power and ground are isolated from one side to the other.
It supports a wide voltage input from +7V to +48V DC. EX-47800IS has 2 DIP switches to set the mode (half or full duplex) and terminator settings. It supports both 2-wire and 4-wire modes. The EX-47800IS is compatible with new and older RS-485 devices.
Isolate one RS-485 device from a other RS-485 device
2.5KV Isolation
15KV ESD Surge Protection
Support 2-wire and 4-wire mode
Operating temperature rating from –40°C up to +85° Celsius
Power Input from +7V up to +48Volt
Rugged metal construction
Packaging contents:EX-47800IS, Manual

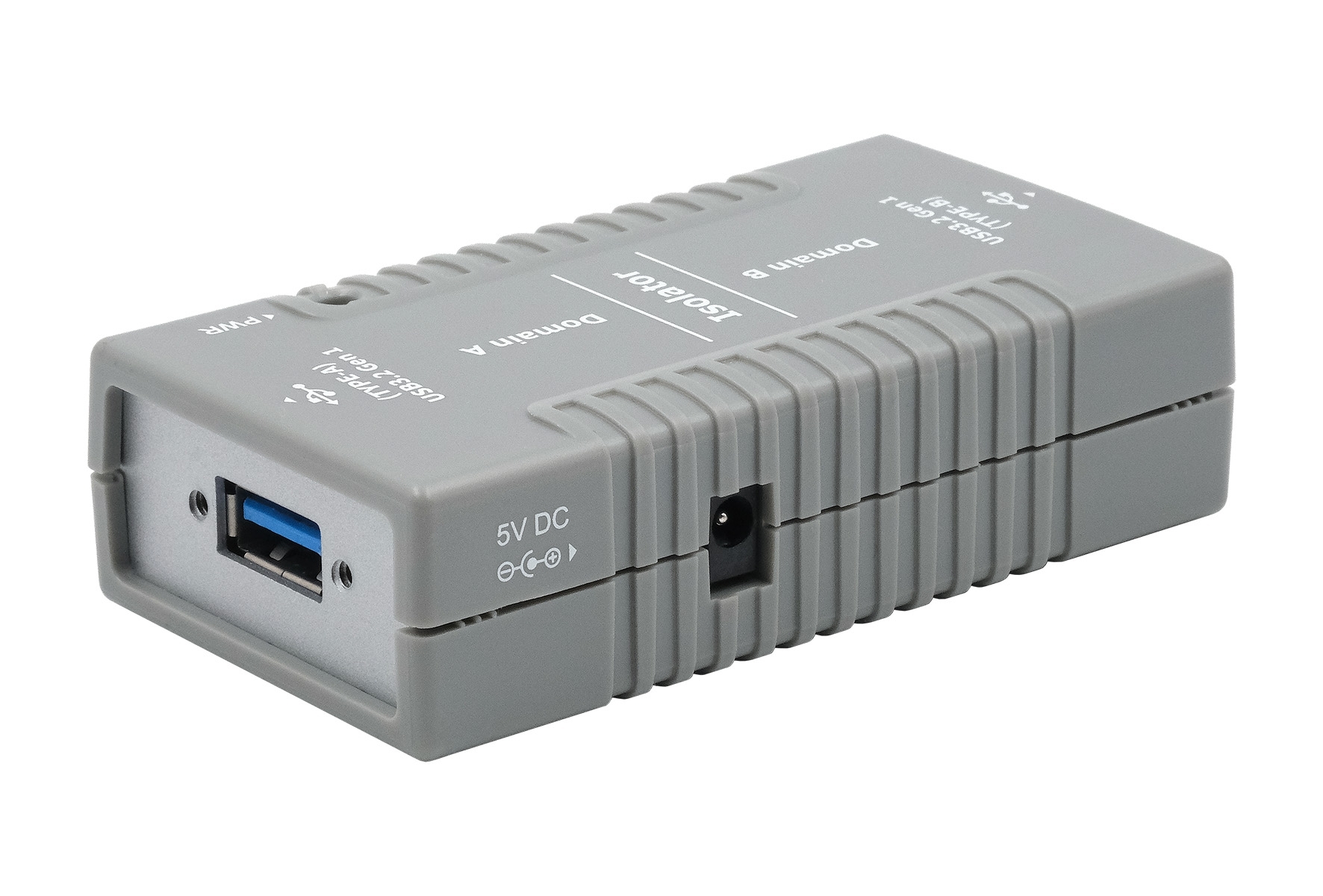

EX-1452IS
USB 3.2 Gen 1 Isolation Adapter with 3KV isolation
The EX-1452IS is a USB 3.2 Gen 1 super-speed isolation adapter with a data transfer rate of up to 5Gbps. It provides a USB 3.2 Gen 1 Type A connector with 15KV ESD surge protection and 3KV capacitive isolation for USB 3.2 Gen 1 (formerly USB 3.0), USB 2.0 and USB 1.1 devices. However, it only supports USB 3.2 Gen 1 hosts, USB 2.0 or USB 1.1 hosts are not supported. The EX-1452IS also offers the unique ability to operate in bus-powered mode without an external power supply, which is useful for low-power USB devices. In addition, a DC connector is provided for an external power supply if more power is required at the downstream port. The EX-1452IS provides an easy solution to isolate USB ports.
USB 3.2 Gen 1 isolation adapter to isolate expensive USB end devices
3KV capacitive isolation between upstream and downstream ports
15KV ESD surge protection
Screw-Lock USB ports
Supports self-powered and bus-powered modes
DC connector for external power supply
No additional drivers required
Supports wall or DIN rail mounting
LED power indicator
Packaging contents:EX-1452IS, USB 3.2 Gen 1 cable, Wall mounting / DIN-Rail Kit, Manual
EX-1451IS
USB 2.0 Isolation Adapter with 2.5KV isolation
The EX-1451IS is a USB 2.0 isolation adapter with 2.5kV capacitive isolation between the upstream and downstream ports. It has a USB 2.0 Type A port and is backward compatible with USB 1.1 and USB 1.0 compatible devices. The EX-1451IS also offers the unique ability to operate in bus-powered mode without an external power supply, which is useful for low-power USB devices. In addition, a DC socket is provided for an external power supply if more power is required at the downstream port.
USB 2.0 isolation adapter for isolating expensive USB end devices
2.5KV capacitive isolation between upstream and downstream ports
Screw-Lock USB ports
Supports self-powered and bus-powered modes
DC socket for external power supply
No additional drivers required
Supports wall or DIN rail mounting
Power LED indicator
Packaging contentsEX-1451IS, USB 2.0 cable, wall bracket, manual
