USB 3.2 Gen 1 Isolation Adapter with 3KV isolation
Product number:
EX-1452IS-2
GTIN/EAN:
4718359145223
USB 3.2 Gen 1 Isolation Adapter with 3KV isolation

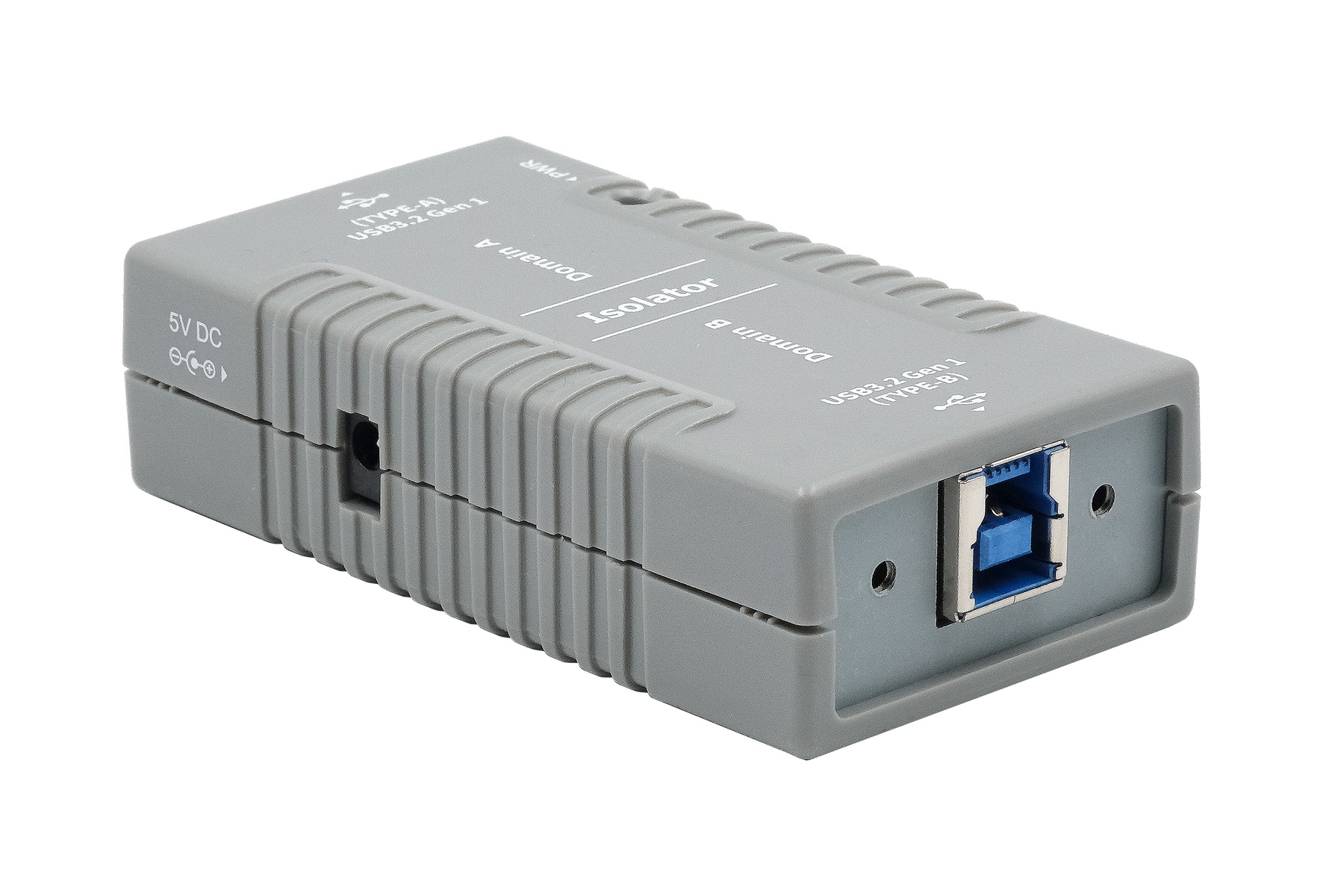

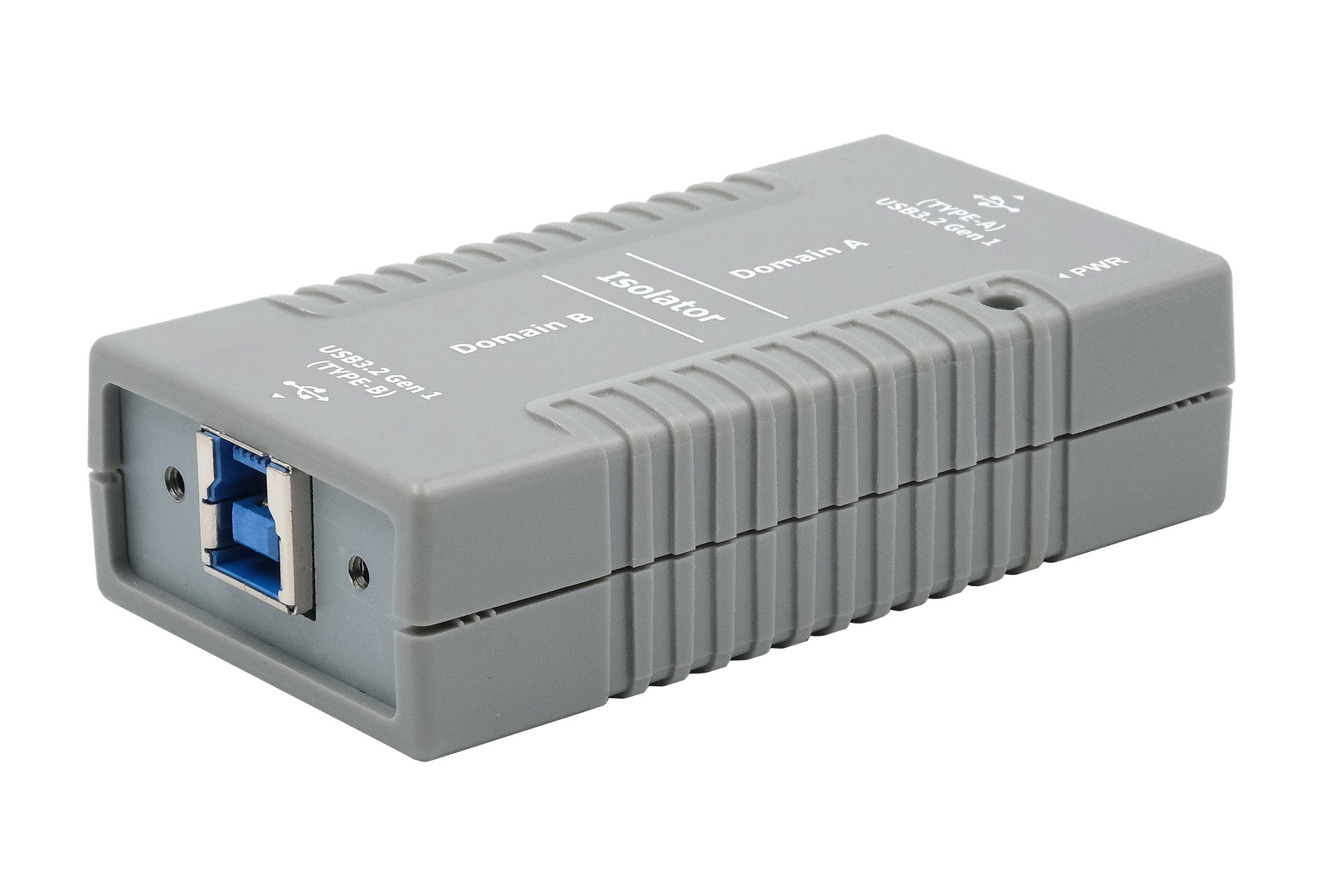

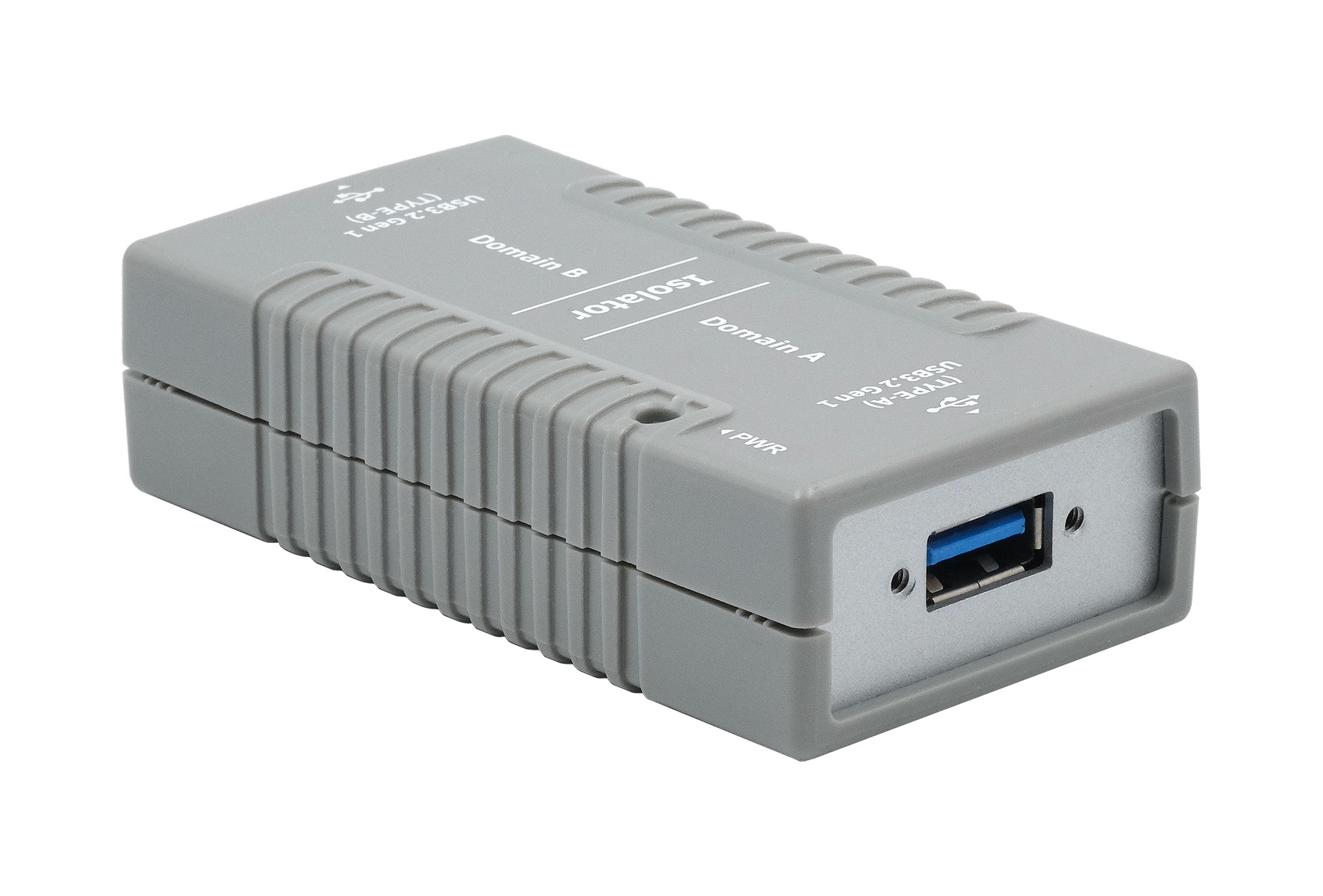

The EX-1452IS-2 is a USB 3.2 Gen 1 isolation adapter featuring 3 kV isolation between the upstream and downstream port and 15kV ESD surge protection on the USB connectors. It is fully compatible with USB 3.2 Gen 1 (formerly USB 3.0) with a data transfer rate of up to 5 Gbps and is backwards compatible with USB 2.0/1.1. The EX-1452IS-2 can be operated in both bus-powered mode and self-powered mode. In bus-powered mode, no external power supply is required, making it ideal for USB devices with low power consumption. For applications requiring higher downstream power, an external DC connection is provided, enabling self-powered operation.
- USB 3.2 Gen 1 isolation adapter for isolating expensive USB end devices
- Fully backwards compatible with USB 2.0/1.1 for both host and peripheral devices
- 3 kVrms (AC) isolation (capacitive) between upstream and downstream port
- 15kV ESD surge protection
- Screw-lock USB connectors on both sides
- Supports self-powered and bus-powered operation

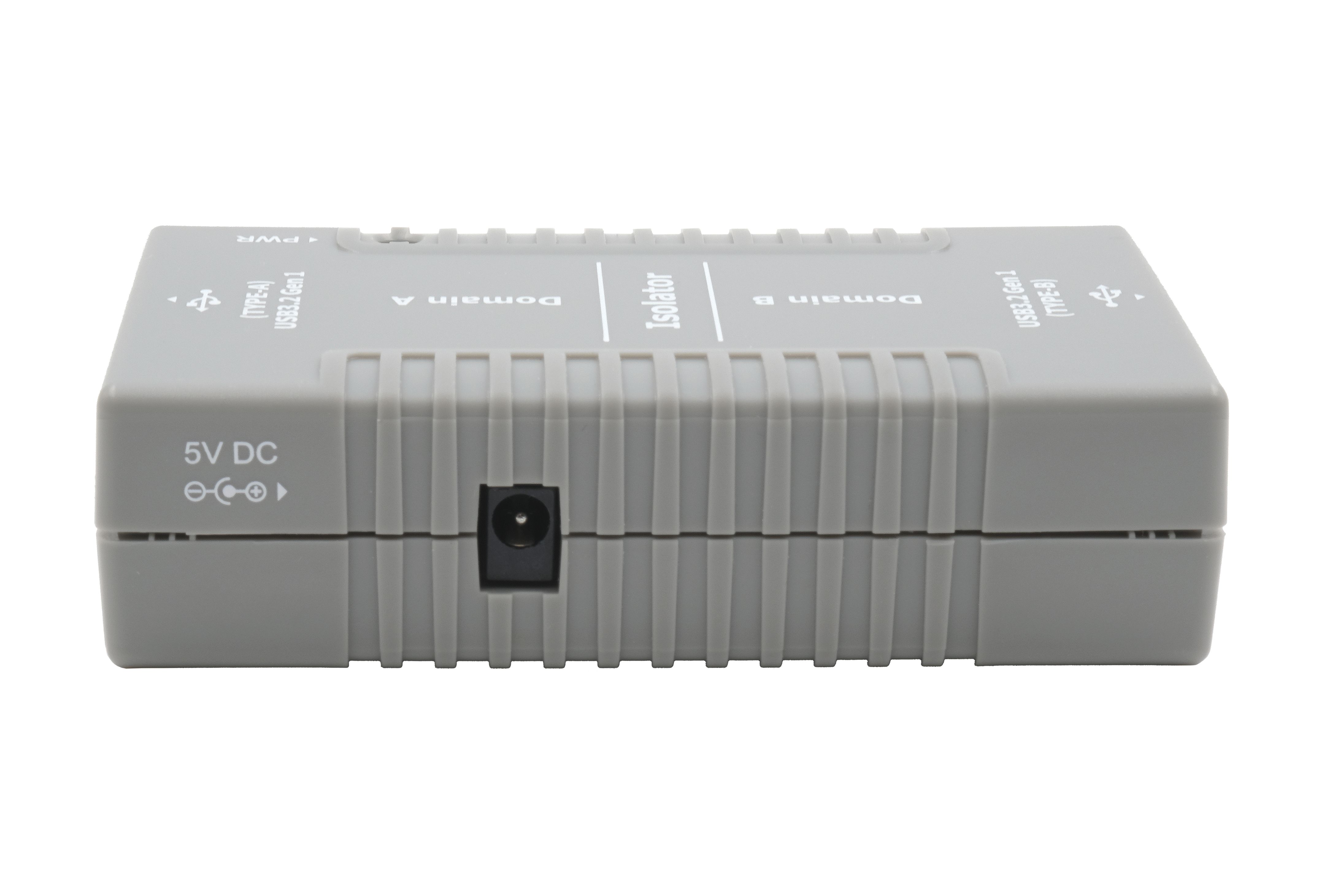

- DC socket for external power supply
- No additional drivers required
- Includes wall-mount bracket; DIN-Rail kit optional
- LED power indicator

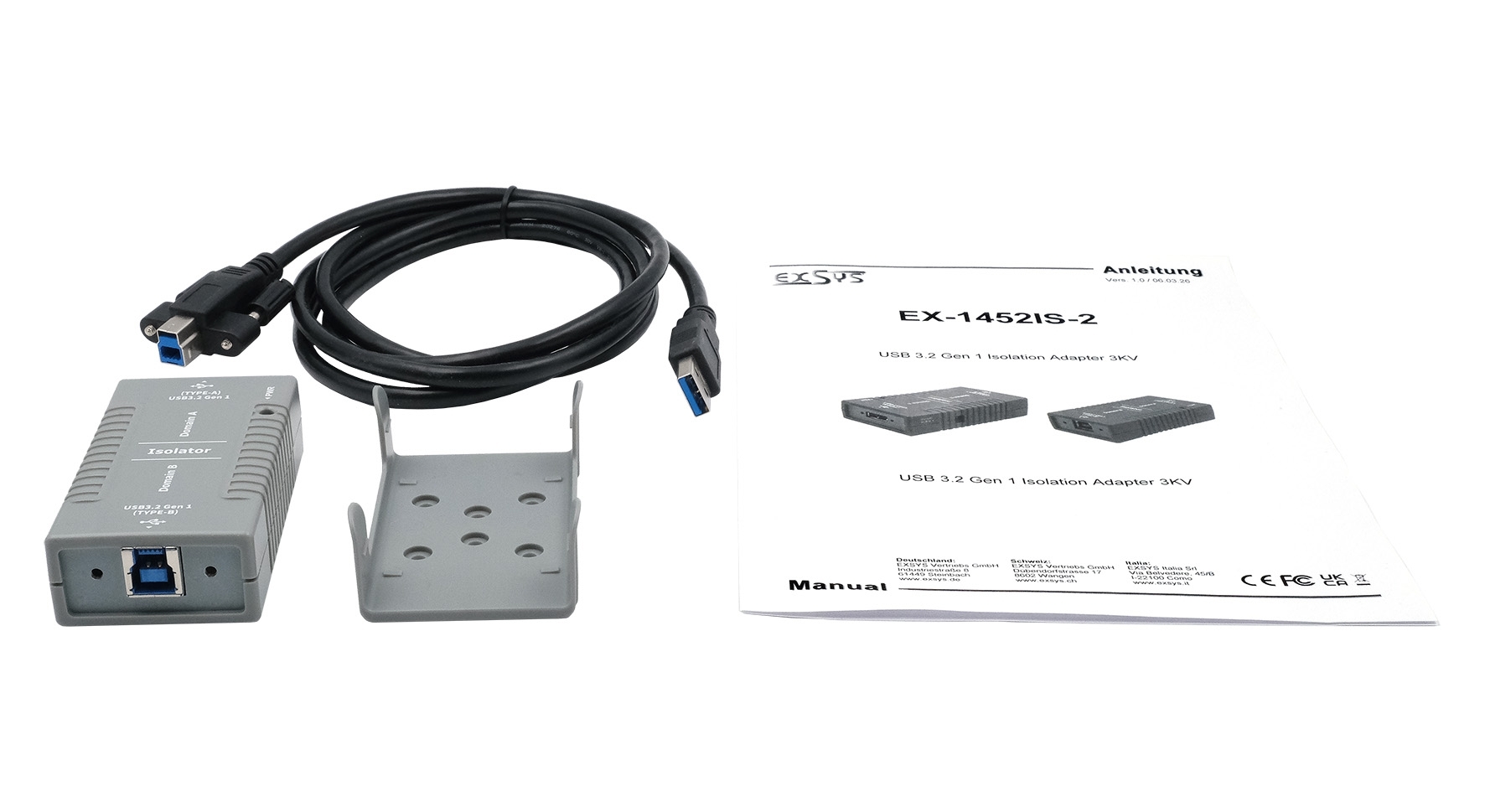

Packaging contents:
EX-1452IS-2, USB 3.2 Gen 1 cable, Wall mounting Kit, Manual
| Cable length: | 1.8m |
|---|---|
| Colour: | grey |
| Housing: | Plastic |
| Inputs: | USB-B socket |
| Interface: | USB 3.2 Gen 1 |
| Isolation: | 3KV |
| Mounting Type: | Desktop |
| Number of ports: | 1 |
| Outputs: | USB-A socket |
| Power connection: | DC Jack 5V |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
Skip product gallery
CHF 25.90*
CHF 4.90*
accessories
EX-6993
Plug-In power supply 5V/2A (DC Jack 3.5mm/1.35mm)
Plug-In power supply.
Output: 5V/2A, 10W
Input 110V-240V 50/60Hz, 0.3A
DC jack diameter: 3.5mm outside / 1.35mm inside
Positive pole inside
EX-6099
DIN-Rail Kit of Metal with thread
The EX-DIN-Rail it’s a Kit of Metal with thread for different industrial products for fix to DIN-Rail. The Kit include two metal bracket.
Applicable to EX-1166HMV, EX-1178, EX-1178S, EX-1178-W, EX-1188HMS, EX-1188HMS-3, EX-1189HMVS-3, EX-1189HMVS-3W, EX-1517HMVS, EX-1332HMV, EX-1333V, EX-1333VIS, EX-1334HMV-2, EX-1335HMV, EX-6031, EX-6031PoE, EX-6032, EX-6034, EX-6051
