EX-1301-2F
USB to 1S Serial RS-232 Port, 9 pin female connector (Chipset FTDI)
The EX-1301-2F provides one serial RS-232 high performance UART 16C550 port. It is designed to add another serial port for PC, small workstation or server via USB 1.1, 2.0 or 3.2 bus. It is the perfect solution for connecting barcode scanners, card readers, scales, etc. Due to the easy installation, there is no need to open the system and the EX-1301-2F can be installed while the system is running. The EX-1301-2F is equipped with a 9 pin socket (DCE) and can therefore be connected directly to the peripheral device. No further serial cable is required. The EX-1301-2F supports COM-Storage which retains the COM port setting for the serial devices when plugged in and unplugged. The COM port values once assigned are saved and automatically reassigned correctly after plugging in and unplugging. This also applies when switching between different USB-Ports.
Interface RS-232 V.24
16C550 FIFO Buffer with 256Bytes
I/O addresses and interrupt is set from the operating system
Data bits: 7 and 8
Stop bits: 1, and 2
Parity: None, Even, Odd, Space and Mark
Signal RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Powered from the USB-Port - No external power adapter required
Chipset: FTDI
Packaging contents:EX-1301-2F, Driver CD, Manual
EX-1303
USB to 1x Seriell RS-422/485 ports with 1.8 meter cable (FTDI Chip)
The EX-1303 USB to Serial RS-422/485 cable provides one high performance 16C550-type UART compatible RS-422/485 serial port. It is designed for PC, thin client or server to provide instant COM port expansion with a cable through the USB 1.1 up to 3.2 Gen 1 Bus. With the easy installation you don’t need to open the Computersystem and install the EX-1303 when the system run.
Interface: RS-422/485
FIFO Buffer: 16C550 with 16Byte
I/O addresses: Setting from the operating syste
Interrupt: Setting from the System BIOS with Interrupt Sharing
Data Bits: 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd
Signal: Two modes are selectable:
4-wire RS-422 (TXD+/-, RXD+/-)
2-wire RS-485 (Data+/-, Data +/-)
Power from the USB Bus (Bus Power)
Chipset: FTDI
Packaging contents:EX-1303, Driver CD, Manual
EX-1348HMV
USB 2.0 to 4S Serial RS-232/422/485 ports, metal case with screw lock cable (FTDI Chipset)
The EX-1348HMV USB 2.0 to RS-232/422/485 converter in a metal housing provides eight RS-232, 422 or 485 high performance UART 16C550 combo serial outputs. It is designed to expand desktop computer, notebook by eight more serial outputs in a rugged metal housing via USB 2.0 bus. Easy installation means there is no need to open the computer. The included EX-K1542V A male to B male cable can be attached to the EX-1348HMV with thumbscrews without the need for a screwdriver, making it impossible for the cable to come loose on its own. Optionally, the converter can be installed on a carrier rail in a 19-inch rack using item EX-6099 (DIN rail kit). The EX-1348HMV has LED indicators for operating functions and data transfers.
Interface: RS-232 V.24, RS-422 and RS-485
FIFO Buffer: 16C550 with 16Byte
Data bits: 7 and 8 / Stop bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signals RS-422: 4-wire (TXD+/-, RXD+/-) fullduplex
Signals RS-485: 2-wire and 4-wire (Data+/-, Data +/-) Halfduplex/Fullduplex
Power supply from USB bus (Bus Power)
LED for TX and RX active indication
Chipset: FTDI
Packaging contents:EX-1348HMV, USB cable (EX-K1542V), Din-Rail Kit Driver CD, Manual
EX-1331
USB zu 1S Seriell RS-232 Port, plastic case (Prolific chipset)
The USB to Serial RS-232 box provides one high performance 16C550-type UART compatible RS-232 serial port. It is designed for PC, thin client or server to provide instant COM port expansion in a compact box through the USB 1.1 or 2.0 Bus. With the easy installation you don’t need to open the computer system and install the EX-1331 when the system run.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 5, 6, 7, 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
Plastic case
Chip-Set: Prolific PL2303HX
Packaging contents:EX-1331, Wall mounting plate, USB cable, Driver CD, Manual
EX-1334IS
USB to 4S Seriell RS-232 port, Surge Protection and Isolation (FTDI Chipset)
The EX-1334IS USB to RS-232 converter in a metal housing, provides four serial RS-232 high performance UART 16C550 outputs with 15KV ESD overvoltage protection and 2.5KV isolation. It is designed to expand desktop computer or notebook with four more serial outputs in a rugged metal housing via USB 1.1 or 2.0 bus. Easy to install, there is no need to open the computer and the EX-1334IS can be installed while the computer is running.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
15KV ESD Surge Protection and 2.5KV Isolation
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 und 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, GND
Power from the USB Bus (Bus Power)
Metal box
Packaging contents:EX-1334IS, Power supply 5V/2A, USB cable, Driver CD, Manual
EX-1302IS
USB to 1x Serial RS-232 ports, Surge Protection & Isolation
The EX-1302IS USB to Serial Cable provides a high performance RS-232 UART 16C550 serial interface with 15KV ESD surge protection and 2.5KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. Easy installation means there is no need to open the computer and the EX-1302IS can be installed while the system is running.
Interface: RS-232 V.24
15KV ESD protection
2.5KV isolation
16C550 FIFO buffer of 16Byte
I/O addresses assigned by operating system
Interrupts assigned by system BIOS with interrupt sharing
Data bits: 7 and 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Chipset: FTDI
Packaging contents:EX-1302IS, driver CD, manual
EX-1332V
USB to 2S Serial RS-232, plastic case and screw lock cable (FTDI Chipset)
The EX-1332V USB to Serial RS-232 enclosure provides two serial RS-232 high performance UART 16C550 outputs. It is designed to add two more serial RS-232 outputs in a compact enclosure for PC, workstation or server via USB 1.1 or 2.0 bus. Due to the easy installation, the computer does not need to be opened and the EX-1332V can be installed while the computer is running. The included EX-K1542V cable (1.8 meters) A male to B male can be attached to the EX-1332V with thumbscrews without the need for a screwdriver. The cable can therefore no longer come loose on its own.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 und 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
Plastic case
Chipset: FTDI
Packaging contents:EX-1332V, USB Kabel, Driver CD Manual
EX-1338HMV
USB to 8S Serial RS-232 ports, metal case with screw lock cable (FTDI Chipset)
The EX-1338HMV USB to RS-232 converter in a metal housing, provides eight serial RS-232 high performance UART 16C550 outputs. It is designed to add eight more serial outputs to desktop computer or notebook in a rugged metal housing via USB 1.1 or 2.0 bus. Easy installation means there is no need to open the computer and the EX-1338HMV can be installed while the computer is running. The included EX-K1542V A male to B male cable can be attached to the EX-1338HMV with thumbscrews without the need for a screwdriver, making it impossible for the cable to come loose on its own. Optionally, the EX-1338HMV can be installed on a carrier rail in a 19" rack with the article EX-6099 (DIN-Rail-Kit).
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power) or with the screw lock power supply
Chipset: FTDI
Packaging contents:EX-1338HMV, Power supply 5V/2A, USB cable, Driver CD, Manual

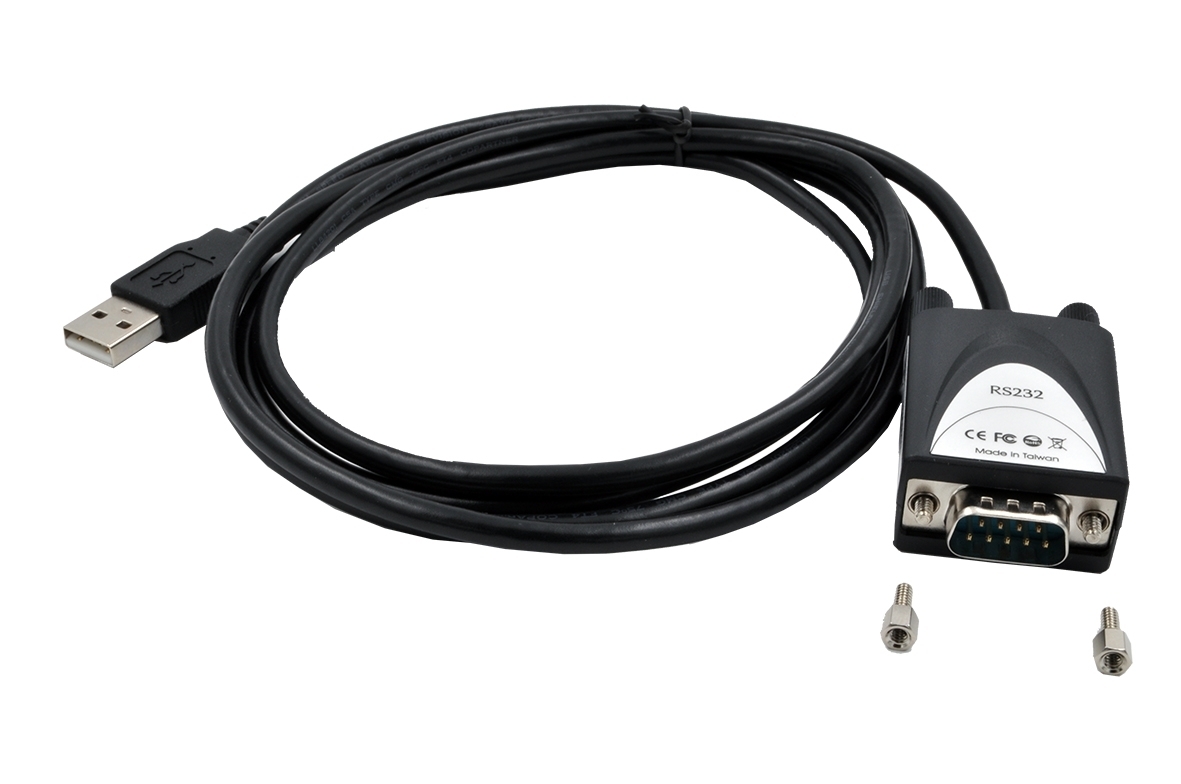

EX-1301-2
USB to 1S Serial RS-232 Port with 1.8 meter cable (FTDI Chipset)
The EX-1301-2 provides one serial RS-232 high performance UART 16C550 port. It is designed to add another serial port for PC, small workstation or server via USB 1.1, 2.0 or 3.2 bus. It is the perfect solution for connecting barcode scanners, card readers, scales, etc. Due to the easy installation, there is no need to open the system and the EX-1301-2 can be installed while the system is running. The EX-1301-2 supports COM-Storage which retains the COM port setting for the serial devices when plugged in and unplugged. The COM port values once assigned are saved and automatically reassigned correctly after plugging in and unplugging. This also applies when switching between different USB-Ports.
Interface RS-232 V.24
16C550 FIFO Buffer with 256Bytes
I/O addresses and interrupt is set from the operating system
Data bits: 7 and 8
Stop bits: 1, and 2
Parity: None, Even, Odd, Space and Mark
Signal RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Powered from the USB-Port - No external power adapter required
Chipset: FTDI
Packagning contents:EX-1301-2, Driver CD, Manual
EX-1335HMV
USB to 1S Serial RS-422/485 Port, metal case (FTDI Chipset)
The EX-1335HMV USB to Serial RS-422/485 box provides one high performance 16C550-type UART compatible RS-422/485 serial port with 9-pin or Terminal Block connector with 15KV Surge Protection and 2.5KV Optical Isolation. It is designed for PC, thin client or server to provide instant COM port expansion in a robust metal box through the USB 1.1 or 2.0 Bus. With the easy installation you don’t need to open the Computersystem and install the EX-1335HMV when the system run. With the included USB cable EX-K1542V A-male to B-male you can fix the connector with screw. The cable can’t be disconnect any more by him self. Optional you can install the EX-1335HMV with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack.
Interface: RS-422/485 with 15KV ESD Surge Protection and 2.5KV Optical Isolation
FIFO Buffer: 16C550 with 16Byte
I/O addresses: Setting from the operating system
Interrupt: Setting from the System BIOS with Interrupt Sharing
Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: None, even, odd
Signal: Two modes are selectable:- 4-Wire RS-422 (TXD+/-, RxD+/-) Fullduplex- 2- and 4-Wire RS-485 (Data+/-, Data+/-) Halfduplex/Fullduplex
Power from the USB Bus (Bus Power)
Chipset: FTDI
Packaging contents:EX-1335HMV, USB cable, Driver CD, Manual
UPORT-1410
USB-to-serial converter, 4x RS232, metal housing
The UPort 1410 USB-to-serial converter is the perfect accessory for laptop or workstation computers that do not have a serial port. It is essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. The UPort 1410 converter is compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.
Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Real COM and TTY drivers for Windows, Linux, and macOS
LEDs for indicating USB and TxD/RxD activity
Package contents:UPort 1410, power supply, USB A to B cable, quick installation guide
UPORT-1450
USB-to-serial converter, 4x RS232/422/485, metal housing
The UPort 1450 USB-to-serial converter is the perfect accessory for laptop or workstation computers that do not have a serial port. It is essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. The UPort 1450 converter is compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.
Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Real COM and TTY drivers for Windows, Linux, and macOS
Mini-DB9-female-to-terminal-block adapter for easy wiring
LEDs for indicating USB and TxD/RxD activity
Package contents:UPort 1450, power supply, USB A to B cable, Adapter DB9F-to-TB, quick installation guide
UPORT-1250
USB-to-serial converter, 2x RS232/422/485, metal housing
The UPort 1250 USB-to-serial converter is the perfect accessory for laptop or workstation computers that do not have a serial port. It is essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. The UPort 1250 converter is compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.
Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Real COM and TTY drivers for Windows, Linux, and macOS
Mini-DB9-female-to-terminal-block adapter for easy wiring
LEDs for indicating USB and TxD/RxD activity
Package contents:UPort 1250, power supply, USB A to B cable, Adapter DB9F-to-TB, quick installation guide
UPORT-1250I
USB-to-serial converter, 2x RS232/422/485, 2KV isolation, metal housing
The UPort 1250I USB-to-serial converter is the perfect accessory for laptop or workstation computers that do not have a serial port. It is essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. The UPort 1250I converter is compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.
Hi-Speed USB 2.0 for up to 480 Mbps USB data transmission rates
921.6 kbps maximum baudrate for fast data transmission
Real COM and TTY drivers for Windows, Linux, and macOS
Mini-DB9-female-to-terminal-block adapter for easy wiring
LEDs for indicating USB and TxD/RxD activity
2 kV isolation protection
Package contents:UPort 1250I, power supply, USB A to B cable, Adapter DB9F-to-TB, quick installation guide
EX-1338-2
USB to 8S Serial RS-232 ports, plastic case with screw lock cable (FTDI Chipset)
>The USB to Serial RS-232 box provides eight high performance 16C550-type UART compatible RS-232 serial ports. It is designed for PC, thin client or server to provide instant COM port expansion in a compact box through the USB 1.1 or 2.0 Bus. With the easy installation you don’t need to open the Computersystem and install the EX-1338-2 when the system run.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 and 8
Stop Bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
Plastic case
Chipset: FTDI
Packaging contents:EX-1338-2, USB cable, Octopus cable, Driver CD, Manual
EX-1334HMV-2
USB 2.0 to 4S RS-232 Serial ports, metal case with screw lock cable (FTDI Chipset)
The EX-1334HMV-2 USB 2.0 to serial RS-232 in a metal case, provides four high performance 16C550-type UART compatible RS-232 serial ports. It is designed for PC or Notebooks to provide instant COM port expansion in a robust metal case through the USB 2.0 bus. With the easy installation you don’t need to open the Computersystem and install the EX-1334HMV-2 when the system run. With the included USB cable EX-K1542V A-male to B-male you can fix the connector with screw. The cable can’t be disconnect any more by him self. Optional you can install the EX-1334HMV-2 with the product EX-6099 (DIN-Rail-Kit) in a 19 inch Rack. The EX-1334HMV-2 has LED displays for the data communication.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
Supports TX and RX Activity LED Indicators
Chipset: FTDI
Packaging contents:EX-1334HMV-2, Power Supply 5/4A, Driver CD USB 2.0 cable (1.8 meter long), Manual
EX-1333V
USB 2.0 to 2S serial RS-232/422/485, metal case and screw lock cable (FTDI Chipset)
The EX-1333V USB 2.0 to RS-232/422/485 converter in a metal housing, provides two serial RS-232, 422 or 485 high performance UART 16C550 combo outputs. It is designed to expand desktop computer or notebook with two more serial outputs in a rugged metal housing via USB 2.0 bus. Easy installation means there is no need to open the computer and the EX-1333V can be installed while the computer is running. The included EX-K1542V A male to B male cable can be attached to the EX-1333V with thumbscrews without the need for a screwdriver. This prevents the cable from coming loose on its own. Optionally, item EX-6099 (DIN rail kit) can be used to install the EX-1333V on a support rail in a 19" rack. The EX-1333V has LED indicators for operating function and data transmission.
Interface: RS-232 V.24, RS-422 and RS-485
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signal RS-422: 4-wire (TXD+/-, RXD+/-) Fullduplex
Signal RS-485: 2-wire and 4-wire (Data+/-, Data +/-) Halfduplex/Fullduplex
Power from the USB Bus (Bus Power)
Supports TX and RX Activity LED Indicators
Chipset: FTDI
Packging contents:EX-1333V, USB cable, Driver CD, Manual
EX-1333VIS
USB 2.0 to 2S Serial RS-232/422/485, Surge Protection and Isolation (FTDI Chipset)
The EX-1333VIS USB to Serial RS-232/422/485 converter in a metal case provides two high performance RS-232, 422 or 485 serial UART 16C550 interfaces with 15KV ESD surge protection and 2.5KV isolation. It is designed to connect serial devices to the USB 1.1 to 3.2 Gen 2 bus of a PC, server or workstation. The supplied EX-K1542V cable can be attached to the EX-1333VIS using knurled screws without the need for a screwdriver. It is therefore impossible to disconnect the cable yourself. Thanks to the simple installation on the USB port, there is no need to open the computer and the converter can be installed while the computer is running. With the optional DIN-Rail kit (EX-6099), the EX-1333VIS can be mounted on a DIN-Rail in a 19" rack.
Interfaces: RS-232 V.24, RS-422 and RS-485
15KV ESD protection and 2.5KV isolation
16C550 FIFO buffer of 16 bytes
I/O addresses and interrupt assigned by operating system
Data bits: 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 signals: 4-wire (TXD+/-, RXD+/-) full duplex
RS-485 signals: 2-wire and 4-wire (Data+/-, Data +/-) half duplex/full duplex
USB bus powered
LED for operation, TX and RX
Chipset: FTDI
Packaging contents:EX-1333VIS, USB cable screw-lock, driver CD, manual
EX-1322
USB 2.0 to 2S x Serial RS-232 ports, cable are 2.0m long (FTDI Chipset)
The USB 2.0 to RS-232 cable provides two serial RS-232 high performance UART 16C550 output. It is designed to add two more serial outputs to notebook, PC, workstation or server via USB 2.0 bus. Due to the easy installation, the computer does not need to be opened and the cable can be installed while the computer is running. Additionally, a mounting adapter is included to install the EX-1322 on the wall or in a 19" rack.
Interface RS-232 V.24, RS-422 and RS-485 over a 5 pin Terminal Block
16C550 FIFO Buffer with 16Byte
Data bits: 7 and 8
Stop bits: 1, 1.5 and 2
Parity: none, even, odd, space and mark
Signal RS232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
Chipset: FTDI
Packaging contents:EX-1322, Driver CD, Manual
EX-1324
USB 2.0 to 4S x Serial RS-232 ports, cable are 2.0m long (FTDI Chipset)
The USB 2.0 to RS-232 cable provides four serial RS-232 high performance UART 16C550 output. It is designed to expand notebook, PC, workstation or server with four more serial outputs via USB 2.0 bus. Due to the easy installation, the computer does not need to be opened and the cable can be installed while the computer is running. Additionally, a mounting adapter is included to install the EX-1324 on the wall or in a 19" rack.
Interface: RS-232 V.24
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7 und 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power from the USB Bus (Bus Power)
Chipset: FTDI
Packaging contents:EX-1324, Driver CD, Manual
EX-1316HMV
USB 2.0 to 16x Serial RS-232 ports Metal case (FTDI Chipset)
Der EX-1316HMV USB 2.0 zu RS232 Konverter in einem Metallgehäuse stellt 16 serielle RS232 High Performance UART 16C550 Ausgänge zur Verfügung. Er wurde entwickelt um Desktop Computer, Notebook um sechzehn weitere serielle Ausgänge in einem robustem Metallgehäuse über den USB 2.0 Bus zu erweitern. Durch die einfache Installation muss der Rechner nicht geöffnet werden und der EX-1316HMV kann bei laufendem Betrieb installiert werden. Das mitgelieferte Kabel EX-K1542V A-Stecker auf B-Stecker kann ohne Schraubenzieher am EX-1316HMV mit Rändelschrauben befestigt werden und kann sich somit nicht mehr von alleine lösen. Der EX-1316HMV hat LED Anzeigen für die Datenübertragungen. Bein Anschluss des +12V Netzteil sind auf Pin 9 der seriellen Steckers +12V konfigurierbar für POS Systeme (Power over System).
Schnittstelle: RS-232 V.24
FIFO Buffer: 16C550 mit 16Byte
I/O Adressen und Interrupt: werden vom Betriebssystem vergeben
Daten Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signale RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Stromversorgung vom USB Bus (Bus Power), Netzteil oder 7V~24V
Unterstützt Wand–DIN-Rail und 19“ Rack Befestigung
LED für TX und RX Aktiv Anzeige
Chipsatz: FTDI
Lieferumfang:EX-1316HMV, Netzteil 12V/3A, DIN-Rail Kit, USB 2.0 Kabel (EX-K1542V), 19“ Rack Befestigungs-Kit, Treiber CD, Handbuch
UPORT-1110
USB to serial cable, 1x RS232, 0.8 m
The UPort 1110 USB-to-serial converter is the perfect accessory for laptop or workstation computers that do not have a serial port. They are essential for engineers who need to connect different serial devices in the field or separate interface converters for devices without a standard COM port or DB9 connector. The UPort 1110 converts from USB to RS-232. All products are compatible with legacy serial devices, and can be used with instrumentation and point-of-sale applications.
921.6 kbps maximum baudrate for fast data transmission
Drivers provided for Windows, macOS, Linux, and WinCE
LEDs for indicating USB and TxD/RxD activity
Package contents:UPort 1110, quick installation guide
EX-1339HMV
USB 2.0 to 8S Serial RS-232/422/485, metal case with screw lock cable (FTDI Chipset)
The EX-1339HMV USB 2.0 to RS-232/422/485 converter in a metal enclosure provides eight serial RS-232, 422 or 485 high performance UART 16C550 combo outputs. It is designed to expand desktop computer or notebook with four additional serial outputs in a rugged metal housing via USB 2.0 bus. Easy installation means there is no need to open the computer and the EX-1339HMV can be installed while the computer is running. The included EX-K1542V A male to B male cable can be attached to the EX-1339HMV with thumbscrews without a screwdriver. The EX-6099 (DIN rail kit) is supplied with the item, so the EX-1339HMV can also be installed on a support rail in a 19" rack. The EX-1339HMV has LED indicators for operating functions and data transfers. It can be expanded by 14 modules. This allows you to connect up to 112 serial ports to your Computersystem.
Interface: RS-232 V.24, RS-422 and RS-485
FIFO Buffer: 16C550 with 16Byte
I/O addresses and Interrupt: Set from the operating system
Data Bits: 7, 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Signal RS-422: 4-wire (TXD+/-, RXD+/-) Fullduplex
Signal RS-485: 2-wire RS-485 (Data+/-, Data +/-) Halfduplex
Power from the USB Bus (Bus Power)
Supports TX and RX Activity LED Indicators
Chipset: FTDI
Packaging contents:EX-1339HMV, USB cable, DIN-Rail Kit, Driver CD, Manual
EX-1339HMVS
USB 2.0 to 8x RS-232/422/485 ports with Surge Protection & Isolation (FTDI Chipset)
The EX-1339HMVS USB 2.0 to RS-232/422/485 Converter in a metal case provides eight high performance RS-232, 422 or 485 serial UART 16C550 interfaces with 15KV ESD protection and 2.5KV isolation. It is designed to connect serial devices to the terminal blocks via the USB 2.0 to 3.2 Gen 2 bus of a PC, server or workstation. The supplied EX-K1542V cable can be attached to the EX-1339HMVS using knurled screws without the need for a screwdriver. It is therefore impossible to disconnect the cable yourself. Easy installation on the USB port means there is no need to open the computer and the converter can be installed while the computer is running. A DIN-Rail kit (EX-6099) is included, allowing the converter to be mounted on a DIN-Rail in a 19" rack. The EX-1339HMVS can be expanded by 14 modules. This allows you to connect up to 112 serial ports to your computer system.
Interfaces: RS-232 V.24, RS-422 and RS-485
Connection of serial devices via eight 7-pin terminal blocks
15KV ESD overvoltage protection and 2.5KV isolation
16C550 FIFO buffer with 16 bytes
I/O addresses and interrupt are assigned by the operating system
Data bits: 7, 8
Stop bits: 1, 1.5, 2
Parity: none, even, odd, space, mark
Signals RS-232: TxD, RxD, GND
Signals RS-422/485: 4-wire (TXD+/-, RXD+/-) full duplex
Signals RS-485: 2-wire (Data+/-, Data +/-) half-duplex
USB bus powered
LED for operation, TX and RX
Chipset: FTDI
Packaging contents:EX-1339HMVS, screwable USB cable, DIN-Rail kit, driver CD, manual
