USB 2.0 to 1S serial RS-232 port with +5V on pin 9 (FTDI Chipset)
Product number:
EX-1311-2-5V
GTIN/EAN:
4718359131127
USB 2.0 to 1S serial RS-232 port with +5V on pin 9 (FTDI Chipset)

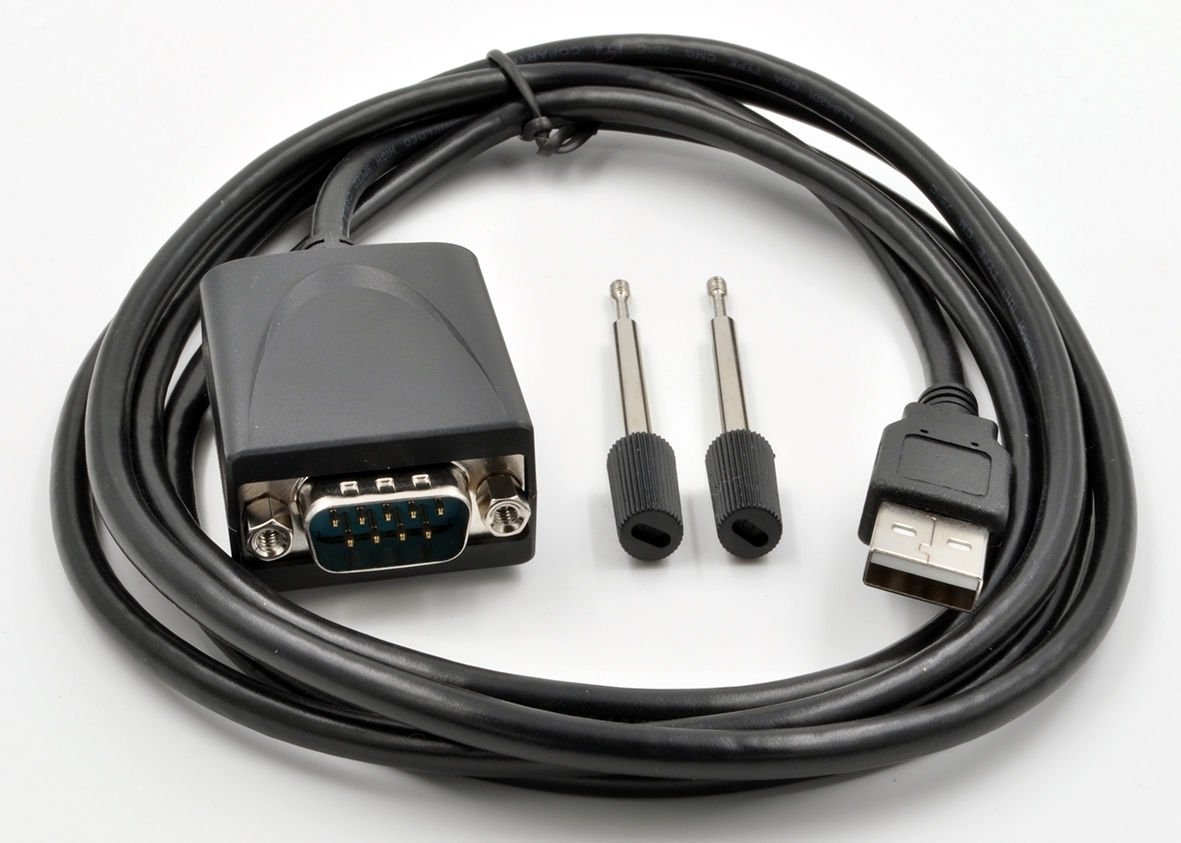

The USB 2.0 to RS-232 cable with A-connector provides a serial RS-232 high performance UART 16C550 output. It supports the external voltage of +5V especially on pin 9 of the connector. It is designed to extend another serial output for PC, small workstation or server via the USB 1.1, 2.0 or 3.2 Gen 1 bus. Due to the easy installation there is no need to open the computer and the EX-1311-2-5V can be installed during operation. Two nuts are included, which can easily be replaced with the thumbscrews if the cable to be connected has screws.
- Interface: RS-232 V.24 with +5V on pin 9 by the connector
- FIFO Buffer: 16C550 with 16Byte
- I/O addresses and Interrupt: Set from the operating system
- Data Bits: 7 and 8 / Stop Bits: 1, 1.5, 2 / Parity: none, even, odd, space, mark
- Signal RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
- LED Display for RX and TX
- Power from the USB Bus (Bus Power)

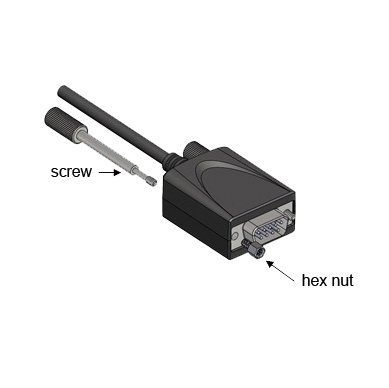

- Exchangeable screw with hex nuts
- Chipset: FTDI
Packaging contents:

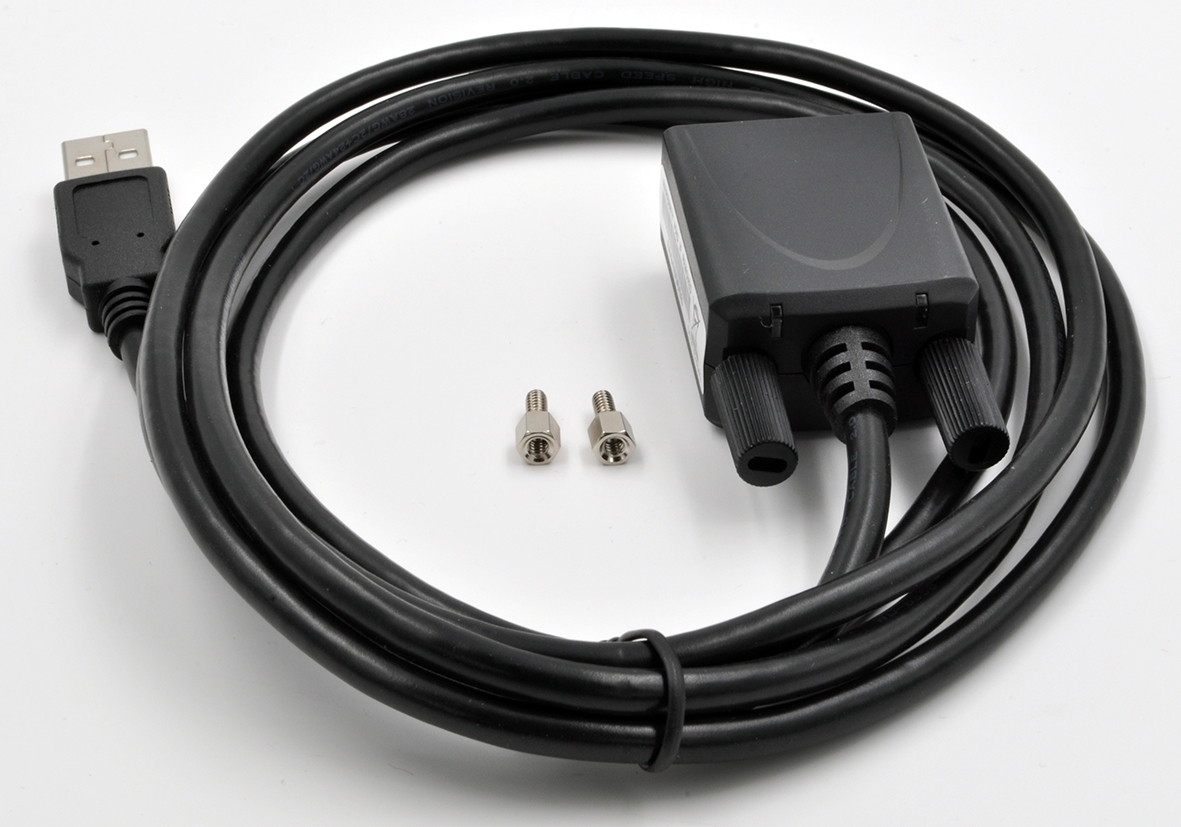

EX-1311-2-5V, Driver CD, 2x hex nuts, Manual
| Application: | Cable |
|---|---|
| Cable length: | 1.8m |
| Colour: | black |
| Housing: | Plastic |
| Inputs: | USB-A plug |
| Interface: | RS-232/+5V |
| Number of ports: | 1 |
| Outputs: | 9-pin plug |
| Power connection: | Bus power |
| Temperature range: | 0°C to +55°C |
