5-Port Industrie Ethernet Switch
Product number:
EX-6201
GTIN/EAN:
4718359062018
5-Port Industrie Ethernet Switch

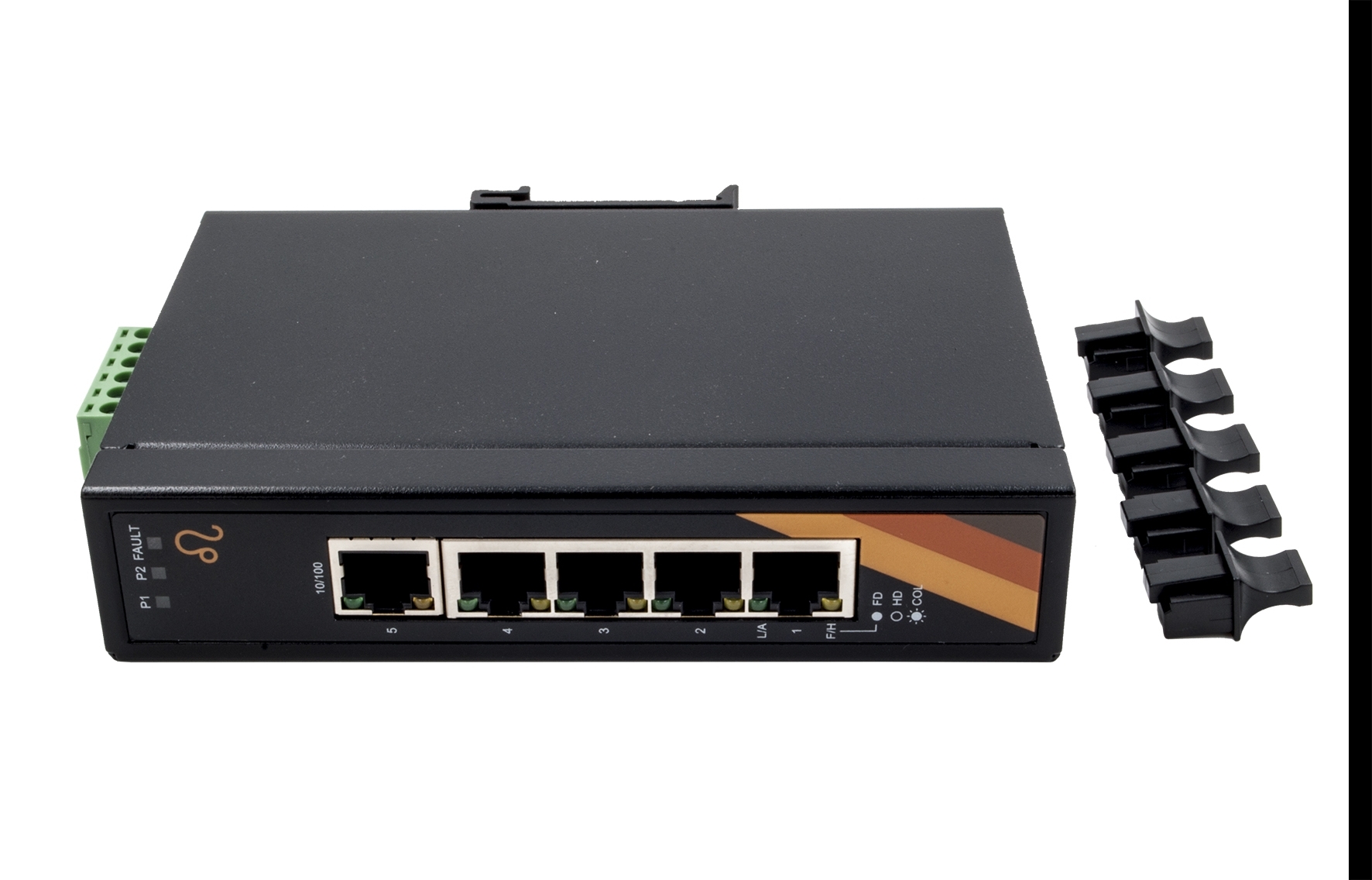

The EX-6201 is an industrial 5-port Ethernet unmanaged switch in a metal housing. It offers increased operational reliability thanks to the redundant power supply of 2x 12V - 48VDC via a terminal block.
- 5-port 10/100Tx Fast Ethernet
- Auto-MDI-MDIX, no "crossover cable" needed
- Plug and Play, no configuration and installation required

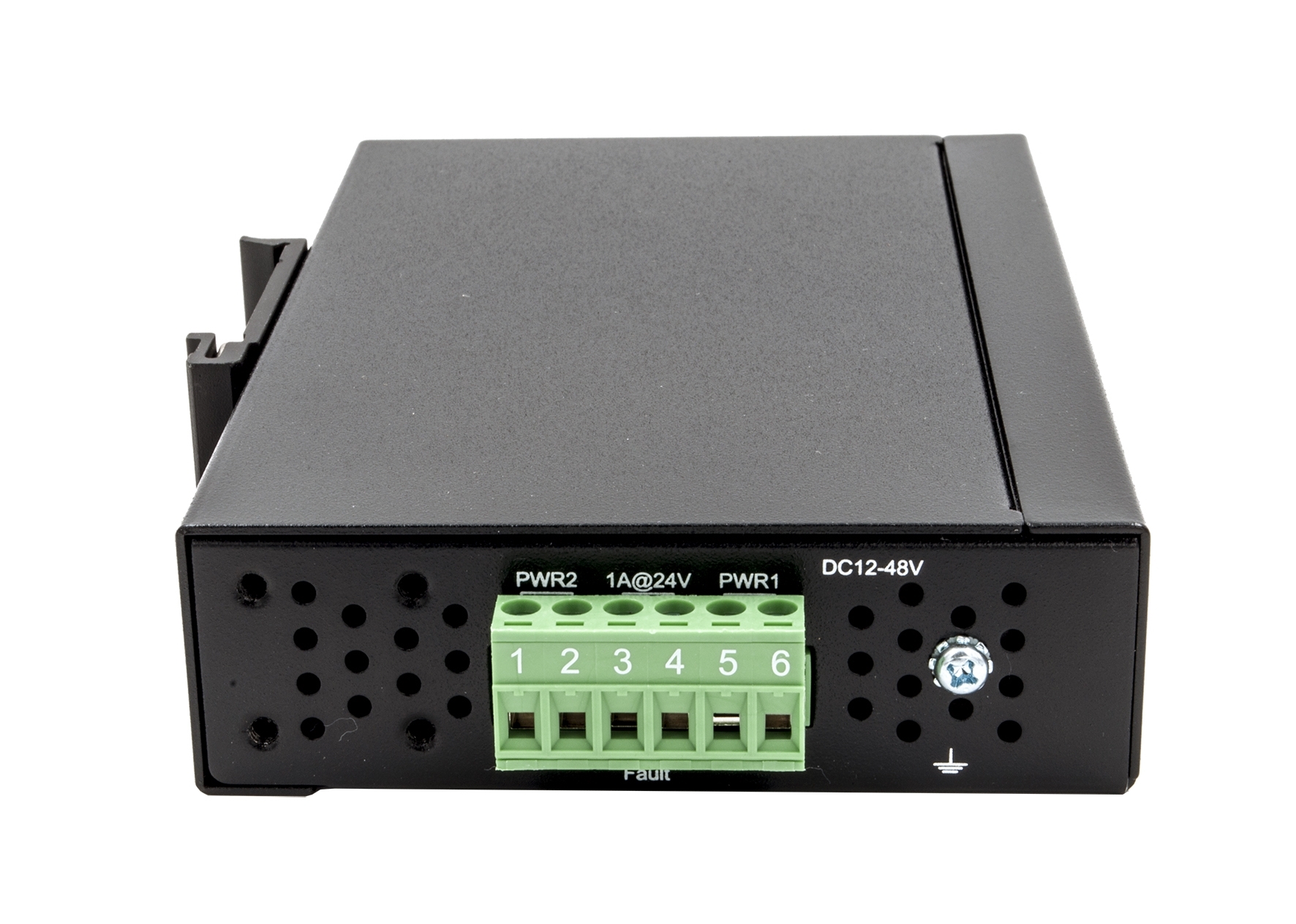

- Terminal block for redundant DC input, 2x 12V to 48VDC
- Built-in relay output warning for power failure
- Robust metal housing, IP30

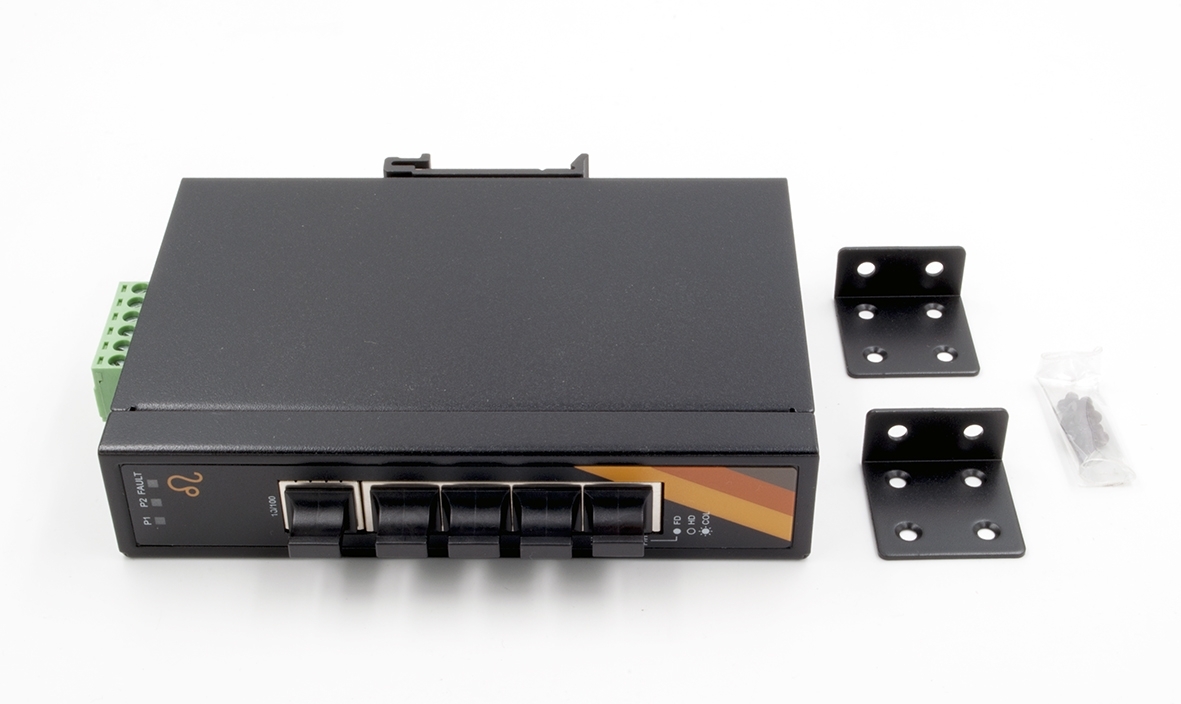

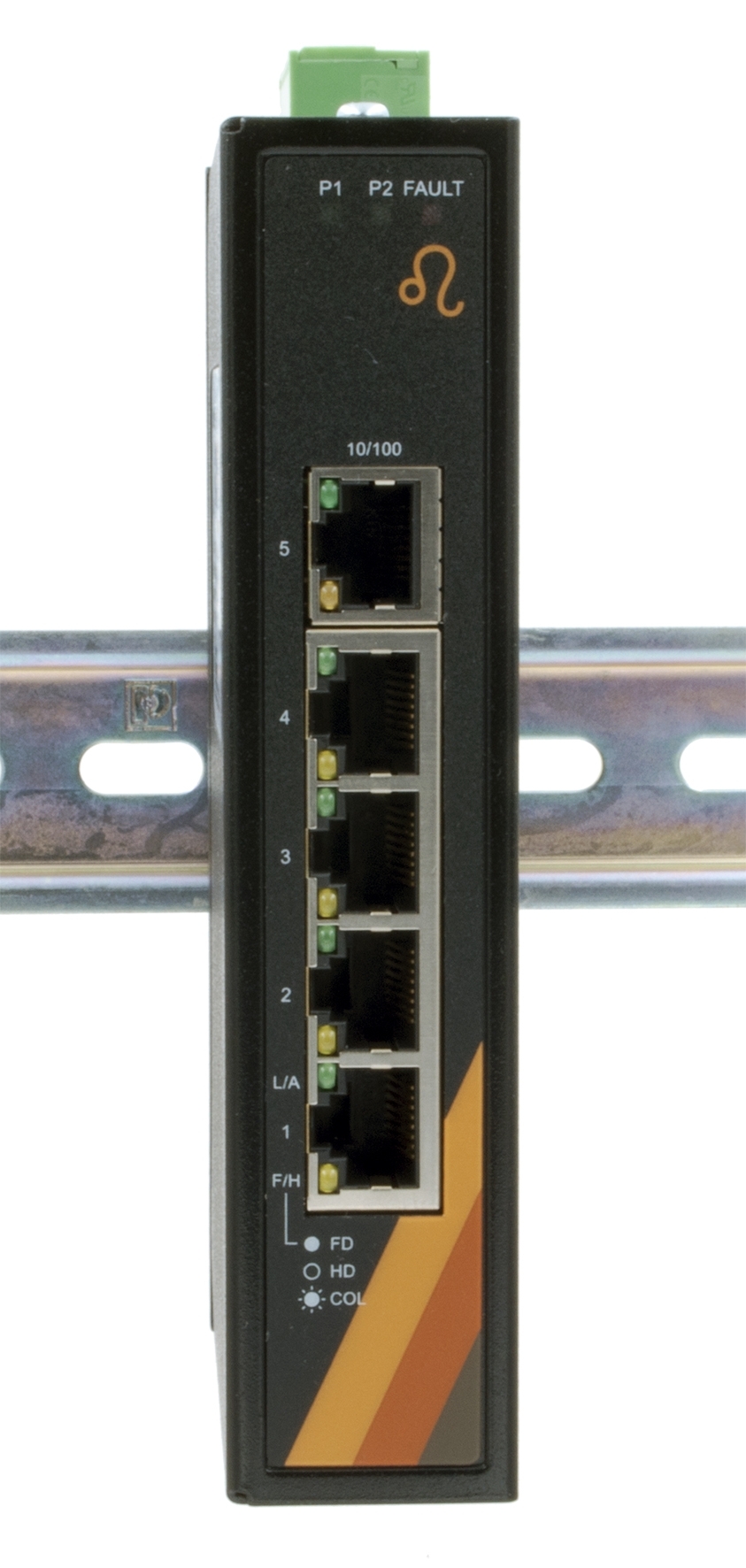

- DIN-Rail Kit and metal plate for wall mounting
- Operating temperature range from -10°C to +65°C
Packaging contents:
EX-6201, RJ45 Protection caps, Wall mounting brackets, DIN-Rail Kit, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | No |
| Design: | Normal |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 5 |
| Power connection: | TB 12-48V |
| Power over Ethernet: | 0°C to +55°C |
| Temperature range: | 0°C to +55°C |
