8-Port Industrial Gigabit Ethernet Unmanaged PoE Switch
Product number:
EX-6226POE
GTIN/EAN:
4718359622632
8-Port Industrial Gigabit Ethernet Unmanaged PoE Switch
The EX-6226PoE is a industrial 8-port Gigabit Ethernet unmanaged switch in a metal housing. Thanks to Power over Ethernet (PoE), it can be used to supply end devices such as IP telephones, IP cameras, WLAN access points, etc. with the necessary operating voltage via the data line. It offers increased operational reliability thanks to the redundant power supply of 2x 12V - 55VDC via a terminal block.
- 8-port 10/100/1000Tx Gigabit Ethernet
- Fully compliant to IEEE 802.3af/at PoE (PSE)
- Built-in Power Booster Design for PoE/PoE+ Output

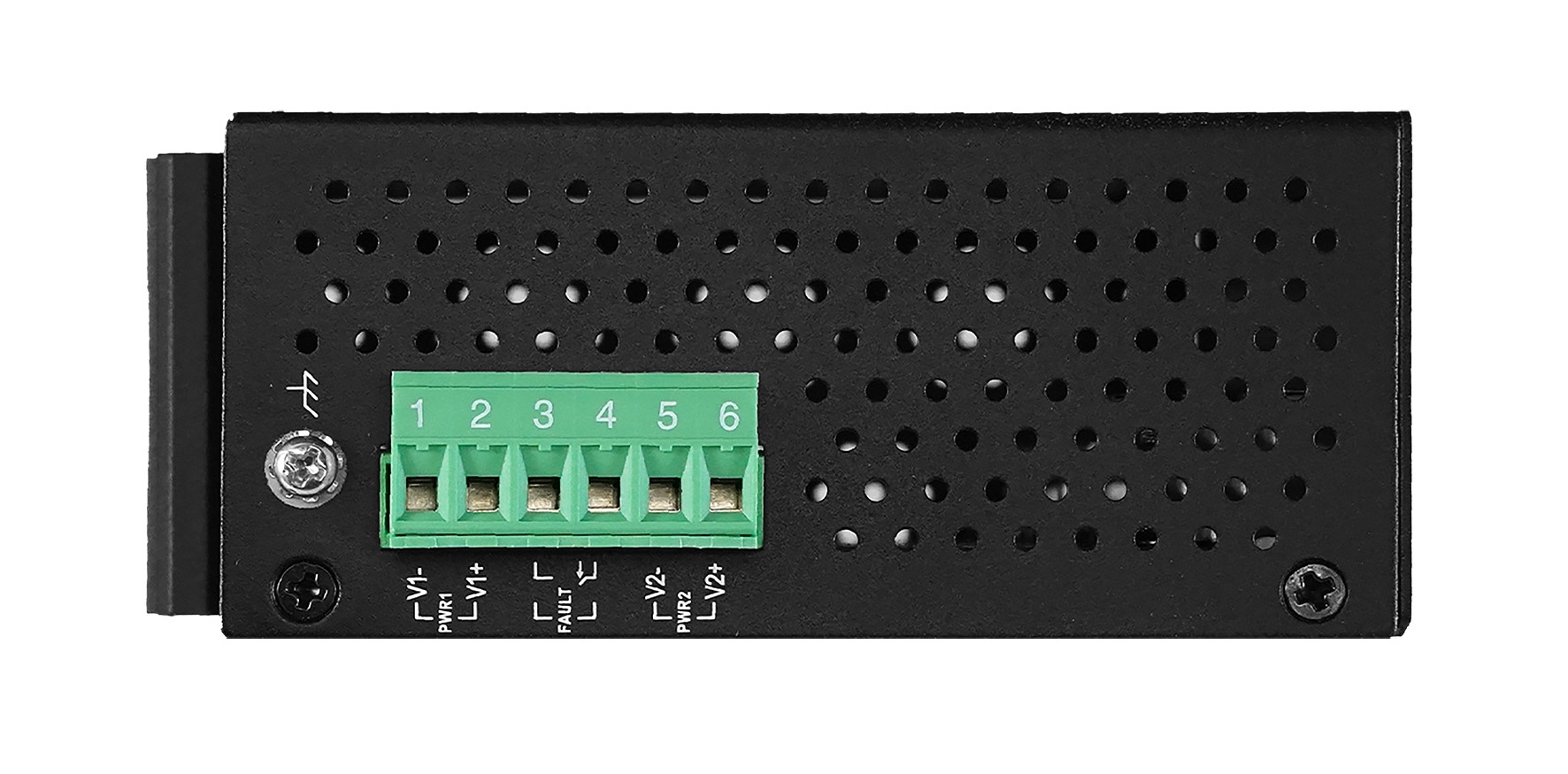

- Terminal block for redundant DC input, 2x 12V to 55VDC
- Built-in relay output warning for power failure and port link down
- Auto-MDI-MDIX, no "crossover cable" needed
- Plug and Play, no configuration and installation required
- Robust, compact metal housing, IP30
- Operating temperature range from -10°C to +65°C

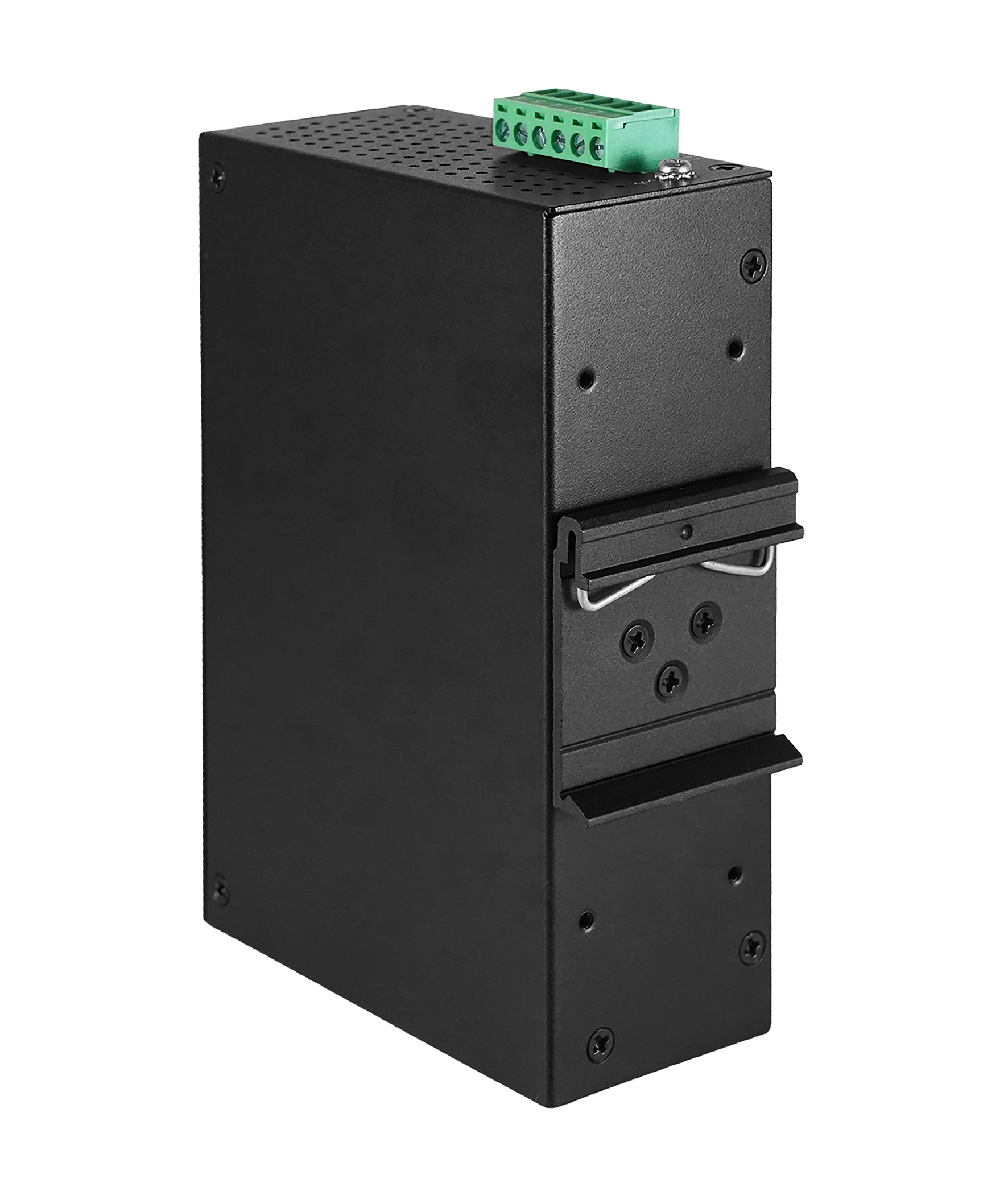

- DIN-Rail Kit and metal plate for wall mounting
Packaging contents:

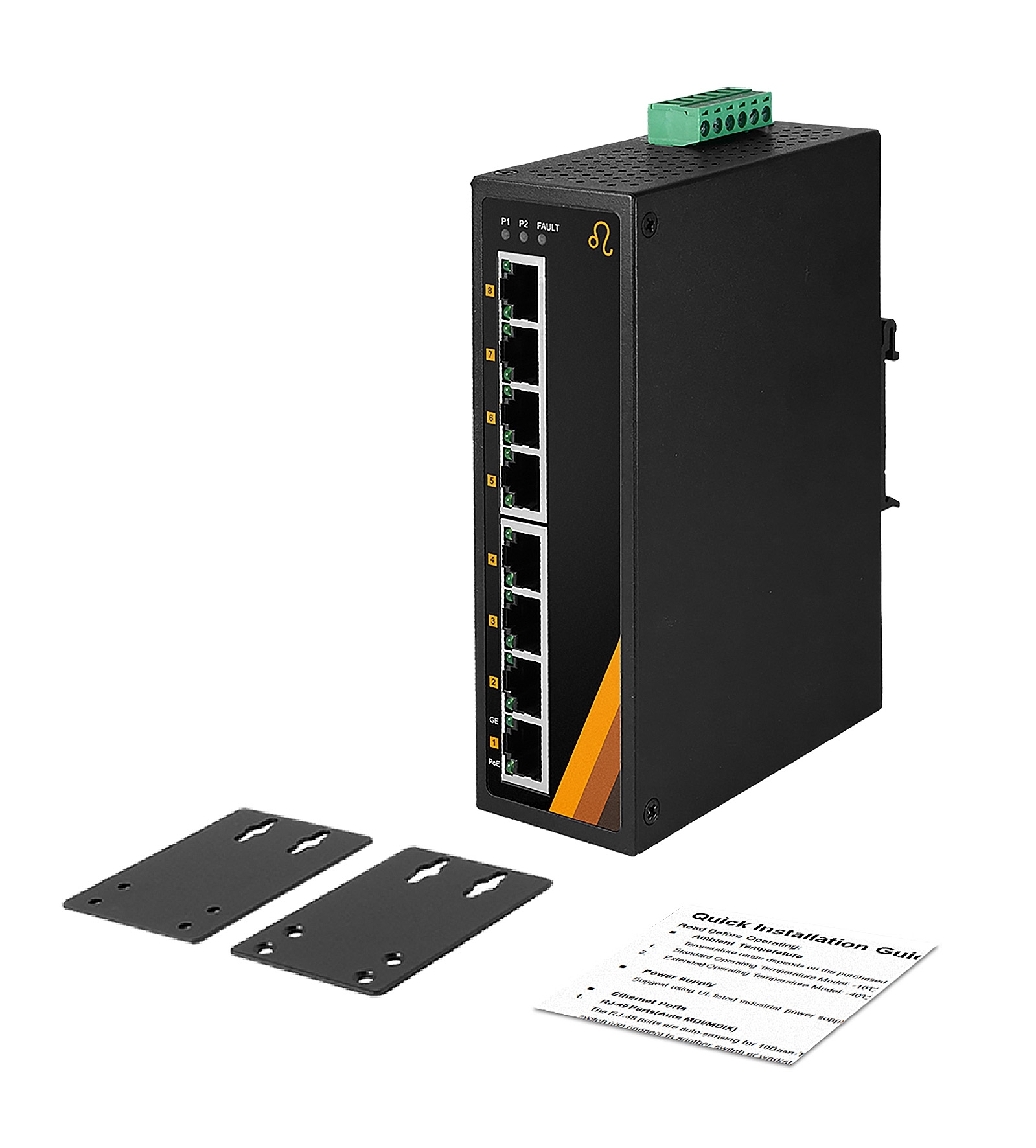

EX-6226POE, RJ45 Protection caps, Wall mounting brackets, DIN-Rail kit, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 8 |
| PoE Budget: | 240W |
| Power connection: | TB 12-55V |
| Power over Ethernet: | Yes |
| Temperature range: | 0°C to +55°C |
