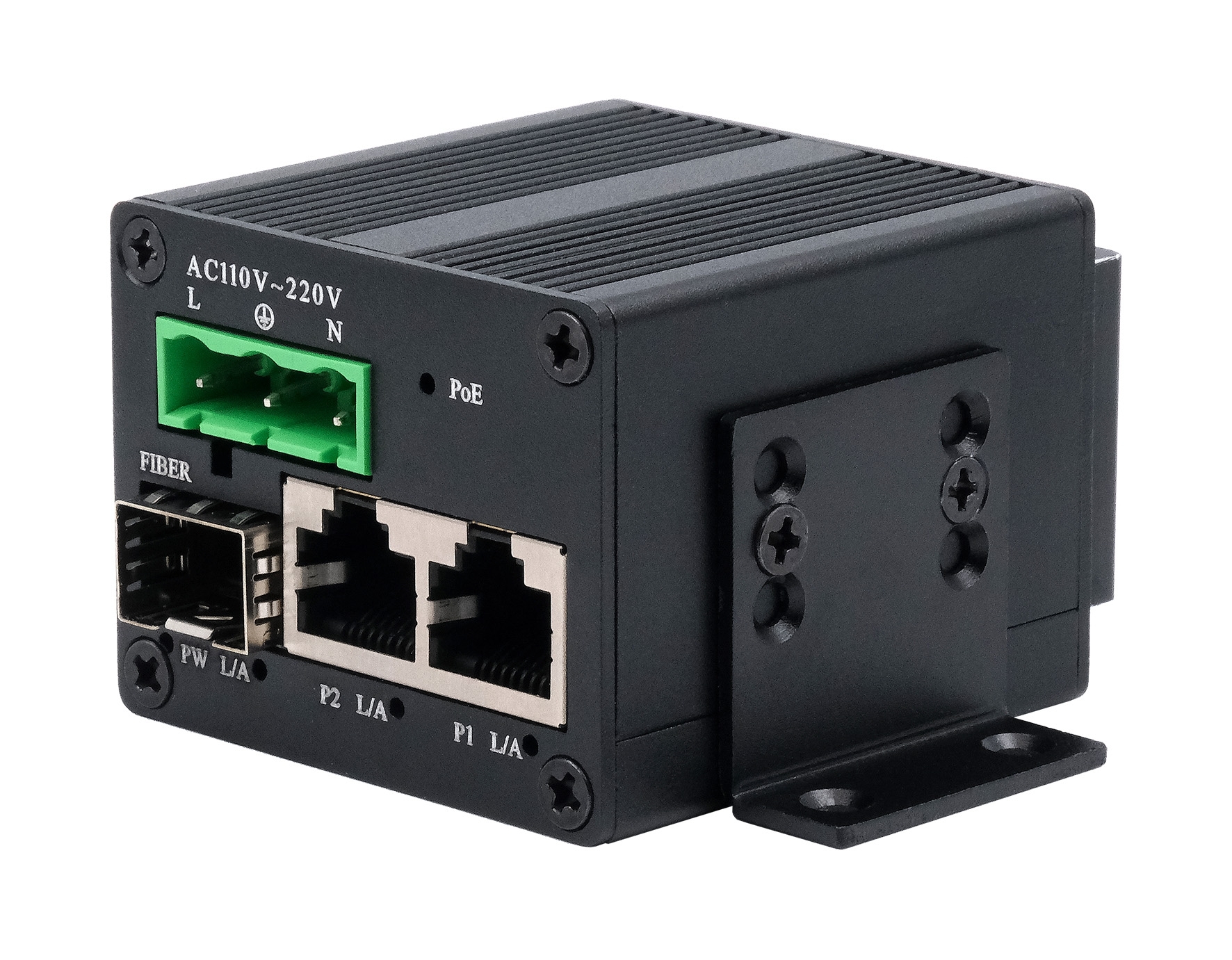

Micro 2+1-Port Industrial Gigabit SFP PoE+ Switch, unmanaged

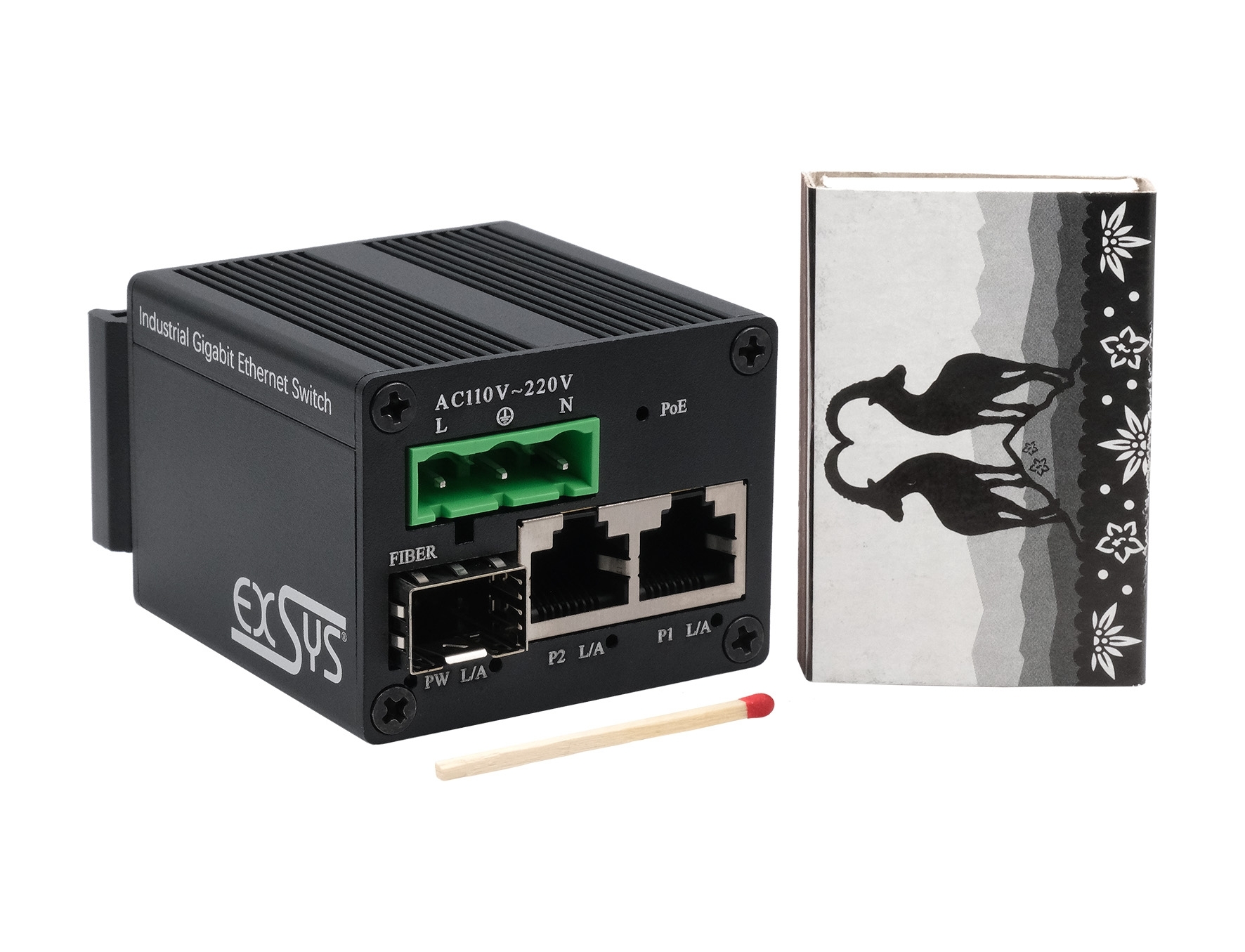

The extremely compact, industrial-grade 3-port Gigabit switch EX-62010POE-SFP is the perfect solution when space is at a premium. It can be used as a switch, media converter or PoE injector in the smallest of spaces. As it is operated with AC voltage (terminal block, 85-250VAC), no DC power supply unit is required, which also saves space. One of the two RJ45 ports provides up to 40W for connecting PoE powered devices (PD) such as IP cameras or IP telephones. Suitable SFP transceivers are available as accessories for the SFP slot. Thanks to the robust metal housing and the extended operating temperature range of -40°C to 75°C, the EX-62010POE-SFP is suitable for a wide range of applications, even in harsh environments. The scope of delivery includes a pre-assembled DIN rail kit and a wall mounting bracket.
- 2x 10/100/1000Tx RJ45 port, 1x 100/1000Fx SFP slot, auto detection
- Power supply for a PoE-capable remote network device, transmits data and power over the same cable
- Compliant with IEEE 802.3af/at Power over Ethernet (PoE), Mode/Alternative B
- Can be used as a switch, media converter or PoE injector
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Supports jumbo frames up to 9kByte
- Terminal block for AC power input, 85 to 250 VAC
- DC voltage converter for the PoE voltage range (42 - 57 VDC)
- Rugged, very compact metal housing, IP40

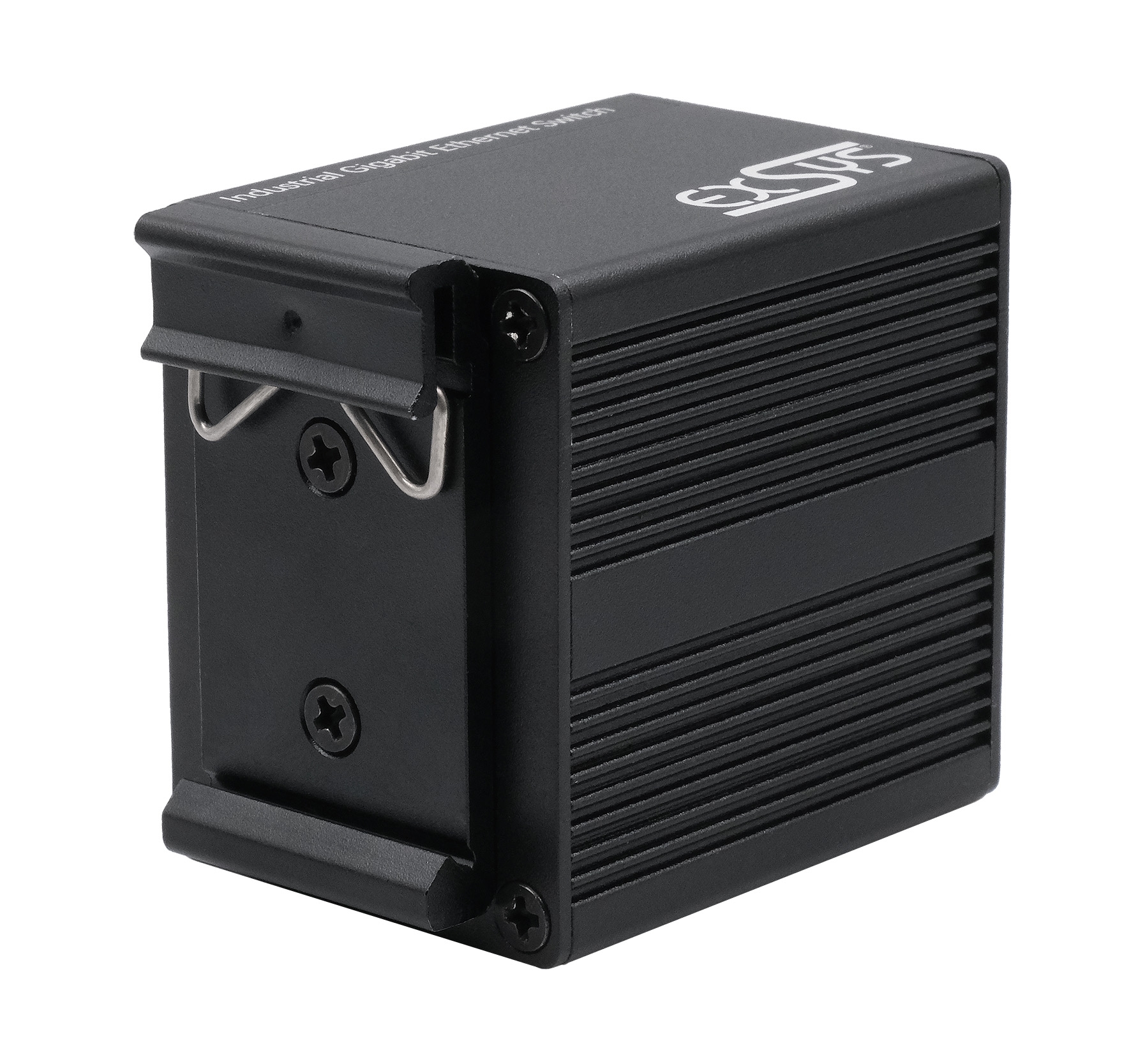

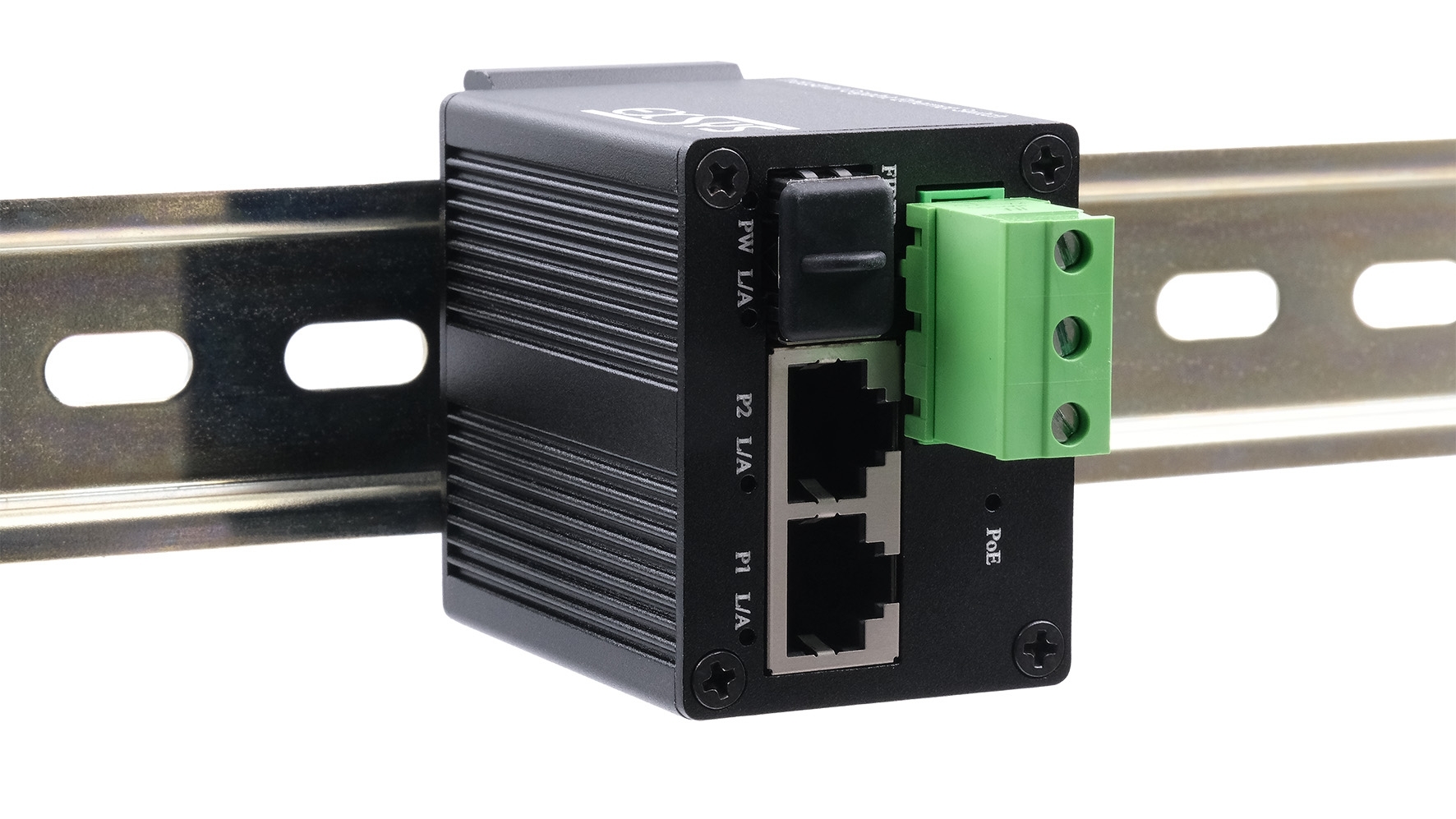

- Includes DIN-Rail kit and wall mounting bracket
- Extended operating temperature range from -40°C to +75°C
Packaging contents:

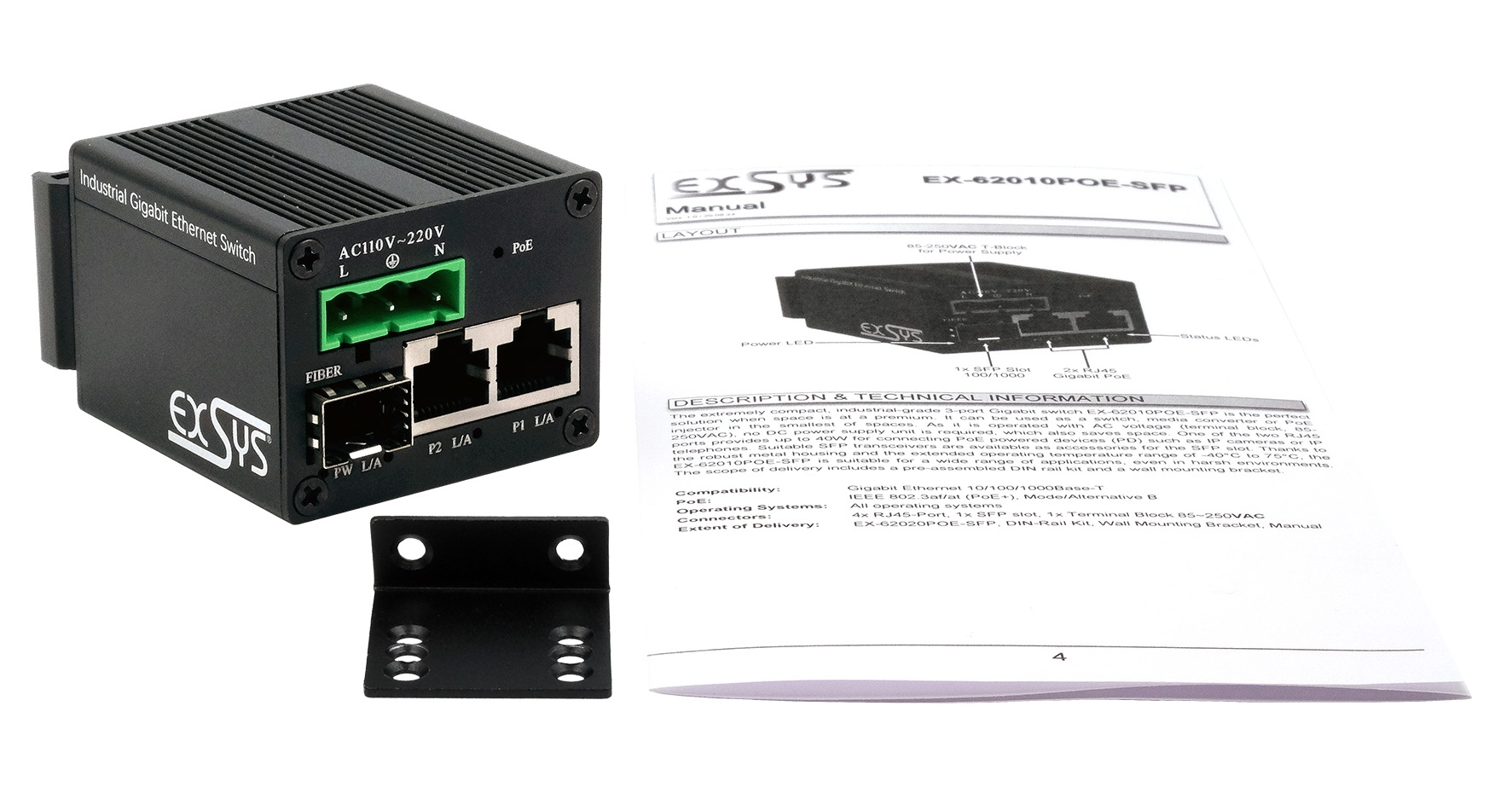

EX-62010POE-SFP, DIN-Rail Kit (pre-assembled), Wallmount Kit, Manual
| Connections: | RJ45 / SFP |
|---|---|
| Data transmission: | 1000Base-T / 1000FX |
| Design: | Compact |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 2+1 |
| PoE Budget: | 40W |
| Power connection: | TB 85-250VAC |
| Power over Ethernet: | Yes |
| Temperature range: | -40°C to +75°C |
