FireWire 1394A PCIe card with 3+1 ports (TI Chipset)
Product number:
EX-16500E-2
GTIN/EAN:
4718359165054
FireWire 1394A PCIe card with 3+1 ports (TI Chipset)

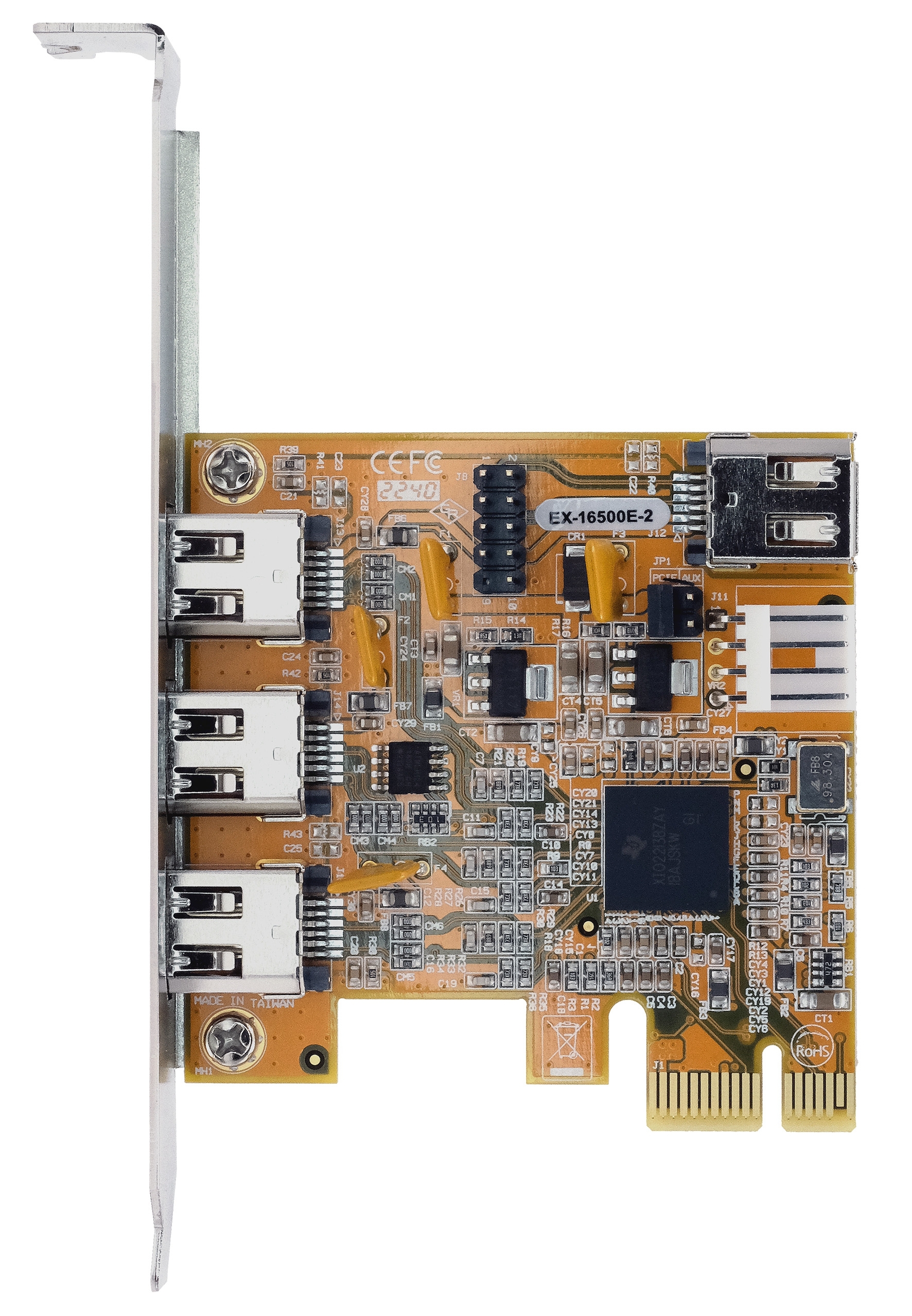

The EX-16500E-2 PCI-Express FireWire 1394A (FireWire400) card expands desktop PCs, workstations or servers by one internal and three external FireWire 1394A ports. It thus enables the connection of FireWire devices such as video cameras or professional audio equipment. A FireWire front bay hub, for example, can be connected to the internal motherboard-compatible port. A low profile bracket is included for installation in narrow cases.

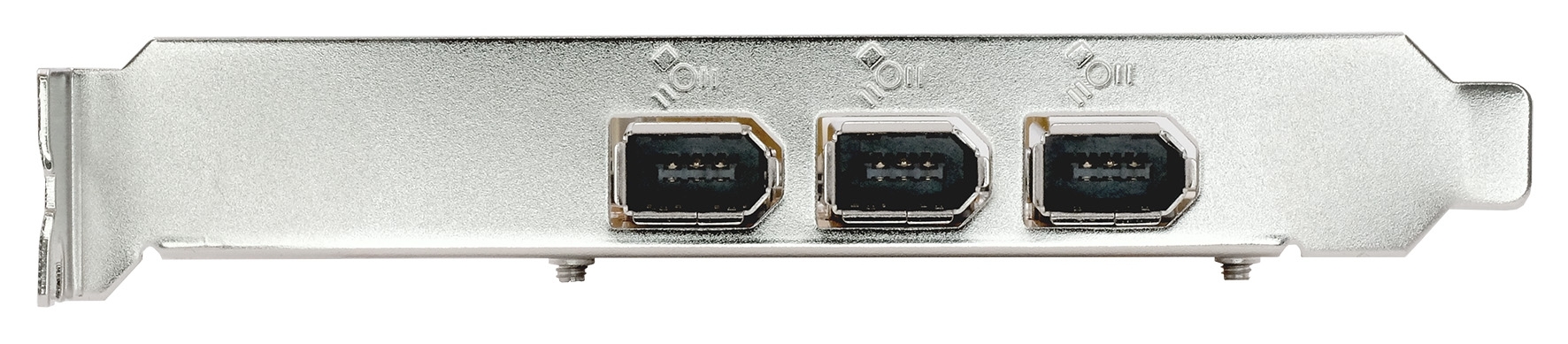

- FireWire 1394A PCIe card with three external outputs and one internal output
- Supports up to 63 devices
- PCI Express interface compatible with 1.1 specification
- Advanced PCI Express error reporting capability, including ECRC support
- Supports 12 VDC via 6-pin IEEE 1394 connectors
- "Hot swapping" devices can be plugged in and unplugged without turning off the computer plugged in and unplugged
- Can also be installed in addition to FireWire ports from motherboard installed
- Supports PC and MAC systems
- Chipset: Texas Instrument
Packaging contents:
EX-16500E-2, low profile bracket, manual
| Connections: | 6-pin socket |
|---|---|
| Host card: | PCIe x1 |
| Interface: | FireWire 1394a |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 3+1 |
