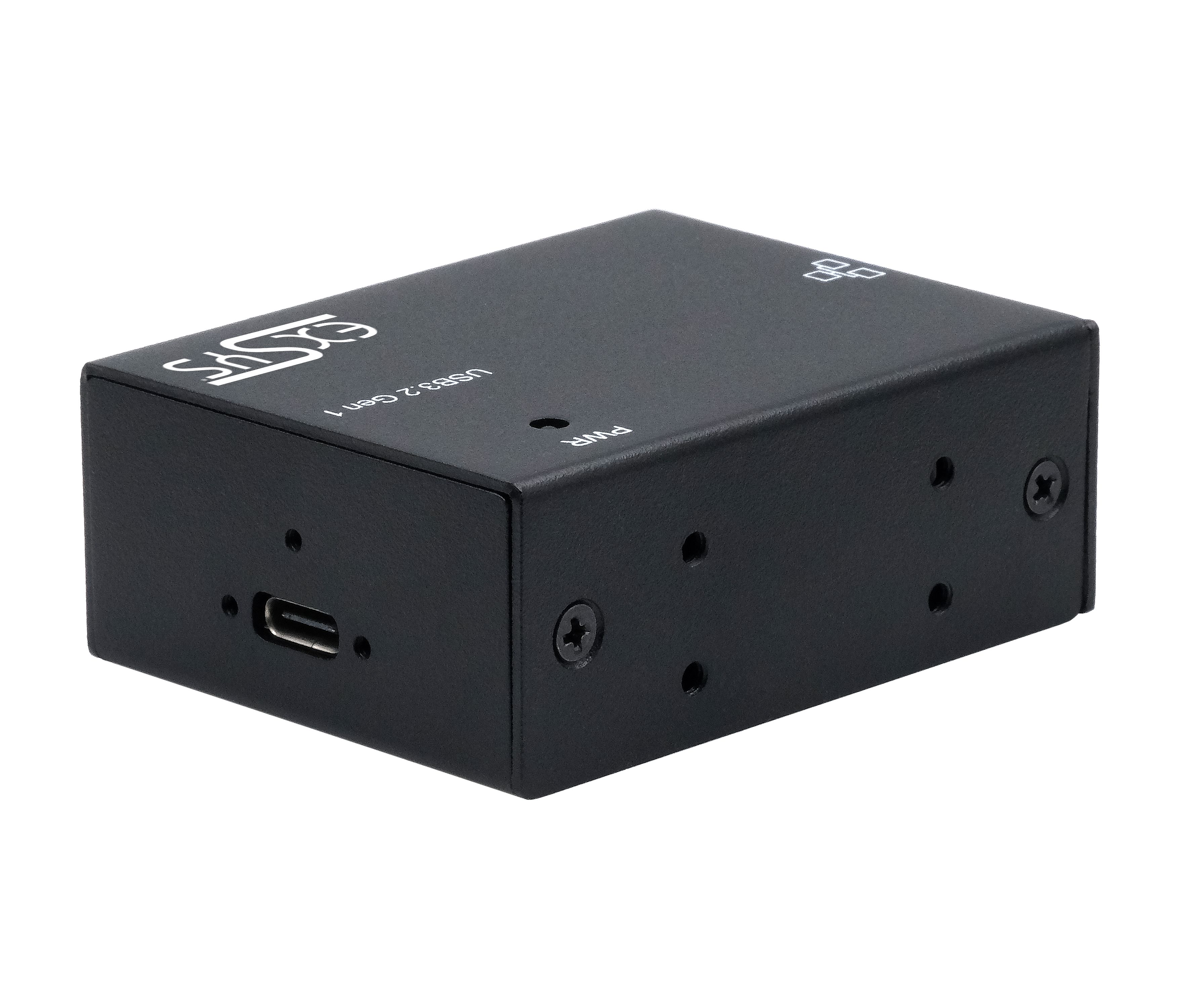

USB 3.2 Gen 1 C-Port to Ethernet 1Gigabit incl. DIN-Rail Kit (Metal Case)
Product number:
EX-13020HMV
GTIN/EAN:
4718359909986
USB 3.2 Gen 1 C-Port to Ethernet 1Gigabit incl. DIN-Rail Kit (Metal Case)
The EX-13020HMV allows you to connect a notebook, desktop PC or server in a 19-inch rack to a 10/100/1000 Mbit/s network via the USB-C port (USB 3.2 Gen 1). It can also be installed in addition to an existing network card. Installation is very easy and does not require opening the systems. Due to its compact and robust design, the EX-13020HMV is ideal for use in harsh environments. Additionally, the USB 3.2 Gen 1 cable can be screwed to the EX-13020HMV. The delivery package includes two wall mounting brackets and a DIN-Rail kit for installation in a 19" rack.
- Compliant with Universal Serial Bus 3.2 Gen 1
- Backward compatible with USB 2.0 and USB 1.1
- Supports full-duplex operation with IEEE 802.3x flow control and half-duplex operation with back-pressure flow control
- Compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports IEEE 802.3az (Energy Efficient Ethernet)
- Supports crossover detection and auto-correction
- Power supply from USB bus (bus power)
- Supports ‘Wake-on-LAN’
- Screw-on USB 3.2 Gen 1 cable for secure installation
- Metal housing with wall and DIN rail kit for industrial applications
- LED indicator for power and Ethernet connection
- Chipset: ASIX AX88179

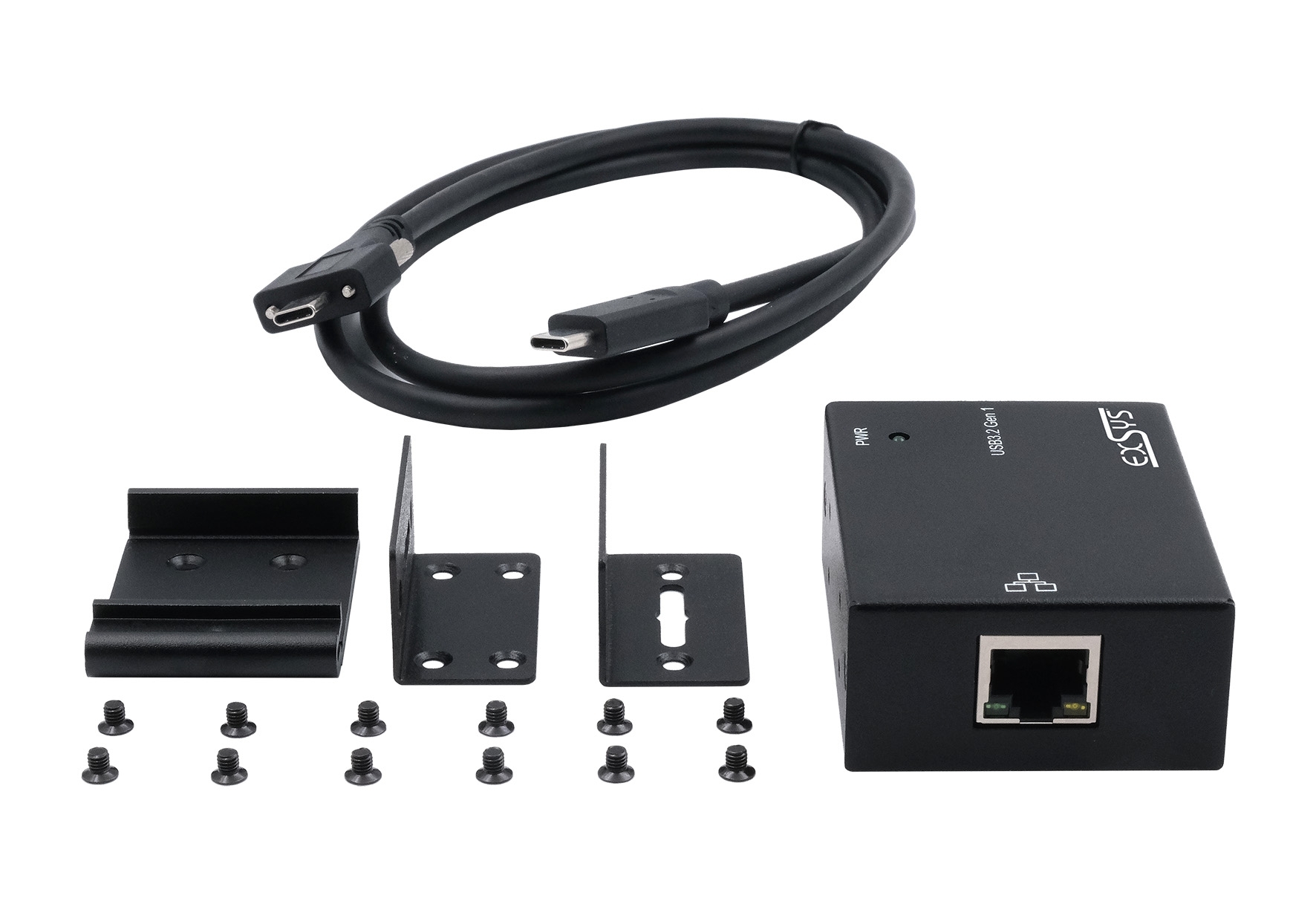

Packaging contents:
EX-13020HMV, USB 3.2 Gen 1 cable (screw-lock), wall mounting bracket, DIN-Rail kit, manual
| Cable length: | 1.8m |
|---|---|
| Colour: | black |
| Housing: | Metal |
| Inputs: | USB-C socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 1 |
| Outputs: | Ethernet 1Gbps |
| Power connection: | Bus power |
| Temperature range: | 0°C to +70°C |
