USB 3.2 Gen 2x1 PCIe (x4) board with 2x A-ports (Asmedia)
Product number:
EX-12001-2
GTIN/EAN:
4718359120152
USB 3.2 Gen 2x1 PCIe (x4) board with 2x A-ports (Asmedia)

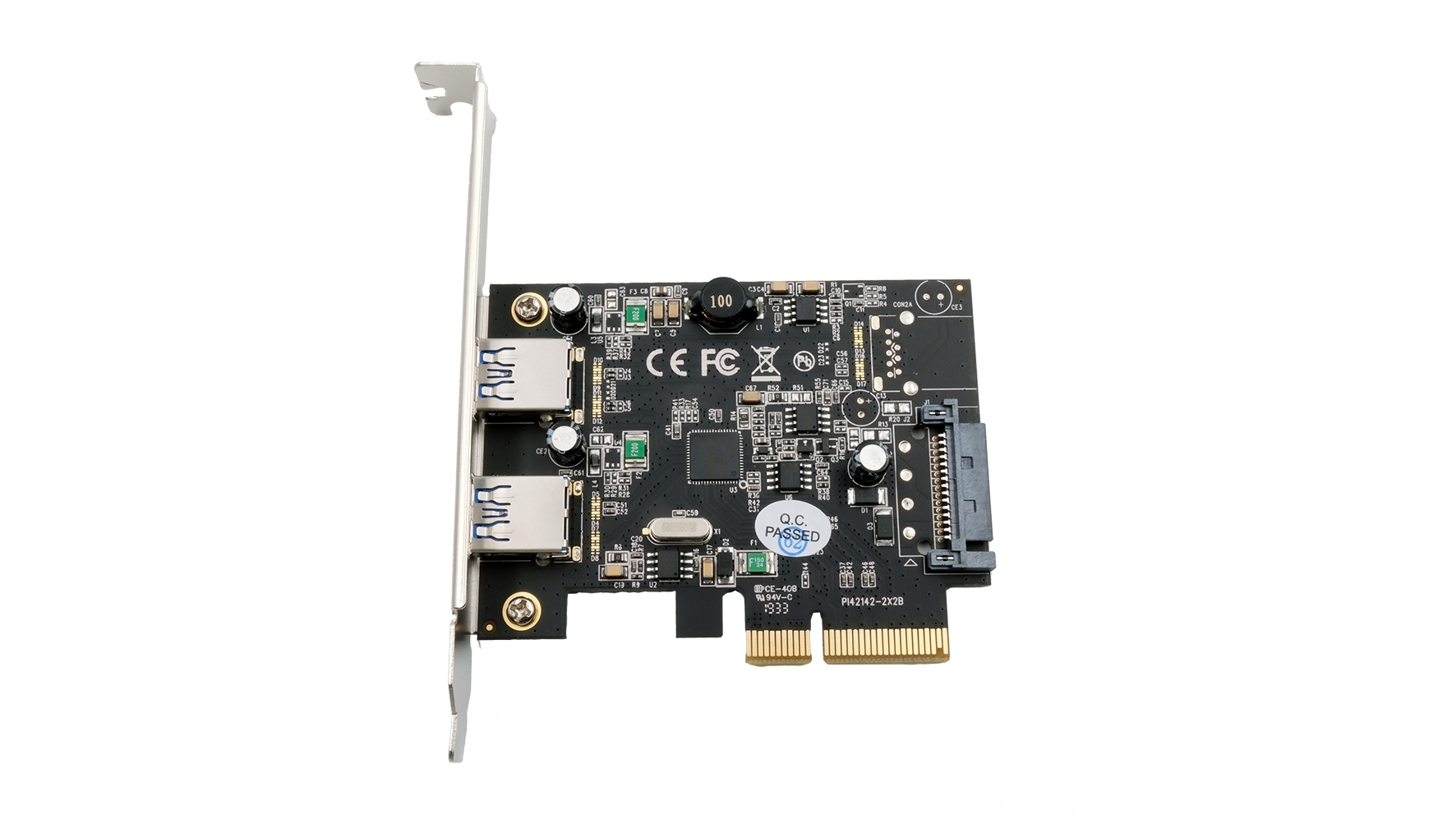

The EX-12001-2 USB 3.2 PCIe card provides two external super-speed+ USB 3.2 ports with A-type connector. It is designed to connect two additional USB 1.1, 2.0, 3.0 and 3.2 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Super-Speed+ (10Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-12001-2 supports 900mA current on the external USB 3.2 ports. A low profile bracket is included with the EX-12001-2 for slim cases up to a maximum height of 8cm.
- USB 3.2 Gen 2x1 PCIe x4 card with two A-female connector
- Compliant with USB 3.2 Rev. 1 and Intel xHCI Rev. 1.0 specification
- Fully PCI Express Gen3 Specification Compliant
- Compatible with USB Attached SCSI Protocol Rev. 1.0
- Support “Hot Swapping” and “Plug-and-Play”
- Support each A-port 900mA power
- Support up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2)
- Chipset: ASMEDIA ASM3142

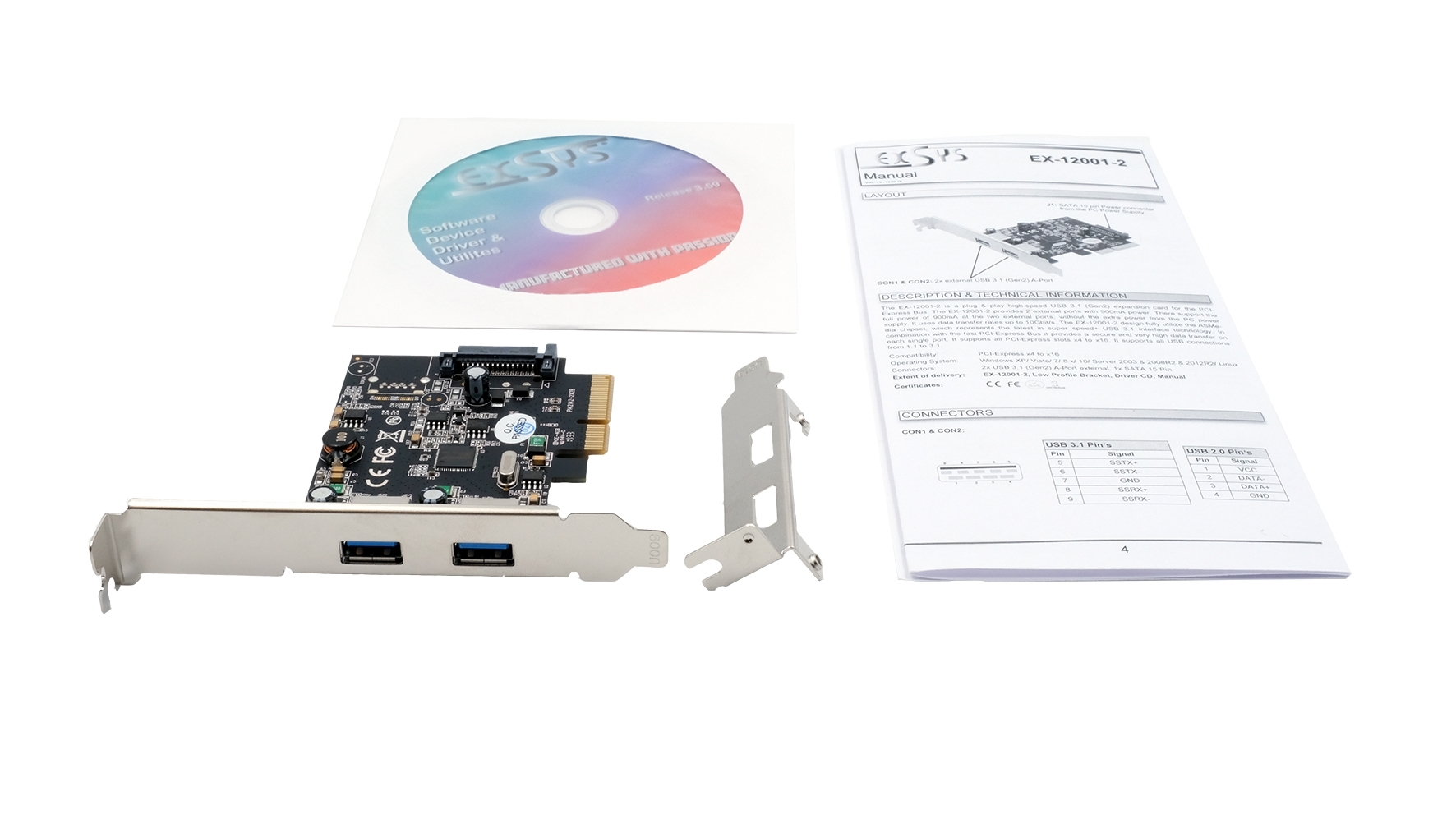

Packaging contents:
EX-12001-2, Low Profile bracket, Driver CD, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | USB-A socket |
| Data transmission: | 10Gbps |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 2 |
| Power connection: | SATA power |
