5 Port USB 3.2 Gen 2x1 PCIe (x4) card with 2x USB-A and 3x USB-C (Asmedia)
Product number:
EX-12007
GTIN/EAN:
4718359120077
5 Port USB 3.2 Gen 2x1 PCIe (x4) card with 2x USB-A and 3x USB-C (Asmedia)

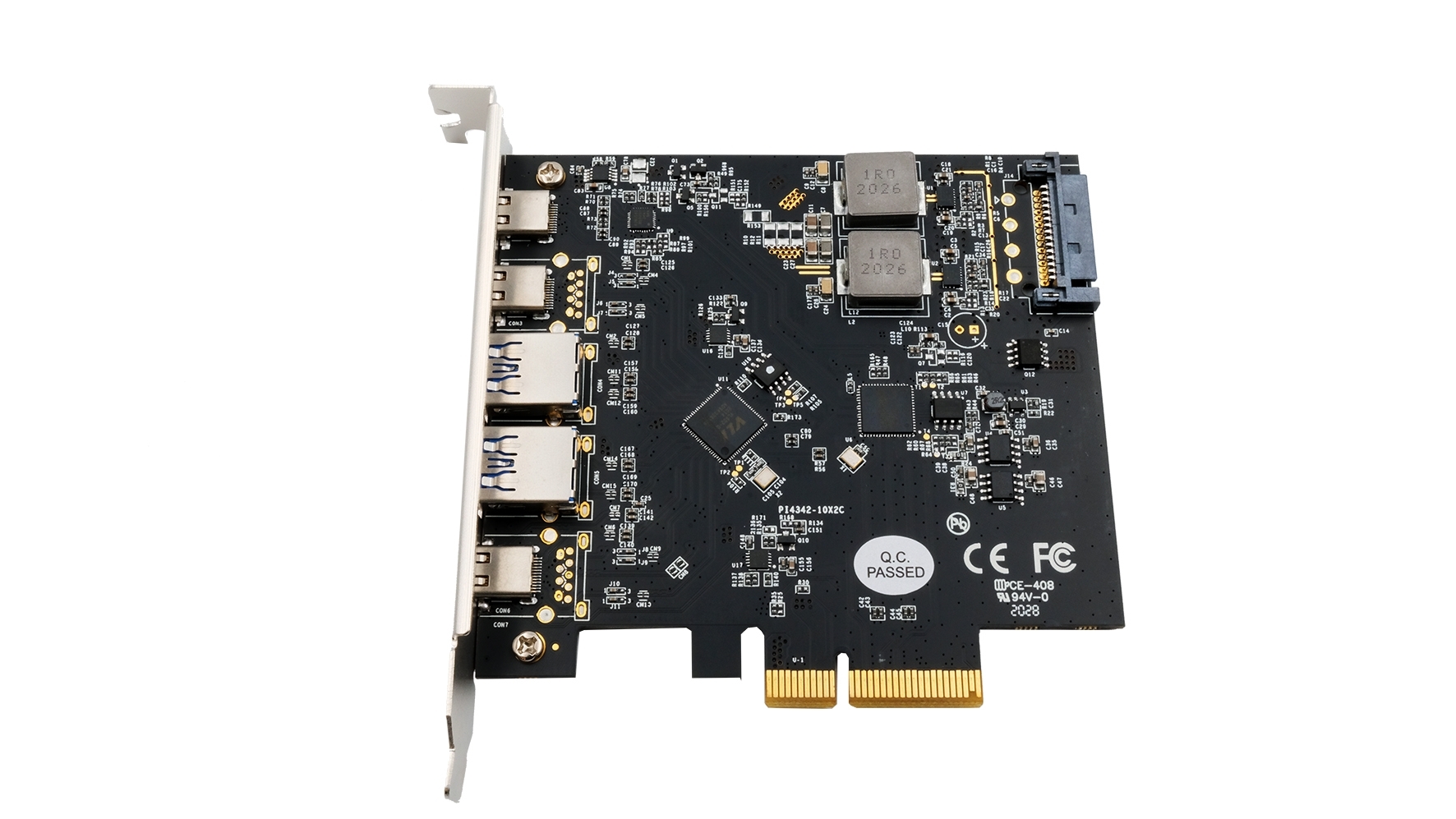

The EX-12007 USB 3.2 Gen 2x1 card with PCIe slot (Gen3, x4) provides five external USB 3.2 Gen 2x1 ports with 2x USB-A and 3x USB-C connectors. It is designed to connect five additional USB end devices to workstation, desktop or server. It supports USB 3.2 Gen 2x1 SuperSpeed 10Gbps and is backward compatible with previous USB versions. The EX-12007 is the perfect extension for connecting modern peripherals such as external storage, cameras, webcams, scanners and more. It supports Battery Charge 1.2 on the USB-A ports and up to 3A charging current on the USB-C ports.
- USB 3.2 Gen 2x1 PCIe x4 card with two USB-A ports and three USB-C ports.
- Compatible with USB 3.2 Rev. 1.0 and Intel xHCI Rev. 1.0 specifications
- Compatible with PCI Express Gen3 specifications
- Compatible with USB Attached SCSI protocol Rev. 1.0
- Supports "Hot Swapping" and "Plug-and-Play
- Supports BC 1.2 on USB-A jacks: max. 2.4 A / 5 V / 12 W
- Charging power at the USB-C sockets: max. 3 A / 5 V / 15 W
- Maximum charging power total 67.5 W
- Supports up to 127 USB devices (USB2.0, USB3.0 and USB3.2 Gen2)
- Chipset: Asmedia ASM3142

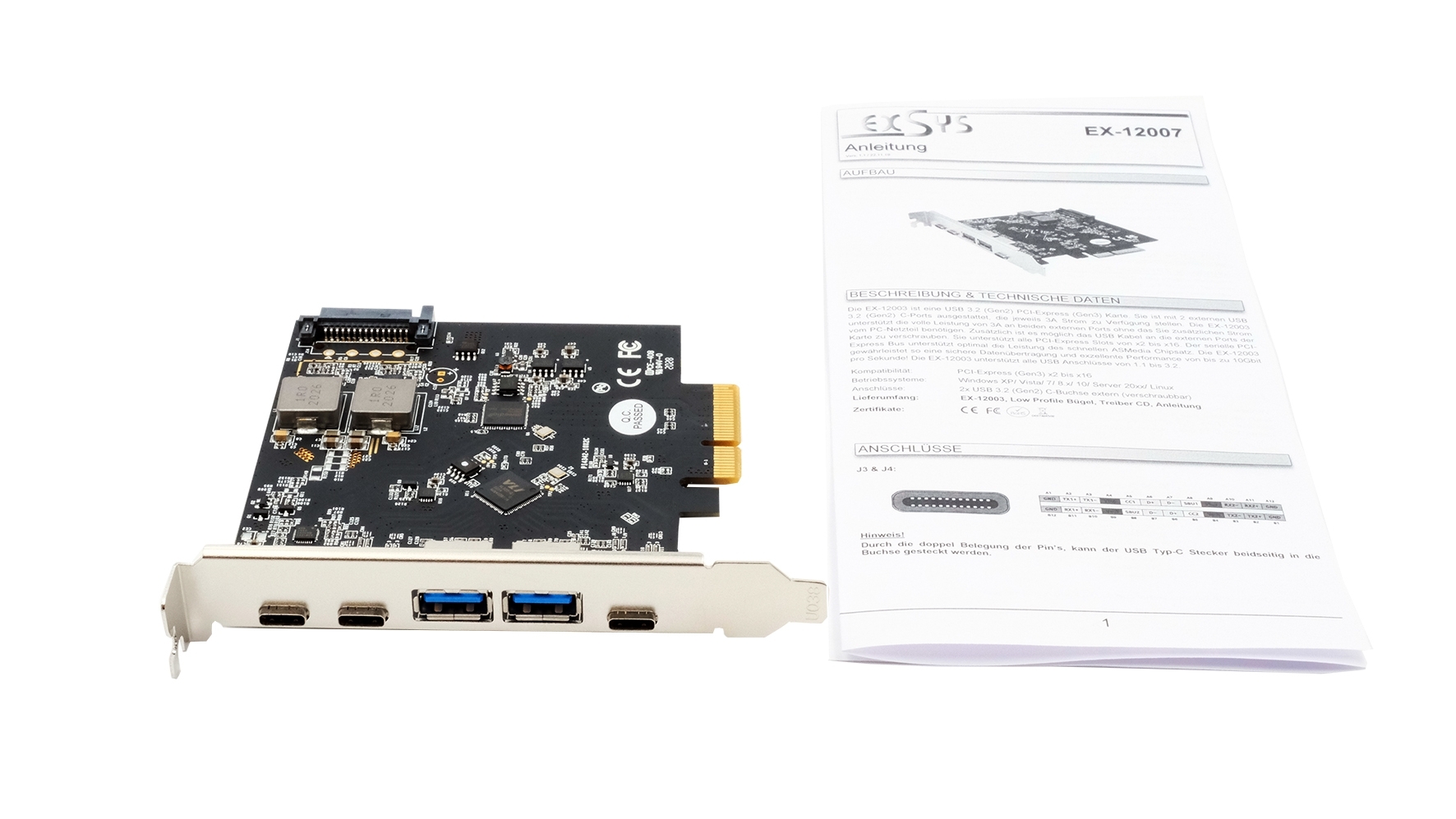

Packaging contents:
EX-12007, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | USB-A socket / USB-C socket |
| Data transmission: | 10Gbps |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | Standard Profile |
| Number of ports: | 5 |
| Power connection: | SATA power |
