4 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 2x USB-A and 2x USB-C (Asmedia)
Product number:
EX-12005
GTIN/EAN:
4718359120053
4 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 2x USB-A and 2x USB-C (Asmedia)

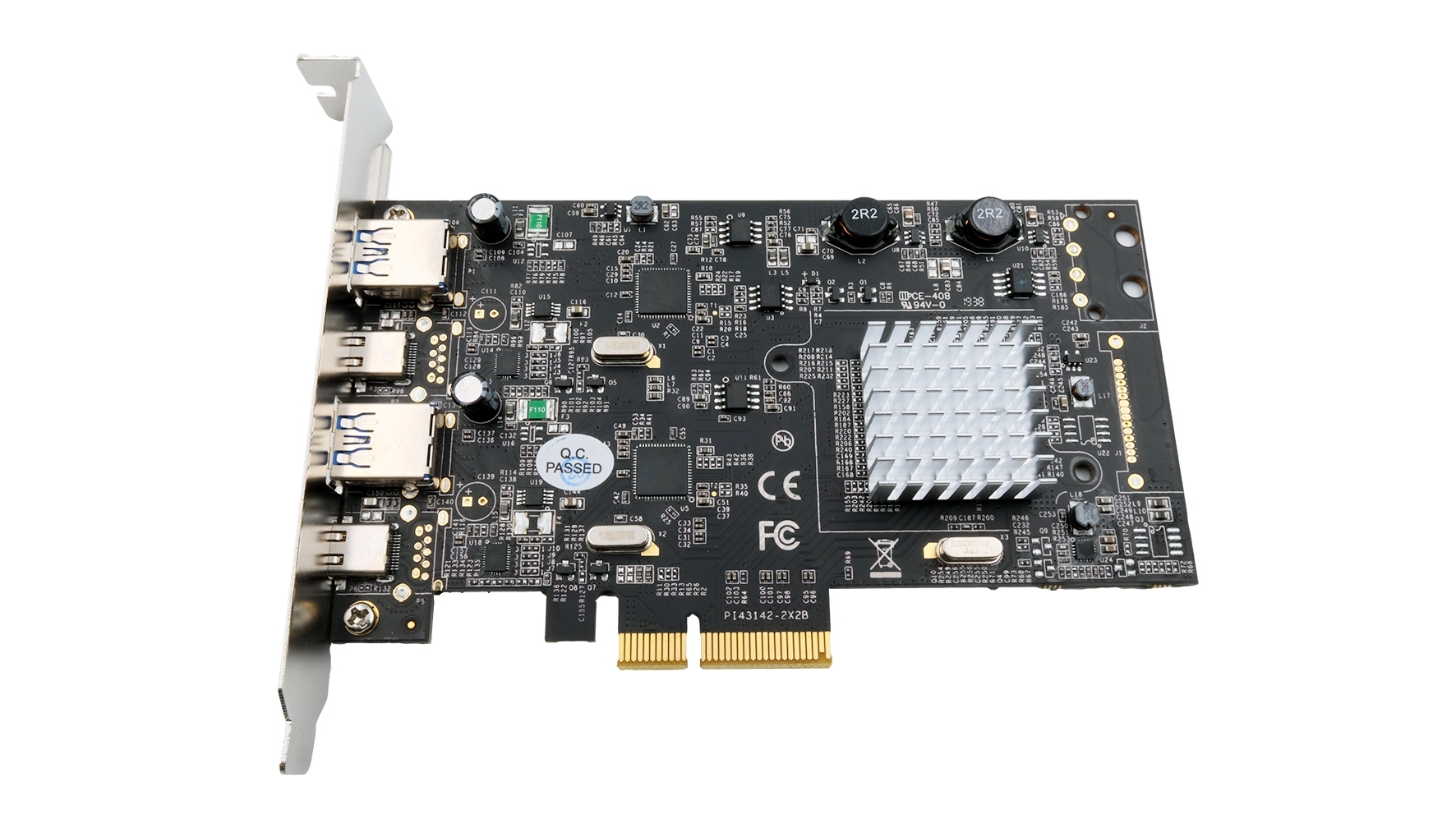

The EX-12005 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides four external super-speed+ USB 3.2 Gen 2x1 ports with 2x USB-A and 2x USB-C connector. It is designed to connect four additional USB 1.1, 2.0, 3.0 and 3.2 Gen 2 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Gen 2x1 Super-Speed+ (10Gbps) and is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-12005 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connector.
USB 3.2 Gen 2x1 PCIe x4 card with two USB-A and USB-C female connectors
Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
Fully PCI Express Gen3 Specification Compliant
Compatible with USB Attached SCSI Protocol Rev. 1.0
Supports “Hot Swapping” and “Plug-and-Play”
Supports at USB-A female port: 0.9 Ampere / 5 Volt / 4.5 Watt
Supports at USB-C female port: 3.0 Ampere / 5 Volt / 15.0 Watt
Support up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2 Gen 2x1)
Chipset: 2x Asmedia ASM3142
Packaging contents:

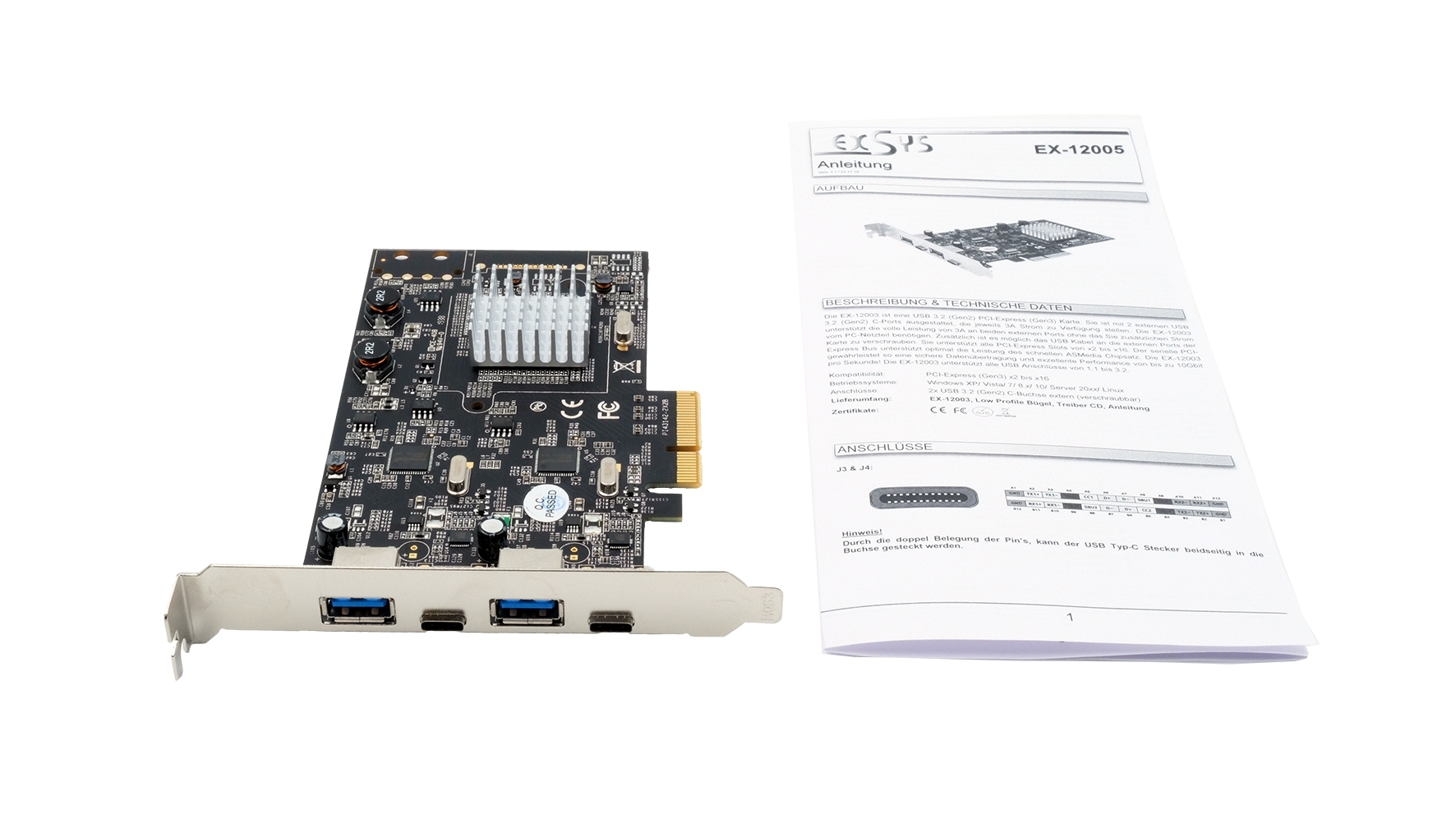

EX-12005, Driver CD, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | USB-A socket / USB-C socket |
| Data transmission: | 10Gbps |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | Standard Profile |
| Number of ports: | 4 |
