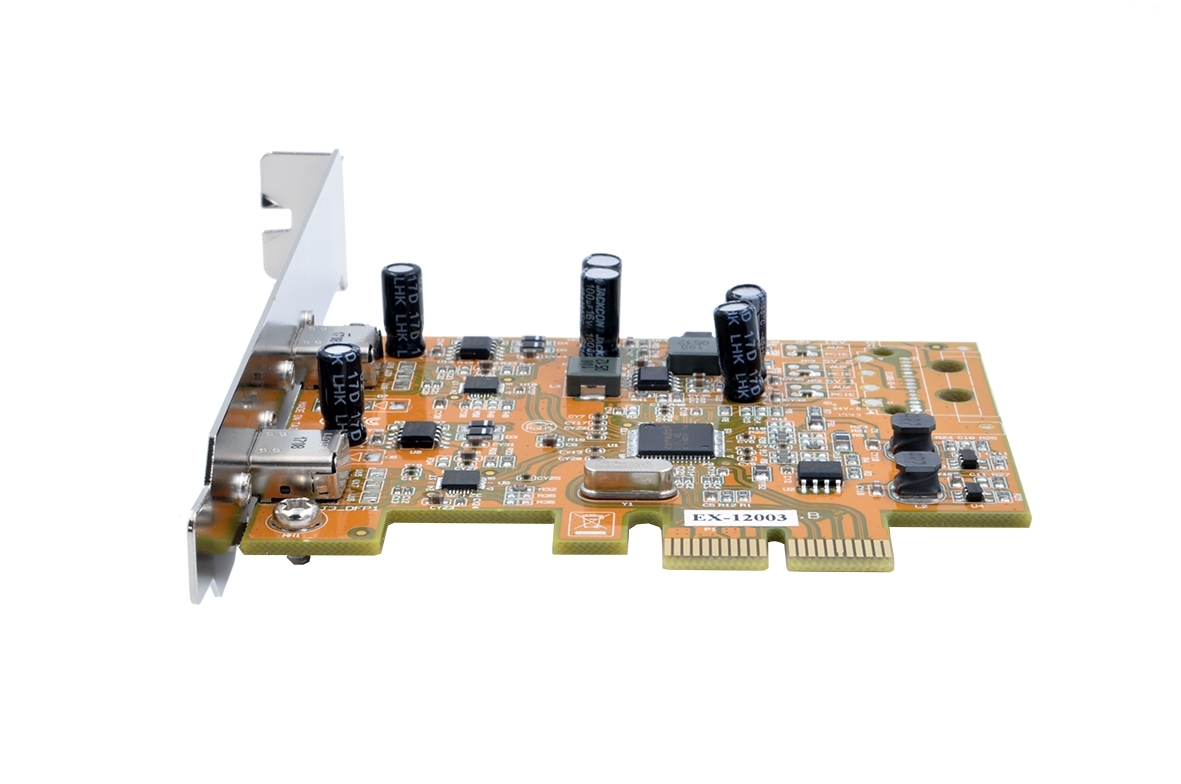

USB 3.2 Gen 2x1 PCIe (Gen3) (x2) board with 2x USB-C, 3.0A power (Asmedia)
The EX-12003 USB 3.2 Gen 2x1 PCIe (Gen3) (x2) card provides two external super-speed+ USB 3.2 ports with C-socket. It is designed to connect two additional USB 1.1, 2.0, 3.0 and 3.2 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps), USB 3.0 Super-Speed (5Gbps) and USB 3.2 Super-Speed+ (10Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. Supporting 3.0A power on the external USB 3.2 Gen 2x1 ports, there is no need for additional power connection from PC power supply. A low profile bracket is included with the EX-12003 for slim cases up to a maximum height of 8cm.

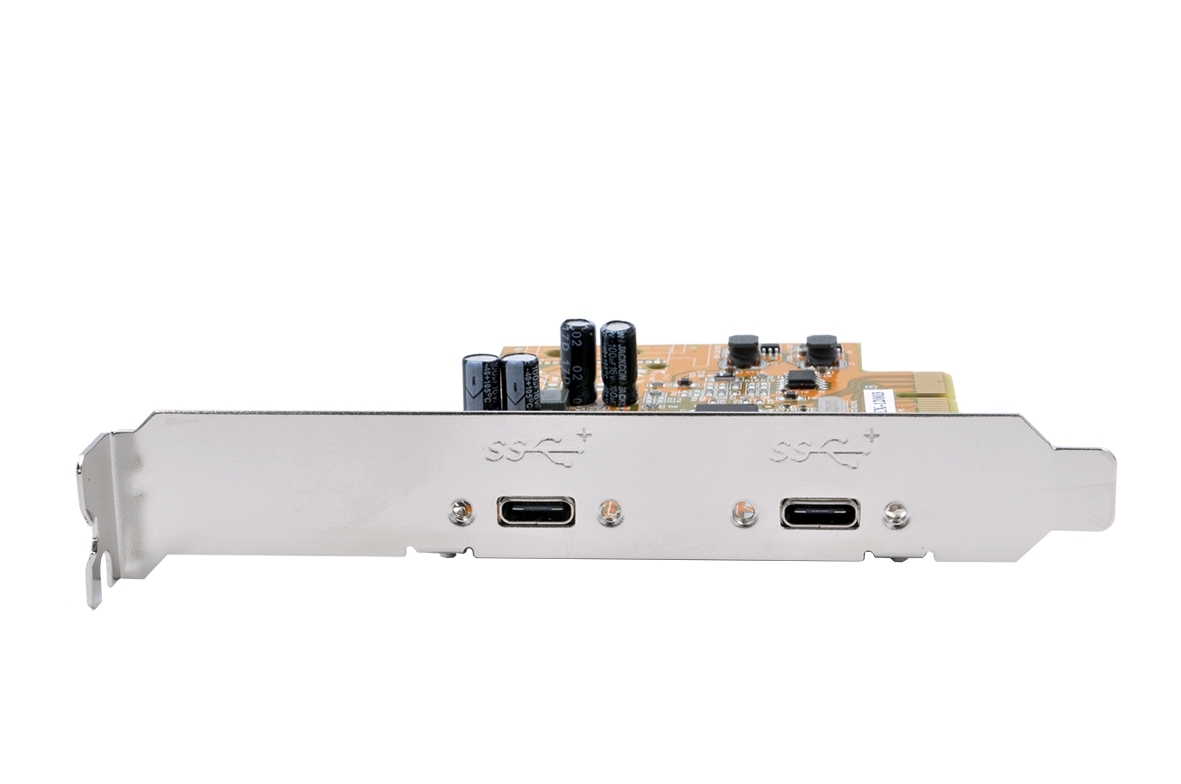

- USB 3.2 Gen 2x1 PCIe x2 card with two USB-C-female connector
- Compliant with USB 3.2 Rev. 1 and Intel xHCI Rev. 1.0 specification
- Fully PCI Express Gen3 Specification Compliant
- Compatible with USB Attached SCSI Protocol Rev. 1.0
- Supports “Hot Swapping” and “Plug-and-Play”
- Supports 3.0A power on each USB-C-port
- Supports up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2)
- Chipset: ASMEDIA ASM3142
Packaging contents:
EX-12003, Low Profile bracket, Driver CD, Manual
| Bus system: | PCIe x2 |
|---|---|
| Connections: | USB-C socket |
| Data transmission: | 10Gbps |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 2 |
