5 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 3x USB-A and 2x USB-C (Asmedia)
Product number:
EX-12006
GTIN/EAN:
4718359120060
5 Port USB 3.2 Gen 2x1 PCIe (x4) boardwith 3x USB-A and 2x USB-C (Asmedia)

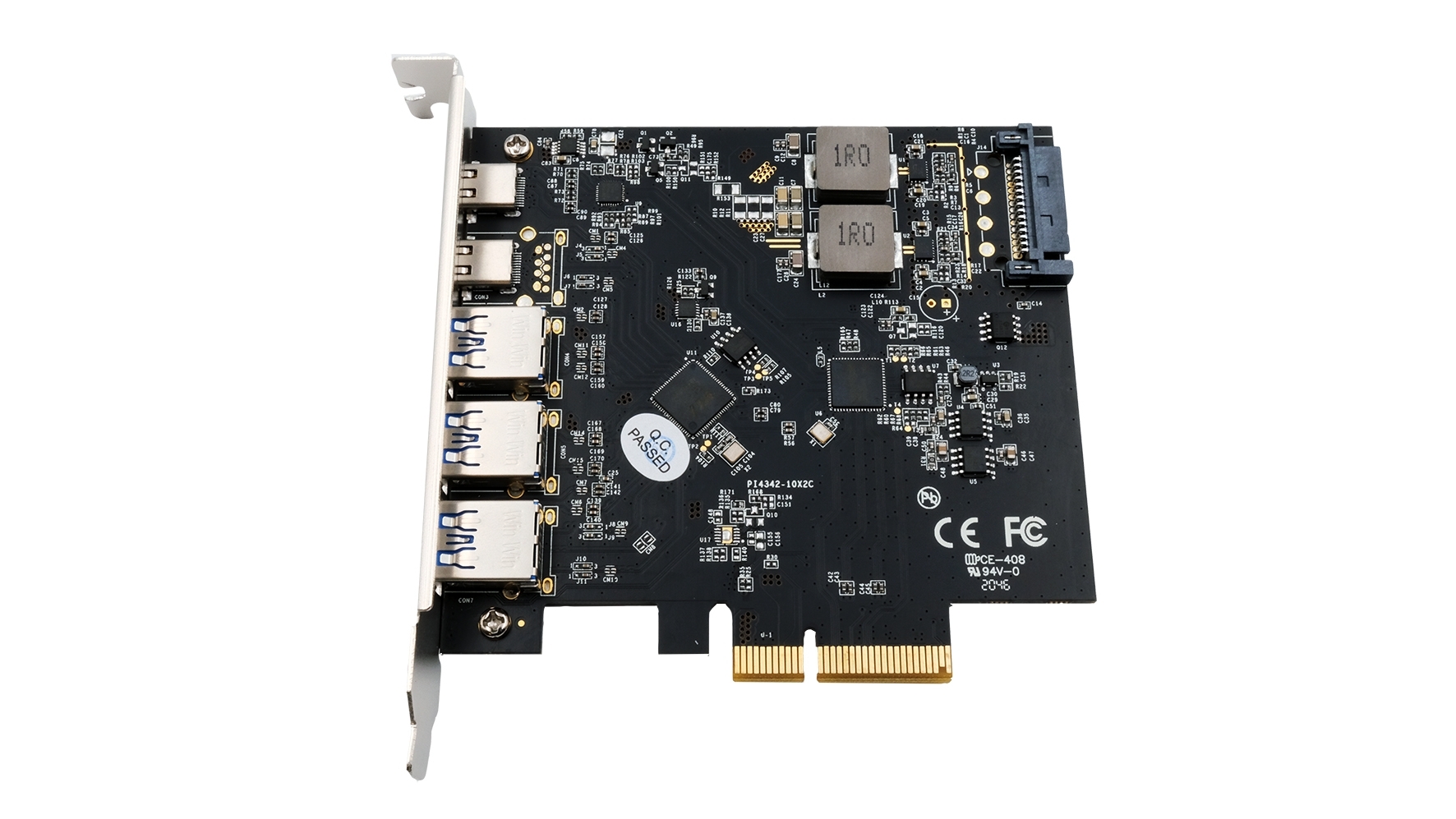

The EX-12006 USB 3.2 Gen 2x1 with PCIe Slot (Gen3x4) card provides five external super-speed+ USB 3.2 Gen 2x1 ports with 3x USB-A and 2x USB-C connector. It is designed to connect two additional USB 1.1, 2.0, 3.0 and 3.2 Gen 2 end devices to your workstation, desktop or server. It supports USB 1.1 low-speed (1.5Mbps), full-speed (12Mpbs), USB 2.0 high-speed (480Mbps), USB 3.0 super-speed (5Gbps) and USB 3.2 Gen 2x1 super-speed+ (10Gbps). It is the perfect technology for external storage, digital cameras, webcam, scanner and more. The EX-12006 supports 3.0A power to the external USB 3.2 Gen 2x1 ports with USB-C connector.
- USB 3.2 Gen 2x1 PCIe x4 card with three USB-A and two USB-C female connectors
- Compliant with USB 3.2 Rev.1.0 and Intel xHCI Rev. 1.0 specification
- Fully PCI Express Gen3 Specification compliant
- Compatible with USB Attached SCSI Protocol Rev. 1.0
- Support “Hot Swapping” and “Plug-and-Play”
- Support at USB-A female port: 0.9 Amper / 5 Volt / 4.5 Watt
- Support at USB-C female port: 3.0 Amper / 5 Volt / 15.0 Watt
- Support up to 127 USB devices (USB1.1, USB2.0, USB3.0 und USB 3.2 Gen 2x1)
- Chipset: Asmedia ASM3142

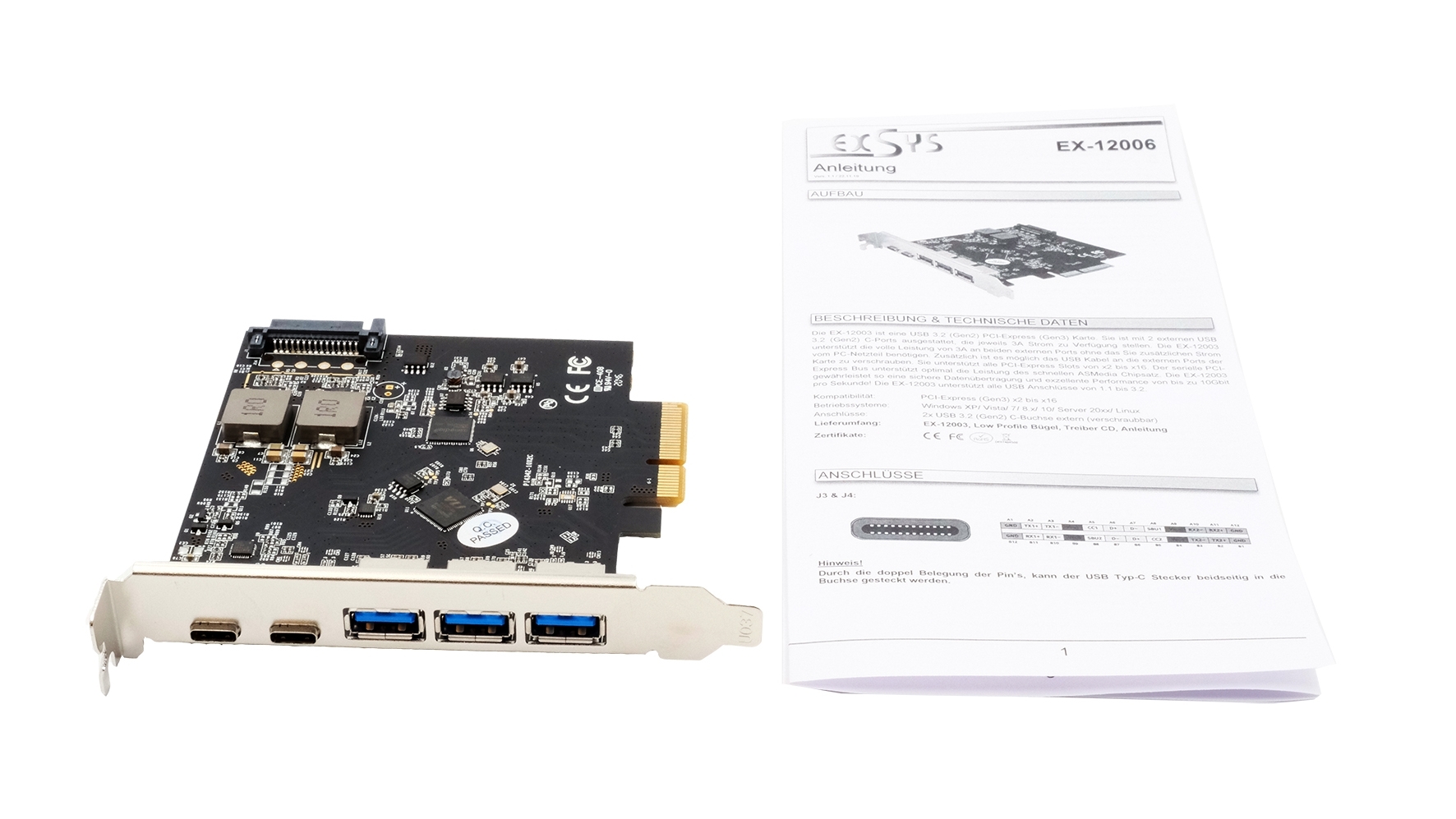

Packaging contents:
EX-12006, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | USB-A socket / USB-C socket |
| Data transmission: | 10Gbps |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | Standard Profile |
| Number of ports: | 5 |
| Power connection: | SATA power |
