PCIe USB 3.2 Gen 1 card with 2 ports (NEC Chipset)
Product number:
EX-11042
GTIN/EAN:
4718359110429
PCIe USB 3.2 Gen 1 card with 2 ports (NEC Chipset)
The EX-11042 USB 3.2 Gen 1 PCIe card provides two external super-speed USB 3.2 Gen 1 ports. It is designed to connect multiple USB 1.1, 2.0 or 3.2 Gen 1 end devices to your workstation, desktop or server. It supports USB 1.1 Low-Speed (1.5Mbps), Full-Speed (12Mpbs), USB 2.0 High-Speed (480Mbps) and USB 3.2 Gen 1 Super-Speed (5Gbps). It is the perfect technology for External Storage Enclosures, Digital Cameras, Webcam, Scanner and more. The card requires power from the PC power supply for proper operation and to provide 900mA to the USB ports.

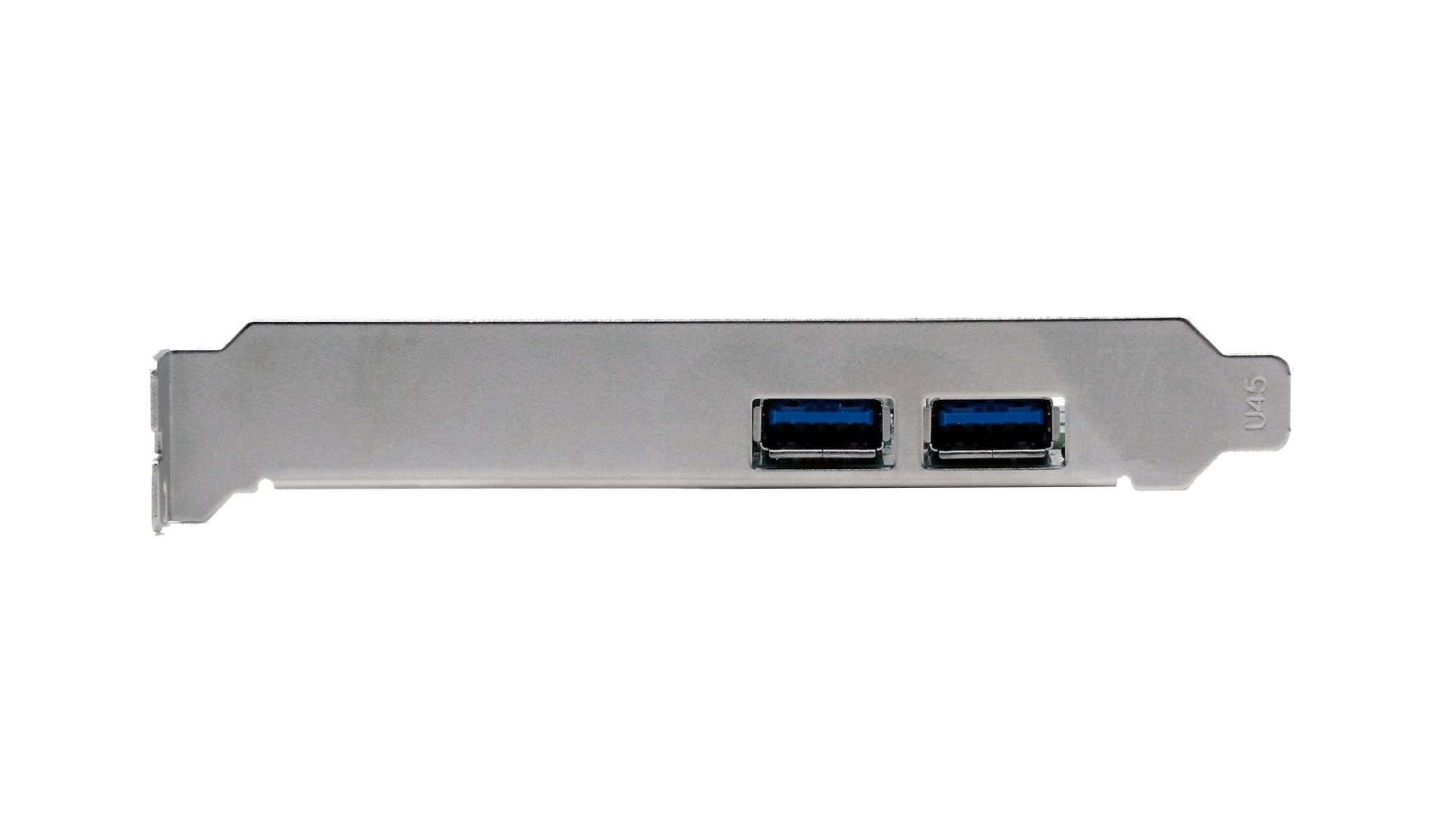

- USB 3.2 Gen 1 PCIe card with two external connectors
- Compatible to Microsoft Windows Standard Open HCD Driver
- Support up to 123 devices
- Fully Compliant with PCI Express Gen2 Specifications
- USB 1.1 and 2.0 backward compatible
- Hot Swapping
- Plug-and-Play
- Chipset: NEC D720200

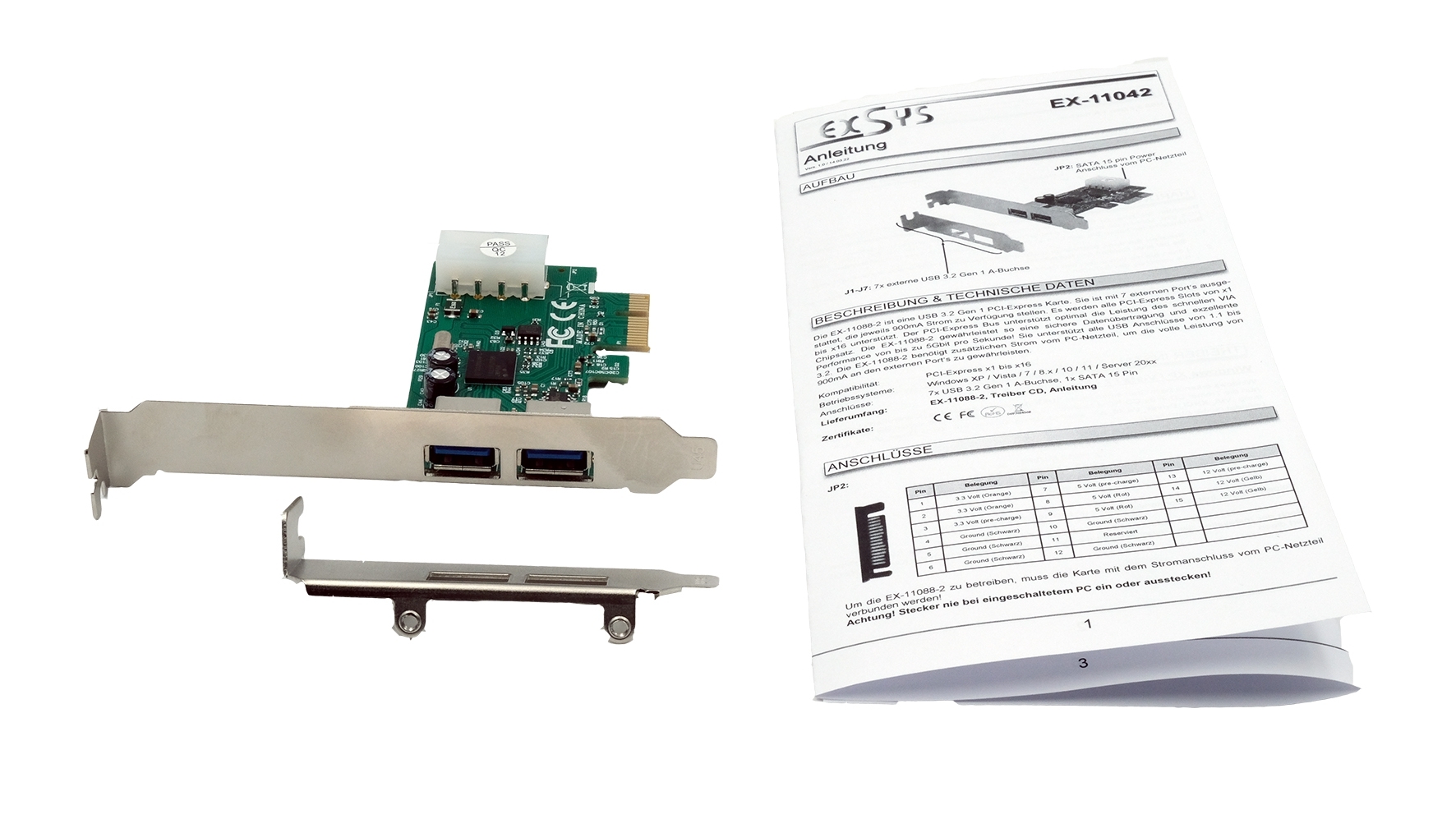

Packaging contents:
EX-11042, Low Profile bracket, Manual
| Bus system: | PCIe x1 |
|---|---|
| Connections: | USB-A socket |
| Data transmission: | 5 Gbps |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 2 |
| Power connection: | 4-pin molex |
