14 in 1 USB-C docking station, USB 3.2 Gen 2x1, für Notebook and MacBook
Product number:
EX-1226HM
GTIN/EAN:
4718359122613
14 in 1 USB-C docking station, USB 3.2 Gen 2x1, für Notebook and MacBook

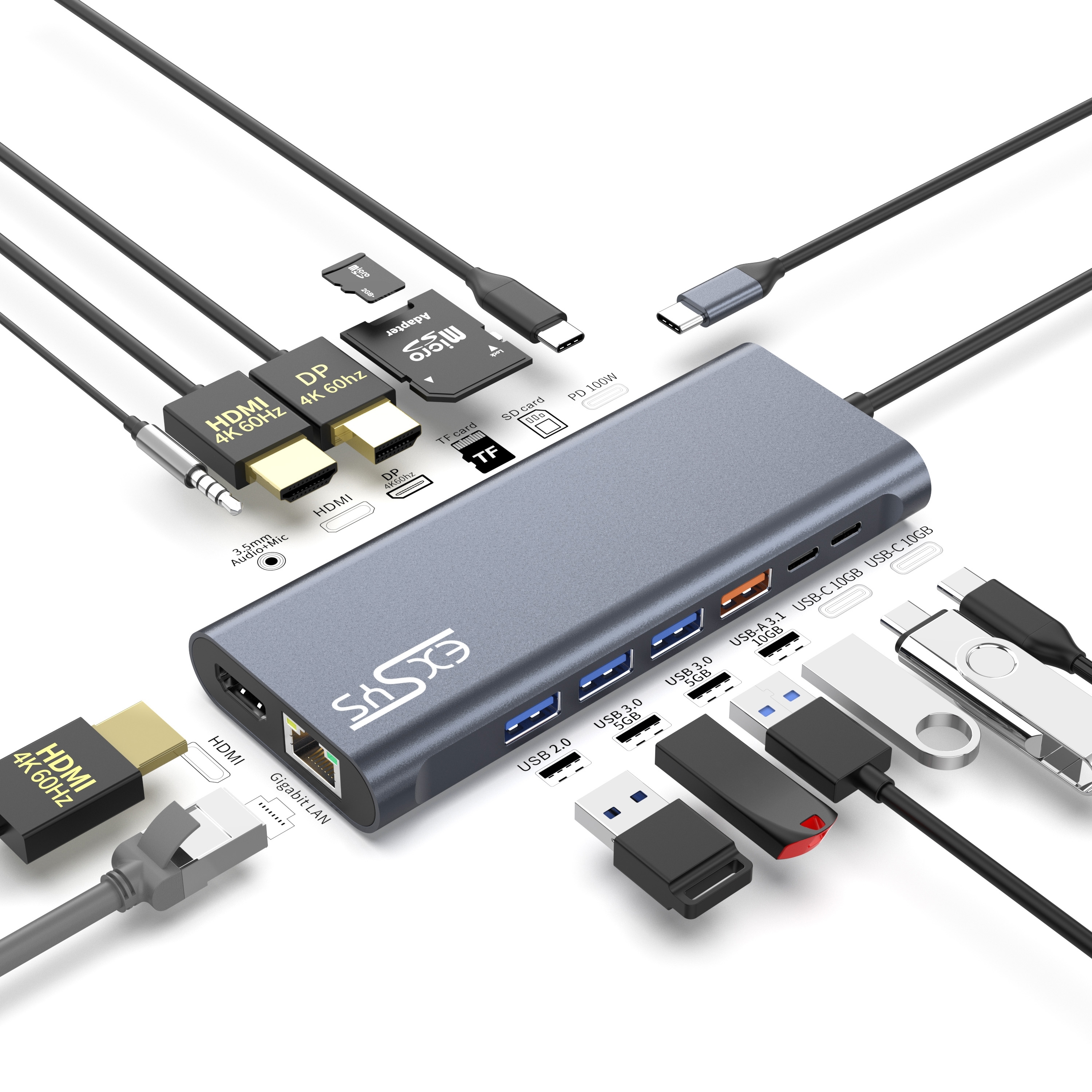

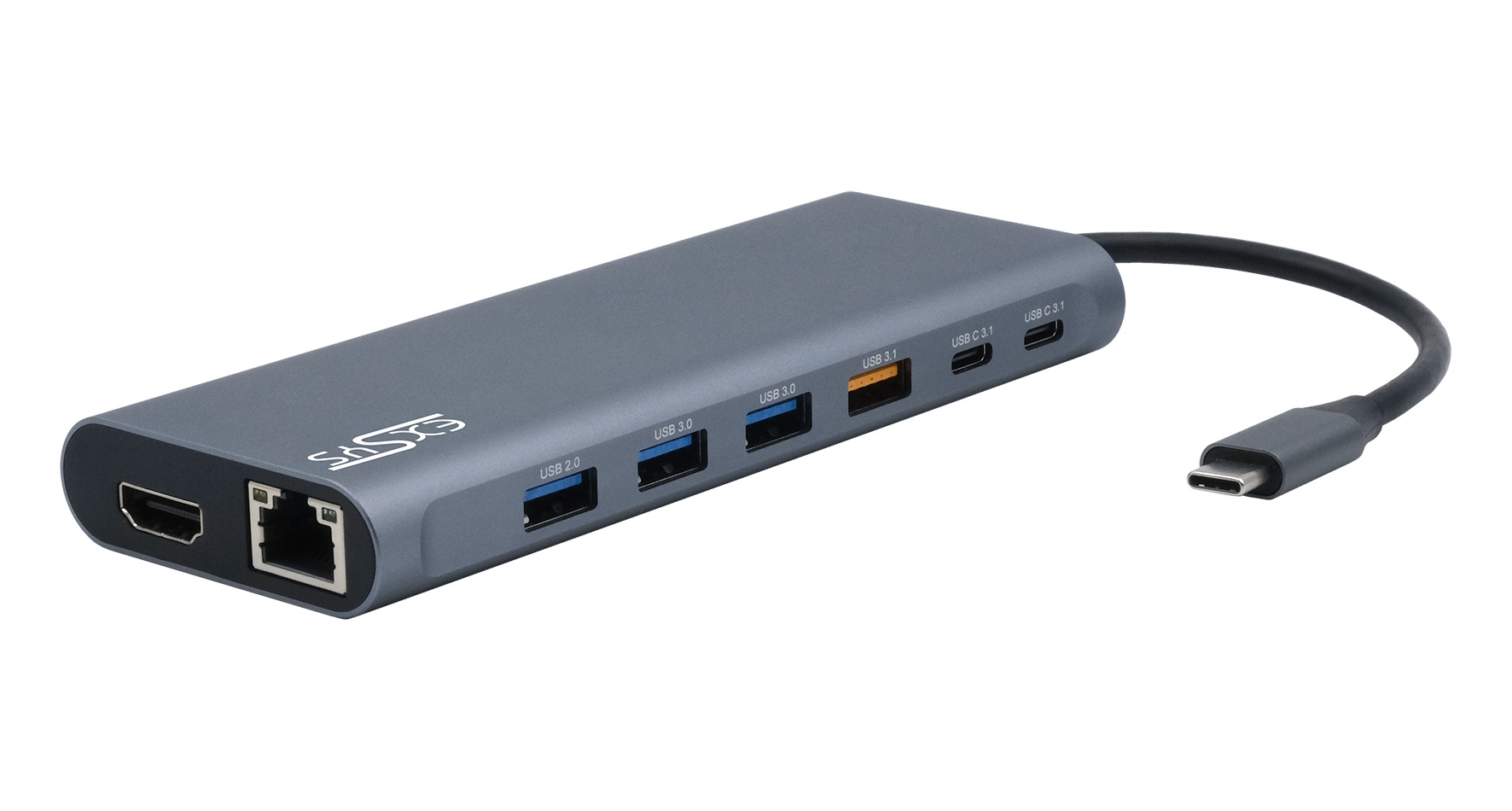

The EX-1226HM is a USB-C docking station featuring two HDMI and one DisplayPort connection, each supporting 4K@60Hz. It also offers several USB-A and USB-C ports, a network connection, and a card reader.
It also supports USB-PD with up to 100 W, enabling the USB-C power supply unit of a notebook or MacBook to be connected and charged simultaneously.

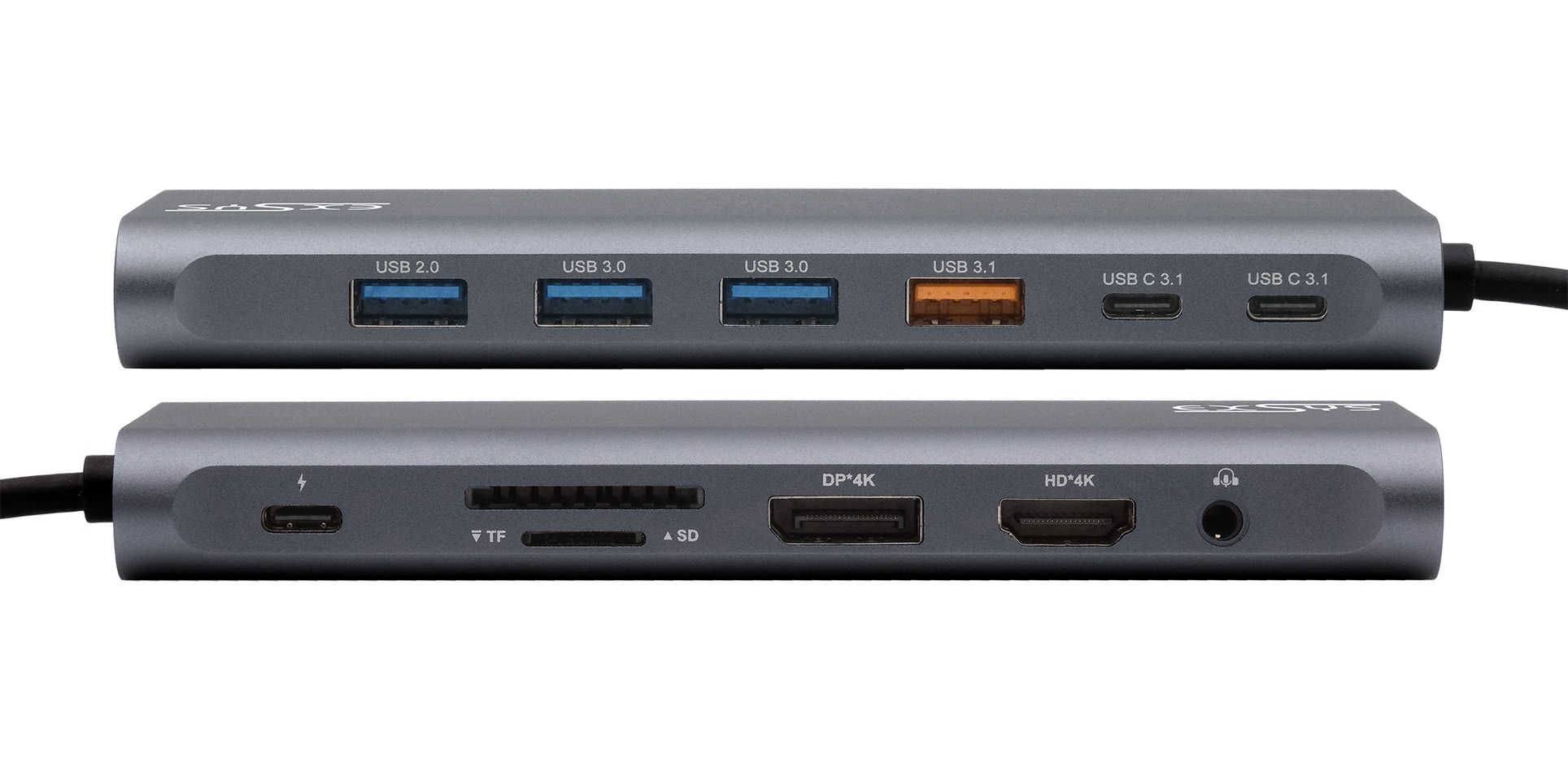

- 14-in-1 docking station elegant aluminum alloy case
- Supports USB-C Power Delivery (PD) charging function up to 100W
- 2x HDMI 4K@60Hz and 1x DisplayPort (DP) 4K@60Hz

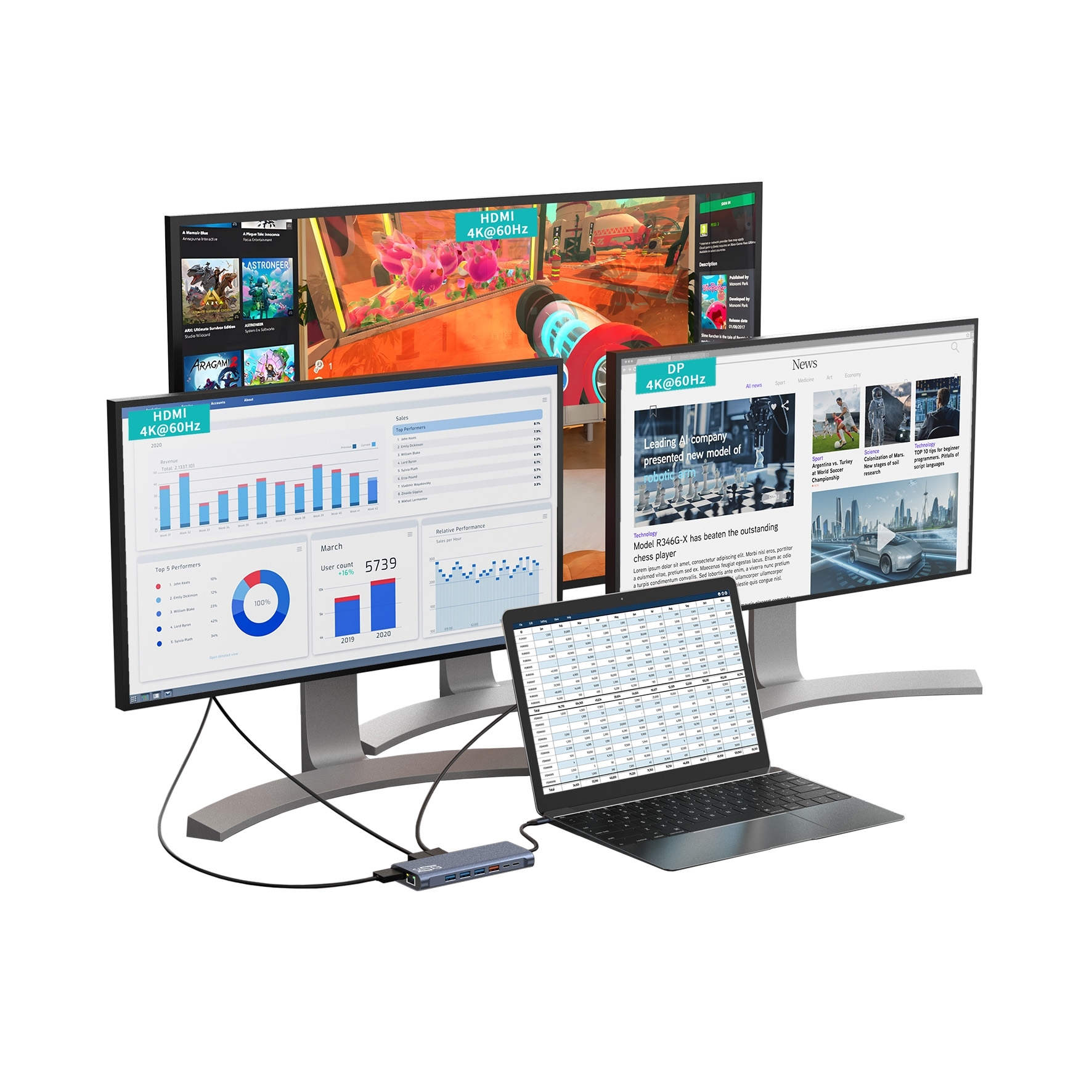

- Supports Multi Stream Transport (MST) for up to 3 screens with different content (MacOS: only same content possible)
- Gigabit Ethernet RJ45 port
- USB 3.2 Gen 2x1 ports: 1x USB-A, 2x USB-C
- USB 3.2 Gen 1 ports: 2x USB-A
- One USB 2.0 port
- 3.5 mm combined audio port: headphone and microphone
- Card reader for SD/SDHC/SDXC and microSD/SDHC/SDXC
- For notebooks/MacBooks with USB-C connection
Packaging contents:
EX-1226HM, Manual
| Application: | Standard |
|---|---|
| Cable length: | 0.15m |
| Charging power total: | 100W |
| Colour: | dark grey |
| Data transmission: | 10Gbps |
| Housing: | Metal |
| Inputs: | USB-C plug |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | Desktop |
| Number of ports: | 14 |
| Outputs: | USB A+C/HDMI/DP/RJ45/audio/Card reader |
| Power connection: | Bus power / NB Power supply |
| Temperature range: | 0°C to +45°C |
