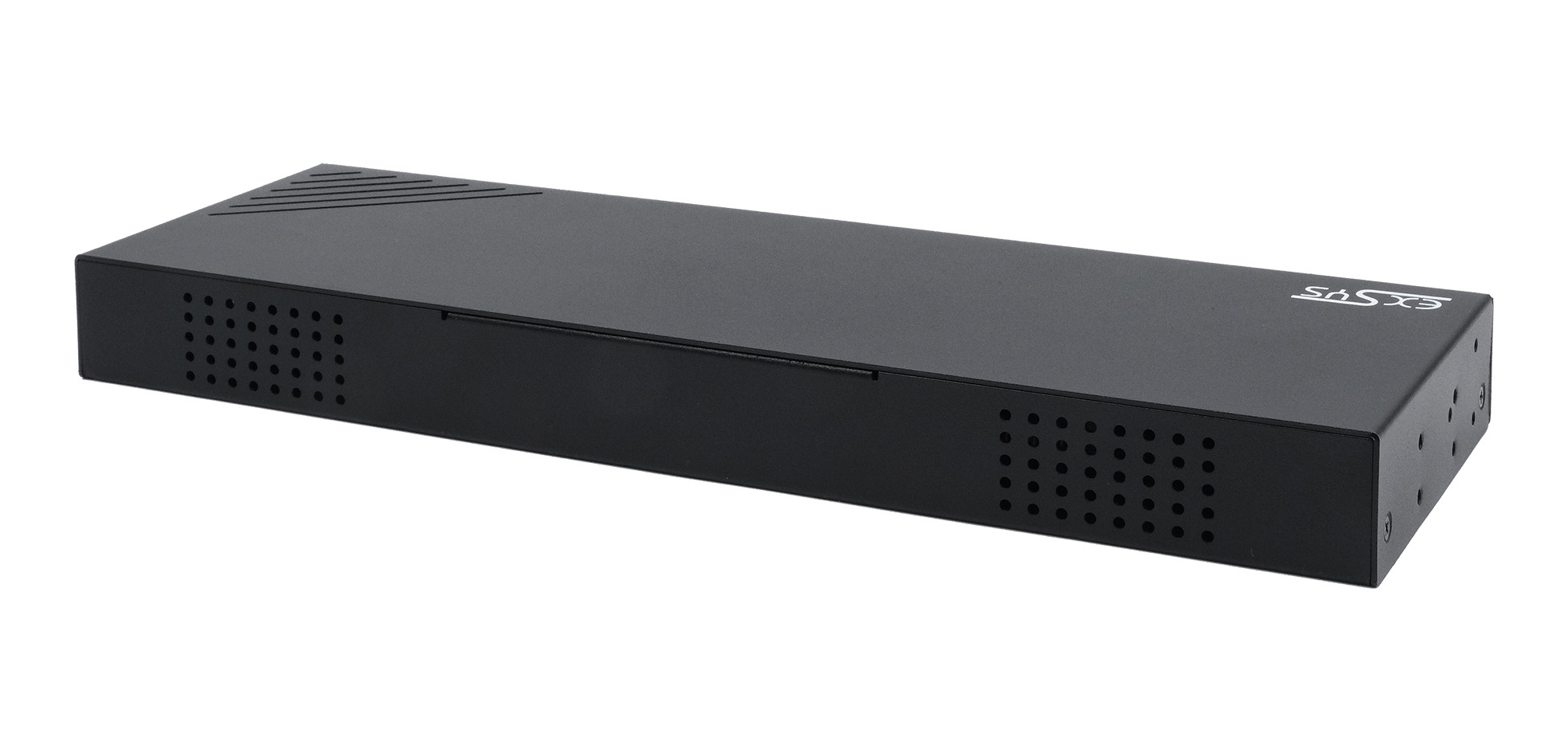

16-port USB 3.2 Gen 2 metal hub with 16x USB-C connector, 120W
The rugged, industrial-grade EX-12276HMS is a metal USB 3.2 Gen 2x1 hub for up to sixteen devices that can be mounted on a wall, in a 19"-rack or on a DIN-Rail. It connects to the host PC via a USB-C cable and provides sixteen USB-C 3.2 Gen 2x1 ports for end devices with outstanding performance of up to 10Gbps (SuperSpeed USB 10Gbps). Using the external power supply, the hub provides up to 2.4A per port with a maximum output of 120W. This makes it easy to charge iPhones, iPads, smartphones and tablets. Power is supplied via the included power supply or an optional DIN-Rail power supply (self-powered).
- USB 3.2 metal HUB with 16x USB-C Gen 2x1 downstream
- 15KV ESD protection for each output
- Power supply +12V to +24V DC via terminal block or DC-jack
- Up to 2.4A per port, total output power max. 120W
- Supports USB battery charging V1.2
- Can also be used as a USB charger without connection to the host PC
- Automatically detects the data transfer rate of connected peripherals

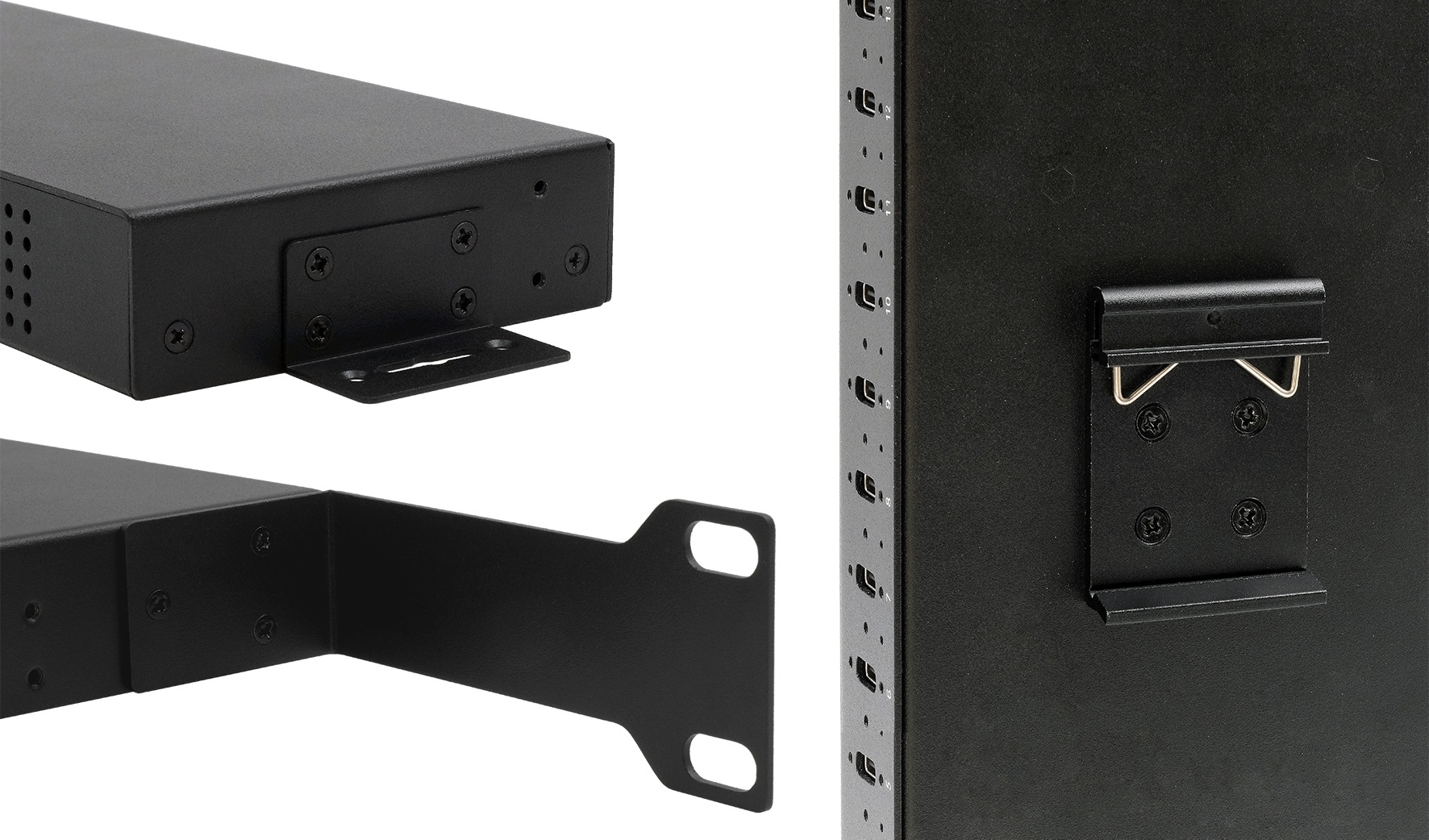

- Wall bracket, 19"-rack bracket and DIN-Rail kit included
- Rugged metal housing with compact industrial design
- LED indicators for power and link Status
- Chipset: VL822-Q7

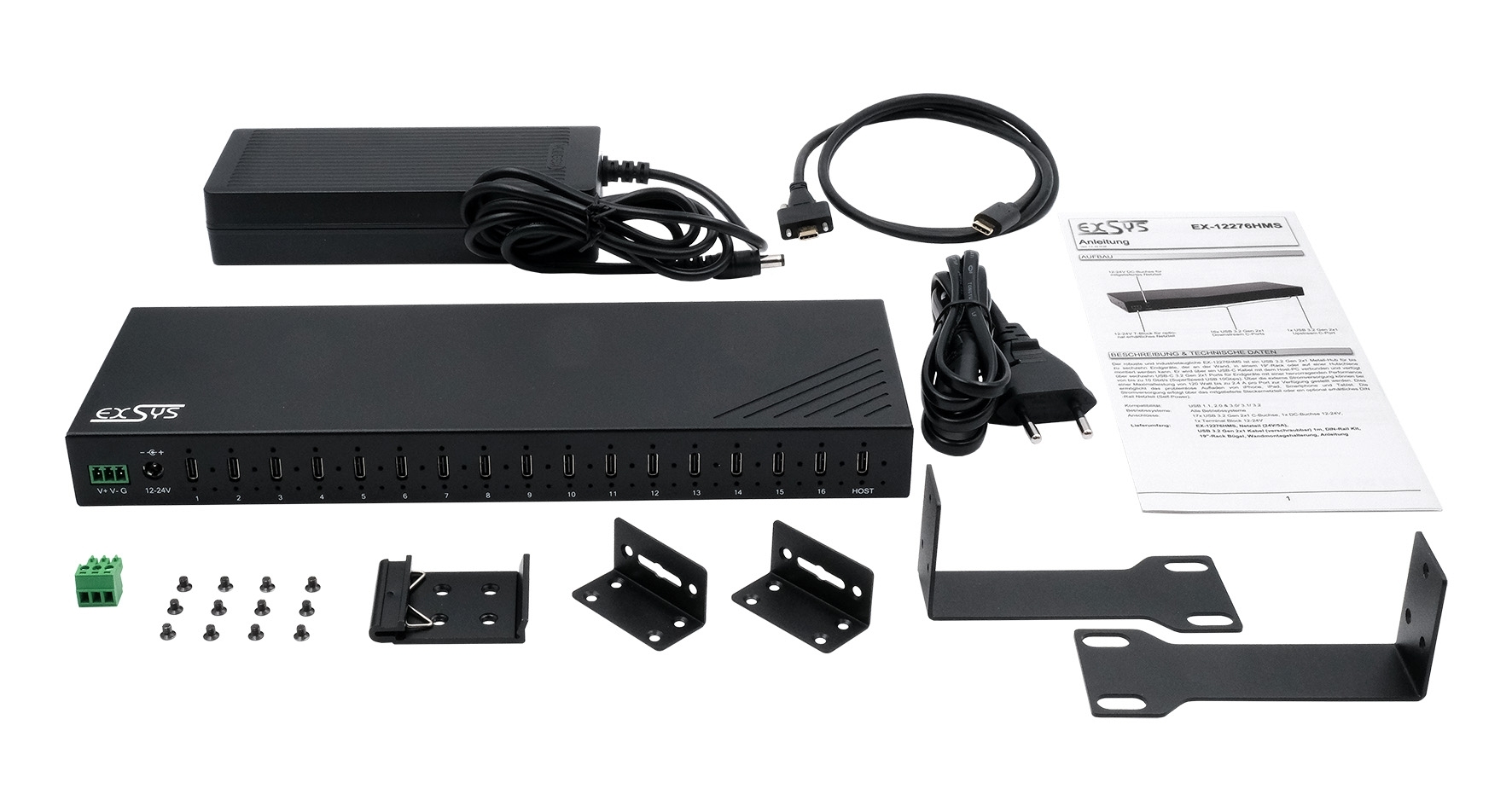

Packaging contents:
EX-12276HMS, Power Supply (24V/5A), USB 3.2 Gen 2x1 Cable (screw lock) 1m, DIN-Rail Kit, 19"-rack brackets, Wall mounting brackets, Manual
| Application: | Industrial |
|---|---|
| Cable length: | 1.0m |
| Charging power total: | 120W |
| Colour: | black |
| Data transmission: | 10Gbps |
| Housing: | Metal |
| Inputs: | USB-C socket |
| Interface: | USB 3.2 Gen 2x1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 16 |
| Outputs: | 16x USB-C socket |
| Power connection: | DC Jack & TB 12-24V |
| Surge protection: | 15KV ESD |
| Temperature range: | 0°C to +55°C |
