16-Port USB-C High Power Charger 1008W
Product number:
EX-11017
GTIN/EAN:
4718359110177
16-Port USB-C High Power Charger 1008W
With an impressive total output power of 1008 W, the 16-port USB-C charging station EX-11017 is ideal for use in schools, universities, hotels, restaurants, clubhouses and many other locations. Each of the 16 USB-C ports supports Power Delivery (PD) with a maximum charging power of up to 65 W. This enables 16 notebooks/MacBooks, as well as smartphones, tablets and other devices, to be charged simultaneously. The all-round ventilation concept with temperature-controlled fans prevents excessive heat build-up inside the charging station, thus preventing overheating. The included mounting brackets allow the EX-11017 to be installed in charging cabinets or 19" racks, transforming them into highly efficient charging stations capable of charging the tablets of an entire classroom overnight, for example.
- Simultaneous charging of up to 16 devices, including notebooks, tablets, smartphones, wearables, etc.
- Powerful built-in power supply with 94% efficiency and a total output power of 1008W
- USB-C Power Delivery (PD 3.0) provides up to 65 W per port (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A)
- Supports over 20 charging protocols, including as Qualcomm Quick Charge 5, Samsung AFC, Huawei FCP, TFCP, SCP and SFCP
- Overcurrent protection, overvoltage protection, undervoltage protection, short-circuit protection, overcharge protection

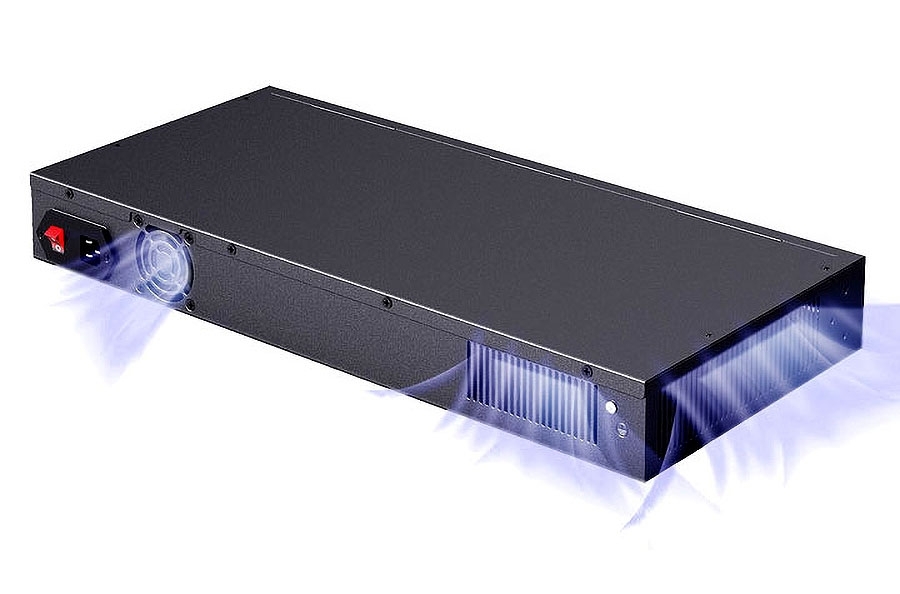

- Multiple temperature-controlled fans for optimal air circulation to protect against overheating

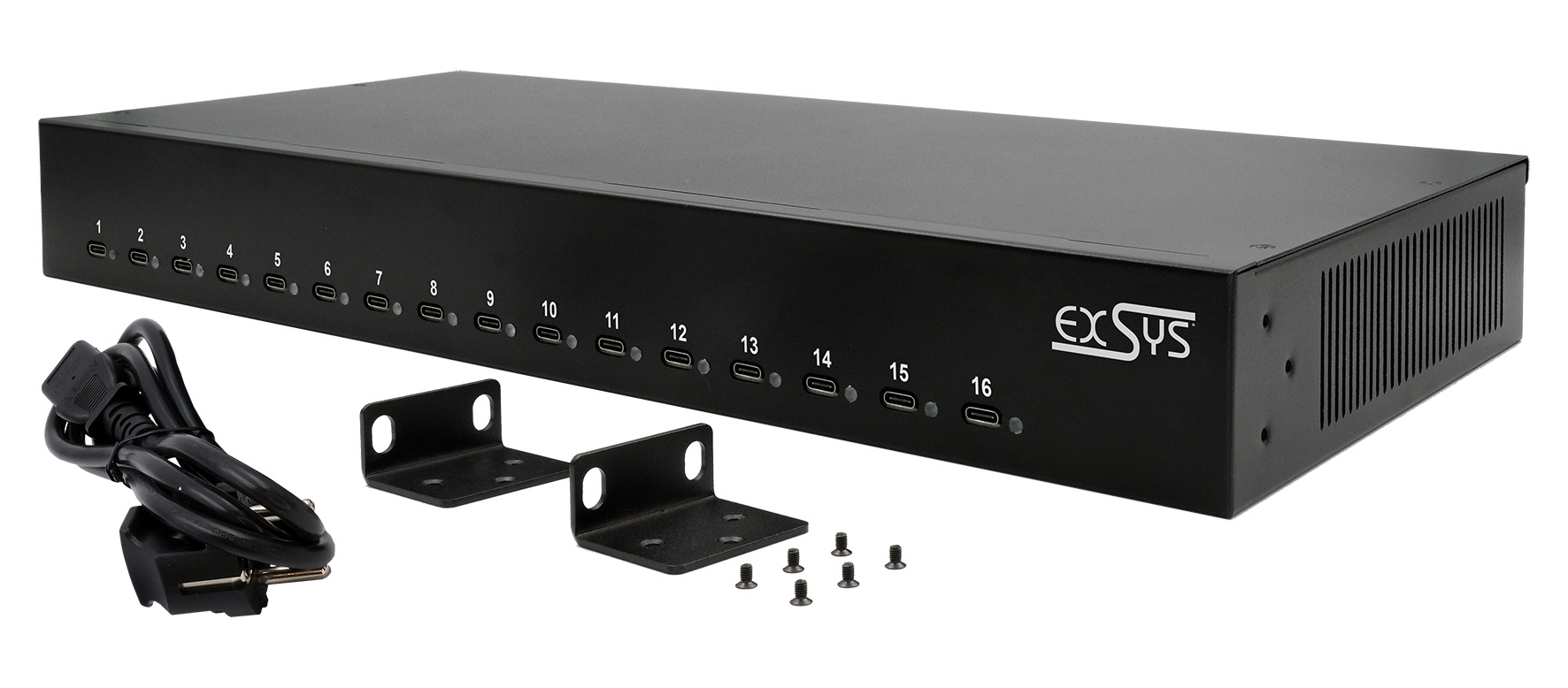

- Mounting brackets included for installation in a charging cabinet or 19" rack (1U)
- 16 LEDs for charging status indication
Packaging contents:
EX-11017, power cord, 19"-Rack Kit, Manual
| Charging power total: | 1008W |
|---|---|
| Charging technologies: | Power Delivery, Quick Charge |
| Colour: | black |
| Connections: | 16x USB-C |
| Housing: | Metal |
| Mounting Type: | 19" Rack |
| Number of ports: | 16 |
| Power connection: | 110-240V |
| Temperature range: | -25°C to +70°C |
Skip product gallery
CHF 10.90*
CHF 12.90*
accessories

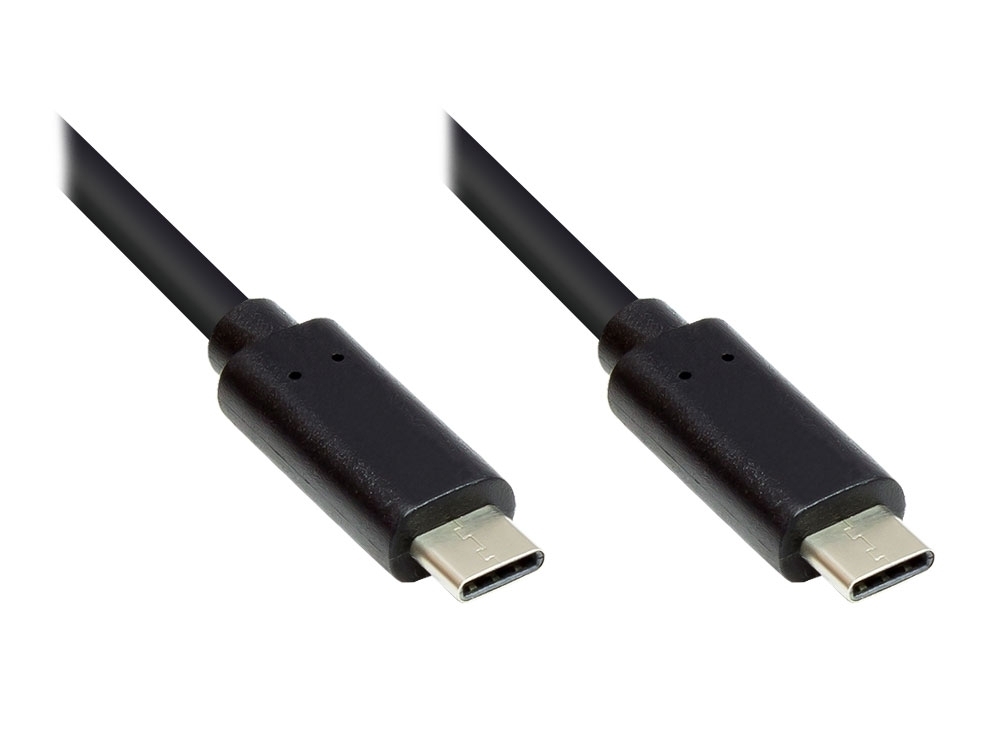

EX-K1585-0.2
