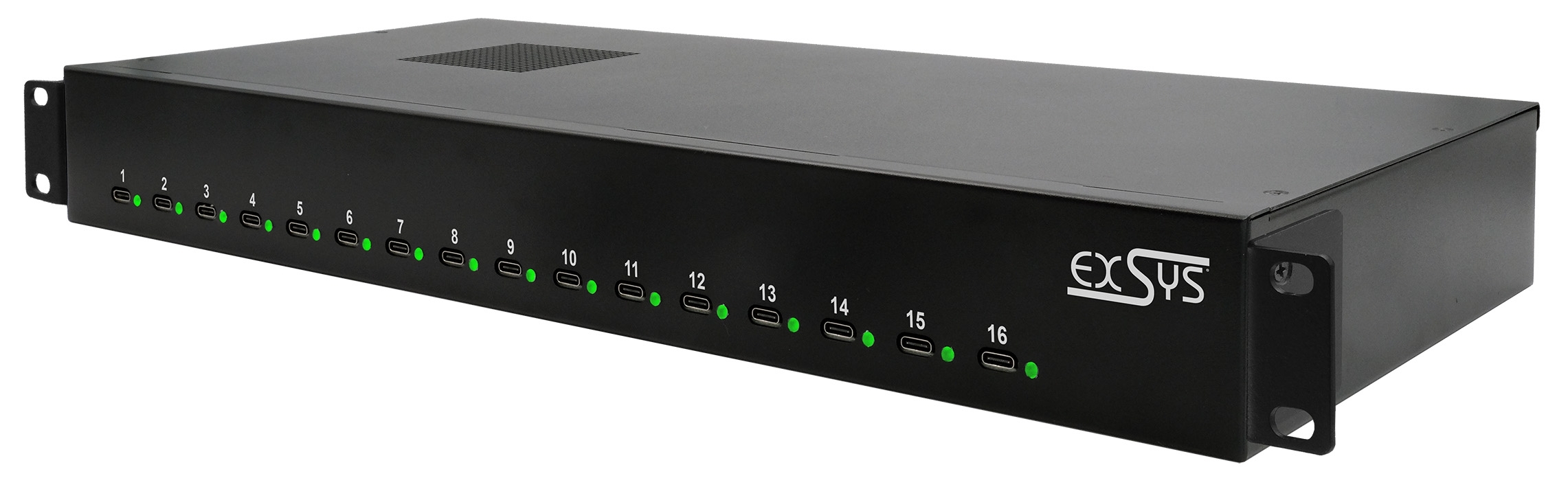

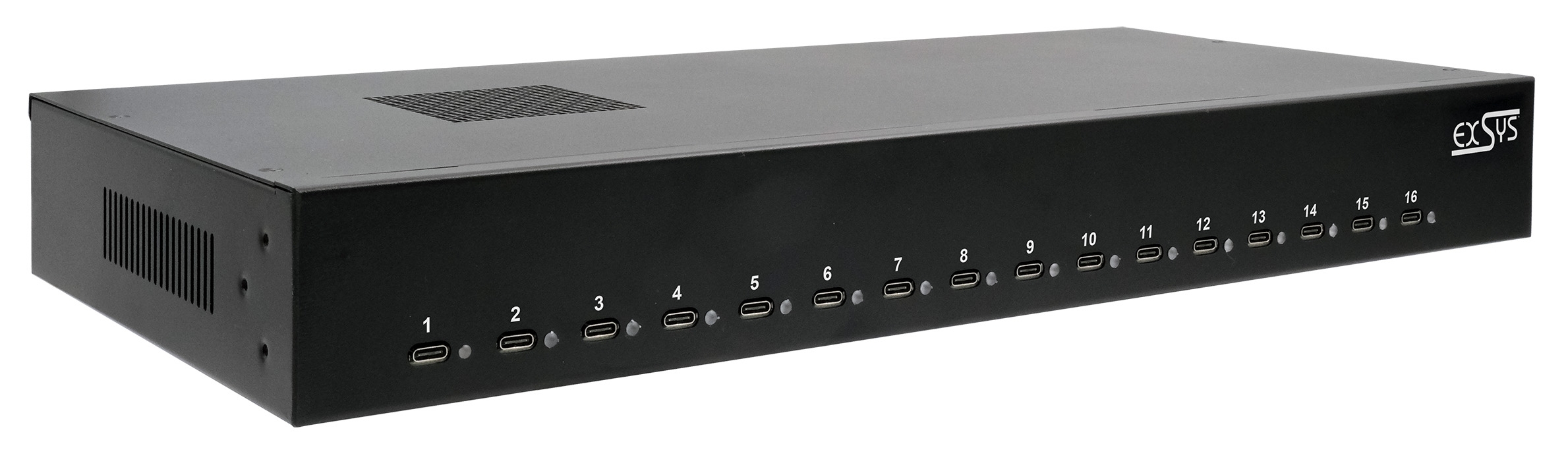

16-Port USB-C High Power Charger 480W
Product number:
EX-11016
GTIN/EAN:
4718359110160
16-Port USB-C High Power Charger 480W
The EX-11016 is a powerful industrial grade charging station with a total power of 480 W. All 16 USB-C ports support Power Delivery (PD) with a maximum charging power of 30 W each. This allows 16 smartphones, tablets and notebooks/MacBooks and other USB-C devices to be charged simultaneously. The temperature-controlled fan automatically switches on when required and thus prevents excessive heat development of the installed power supply. Thanks to the included mounting brackets, the EX-11016 can be installed in a 19"-Rack. It is ideal as a powerful charging station for schools/universities, hotels, restaurants, clubhouses, and more.
- Simultaneously charge up to 16 devices such as smartphones, tablets, notebooks, wearables, etc.
- USB-C Power Delivery (PD) with power up to 30W per port (5V/3A, 9V/3A, 12V/2.5A)
- Supports other charging technologies such as Qualcomm Quick Charge 3.0, Samsung Adaptive Fast Charge, Huawei Fast Charge
- Over-charge protection, over-current protection, over-voltage protection, short-circuit protection, overheating protection
- Temperature-controlled 55 mm fan automatically turns on if required
- Noise level: ≤ 54 dB(A)
- 480 W total power

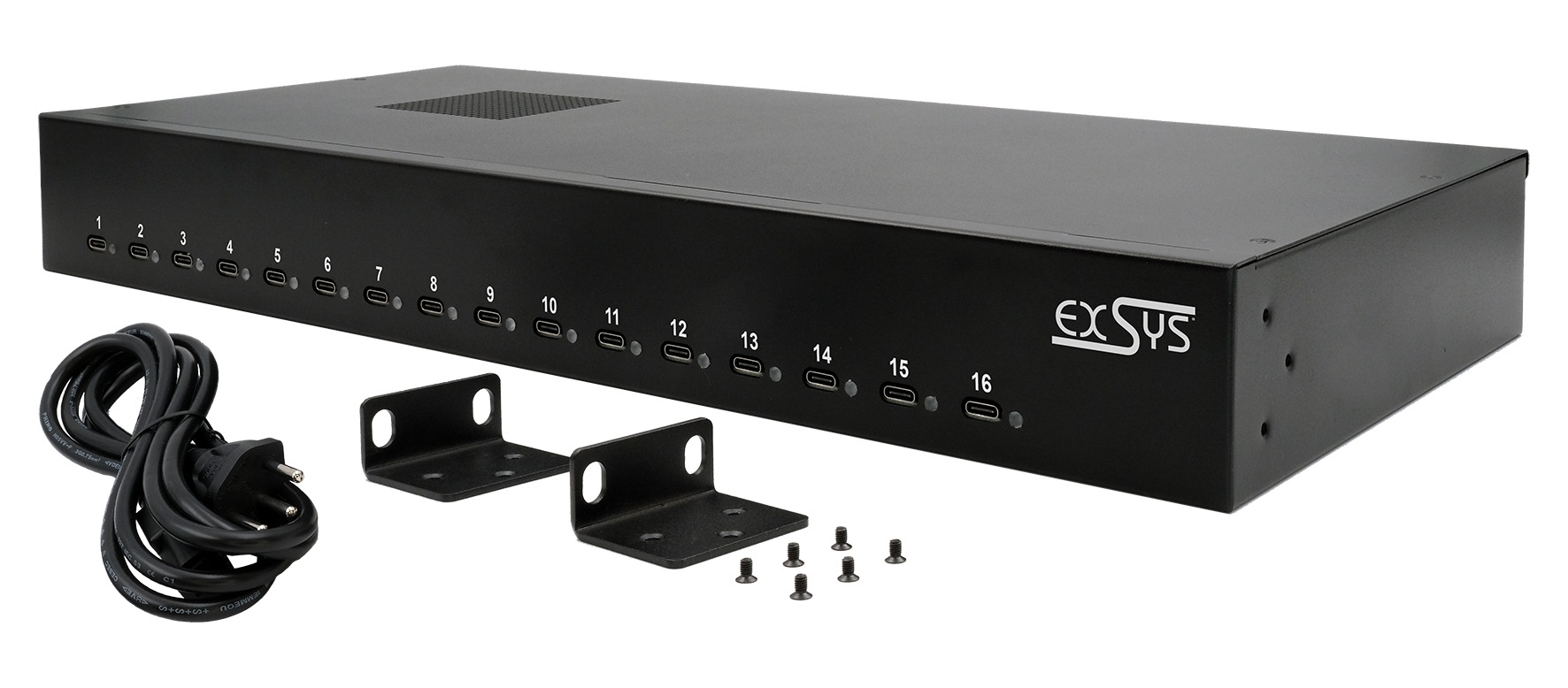

Packaging contents:
EX-11016, power cord, 19"-Rack Kit, Manual
| Charging power total: | 480W |
|---|---|
| Charging technologies: | Power Delivery, Quick Charge |
| Colour: | black |
| Connections: | 16x USB-C |
| Housing: | Metal |
| Mounting Type: | 19" Rack |
| Number of ports: | 16 |
| Power connection: | 220-240V |
Skip product gallery
CHF 10.90*
CHF 12.90*
accessories
EX-K1585-0.2
Charging and data cable USB 3.2 Gen 1, USB-C plug on both sides, CU, black, 0.2m
The USB 3.2 Gen 1 charging and data cable connects your USB-C devices, such as your smartphone, with other USB-C devices, such as your MacBook, Ultrabook, notebook or charger, which have a USB-C output. Due to the reversible USB-C plugs, it is no longer necessary to pay attention to the plug orientation when connecting the cable.High-quality cable construction
The double shielded conductor consists of 99.99% oxygen-free copper (OFC/CU). This allows an optimal signal transmission and higher breaking strength of the cableFast charging with 3A charging current - Quick-Charge compatible
The cable supports a charge current of up to three amps and is therefore Quick-Charge compatible.Super-Speed data transfer
The USB 3.2 Gen 1 standard is backward compatible with USB 2.0 and older versions. It allows data transfer rates of up to 5 Gbit/s and is therefore ten times faster than USB 2.0.Technical Specification:
USB 3.2 Gen 1 Connection cable
Connections: USB-C connectors on both sides
Super-speed, up to 5 Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0 and older versions
Wire material and contacts of 99.9% oxygen-free copper (OFC/CU)
Wire cross-section: Power AWG24, Data AWG32
Shielding: braided and foil shielding
Charge current: up to 3 A
color: blacklength: 0,2m
EX-K1585-0.5
Charging and data cable USB 3.2 Gen 1, USB-C plug on both sides, CU, black, 0.5m
The USB 3.2 Gen 1 charging and data cable connects your USB-C devices, such as your smartphone, with other USB-C devices, such as your MacBook, Ultrabook, notebook or charger, which have a USB-C output. Due to the reversible USB-C plugs, it is no longer necessary to pay attention to the plug orientation when connecting the cable.High-quality cable construction
The double shielded conductor consists of 99.99% oxygen-free copper (OFC/CU). This allows an optimal signal transmission and higher breaking strength of the cableFast charging with 3A charging current - Quick-Charge compatible
The cable supports a charge current of up to three amps and is therefore Quick-Charge compatible.Super-Speed data transfer
The USB 3.2 Gen 1 standard is backward compatible with USB 2.0 and older versions. It allows data transfer rates of up to 5 Gbit/s and is therefore ten times faster than USB 2.0.Technical Specification:
USB 3.2 Gen 1 Connection cable
Connections: USB-C connectors on both sides
Super-speed, up to 5 Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0 and older versions
Wire material and contacts of 99.9% oxygen-free copper (OFC/CU)
Wire cross-section: Power AWG24, Data AWG32
Shielding: braided and foil shielding
Charge current: up to 3 A
color: blacklength: 0,5m
