2 Port 10 Gigabit PCIe Network Controller SFP+, (Intel JL82599ES chipset)
Product number:
EX-60232
GTIN/EAN:
4718359602320

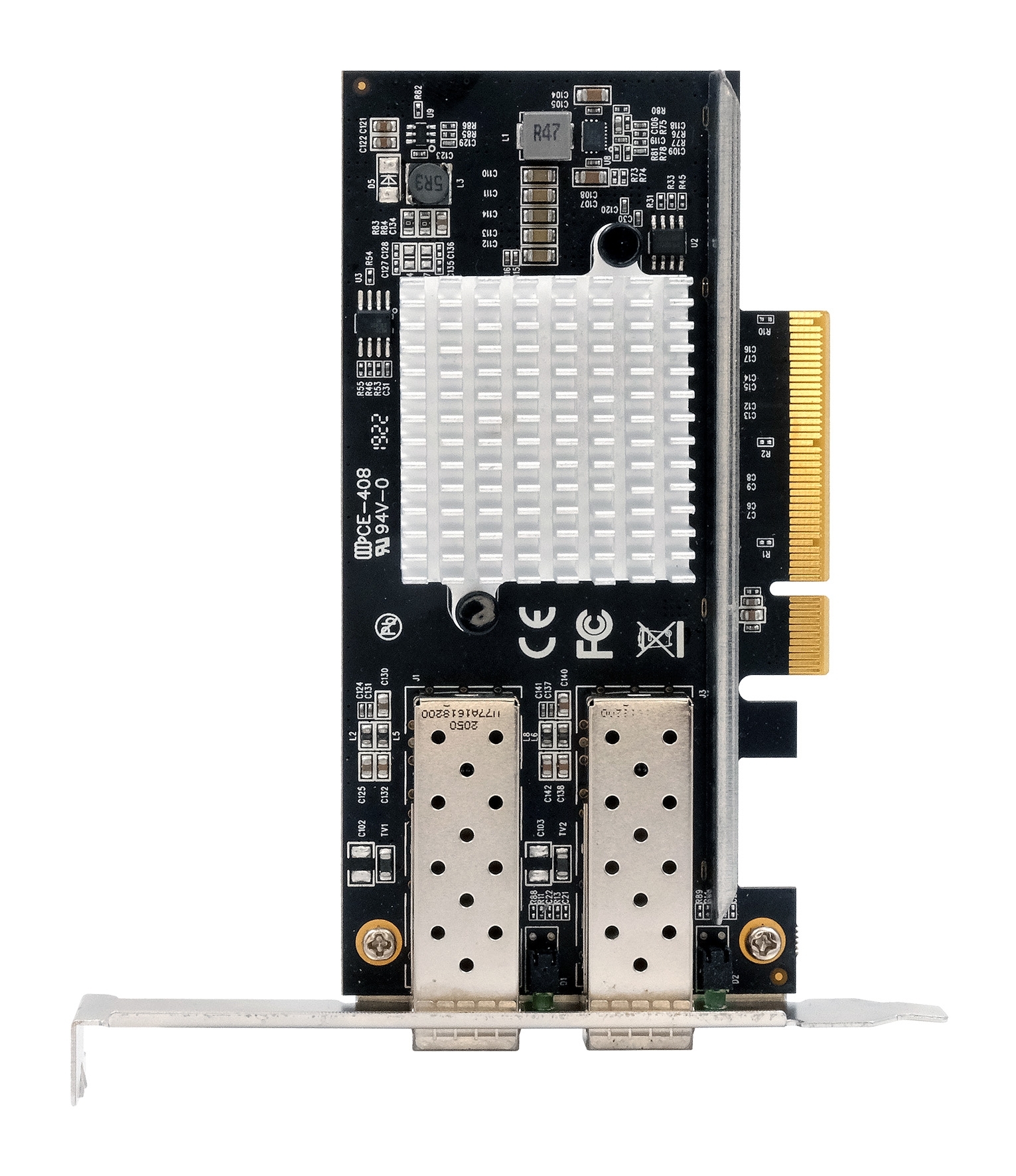

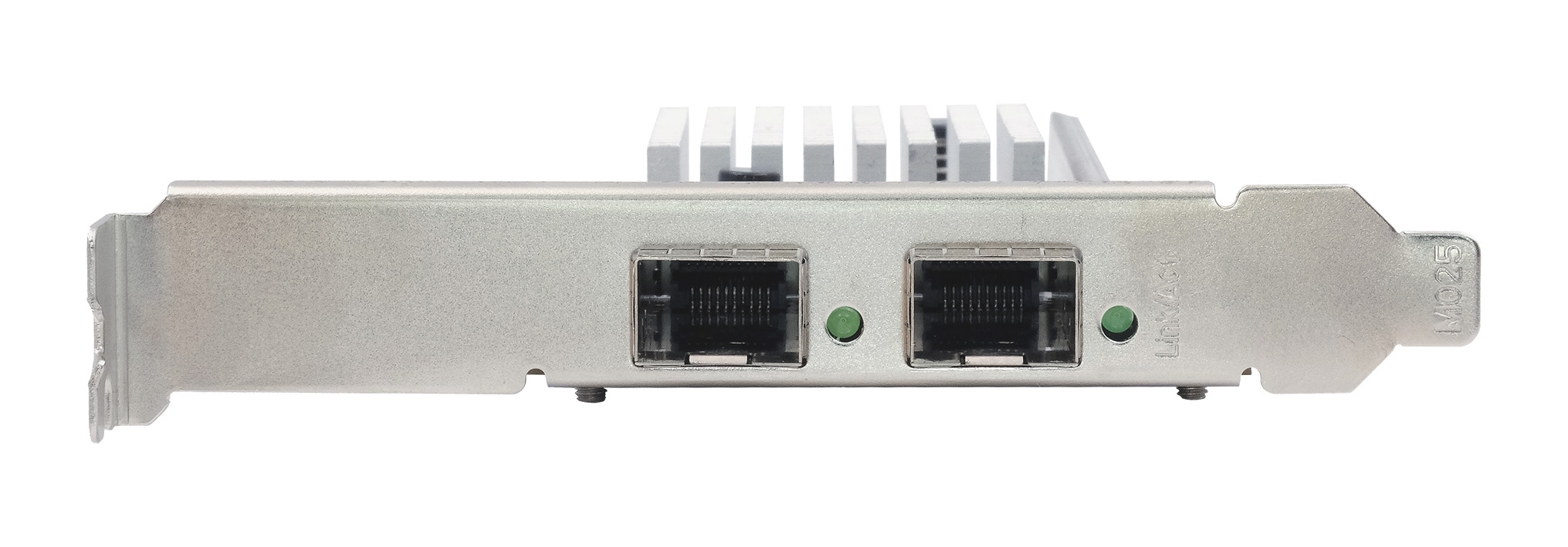

2 Port 10 Gigabit PCIe Network Controller SFP+, (Intel JL82599ES chipset)
The EX-60232 is a 10 Gigabit network controller with two SFP+ slots for the PCIe bus. It enables fast and reliable 10Gbps network access over longer distances than copper-based networks. With the SFP+ transceiver of your choice, you can connect your PCI Express-based server or workstation directly to your 10G fibre network. The Intel Ethernet controller ensures the highest quality and reliability.
- Supports common 10GbE SFP+ optical and Direct Attach Copper modules
- Supports 8-lane 2.5 + 5GT/s PCI Express bus
- Fully compatible with PCI Express 2.0
- Supports jumbo frames up to 9KBytes
- Automatic cross-over detection (MDI/ MDI-X)
- 802.1q VLAN support
- Supports Legacy and Message Signal Interrupt (MSI/MSI-X)
- IEEE 802.3 auto-negotiator - Automatic link configuration for speed duplex and flow control
- IP, TCP and UPD checksum offloading (IPv4, IPv6) capabilities
- IEEE 802.3az - Energy Efficient Ethernet (EEE)
- Active State Power Management (ASPM), MAC Power Management controls
- Reduced CPU utilization and improved throughput
- Original Intel chipset, new, not refurbished / B-goods
- Chipset: Intel JL82599ES

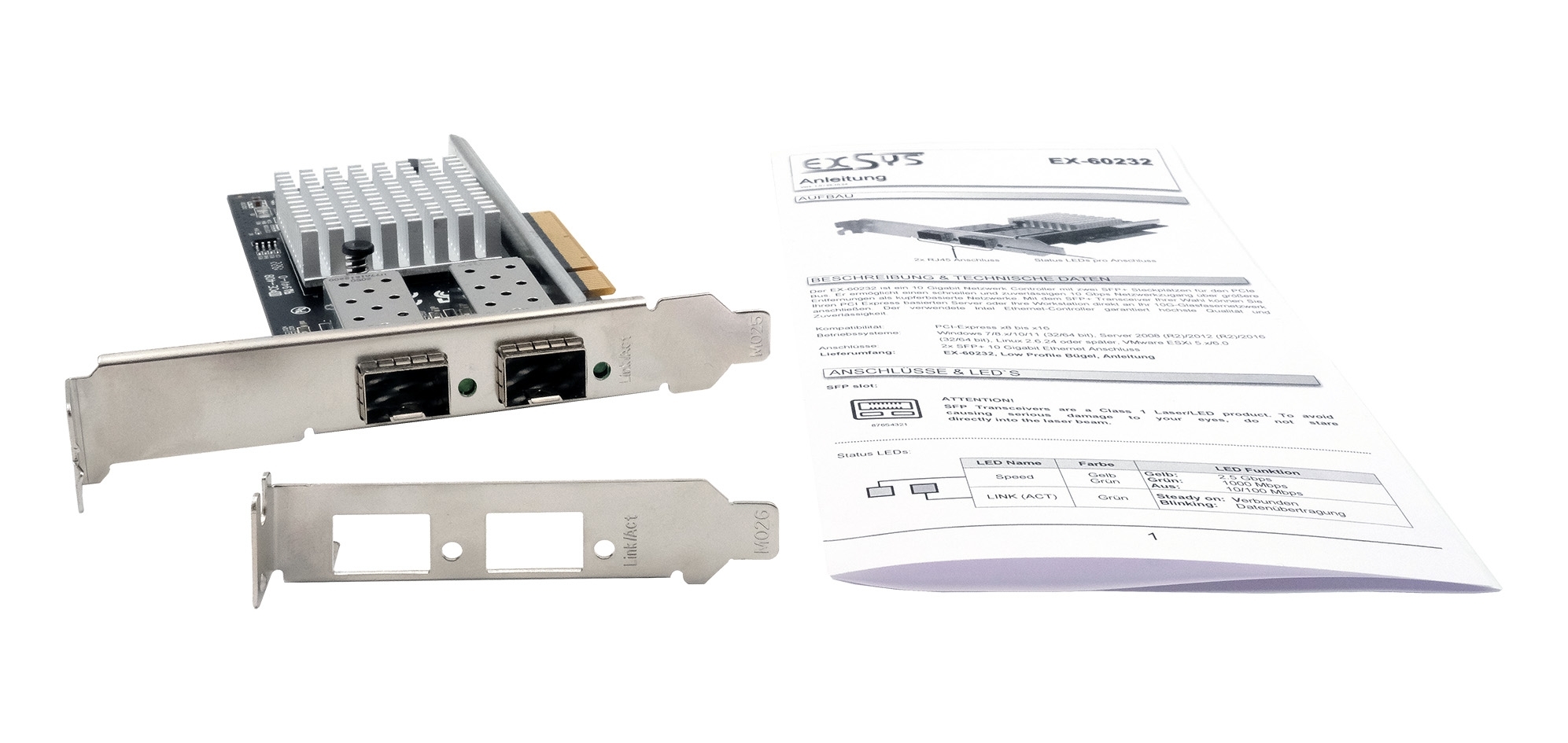

Packaging contents:
EX-60232, low profile bracket, manual
| Bus system: | PCIe x8 |
|---|---|
| Connections: | SFP+ |
| Data transmission: | 10GBase-T |
| Interface: | Ethernet |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 2 |
