4 Port 2.5 Gigabit PCIe Network card (4x Intel I225-V chipset)
Product number:
EX-60115
GTIN/EAN:
4718359601156
4 Port 2.5 Gigabit PCIe Network card (4x Intel I225-V chipset)

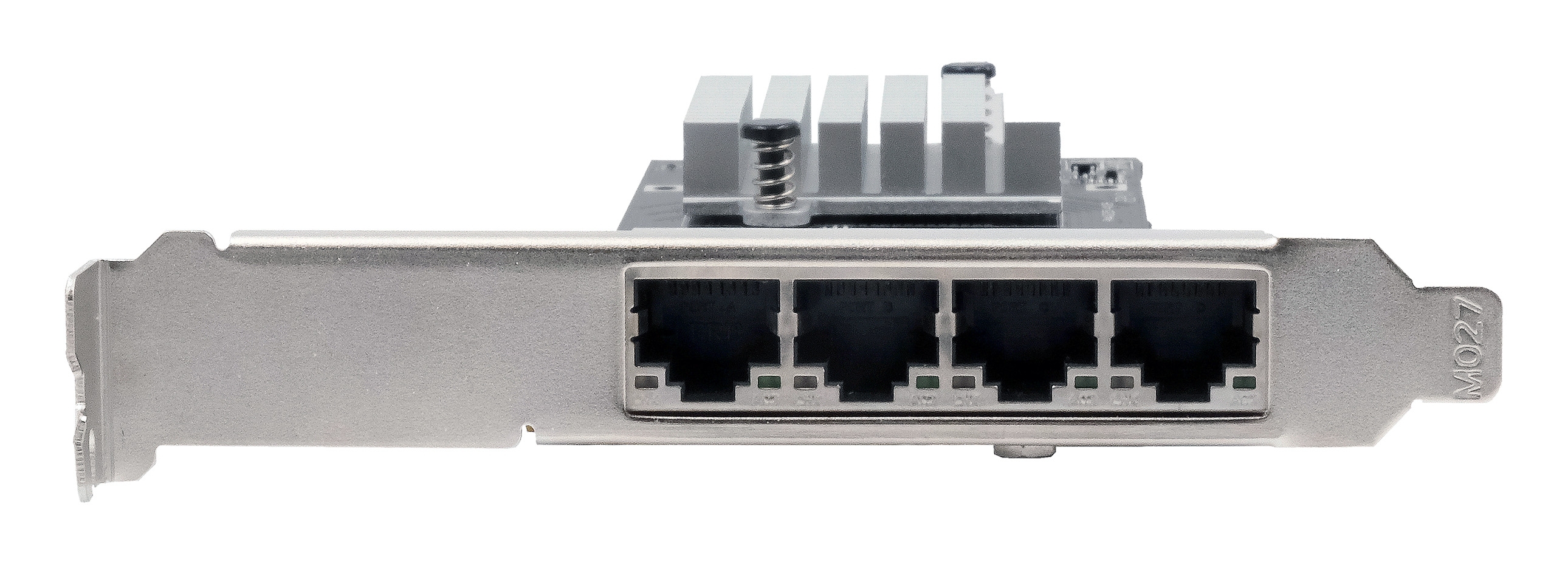

The EX-60115 is a 2.5 Gigabit Ethernet card with four RJ45 ports for the PCIe bus. It supports half and full duplex as well as auto-negotiation for automatic adaptation to the network speed (10/100/1000/2500 Mbit/s). Thanks to PCI-Express x4 with four lanes, sufficient bandwidth is available to provide the full performance of 2.5 Gbit/s on all four Ethernet ports simultaneously.
- Supports 10/100/1000/2500 Base-T Ethernet standard
- Supports 4-lane 2.5 + 5GT/s PCI Express bus
- Fully compatible with PCI Express 2.0
- Supports jumbo frames up to 9KBytes
- Automatic cross-over detection (MDI/ MDI-X)
- Supports Preboot eXecution Environment (PXE)
- Supports Legacy and Message Signal Interrupt (MSI/MSI-X)
- IEEE 802.3 auto-negotiator - Automatic link configuration for speed duplex and flow control
- Time-stamping and synchronization of time sensitive applications.
- Scalable I/O for Linux environments (IPv4, IPv6,TCP/UDP)
- IEEE 802.3az - Energy Efficient Ethernet (EEE)
- Active State Power Management (ASPM)
- MAC Power Management controls
- Full wake up support (APM/ACPI)
- Latency Tolerance Reporting (LTR)
- LED indicators for activity and data transfer mode
- Chipset: 4x Intel I225-V

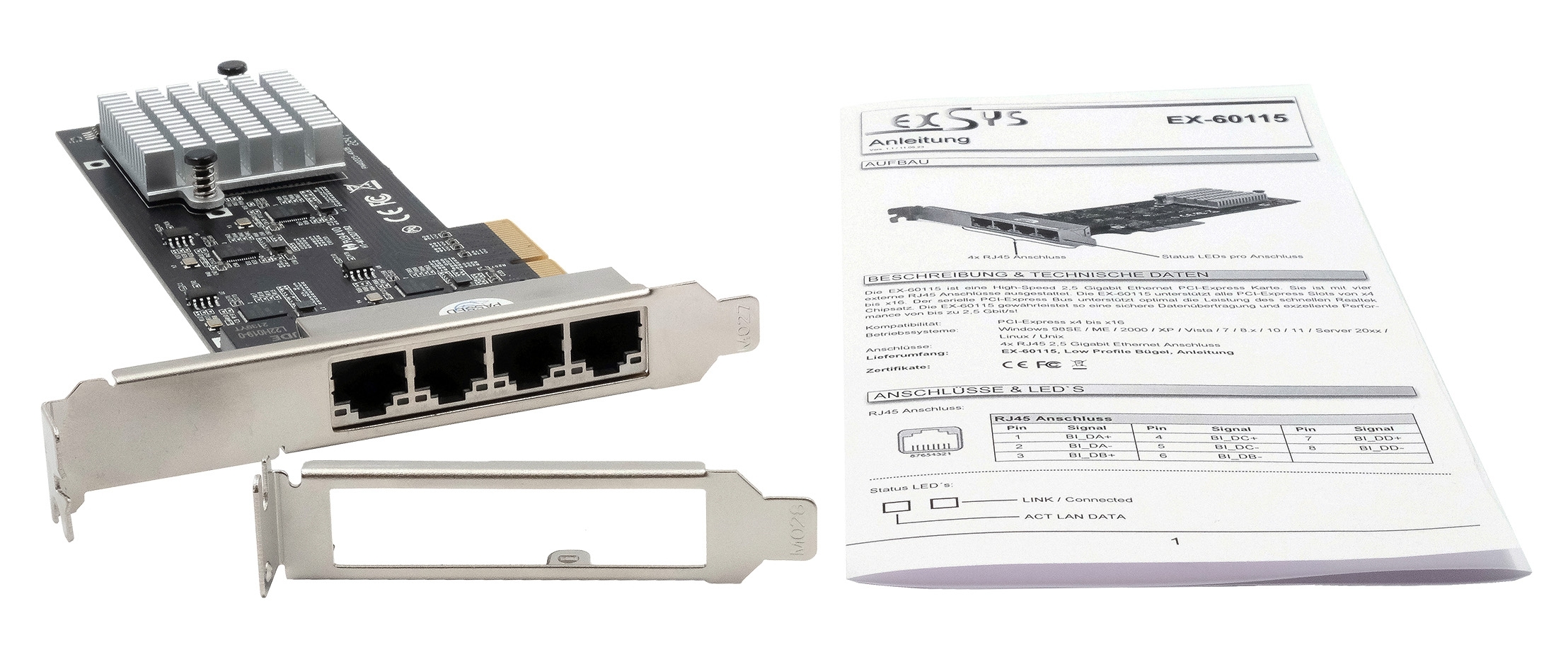

Packaging contents:
EX-60115, low profile bracket, manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | RJ45 |
| Data transmission: | 2.5GBase-T |
| Interface: | Ethernet |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 4 |
