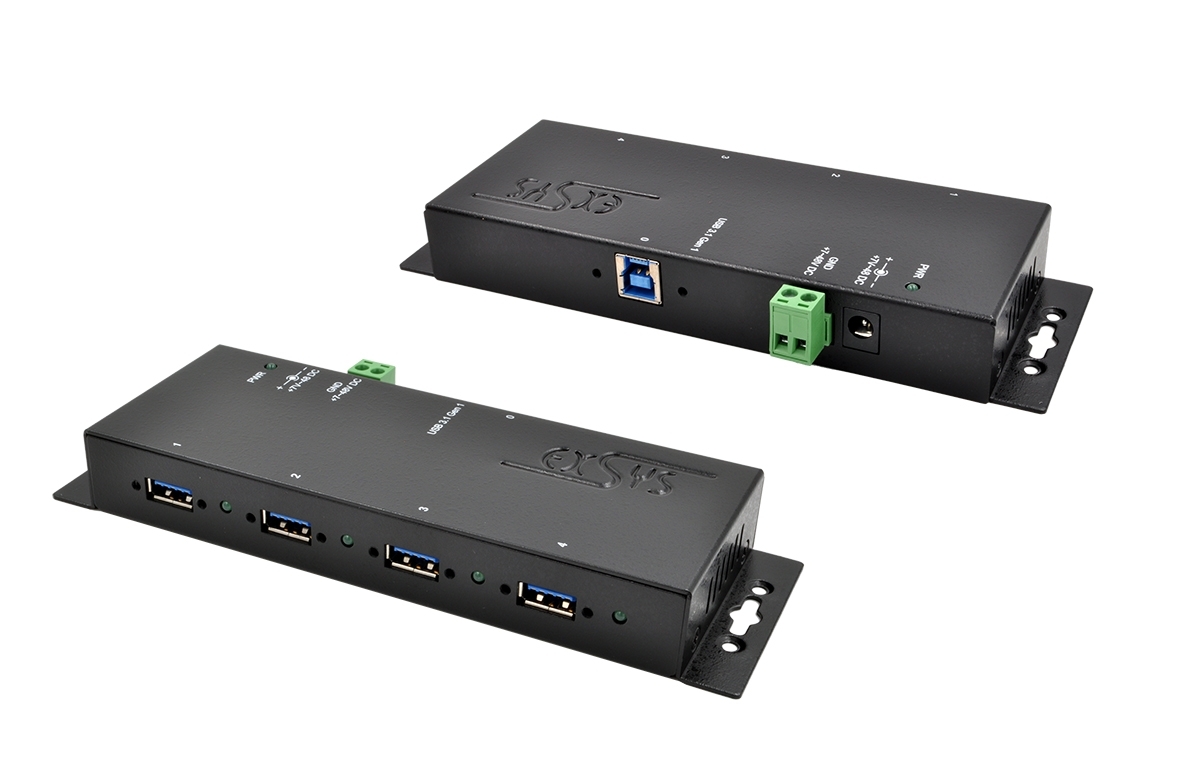

4 Ports USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection
Product number:
EX-1183HMVS-2
GTIN/EAN:
4718359118319
4 Ports USB 3.2 Gen 1 Metal HUB with 15KV ESD Surge Protection
The rugged industrial-grade EX-1183HMVS-2 is a USB 3.2 Gen 1 metal hub for up to four end devices. The hub provides four bolt-on USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It supports SuperSpeed USB 3.2 Gen 1 data transfer rate of up to 5Gbps and is backward compatible to USB 1.1. The included USB 3.2 Gen 1 cable can be attached to the EX-1183HMVS-2 with thumbscrews without a screwdriver. The EX-1183HMVS-2 can be powered via a DC Jack as well as a two-wire terminal block connector (+7V to +48V). The HUB meets the special requirements of industrial applications. Thanks to its special housing, the EX-1183HMVS-2 can be screwed to the wall, under a table or in a 19" cabinet (optional with EX-6099).

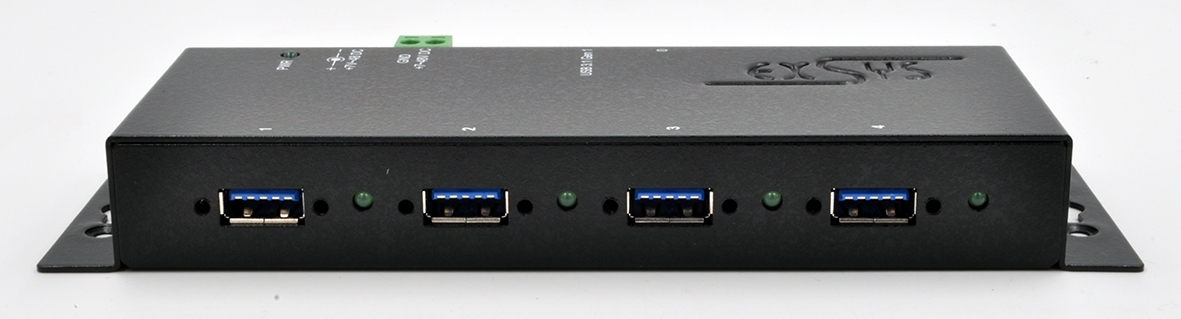

- USB 3.2 Gen 1 Metal HUB with 4 Ports
- 15KV ESD Surge Protection for all 4 Ports
- Protection of Devices against voltage fluctuation

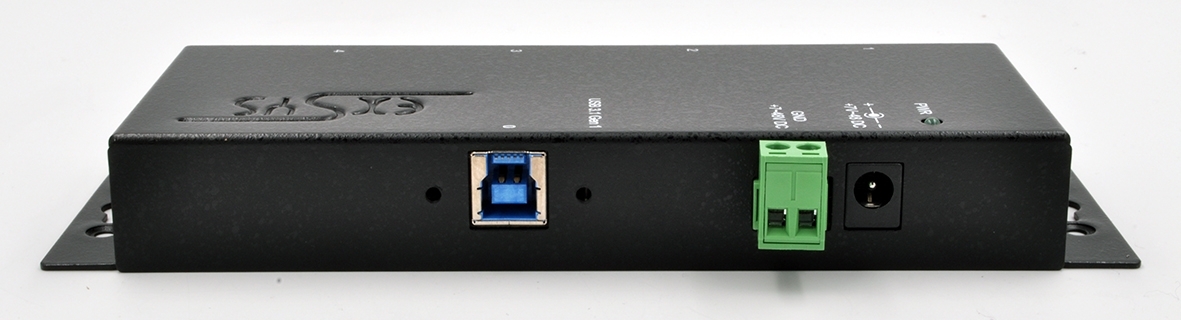

- Power +7V up to +48V DC over the DC-Connector or Terminal Block
- Power supply optionally also from the USB-Bus +5V (Bus-Power)
- Metal housing for wall, table or optional DIN-Rail (EX-6099)
- Automatic recognition of the data transfer rate for the attached external devices
- Supports 1.5A power for each output simultaneously (see detailed description on page 2)
- Supports BC v1.2: SDP/CDP/DCP Charging Modes
- Automatic detection of input polarity on the current terminal block
- Rugged Metal Case
- 1x LED Power-Indicator
- Two internal jumpers for individual mode control (data and power):
- Bus power jumper:
- ENA = bus power operation possible
- DIS = operation with power supply only (self power)
- Host control jumper:
- ON = Power supply independent of host PC
- HOST = Power supply only when host PC is switched on
- Bus power jumper:

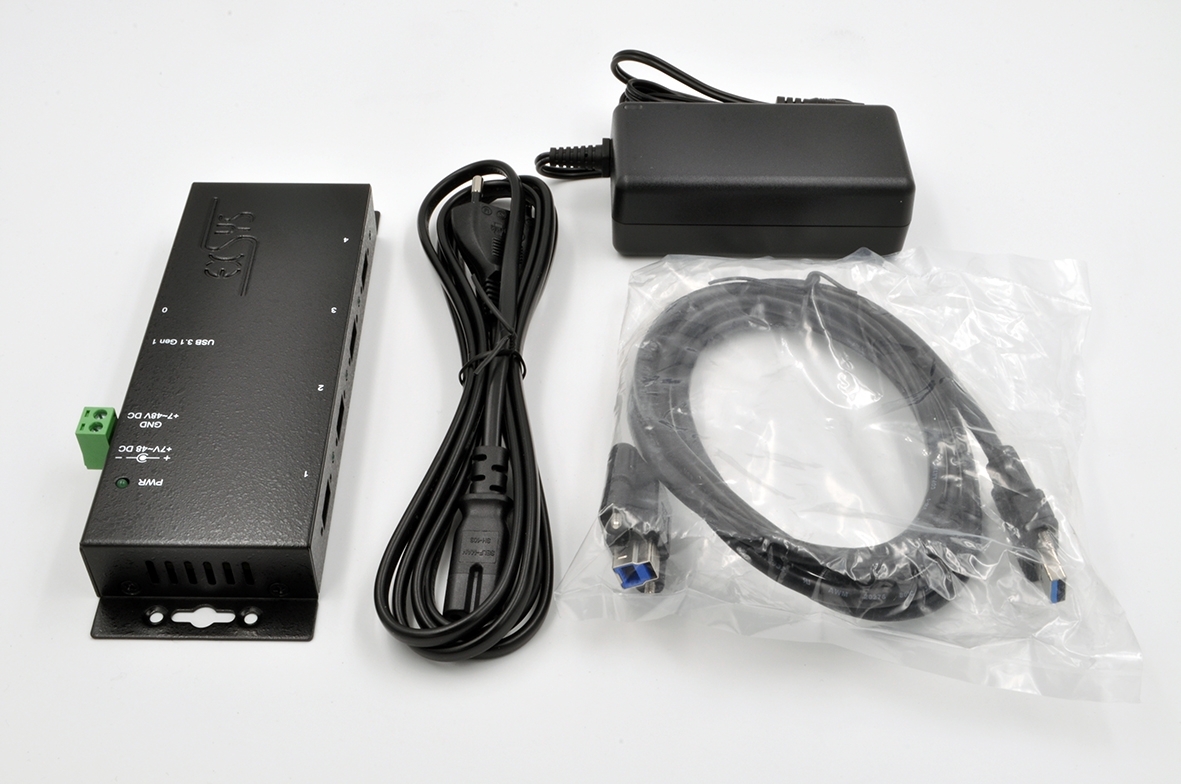

Packaging Contents:
EX-1183HMVS-2, Power Supply (12V/3A), USB 3.2 Gen 1 Cable, Manual
| Application: | Premium |
|---|---|
| Cable length: | 1.5m |
| Charging power total: | 30 W |
| Colour: | black |
| Data transmission: | 5 Gbps |
| Housing: | Metal |
| Inputs: | USB-B socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | Desktop |
| Number of ports: | 4 |
| Outputs: | 4x USB-A socket |
| Power connection: | DC Jack & TB 7-48V |
| Surge protection: | 15 KV ESD |
| Temperature range: | 0°C to +55°C |
Skip product gallery
CHF 36.90*
CHF 6.90*
CHF 11.90*
CHF 15.90*
accessories

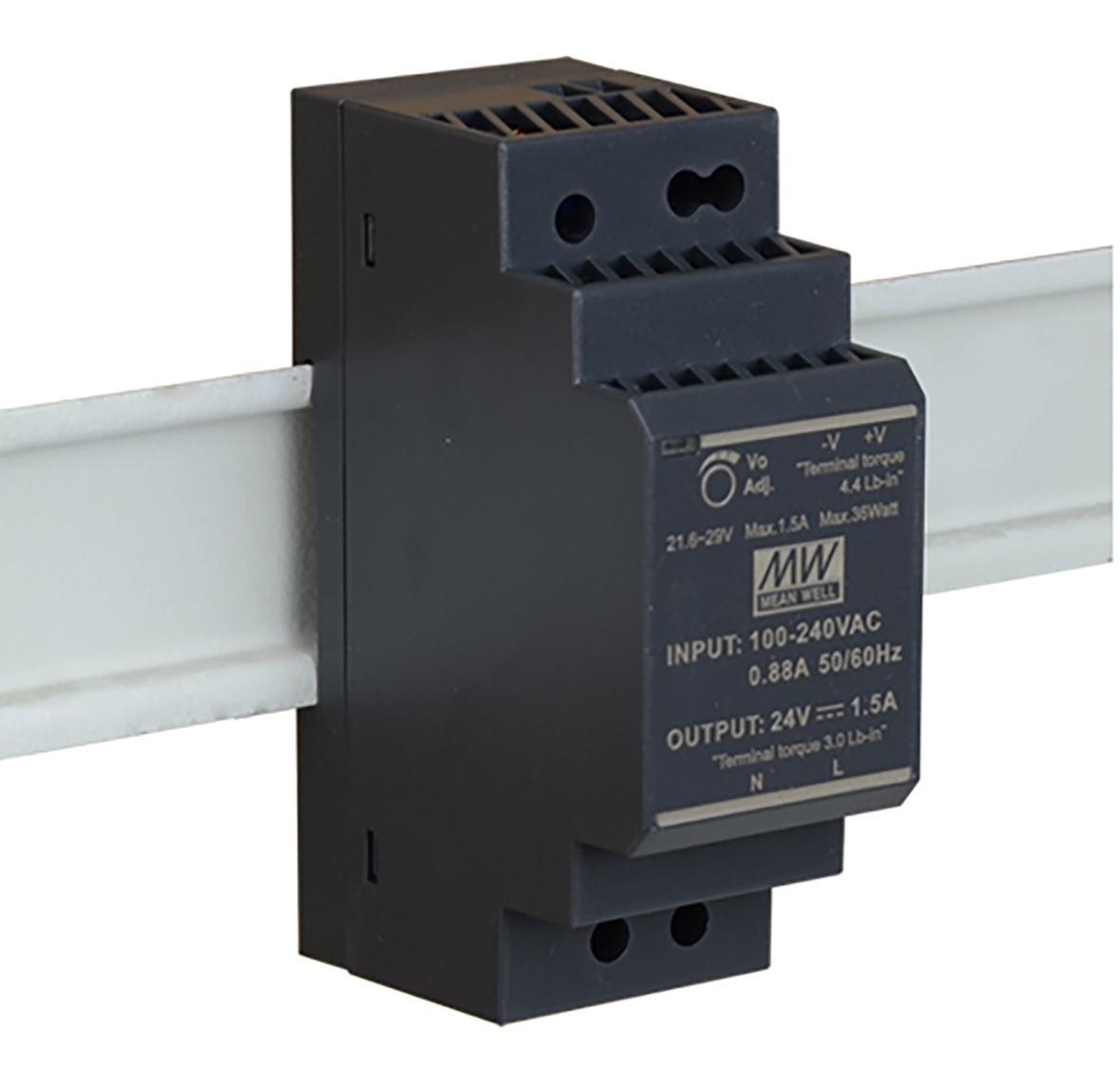

EX-6972
HDR-30-24 power supply for various USB 3.2 Gen 1 4 Port DIN-Rail USB HUB
HDR-30-24 – DIN Rail Power Supply for EX-1177HMV/S, 1177HMVS-WT, 1182VIS, 1185HMVS, 1185HMVS-WT, 1194HMS, 1195HMS
Output DC 24V/1.5A/36W
Input: 85 ~ 264VAC
Ulta slim design with 17.5mm (1SU) width
Universal input 85~264VAC
Plastic case, step shape
Isolation class II
Pass LPS (limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature: -30°~+70°C)
No load power consumption <0.3W
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for building automation and control of household appliance
Over voltage category II
LED indicator for power on

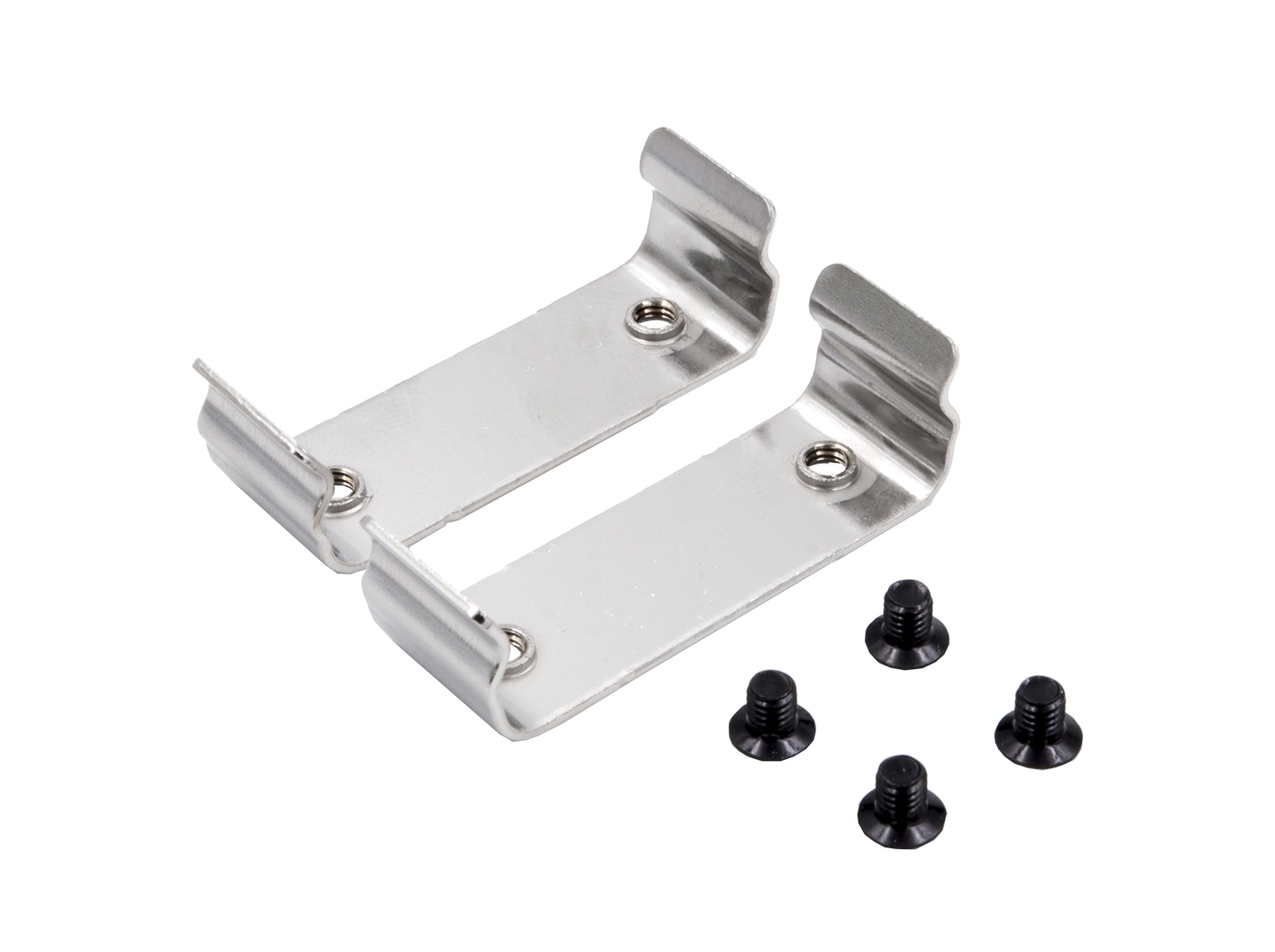

EX-6099
DIN-Rail Kit of Metal with thread
The EX-DIN-Rail it’s a Kit of Metal with thread for different industrial products for fix to DIN-Rail. The Kit include two metal bracket.
Applicable to EX-1166HMV, EX-1178, EX-1178S, EX-1178-W, EX-1188HMS, EX-1188HMS-3, EX-1189HMVS-3, EX-1189HMVS-3W, EX-1517HMVS, EX-1332HMV, EX-1333V, EX-1333VIS, EX-1334HMV-2, EX-1335HMV, EX-6031, EX-6031PoE, EX-6032, EX-6034, EX-6051

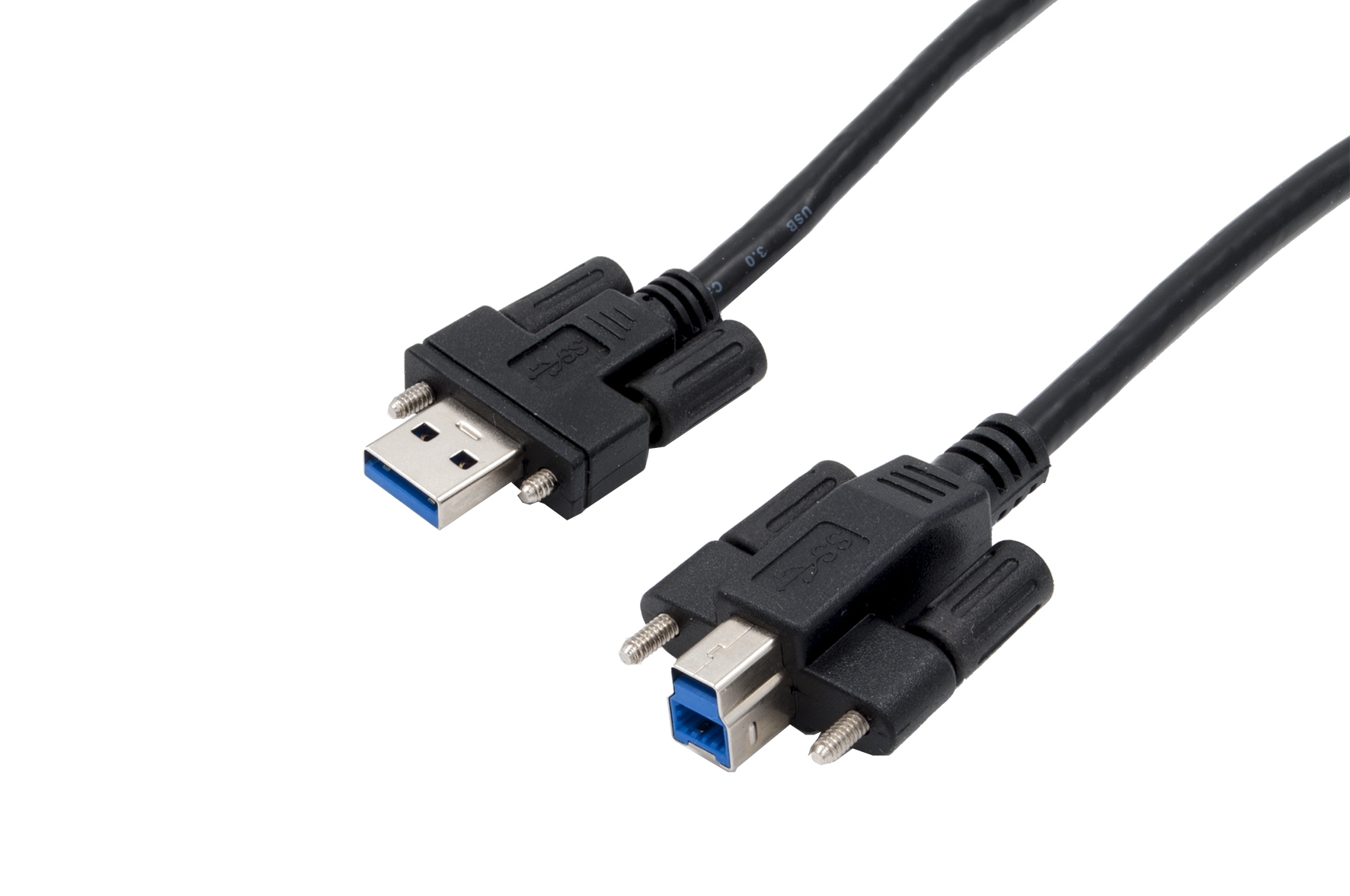

EX-K1571V
USB 3.2 Gen 1 cable A male and B male with screw lock, 1.5 meter
Connection cable USB 3.2 Gen 1 A male and B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 1.5 meters
EX-K1572V
USB 3.2 Gen 1 cable A male and B male with screw lock, 2.0m
Connection cable USB 3.2 Gen 1 A male and B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 2.0ms
