7 port USB 2.0 Metal HUB for DIN-Rail, Cable can screw lock
Product number:
EX-1177HMV
GTIN/EAN:
4718359117787
7 port USB 2.0 Metal HUB for DIN-Rail, Cable can screw lock
The rugged, industrial-grade EX-1177HMV USB hub with seven screw-lockable USB 2.0 outputs can be installed on the wall or on a support rail. It connects to a computer or server with the included USB 2.0 cable. It supports Hi-Speed USB 2.0 data transfer rate of up to 480 Mbps and is backward compatible to USB 1.1. It can be powered with USB bus power or via a two-wire terminal block connector (+7V to 24V).
- USB 2.0 HUB with seven screwable downstream USB 2.0 ports
- Power supply +7 to +24V DC via terminal block

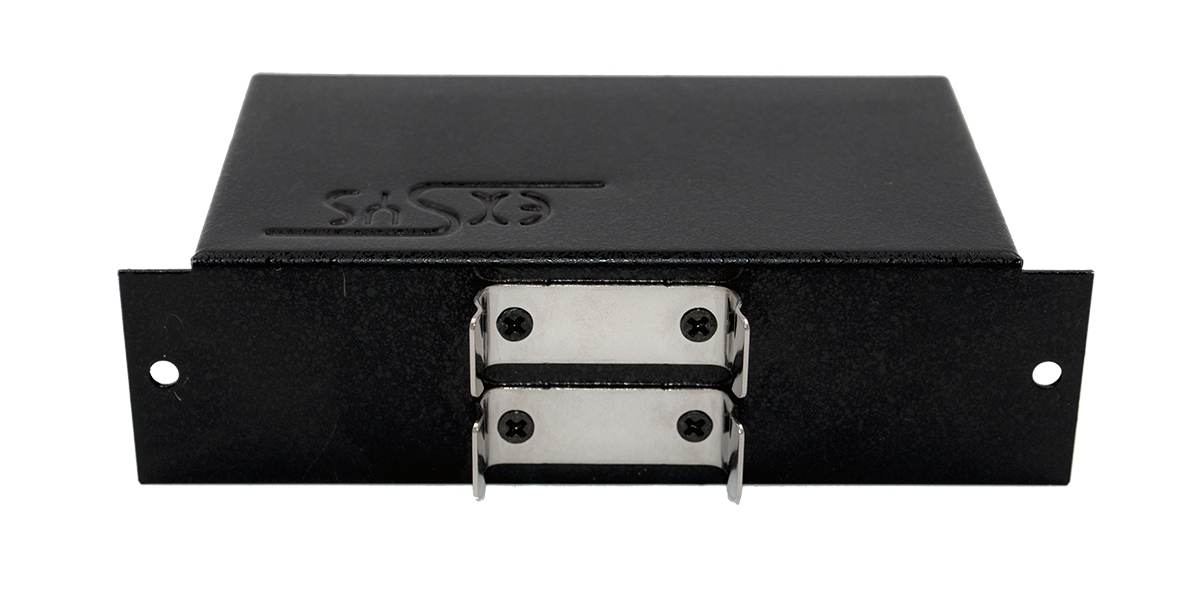

- User-friendly installation with the integrated DIN-Rail Kit
- Compact industrial design
- Automatic detection of the data transfer rate for the connected peripheral devices
- Power supply optionally from USB-BUS +5V (Bus-Power)
- Chipset: Terminus FE 2.1
- Internal jumper for individual control of power supply:
- ENA = bus power operation possible
- DIS = operation with power supply only (self power)
Packaging contents:

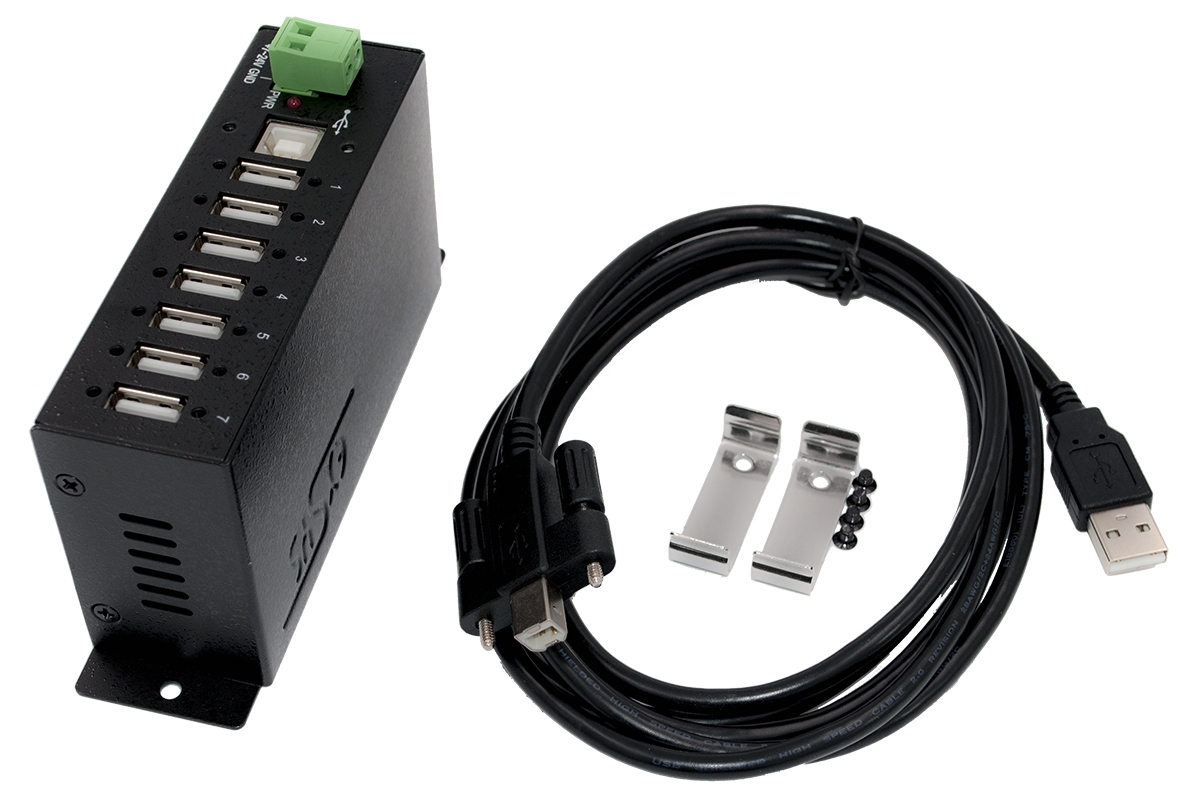

EX-1177HMV, USB 2.0 cable 2.0m, DIN-Rail Kit, Manual
| Application: | Industrial |
|---|---|
| Cable length: | 2.0m |
| Charging power total: | 17.5 W |
| Colour: | black |
| Data transmission: | 480Mbps |
| Housing: | Metal |
| Inputs: | USB-B socket |
| Interface: | USB 2.0 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 7 |
| Outputs: | 7x USB-A socket |
| Power connection: | TB 7-24V |
| Temperature range: | 0°C to +55°C |
Skip product gallery
CHF 36.90*
CHF 39.90*
CHF 5.90*
CHF 11.90*
CHF 15.90*
accessories
EX-6972
HDR-30-24 power supply for various USB 3.2 Gen 1 4 Port DIN-Rail USB HUB
HDR-30-24 – DIN Rail Power Supply for EX-1177HMV/S, 1177HMVS-WT, 1182VIS, 1185HMVS, 1185HMVS-WT, 1194HMS, 1195HMS
Output DC 24V/1.5A/36W
Input: 85 ~ 264VAC
Ulta slim design with 17.5mm (1SU) width
Universal input 85~264VAC
Plastic case, step shape
Isolation class II
Pass LPS (limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature: -30°~+70°C)
No load power consumption <0.3W
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for building automation and control of household appliance
Over voltage category II
LED indicator for power on
EX-6995

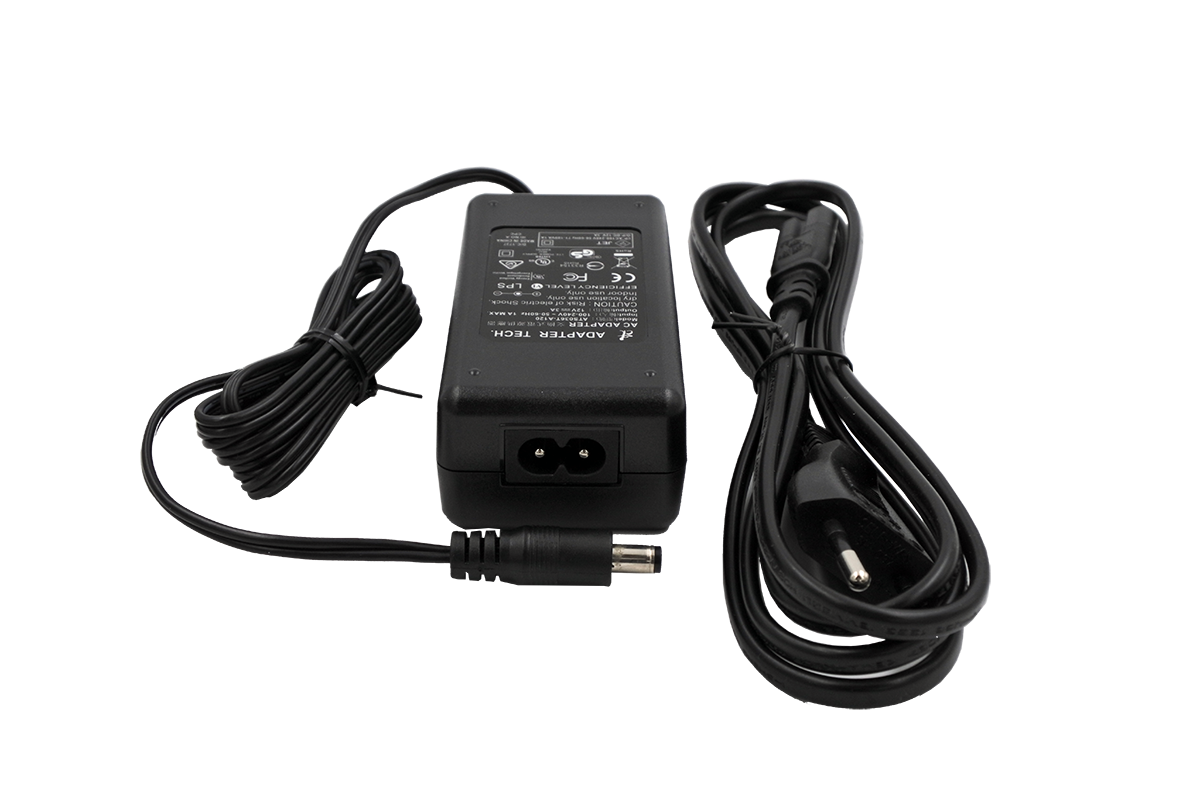

Power Supply 12V/3A, DC Jack diameter 5.5mm/2.1mm
Power supply unit with DC jack for powering various devices. Suitable for several EXSYS products.
Output: 12V/3A, 36W
Input: 100-240VDC / 50-60Hz, 1.0A
DC jack diameter: 5.5mm outside / 2.1mm inside
Positive pole inside
EX-K1110
DC Jack cable for connect to the Terminal Block
DC Jack cable for connecting plug power supplies to products with terminal block connection
EX-K1542V
USB 2.0 cable A-male to B-male with screw lock (2 meter length)
Connection cable USB 2.0 A male to B male with thumbscrews. The USB 2.0 connection cable offers a consistently high data transfer rate of up to 480Mbit/s thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer to various EXSYS products that have threaded B-type jacks.
Technical specification:
USB 2.0 connection cable
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 480 Mbit/s data transfer rate
USB 2.0 standard, downward compatible to USB 1.1
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
24mm knurled screw spacing
Shielding: braided and foil shielding
Color: Black
Length: 2.0ms
EX-K1545V

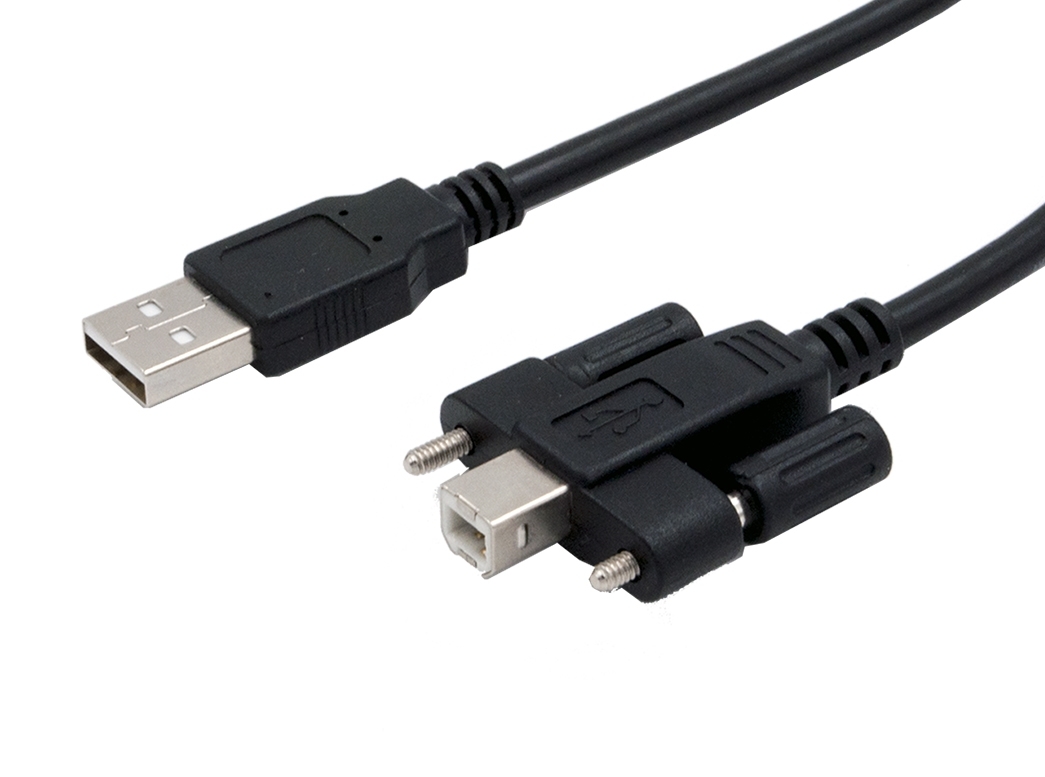

USB 2.0 cable A-male to B-male with screw lock (5 meter length)
