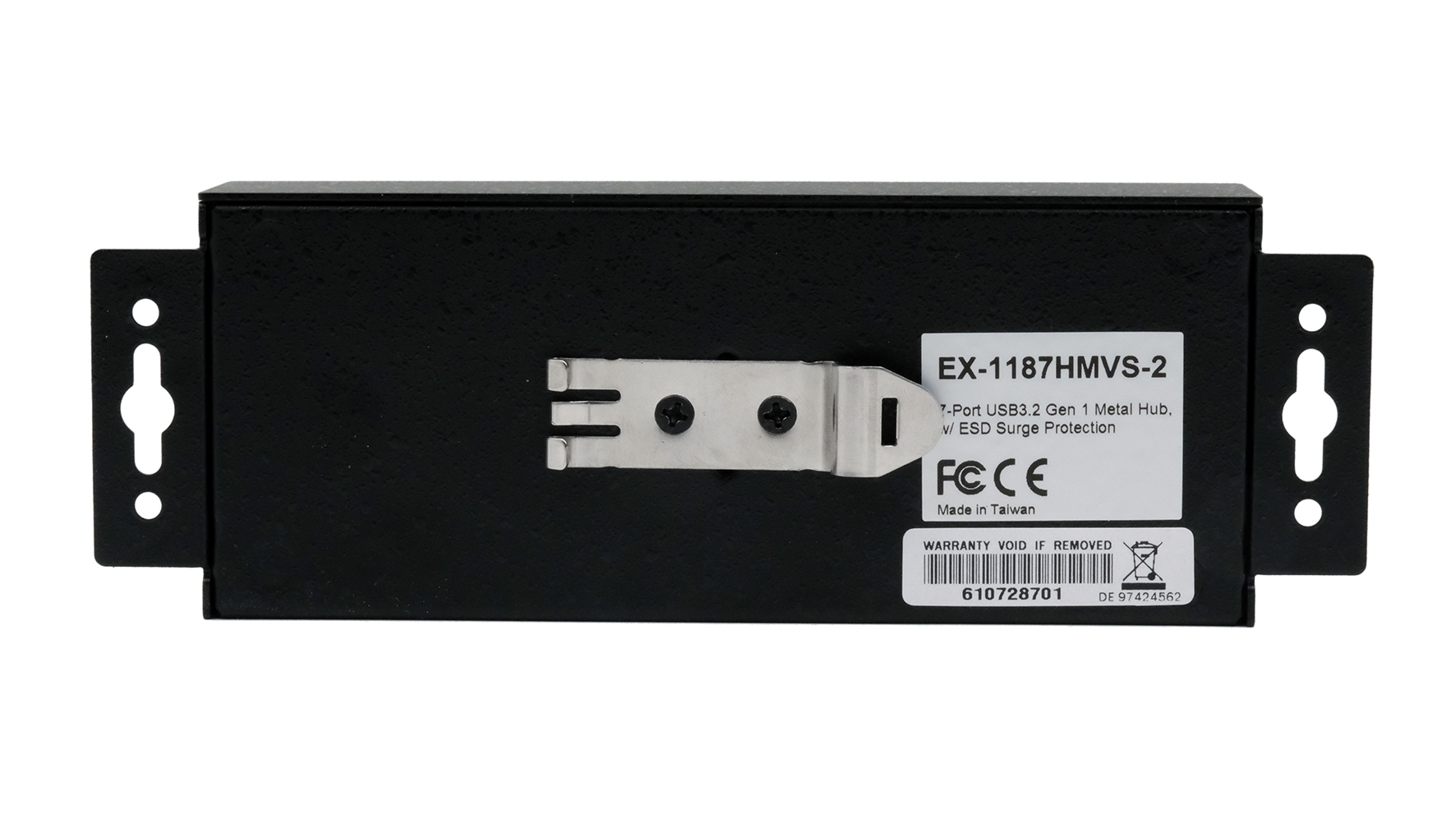

7 Port USB 3.2 Gen 1 HUB with 15KV ESD Surge Protection (DIN-Rail Kit)
Product number:
EX-1187HMVS-2
GTIN/EAN:
4718359118722
7 Port USB 3.2 Gen 1 HUB with 15KV ESD Surge Protection (DIN-Rail Kit)
The rugged and industrial-grade EX-1187HMVS-2 is a USB 3.2 Gen 1 metal hub for up to seven end devices. The hub provides seven screwable USB 3.2 Gen 1 downstream ports with 15KV ESD surge protection. It is thus possible to connect up to seven external USB peripherals to one USB 3.2 Gen 1 port from the computer in a 19" rack. The included USB 3.2 Gen 1 cable can be attached to the EX-1187HMVS-2 with thumbscrews without a screwdriver. The EX-1187HMVS-2 can be powered via a DC Jack (+7V to +48V) or via a two-wire terminal block connector (+7V to +48V). The HUB meets the special requirements of industrial applications.
- USB 3.2 Gen 1 Metal HUB with 7 Ports
- 15KV ESD Surge Protection for all 7 Ports
- Protection of Devices against voltage fluctuation
- Power +7V up to +48V DC over the Terminal Block
- Easy installation with the included DIN-Rail Kit
- Automatic recognition of the data transfer rate for the attached external devices
- Supports 900mA power for each output simultaneously
- Automatic detection of input polarity on the current terminal block
- Rugged Metal Case
- 1x LED Power-Indicator
- Chipset: Genesys
Packaging contents:
EX-1187HMVS-2, USB 3.2 Gen 1 cable, DIN-Rail Kit, Manual
| Application: | Industrial |
|---|---|
| Cable length: | 1.5m |
| Charging power total: | 31.5 W |
| Colour: | black |
| Data transmission: | 5 Gbps |
| Housing: | Metal |
| Inputs: | USB-B socket |
| Interface: | USB 3.2 Gen 1 |
| Mounting Type: | DIN-Rail |
| Number of ports: | 7 |
| Outputs: | 7x USB-A socket |
| Power connection: | DC Jack & TB 7-48V |
| Surge protection: | 15 KV ESD |
| Temperature range: | 0°C to +55°C |
Skip product gallery
CHF 49.90*
CHF 39.90*
CHF 11.90*
CHF 15.90*
accessories
EX-6973
HDR-60-24 power supply for various USB 3.2 Gen 1, 7 Port DIN-Rail USB HUB
HDR-60-24 – 60W DIN Rail Power Supply for EX-1186HMVS, 1187HMVS, 1187HMVS-WT, 1196HMS, 1197HMS
Output DC 24V/2.5A/60W
Input: 85 ~ 264VAC
Universal input 85~264VAC
Plastic case, step shape
Isolation class II
Pass LPS (limited power source)
DC output voltage adjustable
Protections: Short circuit / Overload / Over voltage
Cooling by free air convection (working temperature: -30°~+70°C)
No load power consumption <0.3W
Assemble on industrial rail TS-35 / 7.5 or 15
Suitable for building automation and control of household appliance
Over voltage category II
LED indicator for power on
EX-6995
Power Supply 12V/3A, DC Jack diameter 5.5mm/2.1mm
Power supply unit with DC jack for powering various devices. Suitable for several EXSYS products.
Output: 12V/3A, 36W
Input: 100-240VDC / 50-60Hz, 1.0A
DC jack diameter: 5.5mm outside / 2.1mm inside
Positive pole inside
EX-K1571V
USB 3.2 Gen 1 cable A male and B male with screw lock, 1.5 meter
Connection cable USB 3.2 Gen 1 A male and B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 1.5 meters
EX-K1572V
USB 3.2 Gen 1 cable A male and B male with screw lock, 2.0m
Connection cable USB 3.2 Gen 1 A male and B male with thumbscrews. The USB 3.2 Gen 1 connection cable provides a consistently high data transfer rate of up to 5Gbps thanks to the combination of a high-quality cable construction and connectors with copper contacts.
The USB cable connects the computer that has a threaded A connector and the various EXSYS products that have threaded B connectors.
Technical specification:
USB 3.2 Gen 1 (USB 3.0) Connector Cable.
Connectors: USB male A to USB male B screwable with thumbscrews.
Hi-Speed, up to 5Gbit/s data transfer rate
USB 3.2 Gen 1 standard, downward compatible to USB 2.0
Cable material and contacts made of 99.9% oxygen-free copper (OFC)
Cable diameter: 4.5 mm
Conductor cross section: AWG28
Space about knurled screw from the A-male connector its 19mm
Space about knurled screw from the B-male connector its 24mm
Shielding: braided and foil shielding
Color: Black
Length: 2.0ms
