Expansion Box Thunderbolt 3 / USB 4 to 3x PCIe Slots, short cards
Product number:
EX-1019
GTIN/EAN:
4718359010194
Expansion Box Thunderbolt 3 / USB 4 to 3x PCIe Slots, short cards

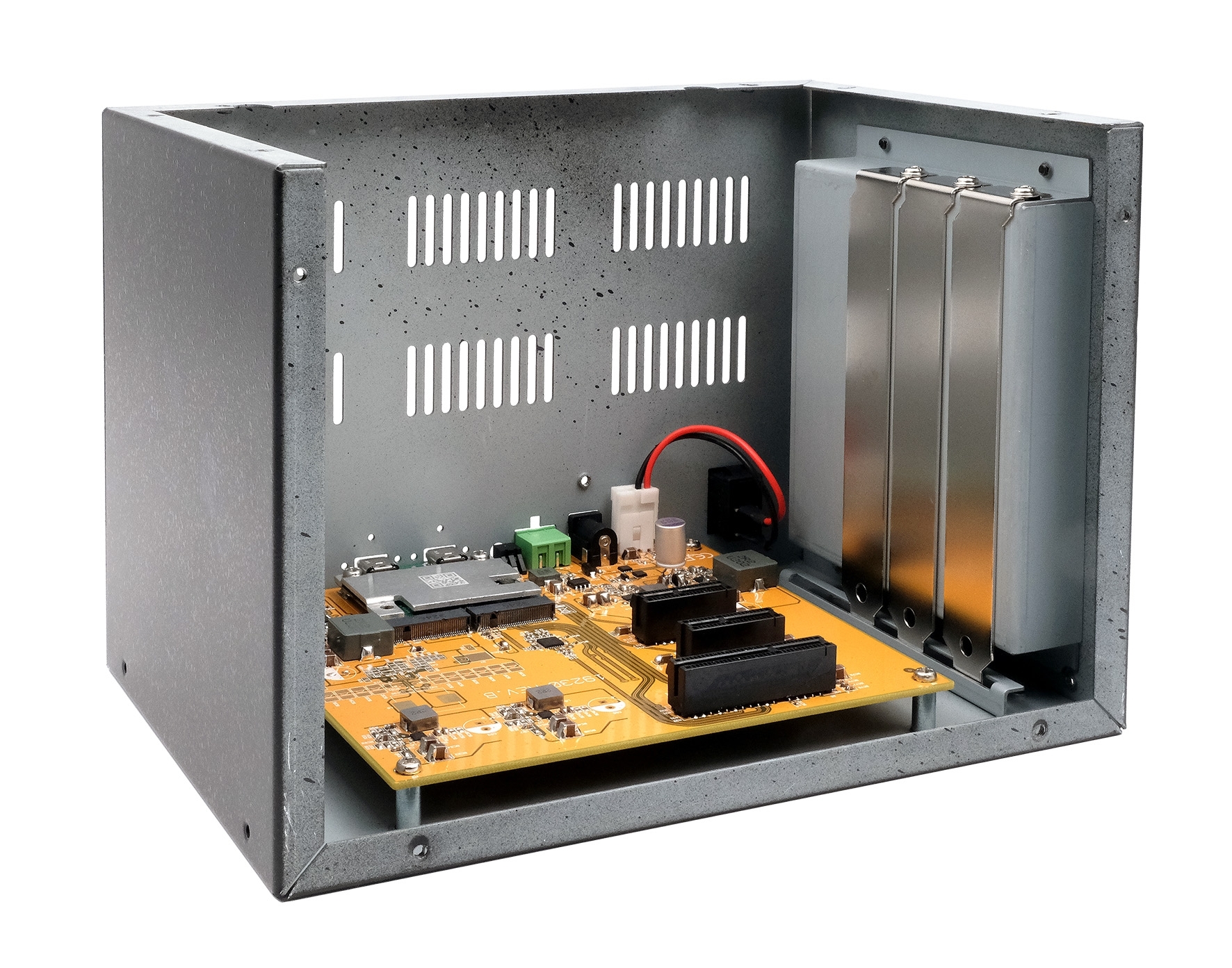

The EX-1019 is an external expansion box with three half-length PCI Express slots for connection to a computer with a Thunderbolt 3/4 or USB 4 port. It has one 2-lane and two 1-lane PCI Express slots with 5 & 3.3 volts, e.g. for NVMe drives, graphics processors or special PCIe cards for professional applications. Power can be supplied either via a plug-in power supply or via the terminal block (20-24VDC). No drivers or software are required for installation.
- 3x PCIe half-length slots, expandable from the computer via Thunderbolt 3/4 or USB 4 port

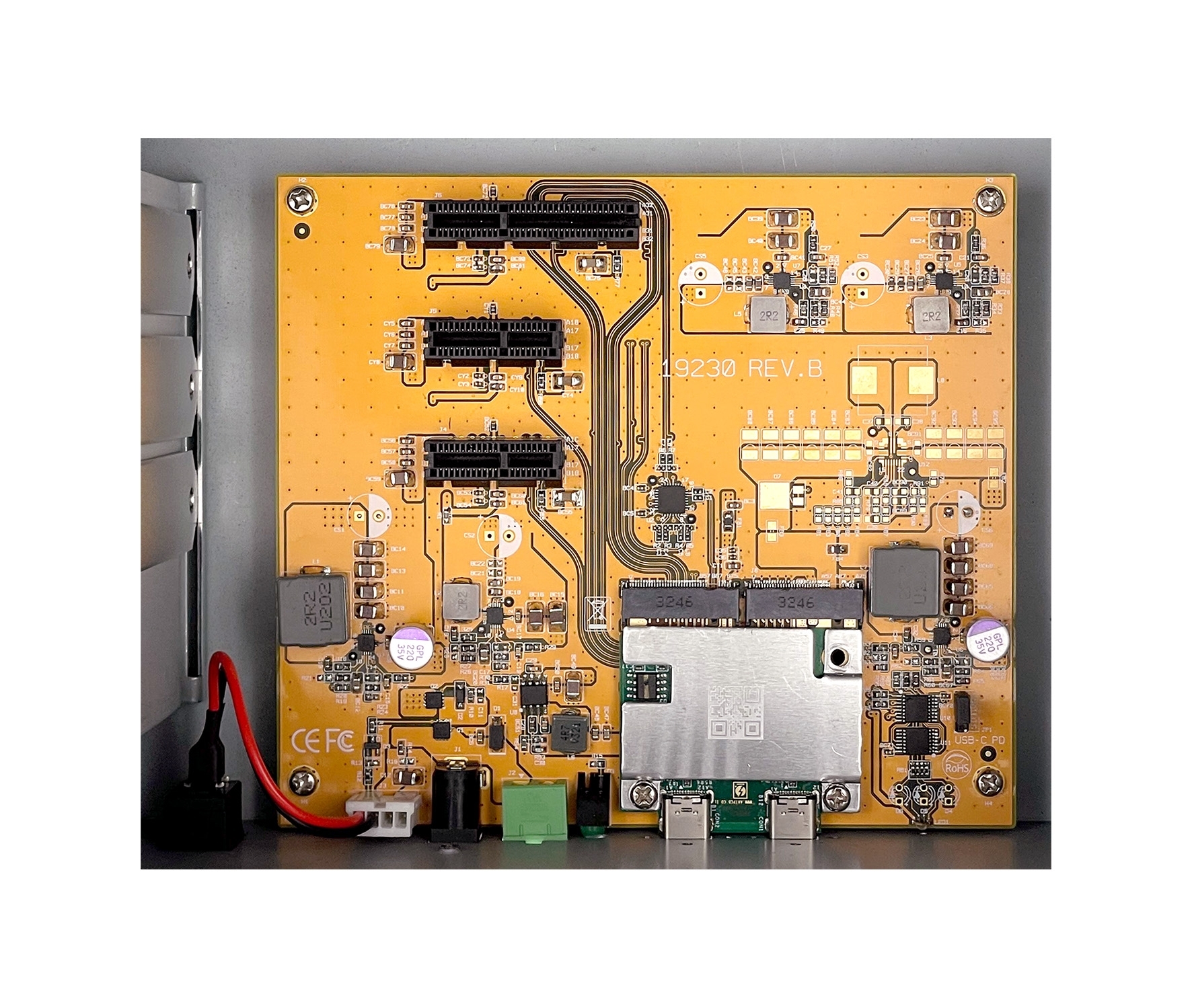

- 2x PCIe x1 (1-lane, data rate: 8 GT/s), 1x PCIe x2 (2-lane, data rate: 16 GT/s)
- Supports both 5V and 3.3V ADD-ON cards
- Fully compliant with PCI Express 3.0 specification

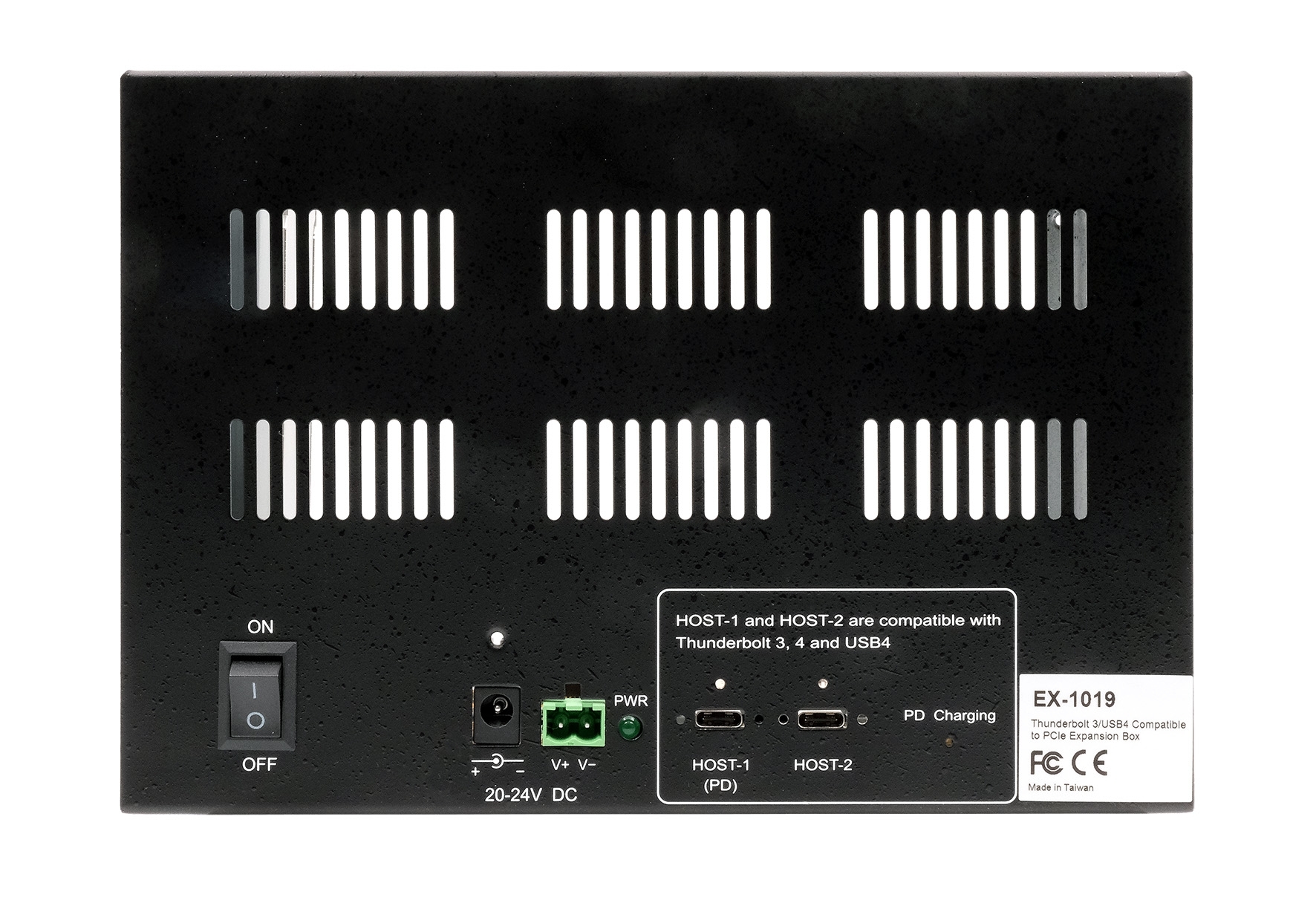

- Additional Thunderbolt 3 / USB 4 port for daisy-chaining or peripherals
- Supports data transfer rates up to 40Gbps
- Power supply: 20-24 VDC via DC Jack or terminal block
- Integrated USB-C PD controller up to 60W, e.g. for charging the host notebook
- Rugged metal housing, suitable for industrial applications
- Power LED indicator
Packaging contents:

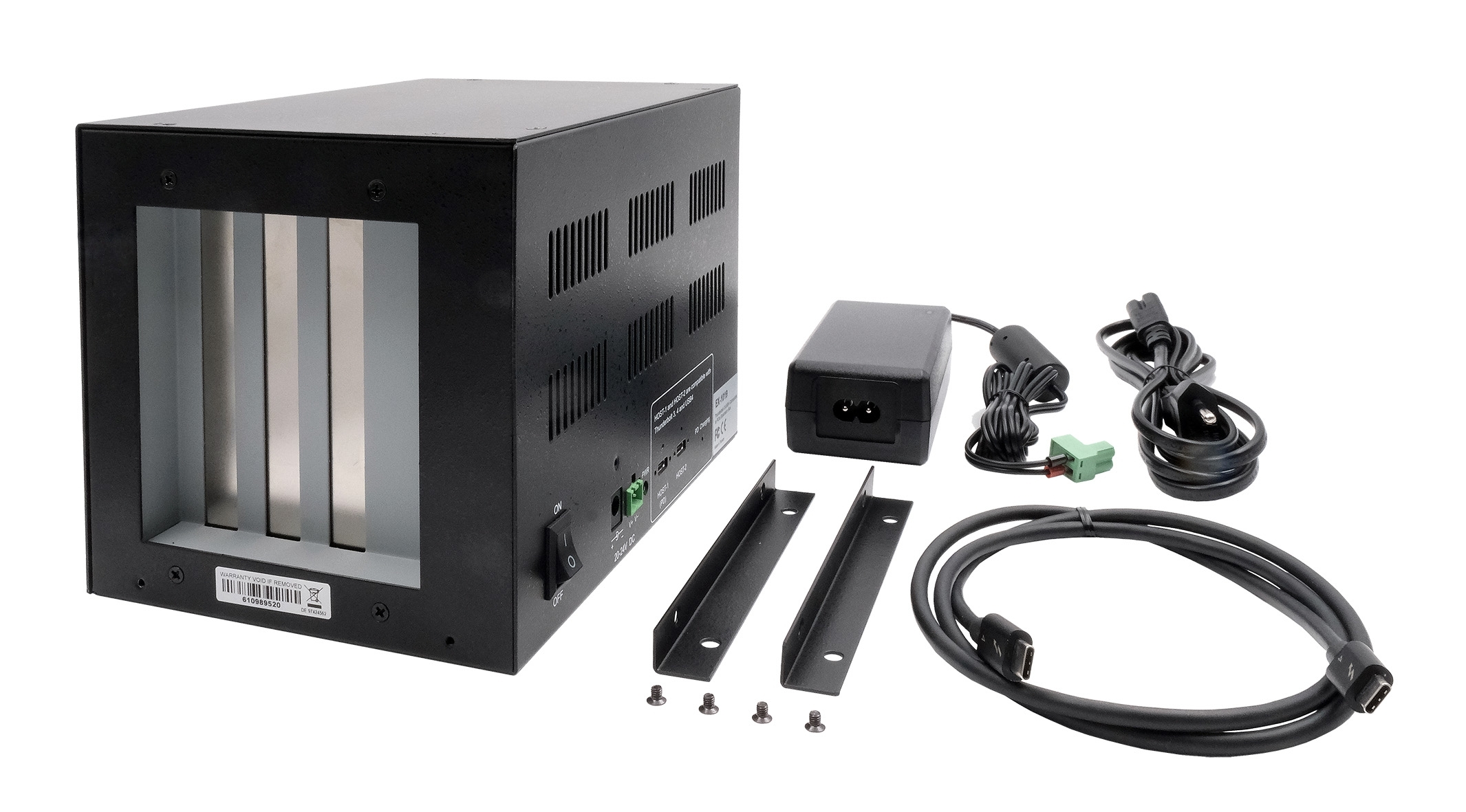

EX-1019, USB-C cable (Thunderbolt 3 / USB 4) 1.0 m, power supply 20V/3.25A, mounting brackets, manual
| Bus system: | PCIe |
|---|---|
| Connections: | 2x PCIe x1, 1x PCIe x2 |
| Host card: | Thunderbolt 3/USB 4 |
| Housing: | Metal |
| Number of ports: | 3 |
| Power connection: | DC Jack & TB 20-24V |
