Mini 5-Port Industrial Gigabit PoE+ Switch, Web-Managed
Product number:
EX-62030MPOE
GTIN/EAN:
4718359620300
Mini 5-Port Industrial Gigabit PoE+ Switch, Web-Managed

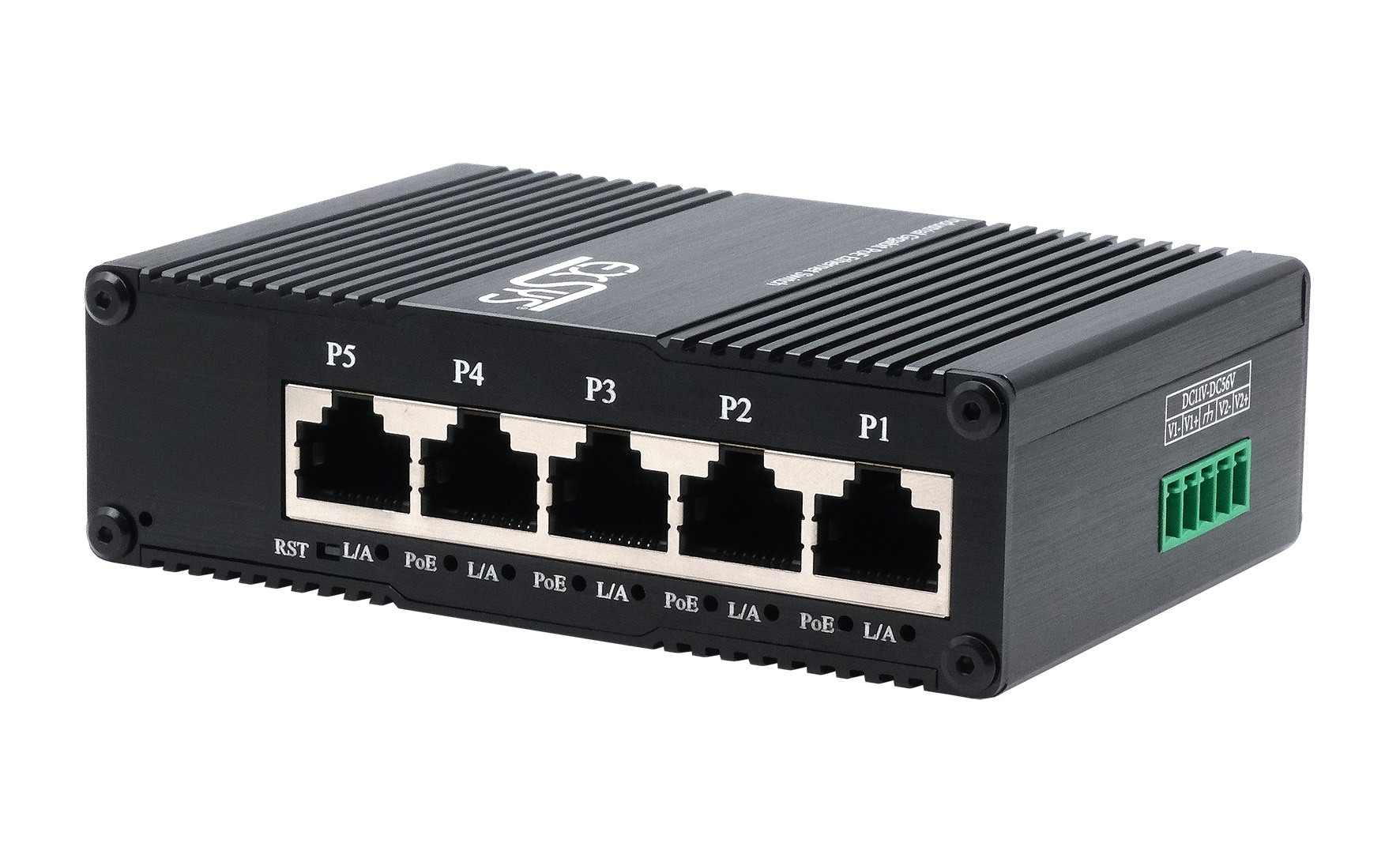

The compact, industrial-grade 5-port Gigabit web-managed PoE switch EX-62030MPoE offers full Gigabit performance on all ports despite its small external dimensions. Up to 30W is available on four of the five RJ45 ports for connecting PoE-powered devices (PD) such as IP cameras or IP telephones. The user-friendly, web-based management interface of the EX-62030MPoE allows for quick and convenient setup, configuration and management, including configuration backups and firmware upgrades. Thanks to its robust metal housing and an extended operating temperature range of -40°C to 75°C, it is suitable for a wide range of applications, even in harsh environments. Power is supplied via the terminal block (12-48VDC) and can also be provided redundantly to reduce operational downtime. A DIN-Rail kit (pre-assembled) and a wall mounting bracket are included in the scope of delivery.
- 5x 10/100/1000Tx RJ45 ports
- Web-managed: Browser-based access for easy installation and management
- Power supply for up to 4 PoE-enabled remote network devices, transmits data and power over the same cable
- Fully compatible with IEEE 802.3af PoE (PSE) Type 1 = 15.40W and IEEE802.3at PoE+ (PSE) Type 2 = 34.20W
- Maximum power output (PD): Type 1 = 12.95W / Type 2 = 25.50W
- Compliant with IEEE 802.3af/at Power Over Ethernet (PoE), Mode/Alternative B
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex
- Supports jumbo frames up to 16kBytes
- Terminal block for redundant DC input, 2x 12V to 48VDC
- Robust, very compact metal housing, IP40

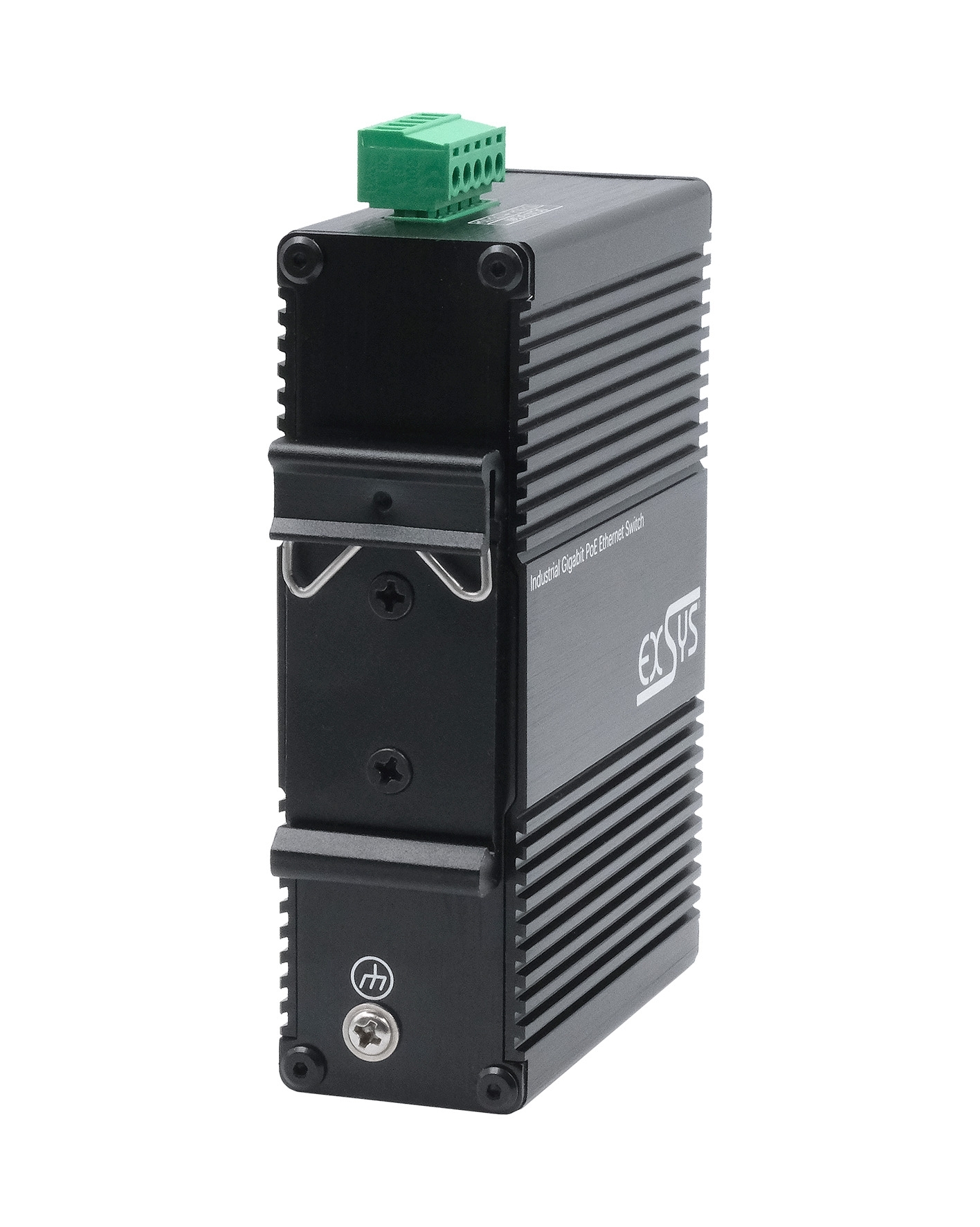

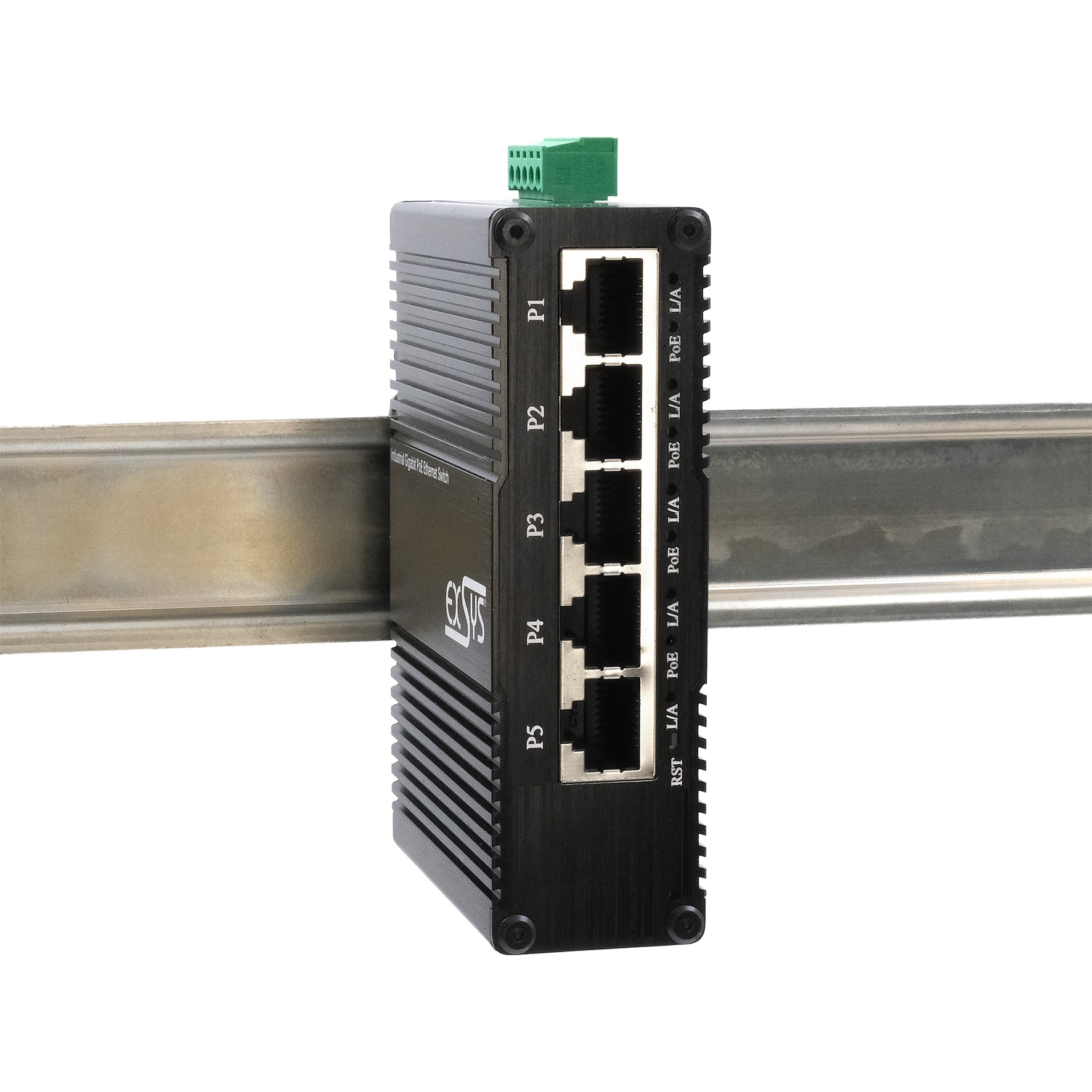

- Includes DIN-Rail kit and wall mounting bracket
- Extended operating temperature range from -40°C to +75°C
Delivery contents:

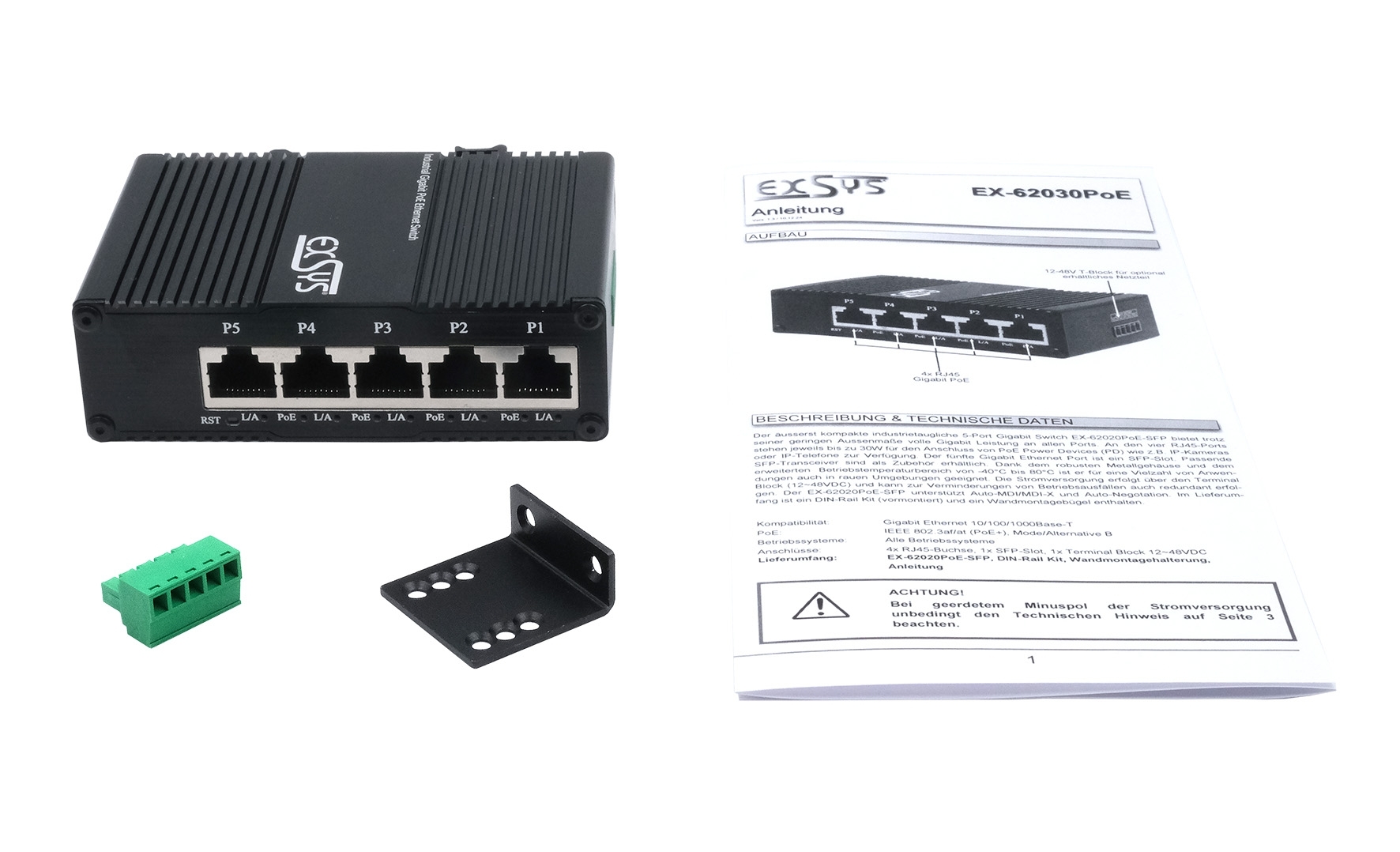

EX-62030MPoE, DIN-Rail kit (pre-assembled), wall mounting kit, manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Design: | Compact |
| Interface: | Ethernet |
| Mounting Type: | DIN-Rail |
| Number of ports: | 8+2 |
| PoE Budget: | 120W |
| Power connection: | TB 12-48V |
| Power over Ethernet: | Yes |
| Temperature range: | -40°C to +75°C |
