PC to PC connection over RS-232 signal up to 50 meter with Cat. 5/6 cable (DTE - DTE)
Product number:
EX-47961
GTIN/EAN:
4718359479618
PC to PC connection over RS-232 signal up to 50 meter with Cat. 5/6 cable (DTE - DTE)

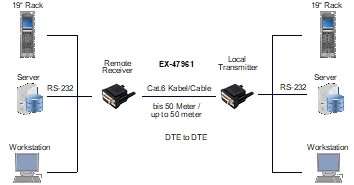

The EX-47961 RS-232 DTE to DTE extender (extender) can be used for any PC, workstation or server with an RS232 interface. The EX-47961 can be used to connect two computers (DTE to DTE) together. It is equipped with 9 pin female connectors that can be directly connected to the RS-232 serial ports of the PC. It extends the RS-232 signals up to a maximum length of 50 meters. A Cat. 5 or 6 network cable is required for transmission between the transmitter and receiver. The EX-47961 works without a power supply. The thumbscrews can be removed without tools and replaced with the supplied nuts.
Serial Port:
- Extender for the RS-232 signal up to 50 meters with 230.4Kbps
- Parity: None, Odd, Even, Mark, Space
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 2
- RS-232 Pins: RX, TX, GND, RTS, CTS
RJ-45 Port:
- Compatible with all RS-232 protocols
- Full-duplex Data Communication
- Pure hardware solution, real-time Data Transfer
- No software configuration
- No power supply needed
Packaging contents:
EX-47961, 1x Master and 1x Slave, Screw Nuts, Manual
| Housing: | Plastic |
|---|---|
| Inputs: | 9-pin plug / RJ45 |
| Interface: | RS-232 |
| Number of ports: | 1 |
| Outputs: | 9-pin plug / RJ45 |
| Temperature range: | 0°C to +55°C |
