PCIe 4x Ethernet 1Gigabit Card (one chip per port)
Product number:
EX-6083
GTIN/EAN:
4718359060830
PCIe 4x Ethernet 1Gigabit Card (one chip per port)

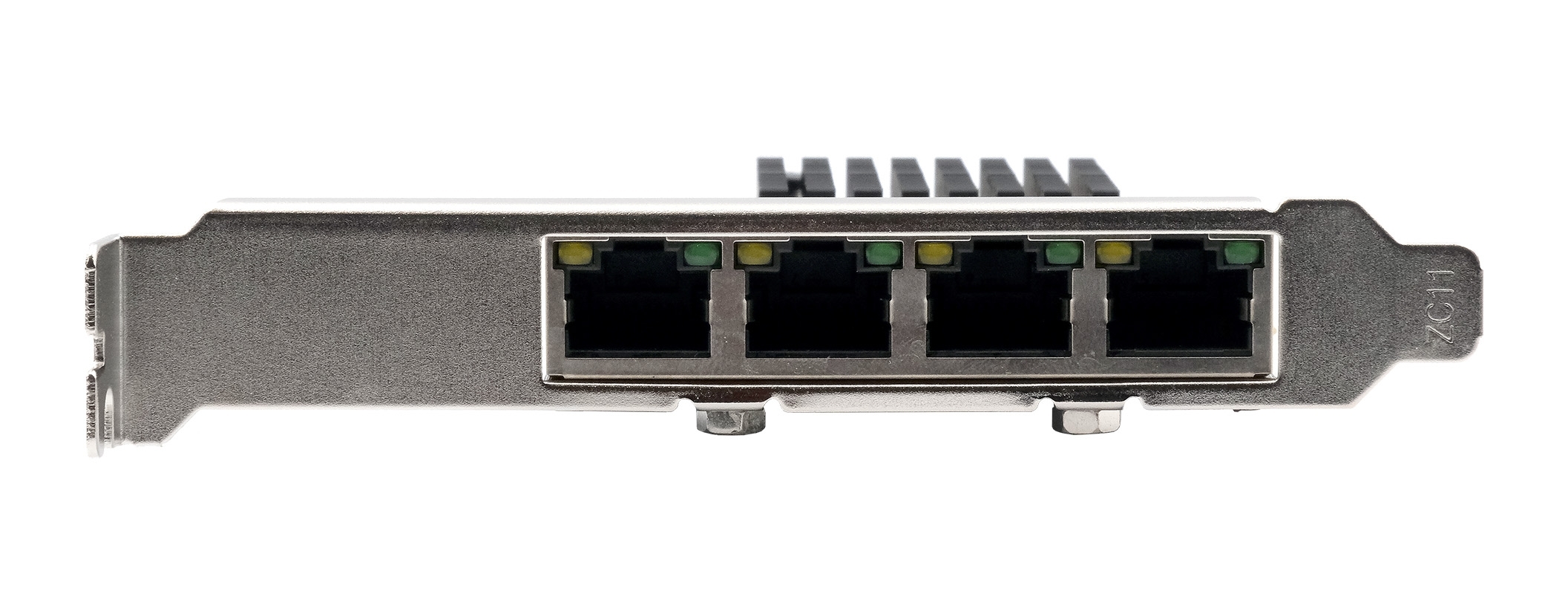

The EX-6083 is a fast Quad Gigabit Ethernet card for the PCIe x1 to x16 bus. For each output a Realtek device was used. It supports a data transfer rate of up to 1Gbit per second per port. The EX-6083 supports Half and Full Duplex as well as NWay Auto-Negotiation to automatically adapt to the speed in the network (10/100/1000Mbit/s.). Furthermore, the card is equipped with Auto-MDI/MDI-X and offers a very wide support of various operating systems. The EX-6083 comes with a low profile bracket for slim computers up to 8cm height.
- Supports 10/100/1000 Base-T Ethernet standards
- Supports PCI-Express x1 to x16 bus specification rev. 2.0
- Supports Auto-MDI/MDI-X Auto (for Crossover cable)
- Supports Jumbo Frame up to 9Kbytes
- EEE (Energy Efficient Ethernet)
- Wake-on-LAN and Remote Wake up
- Supports Full Duplex Flow Control (IEEE 802.3x)
- Support IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding
- 48KB Buffer Transmit/Receiver chip
- Activity LED to check the data transfer
- Standard Cat.6A cabling with RJ45 Ports
- Chipset 4x Realtek RTL8111H
Packaging Contents:
EX-6083, Low Profile Bracket, Manual
| Bus system: | PCIe x1 |
|---|---|
| Connections: | RJ45 |
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 4 |
