PCIe FireWire 1394b/a card with 3 Ports (TI Chipset) incl. Low Profile Bracket
Product number:
EX-16601
GTIN/EAN:
4718359166013
PCIe FireWire 1394b/a card with 3 Ports (TI Chipset) incl. Low Profile Bracket

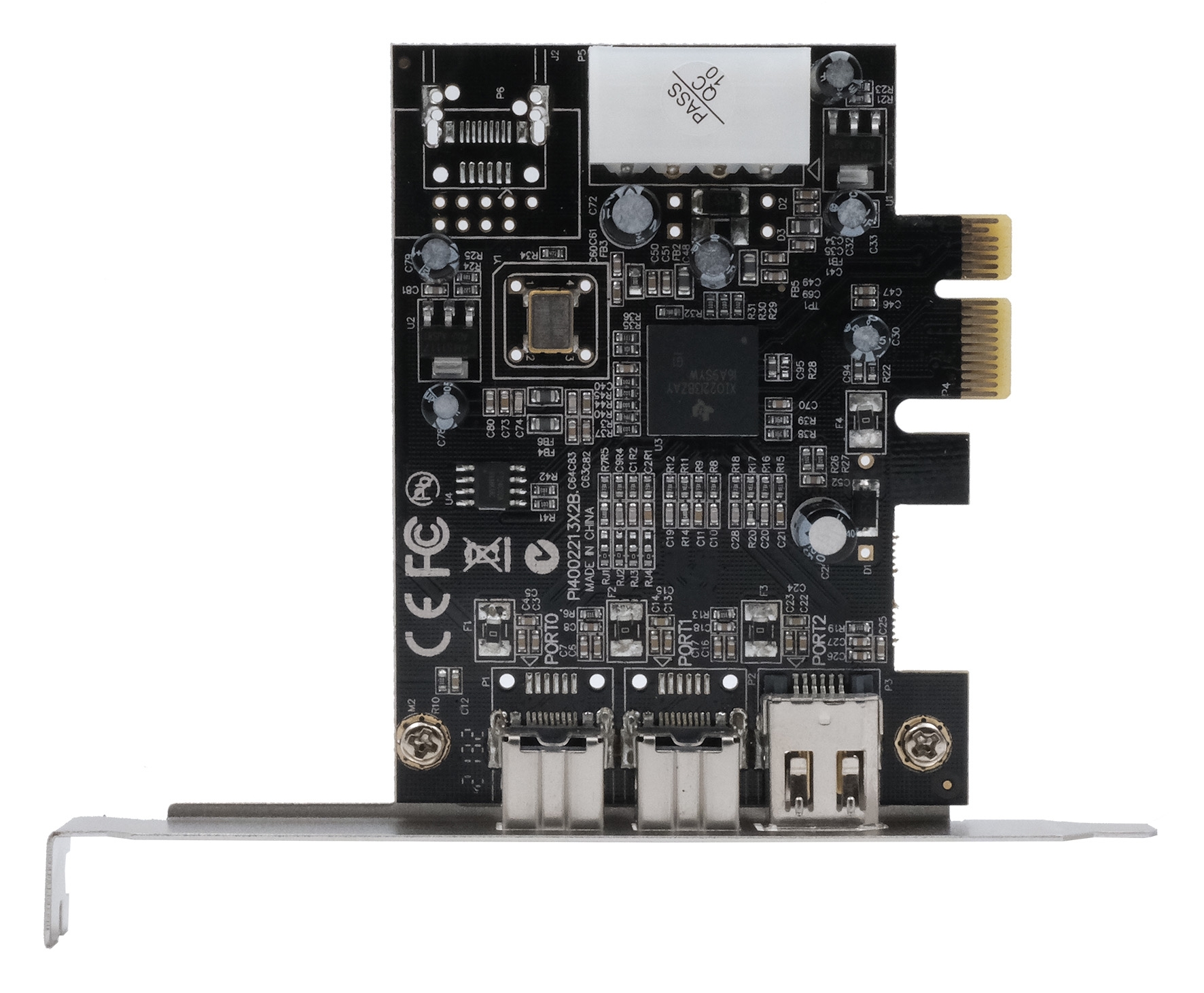

The EX-16601 PCI-Express FireWire 1394b card expands PCs, small workstations or servers by two FireWire 1394b (FireWire 800) ports and one 6 pin FireWire 1394a (FireWire 400) port. It thus enables the connection of FireWire devices such as video cameras or professional audio equipment. The EX-16601 comes with a low profile bracket for narrow computer cases up to 8 cm in height.

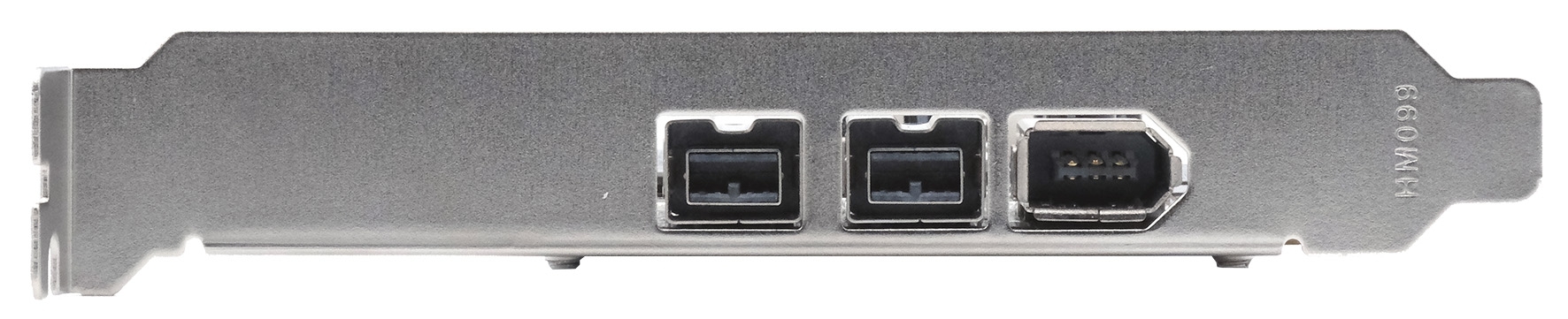

- FireWire 1394b PCIe card with three external outputs
- Support up to 63 device
- PCIe Interface are fully compliant with 1.0a specification
- "Hot swapping" to connect/disconnect devices without turnig off the computer
- Can be installed in addition to the existing FireWire ports from the mainboard
- Complies with IEEE1394b standard and is backward compatible with IEEE1394a-2000 as well as the 1394-1995 standard
- Supports PC and MAC systems
- Chipset: Texas Instrument XIO2213

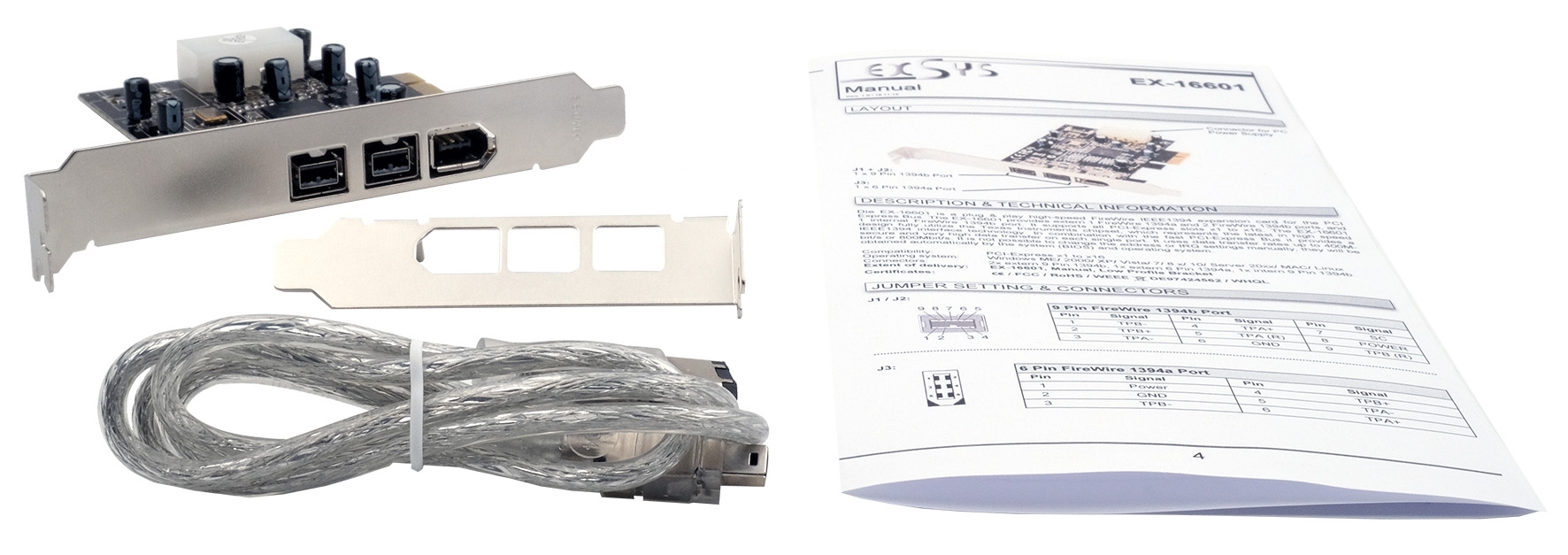

Packaging contents:
EX-16601, IEEE 1394b cable, Low Profile bracket, Manual
| Bus system: | PCIe x1 |
|---|---|
| Connections: | 9 + 6-pin socket |
| Interface: | FireWire 1394b |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 3 |
