PCIe (x4) controller for two SATA M.2 NGFF and one PCIe M.2 NGFF module
Product number:
EX-3660
GTIN/EAN:
4718359036606
PCIe (x4) controller for two SATA M.2 NGFF and one PCIe M.2 NGFF module

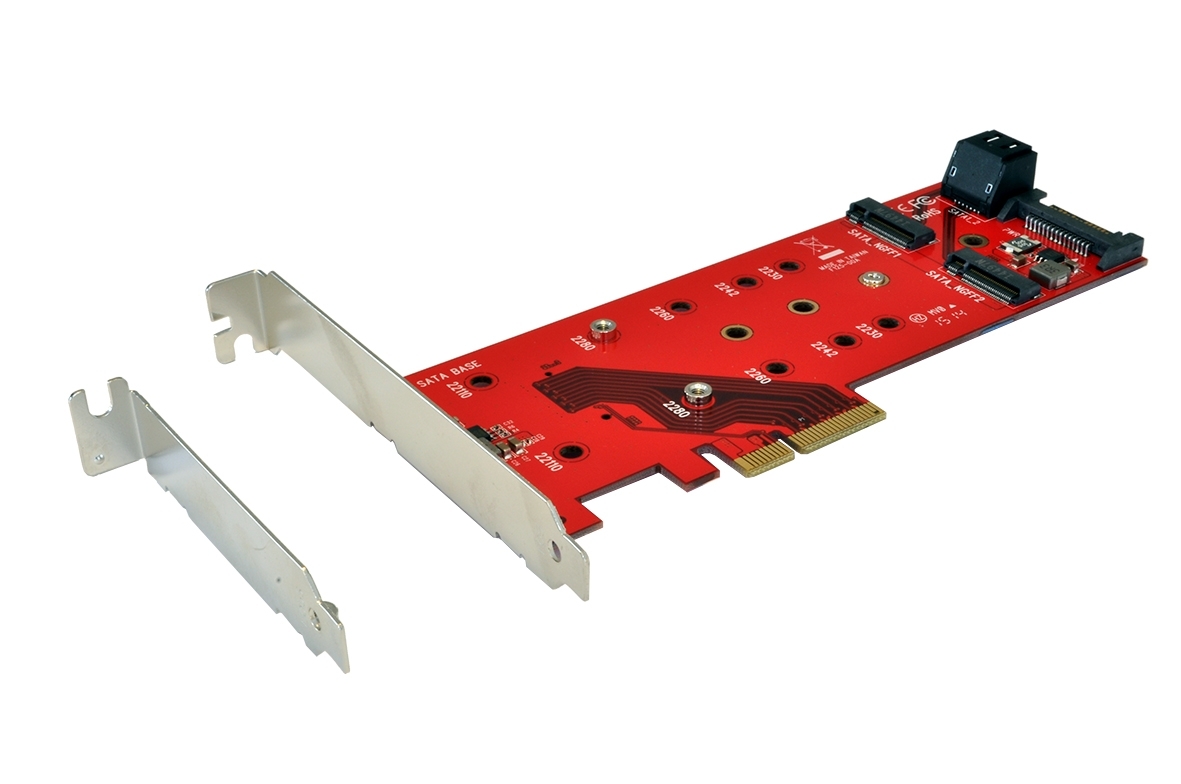

With the EX-3660 controller you can equip the computer with two SATA M.2 NGFF modules as well as one PCIe (NVMe + AHCI) M.2 NGFF module. The modules M.2 NGFF 22110, 2280, 2260 and 2242 can be used. Modules with B-Key as well as B+M Key are supported. The EX-3660 requires a PCI-Express x4 slot. A low profile bracket for narrow computer cases up to 8 cm height is included with the EX-3660.
Attention:
For the two SATA M.2 NGFF module you must use two SATA cable what is connect to the mainboard.
- PCIe (x4) board for two SATA M.2 NGFF and one PCI M.2 NGFF SSD
- Supports M.2 NGFF type 22110, 2280, 2260 and 2242 plated-hole
- Power from the PCIe bus or from the 4 pin power connector
- Supports dual-sided SSD module 1.5mm component height on the top and bottom side
- Supports PCIe 1.0, 2.0 and 3.0 mainboard
- Supports Native Command Queuing (NCQ)
Packaging contents:
EX-3660, 3x screw for fix M.2 modules, Low Profile bracket, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | SATA |
| Interface: | SATA3 |
| M.2 NGFF modules: | 22110, 2280, 2260, 2242 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 2 |
