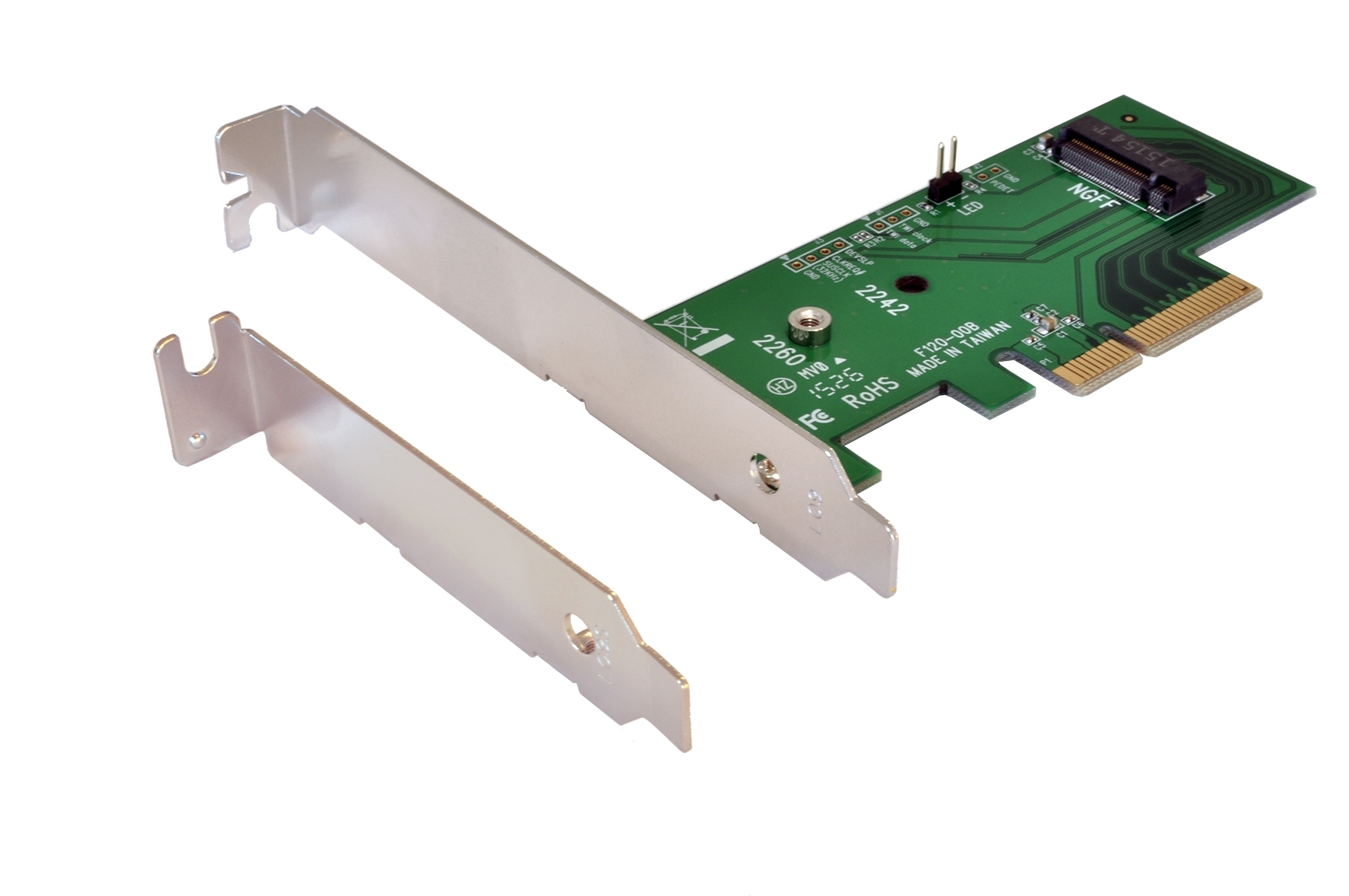

PCIe (x4) controller to M.2 NGFF module incl. Low Profile bracket
Product number:
EX-3650
GTIN/EAN:
4718359036507
PCIe (x4) controller to M.2 NGFF module incl. Low Profile bracket
With the EX-3650 controller you can add in your Computersystem a PCIe based (NVMe + AHCI) M.2 NGFF slot. You can use following M.2 NGFF module: 2280, 2260 and 2242. The EX-3650 need a PCI-Express x4 slot.
- Convert M.2 NGFF PCIe SSD to work in main board PCIe x4 bus slot
- Supports M.2 NGFF type 2280, 2260 and 2242 plated-hole with M-Key or B+M-Key based on PCIe
- Supports NVM Express (NVMe)
- Can be installed as boot drive
- Transparent to the operating system and don’t need driver
- Maximum high of 1.5mm component height on the top and bottom side
- Supports dual-sided SSD module
- Supports PCIe 1.0, 2.0 and 3.0 mainboard
- Pin header on board for drive LED connection
Packaging contents:
EX-3650, 1x screw for fix M.2 modules, Low Profile bracket, Manual
| Bus system: | PCIe x4 |
|---|---|
| Interface: | M.2 |
| M.2 NGFF modules: | 2280, 2260, 2242 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 1 |
