PCIe (x4) RAID 0/1 controller with two M.2 NGFF slots and SATA ports
Product number:
EX-3670
GTIN/EAN:
4718359036705
PCIe (x4) RAID 0/1 controller with two M.2 NGFF slots and SATA ports

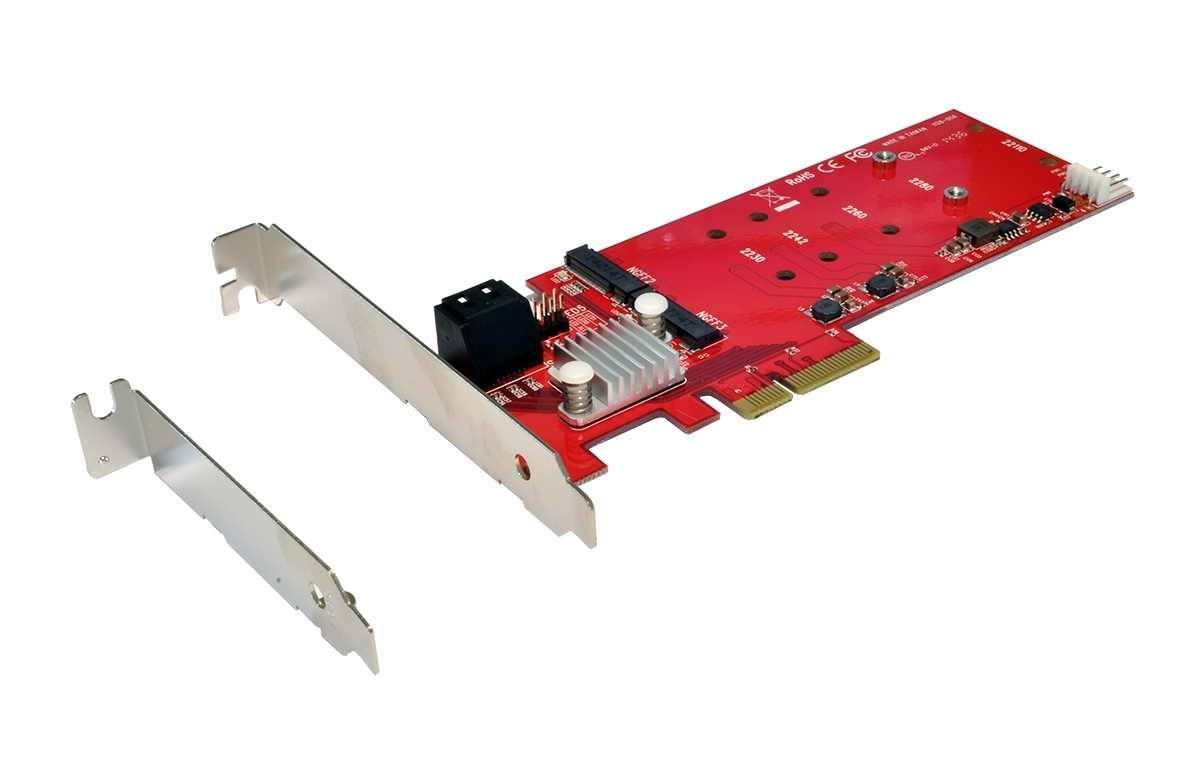

With the EX-3670 RAID 0/1 controller you can expand the computer with two SATA based M.2 NGFF modules and two SATA connectors. The modules M.2 NGFF 22110, 2280, 2260 and 2242 can be used. Modules with B-Key as well as B+M Key are supported. The EX-3670 requires a PCI-Express x4 slot.
Hyperduo function:
The Hyper Duo function supports an M.2 NGFF module in combination with an HDD. Thus, the advantages of both data carriers can be utilized. With the high capacity of the HDD and the speed of the SSD, you achieve a perfect unity.
- PCIe (x4) RAID 0/1 controller for two M.2 NGFF and SATA ports
- Supports RAID 0 / 1 and 10
- Supports M.2 NGFF type 22110, 2280, 2260 and 2242 plated-hole
- Supports dual-sided SSD module 1.5mm component height
- Supports SATA 1 to 3 for HDD and M.2 NFGG SSD
- Supports PCIe 1.0, 2.0 and 3.0 mainboard
- Supports Hyper-Duo-Function virtual disk (see in the description)
- Supports Native Command Queuing (NCQ)
- Power from the PCIe bus or from the 4 pin power connector
- Can be installed as boot drive
Packaging contents:
EX-3670, 2x screw to fix M.2 modules, Low Profile bracket, Driver CD, Manual
| Bus system: | PCIe x4 |
|---|---|
| Connections: | SATA |
| Interface: | M.2 + SATA3 |
| M.2 NGFF modules: | 22110, 2280, 2260, 2242 |
| Mounting Type: | Standard / Low Profile |
| Number of ports: | 2 |
