PoE+ Gigabit Injector 30W
Product number:
EX-60300
GTIN/EAN:
4718359603006
PoE+ Gigabit Injector 30W

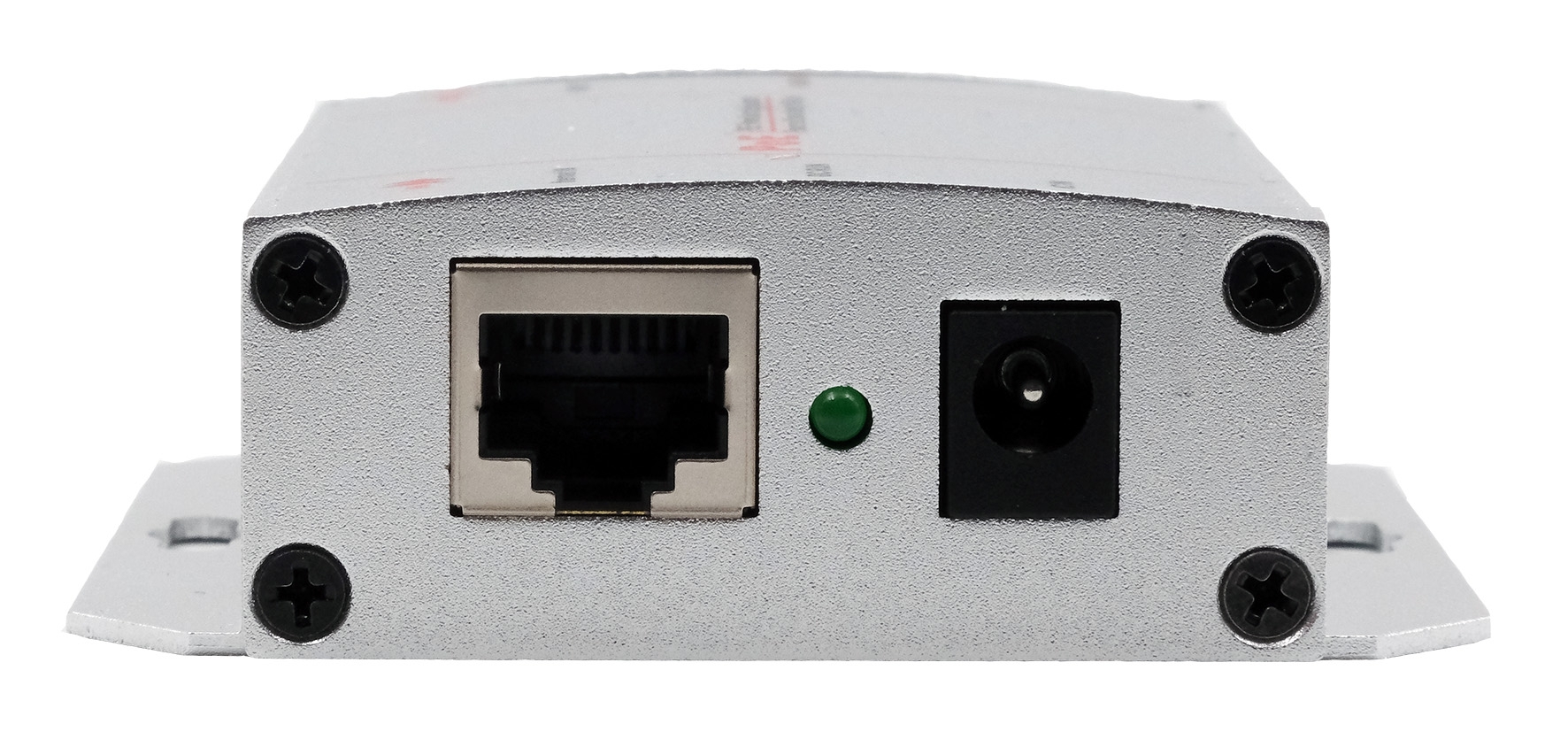

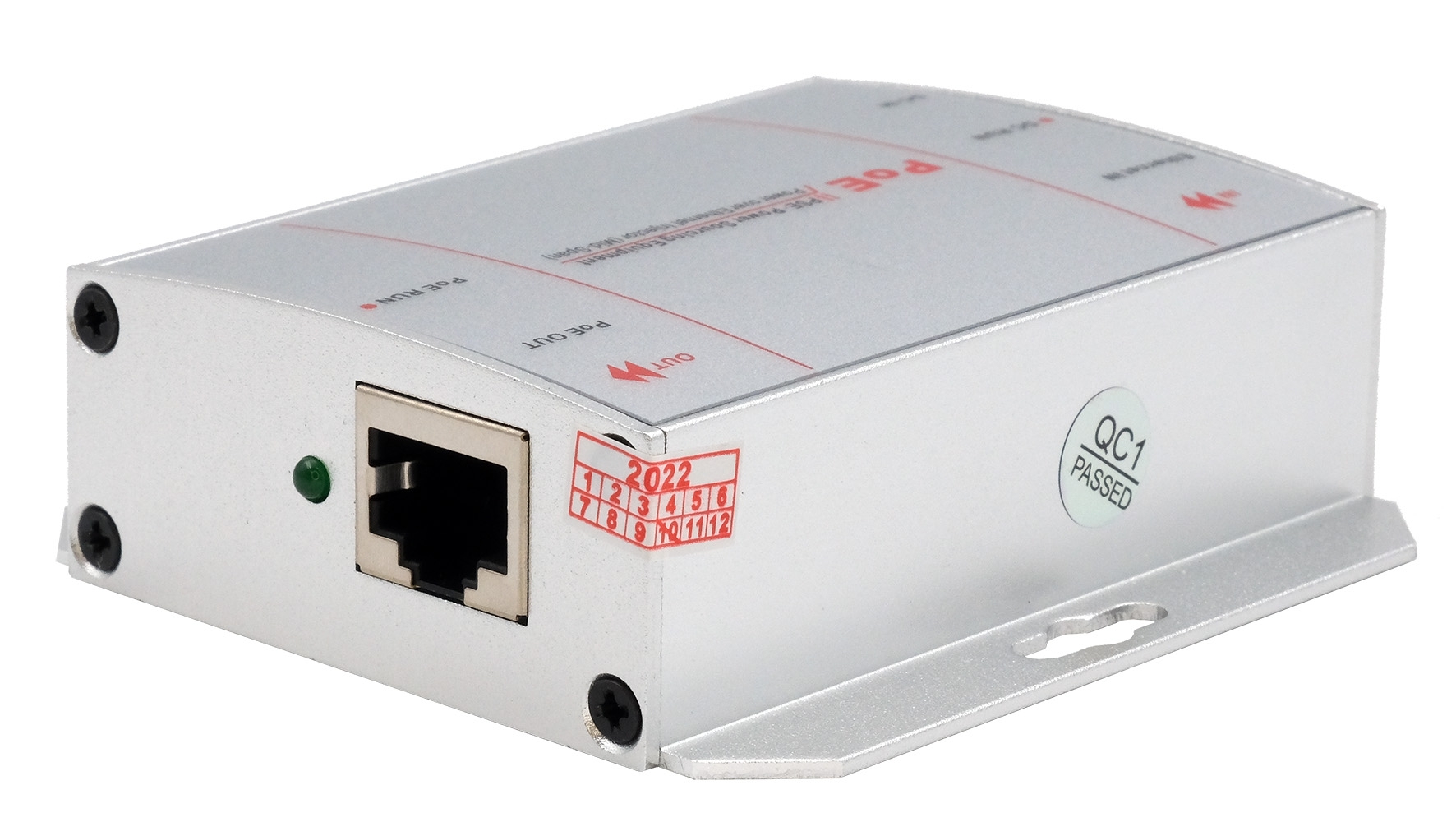

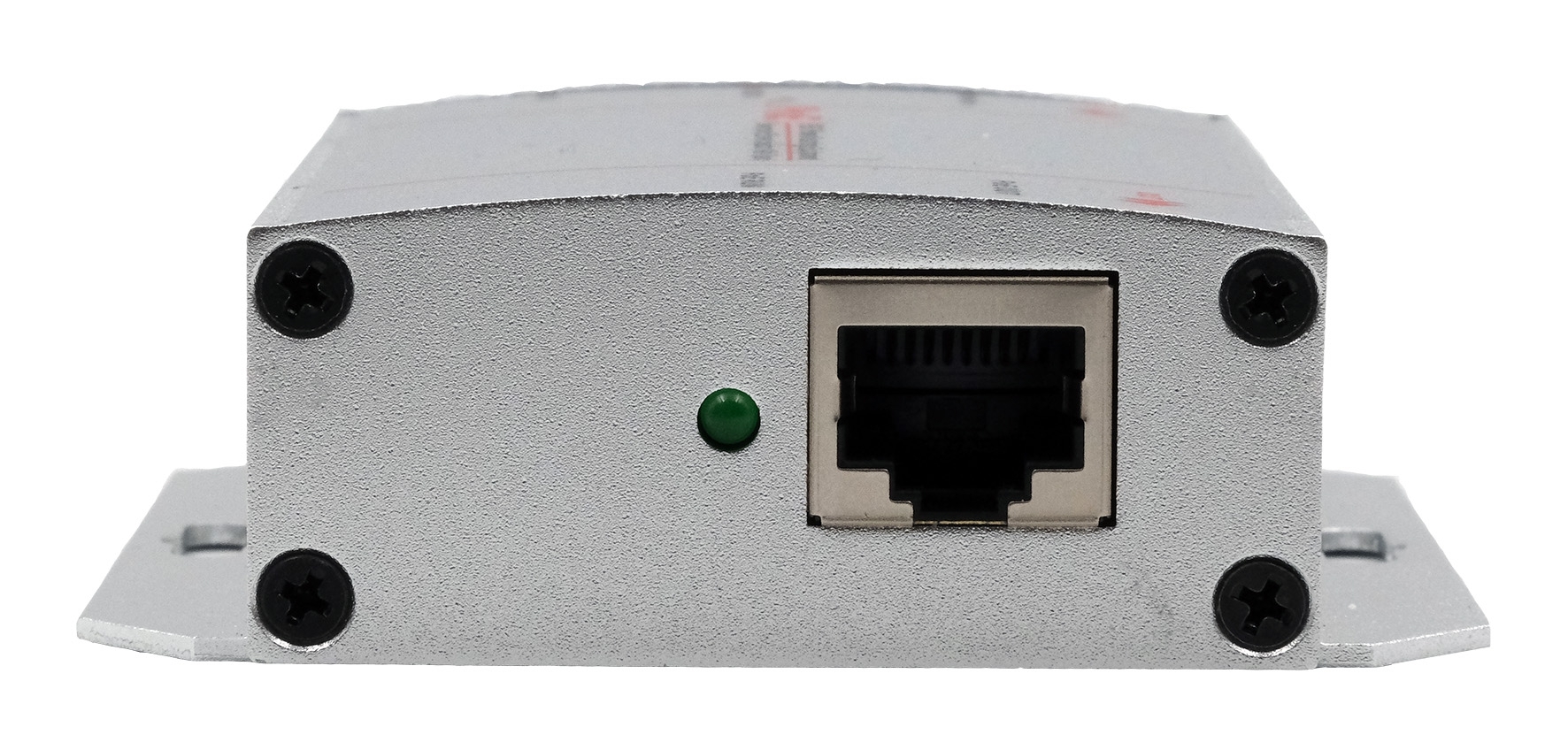

With the Gigabit Ethernet PoE Injector EX-60300 in a metal housing, end devices such as IP telephones, IP cameras, WLAN access points, etc. can be supplied with power via the network cable. It supports the PoE+ standard IEEE 802.3at. The maximum power (PD) at the PoE port is 12.95W in type 1 and 25.50W in type 2. Power is supplied from the external power supply via the +12~52V DC Jack. The EX-60300 ensures secure data transmission and excellent performance of up to 1000Mbps. The robust metal housing is suitable for wall mounting. A 36W power supply is included in the delivery.
- Provides power to remote network devices
- 10/100/1000Base-T Gigabit Ethernet
- Fully IEEE 802.3af/at Power Over Ethernet (PoE) compliant
- Maximum power delivered (PD): Type 1 = 12.95W / Type 2 = 25.50W
- Plug and play, no configuration and installation required
- LED status indicators for power supply and PoE
- DC Jack for DC input from +12 V to +52 VDC
- Rugged, compact metal housing, IP30
- Includes Power supply 24V / 1.5A

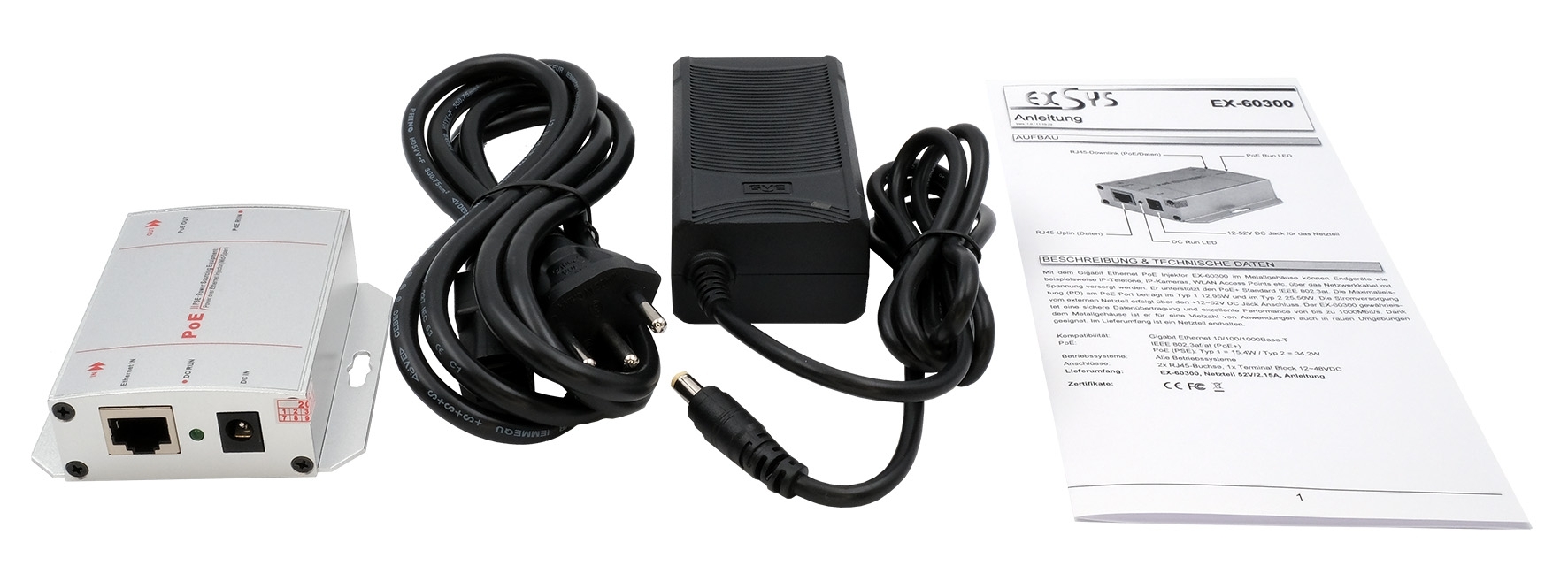

Packaging contents:
EX-60300, Power Supply 24V/1.5A, Manual
| Connections: | RJ45 |
|---|---|
| Data transmission: | 1000Base-T |
| Interface: | Ethernet |
| Mounting Type: | Desktop |
| Number of ports: | 2 |
| PoE Budget: | 30W |
| Power connection: | DC Jack 12-52V |
| Power over Ethernet: | Yes |
| Temperature range: | 0°C to +55°C |
